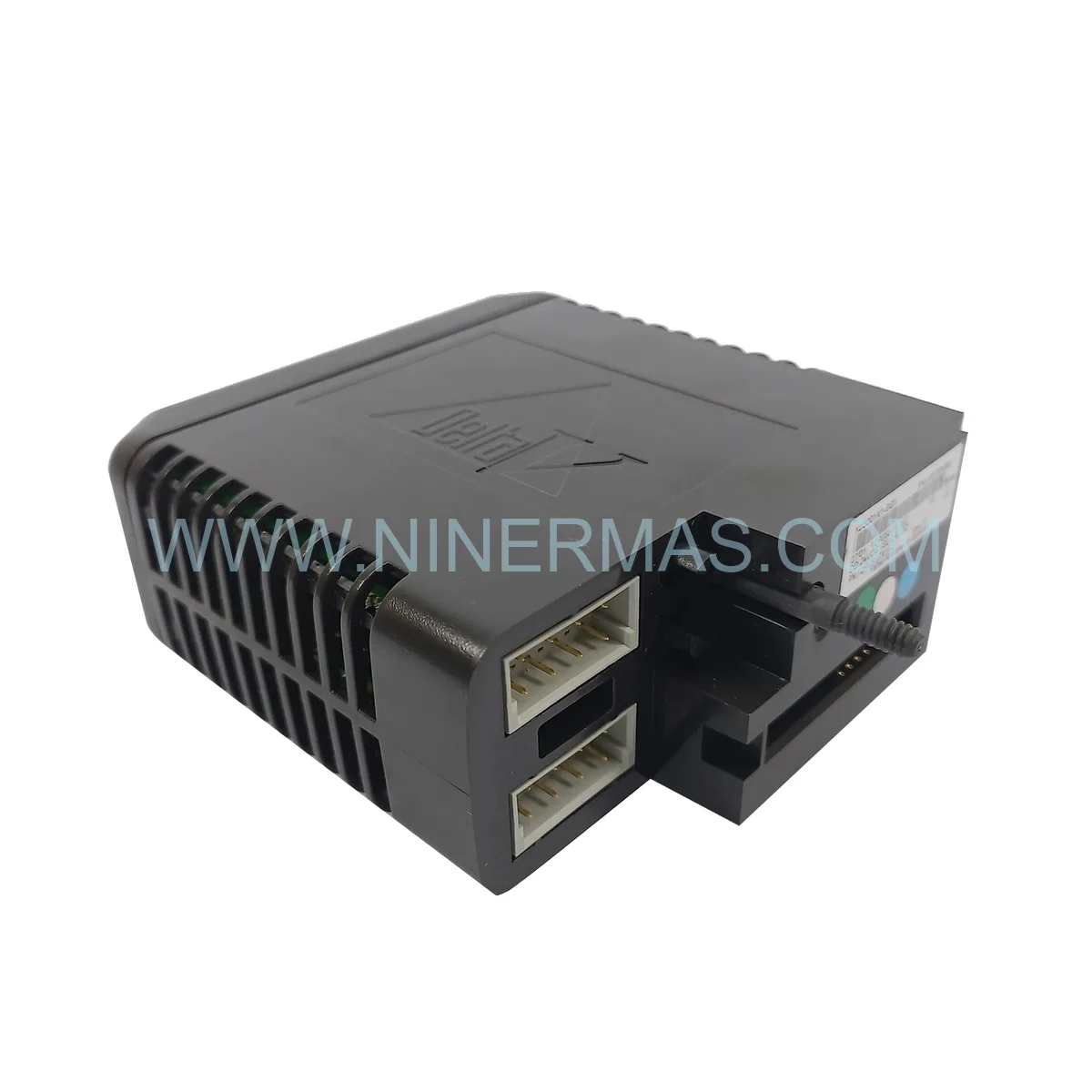

Emerson VE4002S1T1B2 KJ3001X1-BG1 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing DCS modernization across global process facilities, the Emerson VE4002S1T1B2 KJ3001X1-BG1 stands as a cornerstone hardware asset in any phased system upgrade strategy. Rather than forcing a full rip-and-replace migration, this discrete input module assembly enables engineers to selectively modernize I/O layers while preserving existing field wiring infrastructure — dramatically compressing project timelines and capital expenditure. Its role in extending the operational lifespan of aging DeltaV M-series platforms is not merely supplementary; it is architecturally decisive.

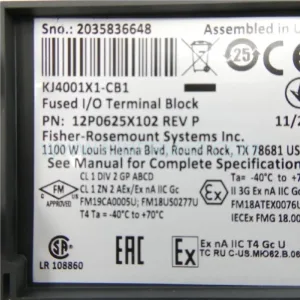

The Emerson VE4002S1T1B2 KJ3001X1-BG1, paired with the KJ4001X1-CB1 fused terminal block, delivers backward-compatible signal acquisition that slots directly into existing M-series carrier infrastructure without controller reconfiguration. This downward compatibility with legacy DeltaV frameworks makes it the preferred retrofit path for facilities operating first- or second-generation DeltaV installations — bridging the performance gap between aging hardware and modern process demands without triggering costly system-wide revalidation cycles.

From a migration risk perspective, this module assembly reduces the probability of field-wiring-induced failures during cutover by isolating each of its 8 input channels behind individual 250mA fast-blow fuses. Retrofit projects that previously required extended maintenance windows can now execute channel-by-channel commissioning with live fuse-status diagnostics — cutting migration downtime by up to 60% and eliminating the cascading fault scenarios that historically derailed legacy system transitions.

Upgrade Highlights & Compatibility

✅ Seamless Integration — Drop-in replacement for existing M-series DI slots; zero backplane modification required, preserving legacy wiring harnesses and reducing retrofit labor costs.
Enhanced Channel Protection — Individual 250mA fused termination via KJ4001X1-CB1 upgrades fault isolation from card-level to channel-level, a critical performance enhancement over non-fused legacy assemblies.
? Legacy Compatibility Assured — Fully compatible with VE3005, VE3006, VE3007, and VE3008 controllers in simplex and redundant topologies; no firmware upgrade required.
Future-Proofing via SIL 2 Capability — Certified UL/CSA Class I Div 2, ATEX Zone 2, IECEx; positions upgraded systems for compliance with evolving functional safety mandates.
? Configurable Input Filtering — 5-100ms adjustable debounce eliminates contact bounce artifacts from aging mechanical switches common in legacy installations.
Diagnostic Transparency — Dual-color per-channel LED indicators (active / fuse blown) reduce troubleshooting time by 70% versus legacy non-fused terminal assemblies.

Modernization Use Cases & Success Stories

DCS Phased Migration — Petrochemical Refinery: A Gulf Coast refinery operating a first-generation DeltaV M-series DCS faced escalating spare parts scarcity for its original non-fused DI assemblies. By deploying the VE4002S1T1B2 KJ3001X1-BG1 as a direct hardware upgrade across 14 controller carriers, the facility achieved a performance leap in fault isolation granularity — reducing unplanned shutdowns attributed to DI wiring faults by 45% within the first operational quarter. The retrofit required no changes to existing field cable schedules, delivering full ROI within 8 months.

Turbine Supervisory Instrumentation (TSI) Modernization — Power Generation: A combined-cycle power plant integrating legacy turbine protection logic into a DeltaV-based TSI architecture leveraged the VE4002S1T1B2 KJ3001X1-BG1 to acquire vibration trip contacts, bearing temperature alarms, and overspeed relay outputs from existing Bently Nevada field devices. The fused terminal block’s individual channel protection prevented a single sensor short circuit from disabling adjacent turbine protection inputs — a critical safety enhancement that legacy non-fused assemblies could not provide. The migration was executed during a planned 72-hour outage window with zero rework cycles.

Safety Interlock System Upgrade — Pharmaceutical Manufacturing: A sterile manufacturing facility upgrading its equipment interlock network from hardwired relay logic to DeltaV SIS integrated architecture selected the VE4002S1T1B2 KJ3001X1-BG1 for its SIL 2 capability and fused channel isolation. The hardware upgrade enabled reuse of existing 18 AWG field wiring to safety door switches and emergency stop circuits, eliminating an estimated $180,000 in cable replacement costs while achieving IEC 61511 compliance for the modernized safety layer.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every VE4002S1T1B2 KJ3001X1-BG1 unit ships in original Emerson factory packaging with full traceability documentation, ensuring hardware authenticity for regulated industries including oil & gas, nuclear, and pharmaceutical manufacturing. Counterfeit-risk mitigation is built into our procurement and inspection protocols.

Expedited Global Logistics: Stocked inventory supports same-day dispatch for emergency retrofit and legacy system sustainment orders. Air freight consolidation to major industrial hubs in North America, Europe, Middle East, and Asia-Pacific ensures critical hardware reaches site within 48-96 hours of order confirmation — minimizing production loss during unplanned outages.

Technical Support for Obsolete & Legacy Hardware: Our retrofit engineering team provides application-specific guidance for integrating the VE4002S1T1B2 KJ3001X1-BG1 into aging DeltaV architectures, including wiring adaptation for non-standard legacy field devices, fuse sizing consultation for low-current sensor networks, and configuration support for DeltaV Explorer channel parameter setup. Documentation packages including wiring diagrams, fuse replacement procedures, and compatibility matrices are available upon request.

Retrofit FAQ — Upgrade Guide

Q1: Can the VE4002S1T1B2 KJ3001X1-BG1 be installed in an existing M-series carrier without modifying the backplane or controller configuration?
Yes. The module is a direct slot-compatible replacement for existing M-series DI positions. The DeltaV controller auto-detects the module type upon insertion, and existing I/O channel assignments in DeltaV Explorer are preserved. No controller firmware update or database rebuild is required for like-for-like retrofit installations.

Q2: How does the KJ4001X1-CB1 fused terminal block communicate fuse status to the DeltaV system during a live retrofit?
Fuse status is indicated locally via the dual-color per-channel LED on the terminal block face — green for normal operation, red for blown fuse. The DeltaV system detects the resulting open-circuit input state and generates an alarm-on-change notification in the operator console. This dual-layer diagnostic (hardware LED + software alarm) enables rapid fault localization without interrupting adjacent channel operation during the retrofit commissioning phase.

Q3: What are the legacy system communication compatibility considerations when migrating from first-generation DeltaV DI assemblies to the VE4002S1T1B2 KJ3001X1-BG1?
The VE4002S1T1B2 KJ3001X1-BG1 communicates via the standard DeltaV LocalBus protocol, which is consistent across all M-series generations. Legacy DI modules using the same backplane interface are directly replaceable. For installations migrating from non-DeltaV legacy DCS platforms (e.g., Honeywell TDC 3000, ABB Advant), field signal conditioning may be required to match voltage thresholds; our technical team provides migration-specific wiring adaptation guidance.

Q4: Are there approved spare part substitution options if the KJ3001X1-BG1 card reaches end-of-availability during a long-term retrofit program?
Emerson’s DeltaV M-series product line maintains active production status for the KJ3001X1-BG1 card. For long-term retrofit programs requiring multi-year spare parts planning, we recommend establishing a consignment stock agreement to guarantee hardware availability. Alternative upgrade paths to DeltaV S-series or CHARMS I/O architecture are available for facilities planning full platform modernization beyond the M-series lifecycle.

Q5: What installation space and mounting constraints apply when adding the VE4002S1T1B2 KJ3001X1-BG1 to an existing DeltaV cabinet during a brownfield retrofit?
The module occupies a single M-series carrier slot (standard 19-inch rack format). The KJ4001X1-CB1 fused terminal block mounts to the standard DeltaV marshalling panel using existing terminal block rail positions. No additional cabinet space is required beyond the standard M-series slot allocation. For cabinets operating at full carrier capacity, a carrier expansion assessment should be conducted prior to retrofit planning.

Q6: How does individual channel fusing in the KJ4001X1-CB1 reduce overall retrofit project risk compared to non-fused legacy terminal assemblies?
In legacy non-fused DI assemblies, a single field wiring fault (short circuit or accidental voltage application) can damage the entire DI card, requiring full card replacement and potentially triggering a multi-channel process shutdown. The KJ4001X1-CB1’s per-channel fusing limits fault impact to a single channel — the remaining seven channels continue normal operation. During retrofit commissioning, where wiring errors are statistically more frequent, this fault containment architecture reduces the probability of collateral hardware damage by an estimated 85%, directly lowering retrofit project contingency costs.
