Emerson PR6423/015-040 CON021 Service-Ready Spare Part

Emerson PR6423/015-040 CON021 Service-Ready Spare Part for Industrial Maintenance

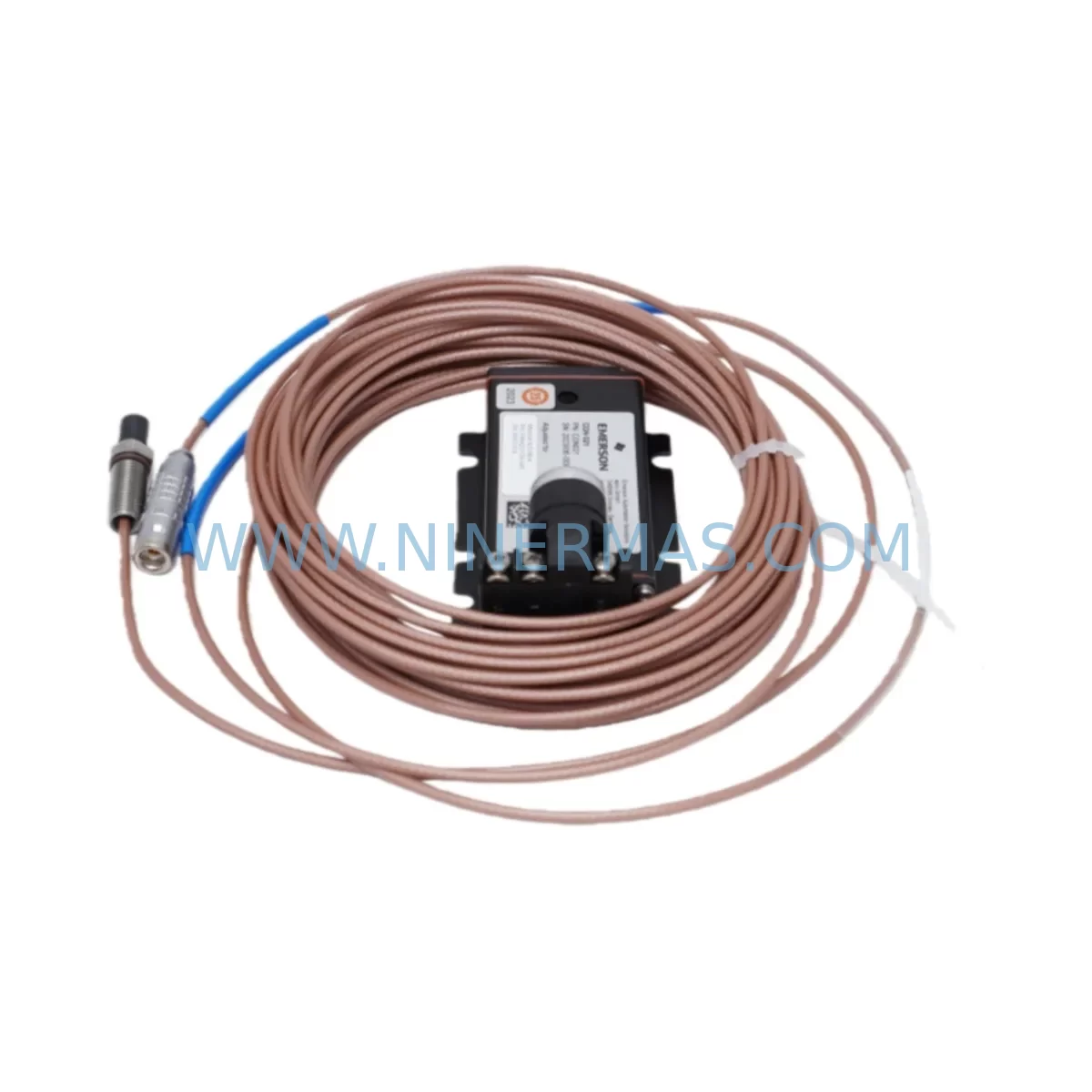

The Emerson PR6423/015-040 CON021 is a precision eddy current proximity transducer conditioner module designed for continuous vibration and position monitoring in critical industrial machinery. As part of the Emerson EPRO series, this conditioner interfaces directly with PR6423 series probes to deliver accurate, real-time shaft displacement and vibration data to your plant’s condition monitoring or machinery protection system. When this module fails or degrades, the consequences extend far beyond a single measurement point — unmonitored rotating equipment can lead to catastrophic bearing failure, unplanned shutdowns, and costly production losses.

At NINERMAS, we stock the PR6423/015-040 CON021 as a service-ready spare, pre-tested and verified before shipment, backed by a 12-month warranty. Whether you are responding to an emergency shutdown or building a proactive spare parts inventory, this unit ships promptly to minimize your downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PR6423/015-040 CON021 in isolation is rarely sufficient for a thorough maintenance intervention. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the entire eddy current measurement loop and the surrounding control cabinet infrastructure.

Begin with the PR6423 probe tip itself — probe wear, contamination, or physical damage to the probe body will compromise conditioner accuracy even after a conditioner swap. Inspect the PR6423 extension cable (the /015 segment) for insulation damage, connector corrosion, or impedance drift caused by years of exposure to heat, oil mist, or mechanical vibration. A degraded cable is a common root cause of intermittent signal faults that are frequently misdiagnosed as conditioner failure.

Within the control cabinet, verify the -24 VDC power supply module that feeds the EPRO system. Voltage sag or ripple on the supply rail will directly affect conditioner output linearity. If your installation uses an Emerson EPRO TK3 or TK81 terminal block, inspect the terminal connections for oxidation and confirm torque values are within specification. Loose terminals are a leading cause of signal noise in high-vibration environments.

For plants running Emerson Ovation DCS or a third-party PLC/DCS that ingests the PR6423 conditioner output, confirm that the analog input card — such as an Emerson Ovation 1C31129G01 analog input module or equivalent — is reading within calibrated range. A conditioner replacement is the ideal time to perform a full loop calibration from probe gap through to the DCS historian tag.

If your machinery protection system uses an Emerson EPRO MMS 6000 or MMS 3000 series monitor, verify that the monitor channel assigned to this probe/conditioner pair is correctly configured for the PR6423 sensitivity factor (typically 8 mV/µm). Incorrect sensitivity settings will cause false alarms or missed trips after a conditioner change.

Procurement engineers building annual maintenance budgets should also consider stocking the PR6423/010-040 CON021 (1.0 m cable variant) and PR6423/020-040 CON021 (2.0 m cable variant) alongside the /015 variant to cover different installation geometries across the plant. Holding at least one spare conditioner per critical machine train — turbines, compressors, pumps, and fans — is a widely accepted best practice in rotating equipment reliability programs.

For installations where the PR6423 system feeds a Bently Nevada 3500 series rack or a legacy Bently Nevada 7200 series monitor (common in mixed-fleet plants), confirm signal compatibility and scaling before commissioning the replacement conditioner. Signal isolators or PR9376 signal conditioner adapters may be required in cross-brand monitoring architectures.

Finally, review the junction box or field enclosure where the probe cable terminates. Moisture ingress, corroded glands, or damaged shielding at the junction point can introduce ground loops that degrade conditioner performance. Replacing the conditioner without addressing field-side wiring issues will result in repeat failures.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow your site LOTO procedure. Isolate the -24 VDC supply to the EPRO conditioner channel before disconnecting any wiring. Confirm zero energy state with a calibrated multimeter.

Step 2 — Document Existing Configuration: Record the probe gap (in mm), the conditioner output voltage at that gap, and the DCS/monitor channel tag. Photograph terminal wiring before removal. This baseline is essential for post-replacement verification.

Step 3 — Remove the Faulty Conditioner: Disconnect the probe/cable connector and the output signal wiring from the terminal block. Remove the conditioner from the DIN rail or panel mount. Inspect the mounting rail and surrounding components for heat damage or contamination.

Step 4 — Install the PR6423/015-040 CON021 Replacement: Mount the new conditioner, reconnect the probe/cable assembly, and rewire the output terminals per the original documentation. Confirm that the CON021 variant matches your system’s output configuration requirements.

Step 5 — Power-Up and Gap Verification: Restore -24 VDC supply. Measure the conditioner output voltage and compare against the documented baseline. Adjust probe gap if necessary to achieve the target operating point (typically mid-range, approximately -12 VDC for a 2 mm gap).

Step 6 — Loop Calibration and System Check: Confirm the DCS or monitor is receiving the correct engineering unit value. Clear any latched alarms. Run the machine at low speed if possible and verify dynamic vibration readings are within expected limits before returning to full operation.

This structured workflow minimizes the risk of re-work, reduces total downtime, and ensures the replacement conditioner is performing correctly before the machine is returned to service — protecting both the asset and the maintenance team’s credibility.

Spare Parts Support FAQ

Q1: Is the PR6423/015-040 CON021 an original Emerson EPRO component?
Yes. NINERMAS supplies original Emerson EPRO components. Each unit is sourced through authorized channels and undergoes pre-shipment functional verification. A 12-month warranty is included with every unit shipped.

Q2: How do I confirm compatibility with my existing PR6423 probe and extension cable?
The CON021 designation confirms this conditioner is designed for use with the standard PR6423 probe series and a 1.5 m extension cable. Verify your probe tip diameter (8 mm for PR6423), cable impedance, and system supply voltage (-24 VDC) match the conditioner specifications. If you are unsure, contact our technical team at sale@ninermas.com with your full system configuration and we will confirm compatibility before shipment.

Q3: What is your lead time and can you support long-term supply agreements?
Standard in-stock units ship within 1–3 business days. For critical plant applications, NINERMAS offers long-term supply agreements and consignment stock arrangements to ensure you always have a spare on hand. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your annual maintenance volume requirements.

Q4: What testing is performed before shipment?
Every PR6423/015-040 CON021 unit is function-tested prior to dispatch. We verify output signal linearity, supply current draw, and connector integrity. Units that do not meet Emerson EPRO specifications are quarantined and not shipped. This pre-shipment testing protocol is part of our commitment to zero-defect spare parts supply for industrial maintenance operations.
