EMERSON PR6423/003-031 CON041 Retrofit-Compatible Eddy Current Sensor

EMERSON PR6423/003-031 CON041 Retrofit-Compatible Eddy Current Sensor Module for Legacy System Modernization

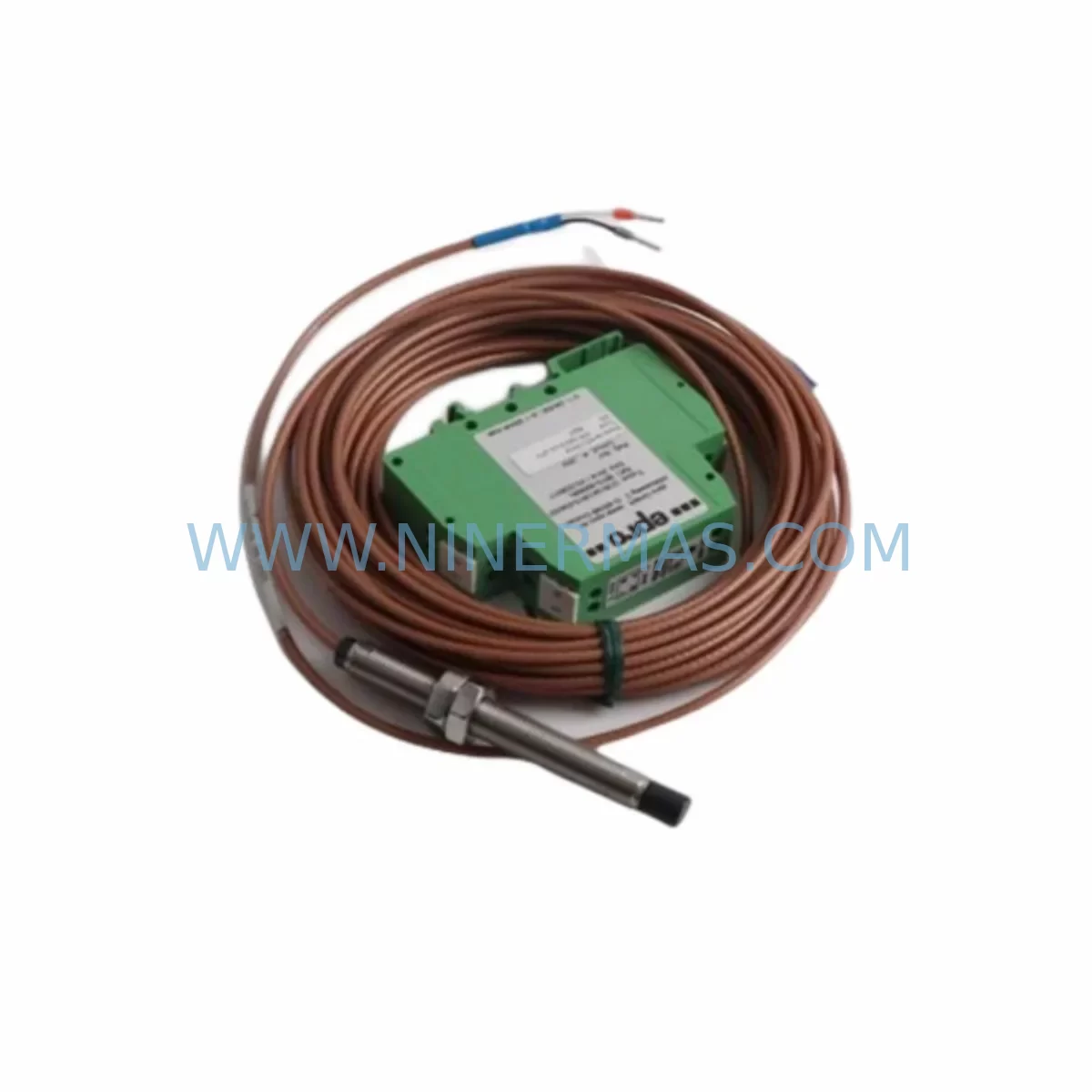

The EMERSON PR6423/003-031 CON041 is a ruggedized eddy current sensor module engineered for non-contact displacement and vibration measurement in rotating machinery protection systems. As industrial facilities face the end-of-life of legacy EPRO and Bently Nevada 3300 series platforms, the PR6423/003-031 CON041 has become a critical retrofit component for engineers tasked with modernizing turbine monitoring panels, compressor control cabinets, and generator protection racks without full system replacement.

NINERMAS maintains verified inventory of the PR6423/003-031 CON041 with full functional testing, 12-month warranty coverage, and same-week dispatch capability — enabling maintenance teams to minimize unplanned downtime and execute planned turnaround upgrades on schedule.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the PR6423/003-031 CON041 within an existing machinery protection system requires a structured approach that accounts for the full signal chain — from the probe tip through the extension cable, driver/conditioner, and into the monitoring rack. In most legacy installations, the PR6423/003-031 CON041 operates alongside the CON021 driver/conditioner or the newer CON041 signal conditioner, both of which must be verified for output voltage compatibility before the replacement probe is commissioned.

In turbine and compressor protection panels built around the EPRO MMS 6000 series or the Bently Nevada 3500 rack system, the eddy current sensor feeds displacement data to input cards such as the 3500/40M proximitor monitor or the 3500/42M velocity/acceleration monitor. Engineers should confirm that the replacement PR6423/003-031 CON041 produces the correct static gap voltage (-10 VDC ±0.5 V at nominal air gap) before reconnecting to these input cards, as an out-of-range signal will trigger a system fault or inhibit alarm outputs.

For installations where the original probe cable has been routed through conduit or embedded in machinery foundations, the PR9268/200 extension cable is the standard EPRO-compatible interconnect. Verify the total cable length (probe + extension) does not exceed the driver’s rated range, as excessive cable capacitance degrades linearity. In cases where the original extension cable is damaged or non-standard, a full cable assembly replacement using EPRO-certified coaxial cable is recommended before final commissioning.

Control cabinet upgrades that involve migrating from legacy relay-based protection logic to modern PLC-based safety systems — such as those built on Siemens S7-300 or Allen-Bradley ControlLogix platforms — require careful attention to the analog input card specifications. The 4–20 mA or voltage output from the CON041 conditioner must be mapped correctly to the PLC’s analog input module, and the engineering unit scaling (e.g., mils or microns per volt) must be re-entered in the new program. If the legacy system used a Bently Nevada 3300 series proximitor, the output characteristics differ slightly from the EPRO CON041, and the PLC scaling parameters must be adjusted accordingly.

HMI screens that display shaft displacement, eccentricity, or differential expansion values will need to be updated to reflect the new sensor’s calibration constants. In SCADA environments running Wonderware InTouch or Ignition by Inductive Automation, tag scaling and alarm setpoints should be reviewed and validated against the new sensor’s output curve before returning the machine to service. This is particularly important in steam turbine applications where axial position monitoring is a trip-critical function.

For facilities performing a phased migration — replacing sensors one at a time while keeping the remainder of the protection system live — it is essential to use the bypass/inhibit function on the monitoring rack (available on the 3500 series via the rack interface module) to suppress spurious alarms during the swap. The Rack Interface Module (RIM) or a dedicated I/O module can be used to temporarily inhibit the affected channel while the new PR6423/003-031 CON041 is installed and gapped. This approach keeps the remaining protection channels active and maintains plant safety during the retrofit window.

Downtime Control During System Migration

Minimizing downtime during a sensor replacement on a live machinery protection system requires pre-staging all replacement components — including the PR6423/003-031 CON041, extension cable, and any required conditioner — before the maintenance window opens. NINERMAS recommends requesting a pre-shipment functional test report with each unit, confirming that the probe’s output voltage, linearity, and temperature response have been verified against EPRO factory specifications.

Where the plant’s maintenance schedule permits only a short outage window (4–8 hours), the replacement sequence should follow this order: inhibit the monitoring channel at the rack level, remove the legacy probe assembly, install the PR6423/003-031 CON041 in the existing probe holder, set the air gap to achieve -10 VDC static output, reconnect the extension cable and conditioner, verify the signal at the rack input card, and then release the channel inhibit. This sequence preserves the original program logic and alarm setpoints in the monitoring rack, eliminating the need for software changes during the outage.

For systems where the original probe holder is worn or corroded, a probe holder replacement should be included in the scope of work. Using a misaligned or damaged holder will prevent accurate gap setting and may cause the new sensor to read incorrectly under dynamic conditions. NINERMAS can advise on compatible probe holder specifications for the PR6423/003-031 CON041 based on the shaft diameter and material of the target machine.

Post-installation, a dynamic verification run — bringing the machine to operating speed and confirming that the displacement waveform, DC gap voltage, and alarm thresholds behave as expected — is the final step before returning the unit to normal service. This run should be documented and retained as part of the maintenance record, supporting future audits and demonstrating that the retrofit was completed in accordance with the original system design intent.

Retrofit Support FAQ

Q1: Is the PR6423/003-031 CON041 a direct drop-in replacement for the PR6423/001-031 or PR6423/002-031?
The PR6423/003-031 CON041 shares the same probe body diameter and EPRO signal standard as the /001 and /002 variants, but the suffix designates cable length and connector type. Confirm that the replacement unit’s cable length matches the original installation before ordering. In most cases, the CON041 conditioner is compatible with all PR6423 probe variants, but gap voltage re-calibration is always required after a probe swap.

Q2: Can this sensor be used with a Bently Nevada 3500 rack without modification?
The PR6423/003-031 CON041 outputs a standard EPRO-compatible signal (-24 VDC supply, -10 VDC nominal gap output). The Bently Nevada 3500/40M proximitor monitor accepts this signal range, but you must verify that the input card is configured for the correct sensitivity (V/mil or mV/µm) matching the EPRO probe’s calibration curve. No hardware modification to the rack is required, but software scaling in the rack configuration must be reviewed.

Q3: What commissioning steps are required after installation?
After mechanical installation, set the air gap between the probe tip and the target shaft surface to achieve a static DC output of -10 VDC ±0.5 V using a calibrated DC voltmeter or the conditioner’s built-in test point. Verify the signal at the monitoring rack input and confirm that the channel reads within the expected engineering unit range. Run the machine to minimum governor speed and confirm that the dynamic signal is clean and free of electrical noise before releasing the channel inhibit.

Q4: What warranty and testing does NINERMAS provide with this unit?
All PR6423/003-031 CON041 units supplied by NINERMAS are covered by a 12-month warranty from the date of dispatch. Each unit undergoes functional testing prior to shipment, including output voltage verification and insulation resistance checks. A test report is available upon request. NINERMAS maintains stock inventory for immediate dispatch, supporting both planned maintenance schedules and emergency breakdown requirements.
