Emerson Ovation 5X00241G01 Retrofit-Compatible Processor

Emerson Ovation 5X00241G01 Retrofit-Compatible Processor for Legacy Systems

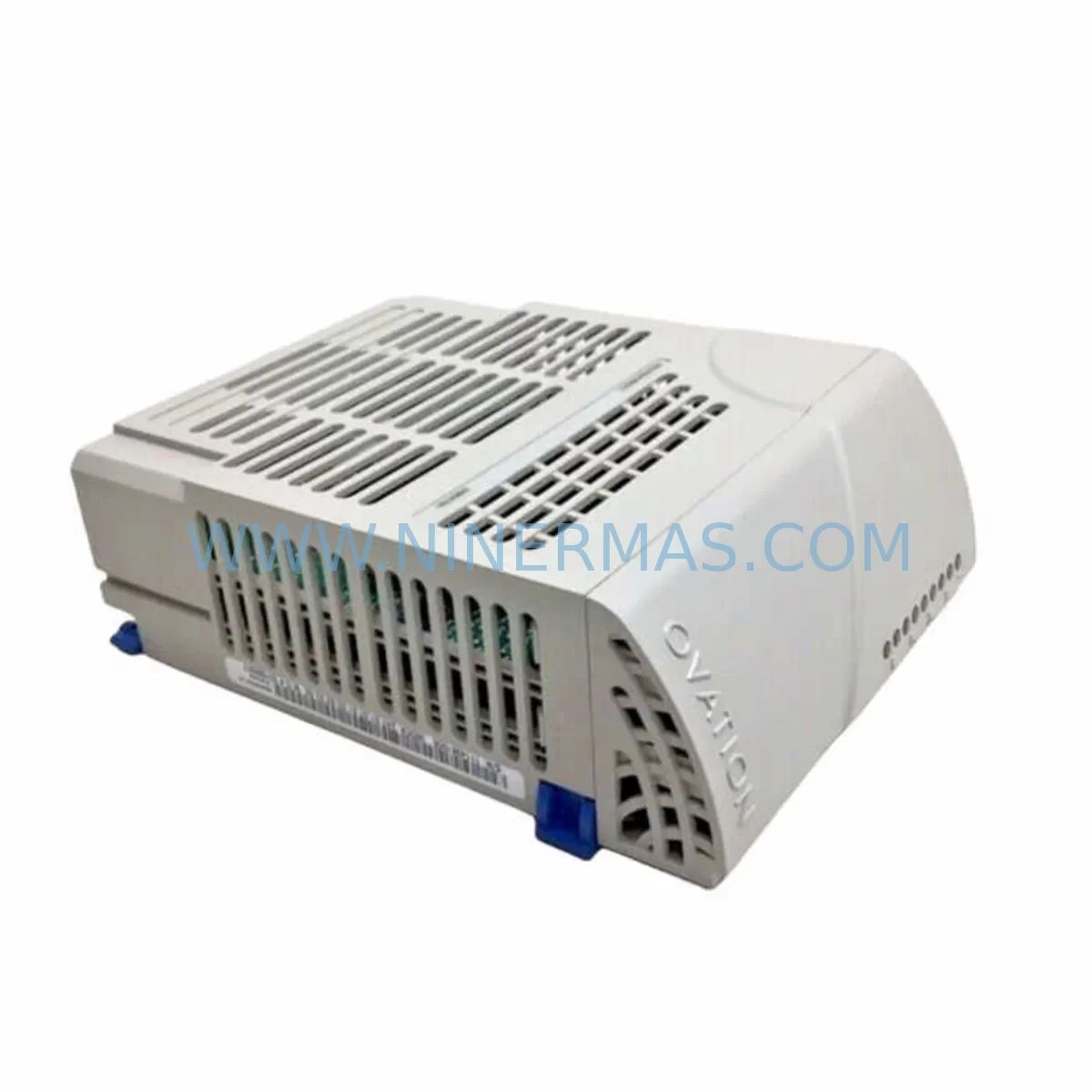

The Emerson Ovation 5X00241G01 is a processor module engineered for the Ovation Distributed Control System (DCS) platform — one of the most widely deployed control architectures in power generation, water treatment, and continuous process industries. As original Ovation hardware reaches end-of-life and OEM support windows close, the 5X00241G01 has become a critical spare for facilities managing aging control infrastructure. NINERMAS maintains verified stock of this module to support planned retrofits, emergency replacements, and long-term spare-parts programs with a 12-month warranty on every unit shipped.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the Emerson Ovation 5X00241G01 in an operating plant requires a structured approach that accounts for the full control architecture — not just the processor module itself. Before scheduling a maintenance window, site engineers should audit the existing Ovation rack assembly to confirm the chassis generation, available backplane slots, and the revision level of adjacent I/O modules such as the Ovation 5X00119G01 analog input module and 5X00300G01 digital output module, which must remain firmware-compatible with the replacement processor.

Power budget verification is a non-negotiable first step. The Ovation rack’s 5X00070G01 power supply module must be confirmed to deliver adequate current headroom for the processor and all populated I/O slots. If the existing power supply is also approaching end-of-life, a parallel replacement should be planned to avoid a secondary failure during commissioning. Terminal wiring on field I/O marshalling panels should be documented and photographed before any module is removed — particularly for thermocouple, RTD, and 4–20 mA signal loops that feed into the Ovation I/O subsystem.

Communication link integrity is equally critical. The 5X00241G01 processor participates in the Ovation control network alongside the OCR400 or OCR1100 controller nodes. Before the swap, engineers should export the current controller configuration from Ovation Developer Studio, archive the project database, and confirm the network topology — including any Ovation network interface cards or redundant Ethernet switches that form the plant control LAN. If the site also operates Modbus RTU or PROFIBUS DP field devices, the communication module configuration (e.g. 5X00095G01 serial communication module) must be verified to ensure protocol mapping survives the processor replacement without re-engineering.

For facilities running mixed-generation Ovation hardware alongside newer DeltaV S-series controllers or third-party PLCs integrated via OPC-DA/UA gateways, the retrofit scope may extend to updating the HMI graphics in Ovation Operator Station to reflect any tag address changes introduced by the new processor revision. Signal isolators and Pepperl+Fuchs or MTL field barriers in hazardous-area loops should also be inspected for compatibility with the updated I/O scan rates.

NINERMAS recommends requesting a full bill-of-materials review before finalizing the retrofit order. In many cases, customers sourcing the 5X00241G01 also require companion spares such as the 5X00106G01 communication controller or 5X00399G01 I/O link interface module to complete a resilient spare-parts kit that covers the most failure-prone nodes in the Ovation architecture.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any Ovation processor replacement. NINERMAS supports customers with pre-shipment functional testing on every 5X00241G01 unit — each module is bench-verified for power-on self-test completion, backplane communication handshake, and memory integrity before dispatch. This reduces the risk of receiving a non-functional spare during a live maintenance window.

On-site, the recommended sequence is: (1) place the Ovation controller in manual fallback mode to hold last-known output states on all field devices; (2) export and locally back up the controller database from Ovation Developer Studio; (3) remove the failed 5X00241G01 and seat the replacement module; (4) power-cycle the rack and confirm the processor completes its boot sequence and re-establishes backplane communication with all I/O modules; (5) reload the controller configuration and perform a point-by-point I/O verification against the site’s loop check sheets before returning to automatic control.

For redundant Ovation controller configurations, the switchover can be performed with zero process interruption by promoting the standby controller before the primary is removed — provided the standby processor (also a 5X00241G01 or compatible revision) has been pre-loaded with the current configuration. NINERMAS can supply matched pairs of processor modules for redundant architectures, with lead times confirmed at order placement. All units ship with a 12-month warranty and are supported by our technical team for commissioning queries throughout the warranty period.

Retrofit Support FAQ

Q1: Is the 5X00241G01 a direct drop-in replacement for all Ovation processor slots?
The 5X00241G01 is designed for specific Ovation rack generations. Before ordering, confirm your chassis part number and the revision level of the existing processor. NINERMAS technical support can assist with cross-referencing your site’s hardware revision against available stock to ensure a compatible match.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, the controller configuration must be reloaded from Ovation Developer Studio. Engineers should then perform a full I/O scan, verify module addressing, check communication link status to all networked nodes, and conduct a loop check on critical control loops before returning the system to automatic mode. NINERMAS provides a commissioning checklist on request.

Q3: Can NINERMAS supply the 5X00241G01 with short lead times for emergency breakdowns?
Yes. NINERMAS maintains warehouse stock of the 5X00241G01 to support emergency dispatch requirements. Standard orders are processed within 1–2 business days, with expedited shipping available to most global destinations. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and lead time.

Q4: What does the 12-month warranty cover?
All 5X00241G01 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team, and replacement units can be dispatched on an advance-exchange basis to minimize site downtime. Warranty terms are provided in writing with every shipment.
