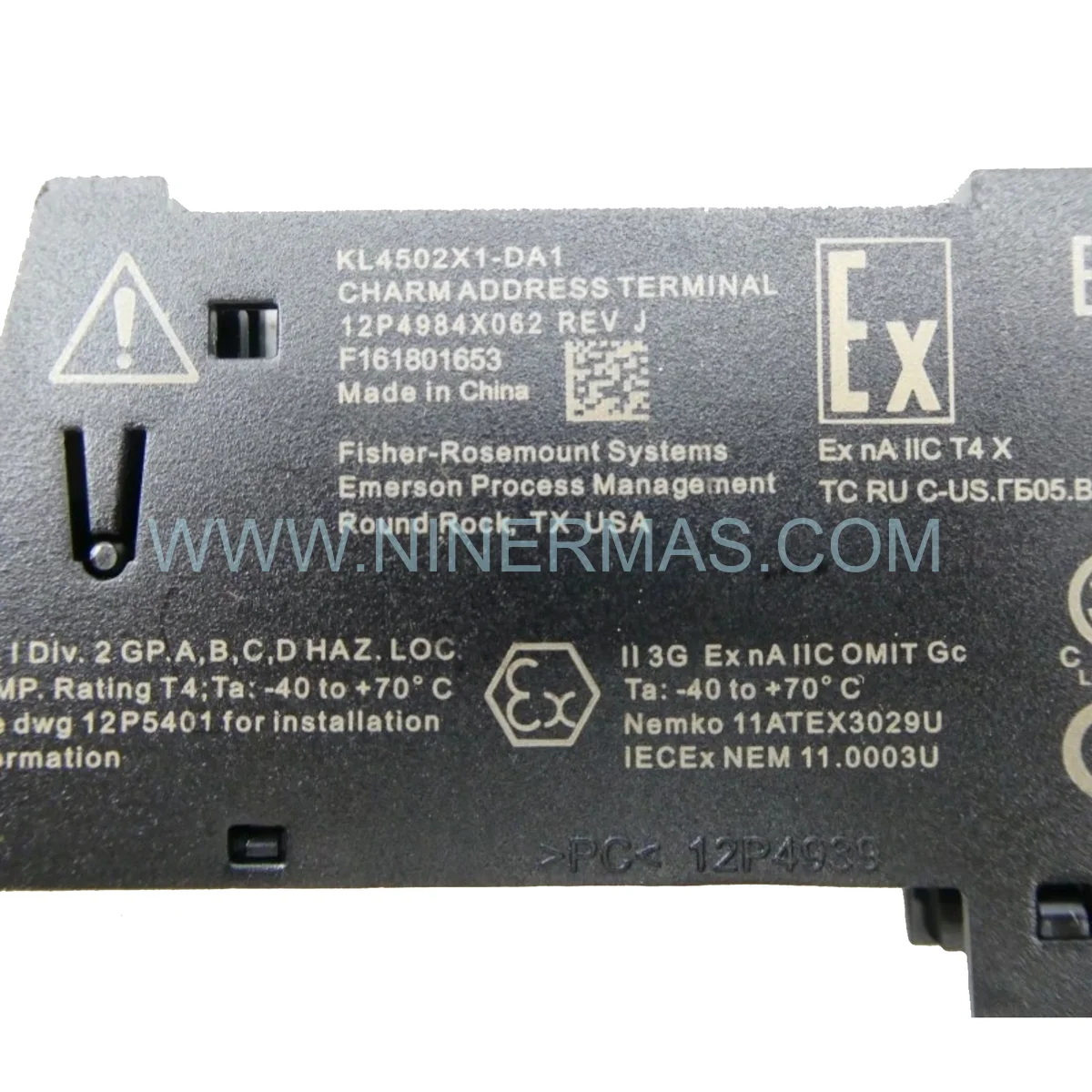

Emerson KL4502X1-DA1 Address Plug Terminal Block Original Spare Parts

Emerson KL4502X1-DA1 Address Plug Terminal Block – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as the field termination layer of a Distributed Control System. The Emerson KL4502X1-DA1 Address Plug Terminal Block occupies precisely that critical position within the DeltaV CHARM Electronic Marshalling architecture — acting as the physical and logical bridge between field instrumentation and the DCS controller fabric. Without a reliable, correctly addressed terminal block, even the most sophisticated Process Control strategy collapses at the first point of contact with the real world.

What distinguishes the Emerson KL4502X1-DA1 from generic alternatives is its integrated automatic addressing mechanism. In legacy DCS Hardware environments where manual node configuration once consumed hours of engineering time, this component eliminates that overhead entirely. Its keying system enforces module-type compatibility at the hardware level — a safeguard that is especially valuable during emergency maintenance windows when technicians are working under pressure. The result is a Fieldbus-ready, error-resistant termination point that supports both new installations and brownfield upgrades with equal competence.

Original stock of the KL4502X1-DA1 is increasingly scarce. As Emerson continues to evolve the DeltaV platform, procurement teams worldwide are discovering that Factory Sealed Condition units from verified distributors represent the only reliable path to maintaining system integrity without costly platform migrations. This is a component where authenticity is not optional — it is a prerequisite for safe and certified operation.

Key Technical Highlights

Automatic Address Assignment: Integrated address plug eliminates manual node configuration, accelerating commissioning and reducing human error in complex DCS topologies.
250 VAC / 10 A Terminal Rating: Accommodates both low-voltage instrumentation signals and higher-voltage discrete I/O within a single, standardized platform.
Redundancy-Ready Design: Supports DeltaV Electronic Marshalling redundancy schemes; field wiring can be disconnected without disturbing the CHARM module or baseplate, enabling hot-swap maintenance.
High-Stability Environmental Envelope: Rated for -40°C to +70°C operation with ISA-S71.04-1985 Class G3 corrosion resistance — engineered for petrochemical, offshore, and heavy industrial environments.
Mechanical Keying for Error Prevention: Key positions set automatically on first installation; physically prevents insertion of incompatible CHARM module types, protecting both hardware and process integrity.
Vibration & Shock Resistance: Withstands 10g shock (½-sine, 11 ms) and 0.7g continuous vibration — qualified for rotating machinery environments and marine vessel installations.

Vertical Industry Applications

Petrochemical & Refining: In high-consequence process units — crude distillation, hydrocracking, sulfur recovery — the KL4502X1-DA1 provides the reliable field termination that SIS and DCS co-located architectures demand. Its Class G3 corrosion rating handles hydrogen sulfide and chlorine-laden atmospheres that destroy standard terminal blocks within months, dramatically reducing unplanned downtime.

Mining & Mineral Processing: Continuous vibration from crushers, conveyors, and ball mills creates a hostile environment for conventional wiring terminations. The screw-cage terminal design of this component maintains connection integrity under sustained mechanical stress, keeping process loops stable and preventing nuisance trips that halt production.

Marine & Offshore Platforms: Salt spray, humidity cycling, and vessel motion combine to accelerate corrosion and loosen connections. The KL4502X1-DA1’s environmental ratings and vibration tolerance make it a preferred choice for FPSO and fixed-platform DeltaV installations where component replacement requires helicopter logistics.

Power Generation: Turbine control and boiler management systems require absolute signal fidelity. The automatic addressing feature of this terminal block ensures that I/O topology is correctly mapped in the DeltaV controller database, eliminating the risk of cross-wired signals that could trigger protective shutdowns.

Pharmaceutical & Fine Chemicals: FDA-regulated manufacturing environments demand full traceability of every installed component. Factory Sealed Condition units with documented provenance satisfy validation requirements and simplify the change control process for GMP-compliant facilities.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the KL4502X1-DA1 supplied through our network is 100% Original Emerson OEM — sourced exclusively from authorized distribution channels and verified against manufacturer traceability records. We do not stock refurbished, reconditioned, or third-party equivalent components under this part number. What you receive is exactly what Emerson ships from its factory: a Factory Sealed unit with full label integrity and original packaging.

Our 12-Month Comprehensive Warranty covers manufacturing defects and functional failures under normal operating conditions. Should a unit fail within the warranty period, we provide direct replacement without bureaucratic delays — because in industrial process environments, downtime is measured in lost production, not just inconvenience.

For emergency maintenance scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express. Orders confirmed before the daily cutoff are typically collected the same business day. We serve customers across North America, Europe, the Middle East, Southeast Asia, and Australia — with customs documentation prepared to minimize clearance delays at every major port of entry.

This component is classified as a Critical Part for Industry Safety. Its role in maintaining correct I/O addressing within a DeltaV DCS means that a failed or incorrectly specified terminal block can propagate addressing conflicts across an entire marshalling cabinet — with potential consequences for process safety and regulatory compliance. We treat every order with the urgency that classification demands.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that a KL4502X1-DA1 unit is genuinely original Emerson and not a counterfeit or compatible substitute?
Authentic units carry a holographic Emerson traceability label on the original packaging, with a part number, revision code, and date code that can be cross-referenced against Emerson’s authorized distributor records. The terminal block body itself features consistent molding quality, clearly embossed part markings, and a keying plug that seats with precise mechanical resistance. If the packaging shows signs of resealing, or if the part number label is a printed sticker rather than an embossed or heat-transfer mark, treat the unit with suspicion and request a Certificate of Conformance from the supplier.

Q2: Where can I obtain the official datasheet and installation manual for the KL4502X1-DA1?
Emerson publishes technical documentation for DeltaV CHARM components through its Guardian Support portal and the Emerson Exchange community. The relevant document set includes the DeltaV CHARM I/O Installation Guide and the Electronic Marshalling Hardware Reference Manual. Our technical team can also provide application-specific wiring diagrams and cabinet layout drawings upon request — contact us directly with your project details.

Q3: Is the KL4502X1-DA1 compatible with both older DeltaV S-series and the current M-series CHARM baseplates?
Yes. The KL4502X1-DA1 terminal block is designed to the common CHARM mechanical interface standard, which is maintained across both S-series and M-series baseplate generations. However, always verify the specific baseplate assembly part number against Emerson’s compatibility matrix before ordering in quantity, as certain specialized baseplates — particularly those designed for SIS or intrinsically safe applications — may require variant terminal block configurations.

Q4: Our plant is undergoing a Legacy Upgrade from a conventional marshalling system to DeltaV CHARM Electronic Marshalling. How many KL4502X1-DA1 units will we need?
Each CHARM I/O slot on a baseplate requires one terminal block. Standard DeltaV CHARM baseplates accommodate 12 CHARM slots, so a single baseplate installation requires 12 units. For a full cabinet migration, calculate the total number of I/O points being converted, divide by the CHARM module channel count (typically 1 or 2 channels per CHARM), and that figure equals your terminal block quantity. We recommend ordering 10-15% additional units as commissioning spares, particularly for large-scale brownfield projects where field wiring conditions may require rework.

Q5: Can the address plug be reset or reprogrammed if a terminal block is moved to a different baseplate position?
The address plug in the KL4502X1-DA1 is set automatically on first installation and is designed to retain that address assignment. Emerson’s design intent is that terminal blocks remain in their installed position for the life of the system. If a terminal block must be relocated — for example, during a cabinet reconfiguration — the address plug must be replaced with a new, unset plug. Spare address plugs are available as separate line items; contact us with your specific relocation scenario for guidance on the correct replacement plug part number.

Q6: What is the typical lead time for emergency orders, and do you provide documentation for customs clearance?
For in-stock units, emergency orders are dispatched within 24 hours of payment confirmation via DHL Express or FedEx International Priority. Transit times to most destinations range from 2-5 business days. We provide a full commercial invoice, packing list, and Certificate of Origin with every shipment. For customers in regulated industries requiring a Certificate of Conformance or material traceability documentation, please specify this requirement at the time of order so we can prepare the paperwork concurrently with dispatch.
