Emerson KJ4101X1-BA1 Service-Ready Spare Part for Industrial Maintenance

Emerson KJ4101X1-BA1 Service-Ready Spare Part for Industrial Maintenance

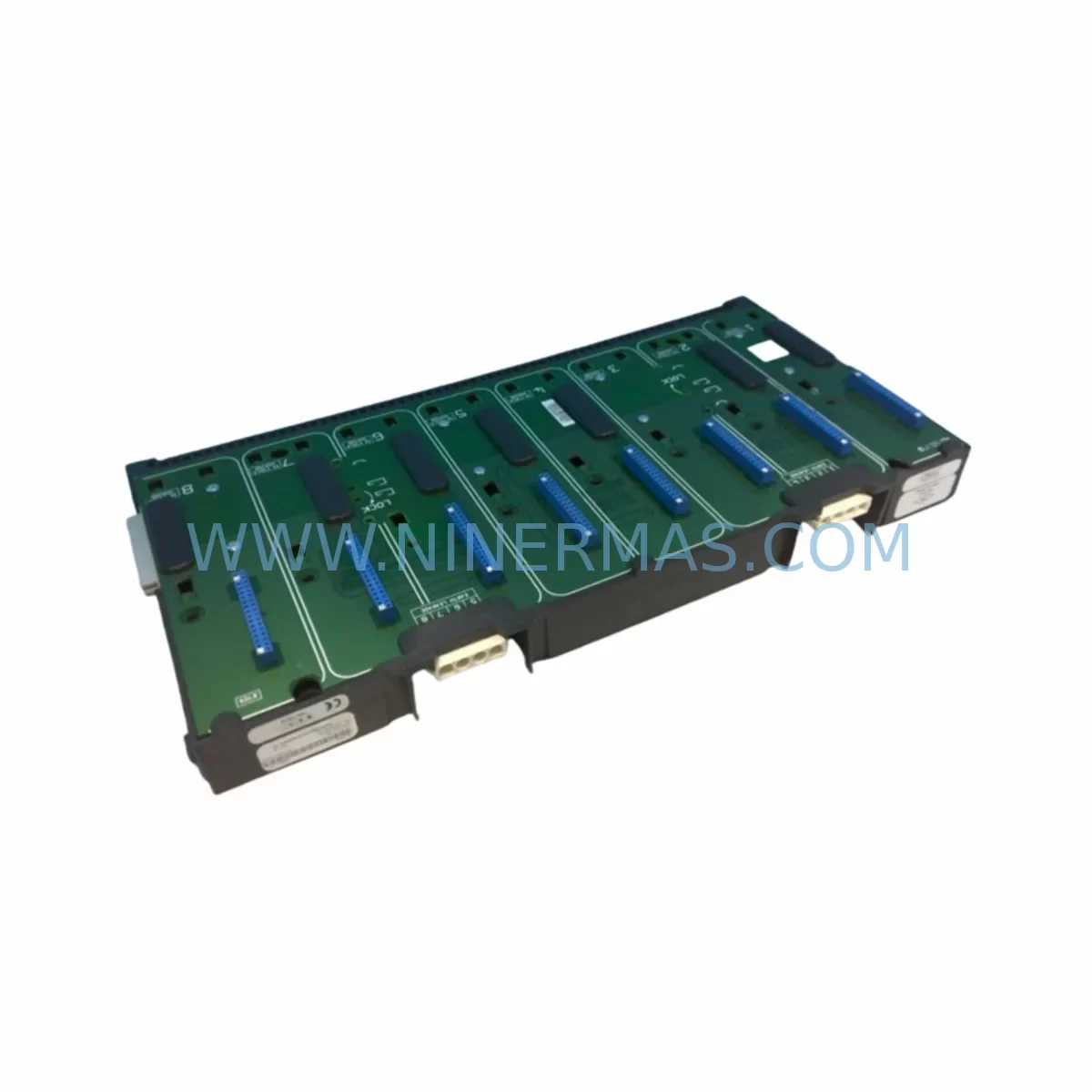

The Emerson KJ4101X1-BA1 is a critical DeltaV series controller module designed for continuous process control environments. As a service-ready spare part, it is sourced, tested, and dispatched to support rapid downtime recovery in industrial automation systems. Whether you are managing a scheduled annual overhaul, responding to an unplanned fault, or building a strategic spare parts inventory for your control cabinet, the KJ4101X1-BA1 delivers the original Emerson performance your DeltaV system demands.

Maintenance engineers and procurement teams operating in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing rely on the KJ4101X1-BA1 to maintain system integrity without costly re-engineering. Its plug-and-play compatibility with the DeltaV architecture eliminates configuration risk and reduces mean time to repair (MTTR) significantly compared to sourcing alternative or counterfeit components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KJ4101X1-BA1 in a DeltaV control system, a thorough site inspection of the surrounding electrical and control infrastructure is essential to prevent repeat failures and ensure a stable return to operation. Maintenance engineers should treat this replacement as an opportunity to audit the full control loop.

Begin by verifying the DeltaV power supply module (such as the KJ4001X1-BA1 or equivalent redundant power supply) that feeds the carrier rail. A degraded or undersized power supply is a common root cause of premature module failure and should be load-tested before the new KJ4101X1-BA1 is commissioned. Inspect the DeltaV carrier assembly and backplane connectors for oxidation, mechanical damage, or loose seating — a faulty carrier can corrupt the module’s communication bus and trigger false diagnostics.

Review the I/O wiring terminations on the associated marshalling cabinet. Loose field wiring, corroded terminal blocks, or undersized cable cross-sections can introduce signal noise that stresses the new module. If the system uses HART-enabled I/O cards alongside the KJ4101X1-BA1, confirm that HART pass-through settings are correctly configured in DeltaV Explorer to avoid communication conflicts after the swap.

For installations where the KJ4101X1-BA1 interfaces with safety instrumented systems (SIS), verify that the SIS logic solver — such as an Emerson DeltaV SIS controller — remains in its expected state during the hot-swap procedure. Coordinate with the safety team to confirm bypass authorization and restore SIS voting logic after the replacement is complete.

Inspect the DeltaV workstation and application station for any pending firmware updates or database backups. A module replacement is the ideal time to synchronize the DeltaV database and confirm that the new module’s hardware revision is recognized by the DeltaV system software. If the site runs DeltaV Operate HMI displays, verify that all associated faceplates and alarms return to normal state after the module is online.

Additionally, check the condition of signal isolators and surge protection devices installed on field signal cables entering the control cabinet. These components absorb transient energy from the field and protect I/O modules; worn or failed isolators can expose the replacement KJ4101X1-BA1 to the same fault conditions that damaged the original. Fuse holders and miniature circuit breakers (MCBs) on the 24 VDC distribution rail should also be inspected and replaced if showing signs of thermal stress or contact wear.

For sites with aging infrastructure, consider scheduling a parallel inspection of DeltaV redundant controller pairs, communication network switches, and fiber optic patch panels. Network latency or packet loss on the DeltaV control network can cause the new module to report intermittent faults even when the hardware itself is fully functional. A clean network audit performed during the maintenance window will prevent unnecessary repeat callouts.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the KJ4101X1-BA1 part number and hardware revision against the DeltaV system database. Download and archive the current module configuration and I/O assignment report from DeltaV Explorer before any physical work begins.

Step 2 — Safe Isolation: Place the affected control loop in manual mode at the DeltaV Operate HMI. Notify the operations team and obtain a permit-to-work (PTW) if required by site safety procedures. For redundant controller configurations, verify that the standby controller has assumed control before removing the primary module.

Step 3 — Physical Replacement: Remove the faulty KJ4101X1-BA1 by releasing the module locking tab and sliding it clear of the carrier. Insert the service-ready replacement, ensuring the backplane connector is fully seated. The DeltaV system will automatically detect the new module and begin the commissioning handshake.

Step 4 — Commissioning and Verification: Monitor the DeltaV Diagnostics display to confirm the module passes all self-tests and I/O channels return to expected states. Verify field device readings against independent instrumentation where available. Return the control loop to automatic mode and observe for a minimum of 15 minutes before closing the work order.

Step 5 — Documentation: Record the replaced module’s serial number, installation date, and any observations in the site maintenance management system (CMMS). Update the spare parts inventory to trigger a replenishment order for the next KJ4101X1-BA1 unit, maintaining minimum stock levels for critical spares.

Spare Parts Support FAQ

Q1: Is the KJ4101X1-BA1 supplied as an original Emerson component?
Yes. NINERMAS sources the KJ4101X1-BA1 directly from authorized supply chains. Each unit undergoes pre-dispatch functional testing and is supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q2: Can the KJ4101X1-BA1 replace older DeltaV module revisions without reconfiguration?
In most cases, yes. The KJ4101X1-BA1 is designed for backward compatibility within the DeltaV S-series and M-series architecture. However, we recommend verifying the hardware revision level against your DeltaV system software version before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q3: What is the lead time and can we arrange a long-term supply agreement?
In-stock units ship within 1–3 business days. For customers with recurring maintenance schedules or multi-site operations, NINERMAS offers blanket purchase agreements and annual spare parts programs to guarantee stock availability and fixed pricing over a 12-month horizon. Contact our sales team to discuss your procurement requirements.

Q4: How is the module tested before shipment?
Every KJ4101X1-BA1 dispatched by NINERMAS is subject to a pre-shipment inspection protocol that includes visual inspection, power-on self-test, and communication bus verification. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are available upon request for quality-critical procurement processes.
