Emerson KJ4006X1-BD1 12P4722X042 Service-Ready Spare Part

Emerson KJ4006X1-BD1 12P4722X042 Service-Ready Spare Part: Minimizing Downtime Risk in DeltaV Control Systems

When a DeltaV I/O module fails on the production floor, every minute of unplanned downtime translates directly into lost output, compromised process integrity, and escalating recovery costs. The Emerson KJ4006X1-BD1 12P4722X042 is a service-ready, original spare part engineered for seamless integration into Emerson DeltaV distributed control system architectures. Whether you are managing a scheduled annual turnaround, responding to an emergency fault isolation event, or building a proactive spare parts inventory for your control cabinet, this module delivers the compatibility, reliability, and traceability that maintenance and procurement engineers demand.

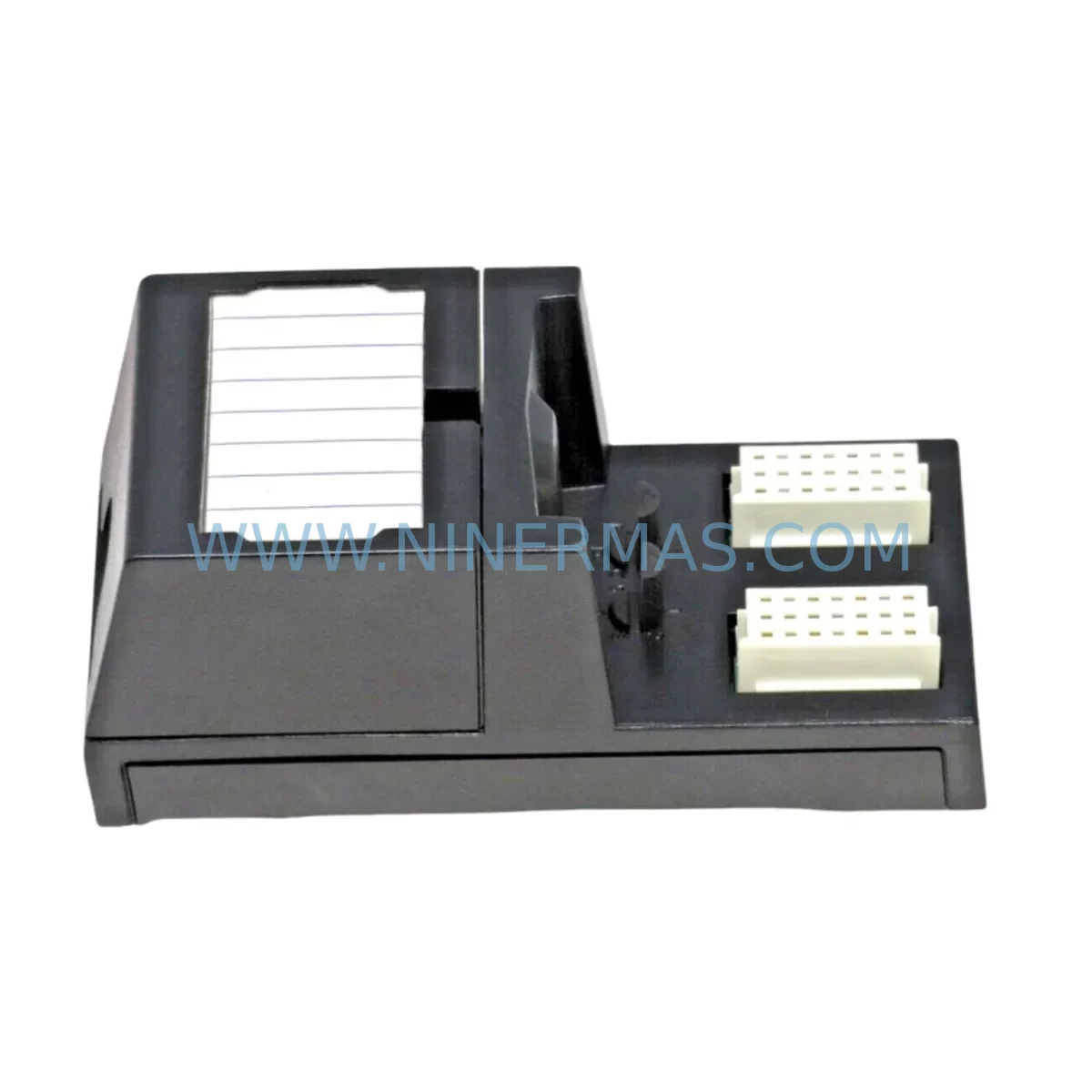

Sourced as an original Emerson component, the KJ4006X1-BD1 carries the full electrical and firmware specifications required for drop-in replacement within qualified DeltaV system configurations. Each unit undergoes pre-shipment functional verification to confirm signal integrity, communication handshake, and power rail stability before dispatch — reducing the risk of receiving a non-functional spare during a critical recovery window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a DeltaV-based control system extends well beyond replacing a single I/O module. When a KJ4006X1-BD1 fault is detected — whether through a DeltaV diagnostic alarm, a field wiring continuity check, or a routine control cabinet inspection — experienced maintenance engineers know that the surrounding system components must be evaluated simultaneously to prevent repeat failures and ensure a complete, stable recovery.

Begin by verifying the DeltaV 24 VDC power supply module feeding the I/O subsystem. A degraded or undersized power supply is a common root cause of intermittent I/O module faults and should be load-tested before the replacement KJ4006X1-BD1 is commissioned. Inspect the DeltaV controller module (such as the MD or MD Plus series) for firmware currency and communication health, as controller-side issues can manifest as false I/O faults.

Check all field terminal blocks and marshalling panels connected to the affected I/O card. Loose terminations, corroded contacts, or miswired signal cables are frequent contributors to module stress and premature failure. If the system uses FOUNDATION Fieldbus H1 segment cards or HART multiplexer modules in the same cabinet, verify their segment loading and power conditioner status as part of the same maintenance event.

For systems with DeltaV SIS (Safety Instrumented System) integration, confirm that the replacement I/O module does not affect any safety logic paths. Review the DeltaV redundant controller pair switchover logs to ensure no spurious failovers occurred during the fault period. Additionally, inspect DeltaV I/O backplane assemblies for signs of heat stress, connector wear, or backplane bus errors that could affect the newly installed module.

Procurement engineers building a resilient spare parts inventory for DeltaV systems should consider stocking complementary components alongside the KJ4006X1-BD1: DeltaV analog input modules, DeltaV discrete output modules, signal isolators and barriers for intrinsically safe field loops, DeltaV workstation interface cards, and redundant power supply units. Maintaining a minimum of one spare per critical I/O card type significantly reduces mean time to repair (MTTR) during unplanned outages.

For aging DeltaV installations approaching end-of-support milestones, proactive procurement of DeltaV legacy controller modules and I/O subsystem backplanes is strongly recommended to extend system life and defer costly full-system migrations.

Site Replacement Workflow

Replacing the KJ4006X1-BD1 on-site is a structured process designed to minimize control system disruption and ensure full operational restoration within a single maintenance window. Before beginning, confirm that the replacement module’s firmware revision is compatible with the installed DeltaV system version — this information is available in the DeltaV release notes and the module’s label markings.

Step 1 — Isolation: Place the affected I/O channel in manual mode from the DeltaV operator workstation. Notify the control room of the planned maintenance action and document the current I/O configuration using DeltaV Explorer.

Step 2 — Physical Removal: Power down the affected I/O card slot if hot-swap is not supported for this module type. Carefully extract the KJ4006X1-BD1 from the card cage, noting the slot position and any field wiring labels for accurate reinstallation.

Step 3 — Inspection: Inspect the card cage slot, backplane connector, and field wiring terminations for damage, contamination, or corrosion. Clean as required before inserting the replacement module.

Step 4 — Installation: Insert the service-ready KJ4006X1-BD1 replacement into the correct slot. Restore field wiring connections and verify termination torque against the Emerson installation specification.

Step 5 — Commissioning: Power up the slot and observe DeltaV diagnostic indicators. Confirm module recognition in DeltaV Explorer, verify I/O channel assignments, and perform a loop check on all connected field instruments before returning the loop to automatic control.

This workflow is compatible with both hot-standby redundant and simplex DeltaV I/O configurations, and supports system continuity for both legacy S-Series and current generation DeltaV installations.

Spare Parts Support FAQ

Q1: Is the KJ4006X1-BD1 12P4722X042 compatible with all DeltaV system versions?
The KJ4006X1-BD1 is designed for Emerson DeltaV S-Series I/O subsystems. Compatibility with specific DeltaV software versions depends on the firmware revision of the module. We recommend confirming the installed DeltaV system version and consulting the Emerson compatibility matrix before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on this spare part?
Each KJ4006X1-BD1 unit undergoes functional verification testing before dispatch, including power-on self-test, communication bus handshake confirmation, and I/O signal integrity checks. A test report is available upon request. All units are shipped with protective packaging to prevent ESD damage and physical stress during transit.

Q3: What is the warranty coverage and what does it include?
This spare part is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Warranty claims are processed promptly with replacement or repair options.

Q4: Can you support long-term or blanket purchase orders for DeltaV spare parts?
Yes. NINERMAS supports long-term supply agreements, blanket purchase orders, and scheduled delivery programs for critical DeltaV spare parts including the KJ4006X1-BD1 and related I/O modules. This service is designed for maintenance engineers and procurement teams managing multi-site DeltaV installations who require guaranteed stock availability and price stability over extended maintenance cycles.
