Emerson KJ3243X1-BK1 Retrofit-Compatible Profibus DP Module

Emerson KJ3243X1-BK1 Retrofit-Compatible Profibus DP Module: Seamless Legacy System Upgrade

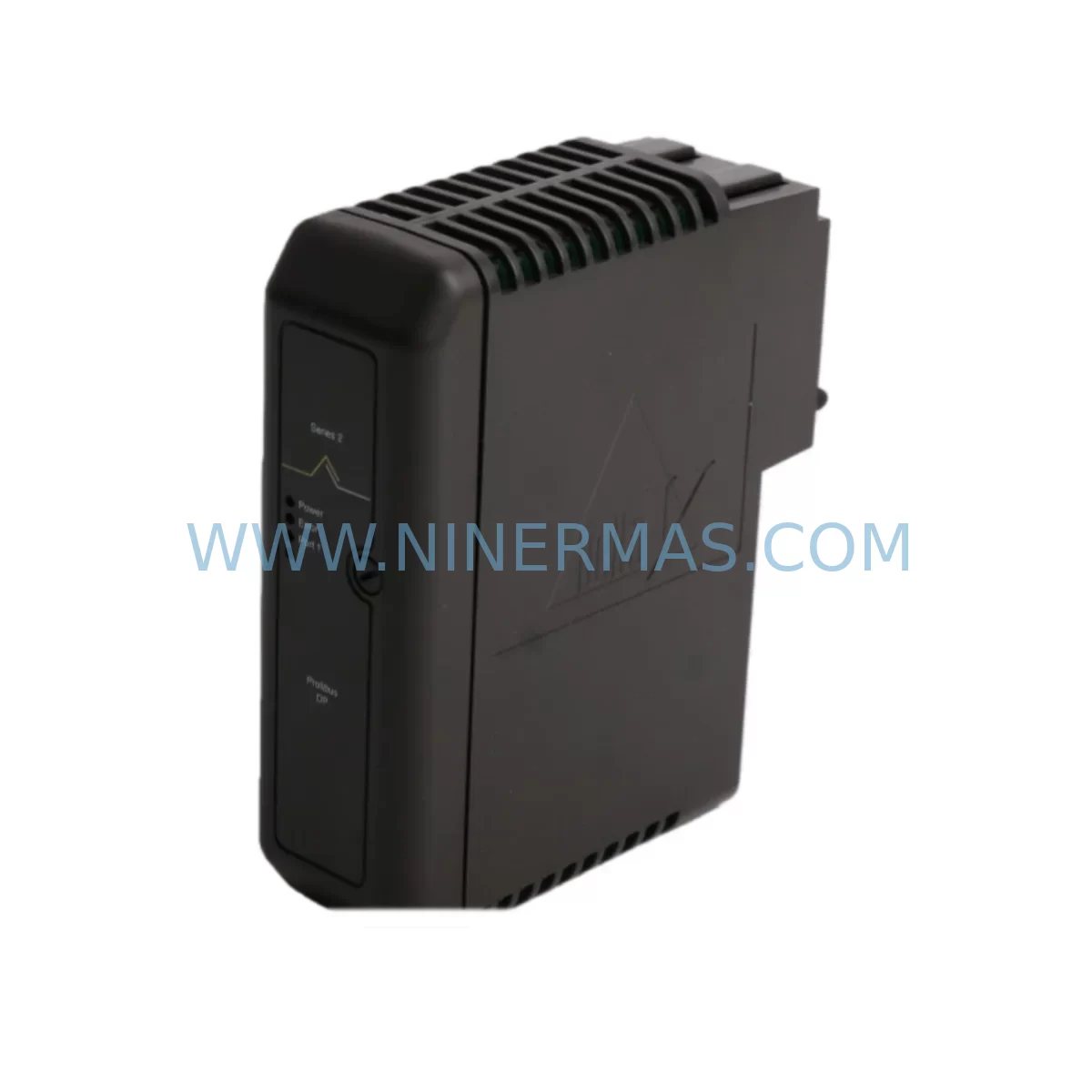

The Emerson KJ3243X1-BK1 is a ruggedized Profibus DP Interface Module engineered for demanding industrial environments and designed to serve as a direct retrofit solution for aging DeltaV distributed control system architectures. As automation facilities face increasing pressure to extend the operational life of existing control infrastructure while maintaining process reliability, the KJ3243X1-BK1 provides a proven, field-validated path for upgrading Profibus DP communication links without requiring a full system overhaul. Whether you are replacing a discontinued module, expanding I/O capacity on an existing rack, or migrating a legacy control cabinet to a more maintainable platform, this module delivers the compatibility and ruggedness required for continuous industrial operation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the KJ3243X1-BK1 into an existing DeltaV control system requires careful pre-engineering to ensure a smooth transition with minimal disruption to ongoing production. The first step in any retrofit project is a thorough audit of the existing Profibus DP network topology, including the number of slave devices, baud rate settings, and segment termination status. Because the KJ3243X1-BK1 interfaces directly with the DeltaV S-Series carrier backplane, engineers must confirm that the target carrier — whether a 2-wide, 4-wide, or 8-wide DeltaV S-Series carrier — has an available slot and that the overall power budget of the carrier power supply, typically a KJ3001X1-BA1 or equivalent DeltaV power supply module, can accommodate the additional load.

Terminal wiring compatibility is another critical checkpoint. Existing Profibus DP field wiring connected to the legacy module must be verified against the KJ3243X1-BK1 terminal assignments. In most DeltaV S-Series installations, the Profibus segment is wired through a dedicated Profibus terminal block or DB9 connector on the carrier, so physical rewiring is often minimal. However, if the legacy installation used an older KJ3241X1-BA1 interface module on a different carrier generation, a carrier swap may be necessary, which in turn requires re-evaluation of the DIN rail mounting space and control cabinet layout.

On the software side, the DeltaV control strategy must be reviewed to confirm that all Profibus slave device definitions — including GSD file assignments, I/O module addresses, and cyclic data mappings — remain valid after the module swap. The DeltaV Explorer tool is used to assign the new module to its physical slot and to download the updated configuration. Engineers should also verify that any associated DeltaV controller module, such as a KJ2003X1-BA1 MD Plus Controller or a KJ2005X2-CA1 MD Controller, has sufficient processing capacity to handle the Profibus DP scan cycle without impacting the overall control loop execution rate.

For facilities running HMI systems connected to the DeltaV network — whether a DeltaV Operate workstation or a third-party SCADA platform communicating via OPC DA or OPC UA — it is important to confirm that all Profibus-sourced process variables retain their tag names and scaling after the module replacement. In many cases, the HMI display faceplates and alarm configurations reference specific DeltaV parameter paths that are tied to the Profibus slave address and I/O channel mapping. A pre-migration tag audit prevents unexpected HMI blank-outs or alarm floods during commissioning.

Where the existing system includes signal isolators or Profibus repeaters — for example, in installations where the Profibus segment spans multiple control rooms or field junction boxes — the KJ3243X1-BK1 retrofit should include a review of segment length, repeater placement, and bus termination at both ends of each segment. Profibus DP at 1.5 Mbit/s supports a maximum segment length of 200 meters, and any deviation from proper termination practice can introduce communication errors that are difficult to diagnose after the module is installed.

Finally, for sites that also need to expand I/O capacity as part of the same retrofit project, the KJ3243X1-BK1 can coexist on the same DeltaV carrier with analog input modules such as the KJ3002X1-BA1 8-channel AI module or discrete output modules from the DeltaV S-Series I/O family, provided the carrier power budget is respected. This makes the KJ3243X1-BK1 an efficient anchor point for a broader I/O expansion without requiring a new controller node.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any control system retrofit, and the KJ3243X1-BK1 replacement process is designed to support a structured, low-risk migration approach. The recommended strategy is to perform the module swap during a planned maintenance window, with the DeltaV controller placed in a safe hold state and all Profibus slave devices confirmed in their last-known output state or fail-safe position before power is removed from the carrier.

Before the maintenance window begins, the engineering team should export a full backup of the DeltaV database, including the control module logic, Profibus device configurations, and controller download files. This backup serves as the recovery baseline if any unexpected issue arises during commissioning. The KJ3243X1-BK1 is a hot-swap-capable module within the DeltaV architecture under certain carrier configurations, but in ruggedized installations it is best practice to power down the affected carrier segment to avoid transient signals on the Profibus bus during module insertion.

Once the new KJ3243X1-BK1 is seated in the carrier slot, the DeltaV system will detect the module and prompt for a firmware download if the installed firmware version differs from the system baseline. This download typically completes within two to five minutes and does not require controller restart. After the firmware download, the Profibus DP segment should be brought online incrementally — starting with the closest slave device and working outward — to confirm that each device achieves data exchange status before the full segment is activated. This staged approach isolates any wiring or address conflicts before they can affect the broader control system.

Throughout the commissioning process, the DeltaV Diagnostics tool provides real-time visibility into Profibus bus health, including bus cycle time, error counters, and slave device status. Engineers should monitor these diagnostics for at least one full production cycle after the retrofit is complete to confirm stable operation before closing the maintenance window. With proper pre-engineering and a disciplined commissioning sequence, the total downtime for a KJ3243X1-BK1 module replacement can typically be held to under four hours, including backup, swap, firmware update, and functional verification.

Retrofit Support FAQ

Q1: Is the KJ3243X1-BK1 a direct drop-in replacement for the KJ3243X1-BA1?
A: In most DeltaV S-Series installations, yes. The KJ3243X1-BK1 uses the same carrier slot footprint and Profibus DP interface as the KJ3243X1-BA1. The primary difference is the ruggedized hardware rating of the BK1 variant, which provides extended tolerance for temperature extremes and mechanical vibration. A DeltaV database download is required after installation to synchronize the module configuration.

Q2: What wiring changes are needed when replacing the legacy Profibus interface module?
A: In standard DeltaV S-Series carrier installations, no field wiring changes are required. The Profibus DP segment wiring connects to the carrier terminal block or DB9 connector, not directly to the module. If the legacy installation used a different carrier generation with a different terminal layout, the carrier itself may need to be replaced, which would require re-termination of the Profibus segment wiring at the carrier terminals.

Q3: Has the KJ3243X1-BK1 been tested before shipment?
A: Yes. Every KJ3243X1-BK1 unit supplied by NINERMAS undergoes pre-shipment functional testing to verify Profibus DP communication, backplane interface integrity, and power consumption within specification. A test report is available upon request. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the KJ3243X1-BK1 to support urgent retrofit and emergency replacement requirements. Standard orders are processed and shipped within 3–5 business days. For large-quantity orders or projects requiring multiple DeltaV S-Series modules — including power supplies, controller modules, and I/O cards — please contact our sales team to confirm availability and arrange consolidated shipment.
