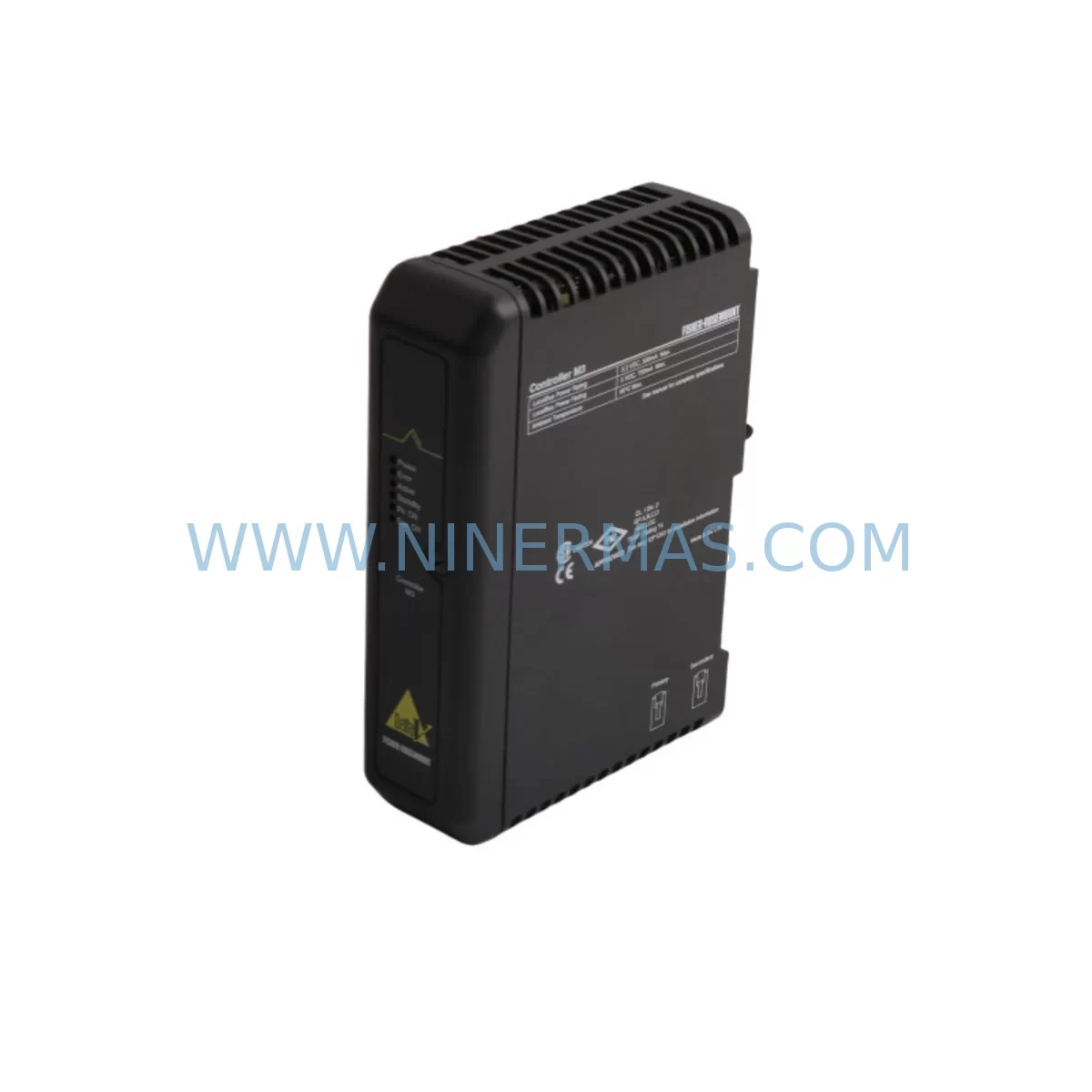

The Emerson KJ3002X1-BG2 12P1731X022 is a ruggedized thermocouple input module designed for the DeltaV SIS (Safety Instrumented System) platform. Purpose-built for SIL 2-capable safety loops, this module accepts multiple thermocouple types and delivers high-integrity temperature measurement in process-critical environments including oil and gas, chemical, power generation, and refining. As legacy DeltaV SIS installations age and original spare parts become increasingly difficult to source, the KJ3002X1-BG2 12P1731X022 serves as a direct retrofit replacement that preserves existing wiring infrastructure, backplane slot assignments, and safety logic without requiring a full system redesign.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a thermocouple safety input module in a live DeltaV SIS environment requires careful pre-work to avoid unplanned shutdowns and safety system bypass violations. Before removing the KJ3002X1-BG2 12P1731X022 from service, engineers should confirm the carrier slot assignment in DeltaV Explorer and document the current module tag, I/O channel mapping, and associated SIS function block logic. The replacement module must be inserted into the same physical carrier slot to preserve the hardware address recognized by the DeltaV SIS controller — typically a KJ3001X1 or KJ3006X1 logic solver — without requiring a full configuration rebuild.

Field wiring connected to the thermocouple input terminals on the carrier remains undisturbed during module swap, which significantly reduces retrofit time. However, technicians should verify terminal torque values and inspect for cold-junction compensation integrity, particularly in installations where the original module has been in service for more than five years. If the plant uses a KJ3222X1 or KJ3224X1 power supply module within the same SIS cabinet, confirm that the carrier bus voltage remains within specification before hot-swap or cold-swap procedures begin.

For sites migrating from an older DeltaV SIS version to a current release, the KJ3002X1-BG2 12P1731X022 is compatible with updated DeltaV SIS firmware, but a configuration download from the DeltaV workstation is required after module insertion. This download updates the module’s internal diagnostic parameters and re-establishes the safety loop integrity check. During this window, the associated SIS function — whether a high-temperature shutdown, burner management interlock, or reactor temperature safety function — must be placed in bypass mode per the plant’s Management of Change (MOC) procedure. Bypass duration should be minimized; pre-staging the replacement module and pre-loading the configuration file reduces live bypass time to under 30 minutes in most installations.

Plants operating mixed I/O architectures — for example, combining DeltaV SIS thermocouple inputs with KJ3221X1 analog output modules, KJ3204X1 discrete input modules, or KJ3208X1 discrete output modules on adjacent carriers — should audit the full carrier assembly before the retrofit. Confirm that the SIS carrier itself (such as the KJ3002 8-channel carrier) shows no signs of backplane connector wear, as a degraded carrier can cause intermittent module communication faults that are difficult to distinguish from module failures. If the carrier is also end-of-life, replacing both the carrier and the KJ3002X1-BG2 12P1731X022 module simultaneously during a planned outage is the most cost-effective approach.

For facilities that also operate DeltaV CHARM I/O or are in the process of migrating from traditional DeltaV SIS I/O to CHARM-based SIS architecture, the KJ3002X1-BG2 12P1731X022 provides a bridge solution — maintaining the existing SIS I/O subsystem while the broader migration is planned and budgeted. This avoids the capital expenditure of a full CHARM SIS conversion while ensuring continued availability of safety-rated thermocouple inputs. Signal isolators and terminal blocks associated with the existing field wiring can remain in place, further reducing retrofit scope.

Programming cable access to the DeltaV SIS controller (via the DeltaV workstation and standard Ethernet connection to the SIS controller node) is required for post-installation verification. The DeltaV Diagnostics tool should be used to confirm module health status, channel-level diagnostics, and proof-test readiness before the bypass is lifted. All retrofit activities should be logged in the plant’s SIS management system in accordance with IEC 61511 lifecycle requirements.

Downtime Control During System Migration

Minimizing bypass duration is the primary downtime control objective when replacing the KJ3002X1-BG2 12P1731X022 in a live safety system. The recommended approach is a pre-staged swap: the replacement module is received, inspected, and verified against the plant’s spare parts specification before the maintenance window opens. Pre-shipment testing performed at the supply stage — covering channel accuracy, cold-junction compensation, and internal diagnostics — ensures that the module arrives ready for installation without requiring bench testing on-site.

During the swap window, the original SIS function block logic in the DeltaV SIS controller does not need to be modified. The replacement KJ3002X1-BG2 12P1731X022 inherits the existing tag assignments and channel configuration from the controller database, provided the module is installed in the same carrier slot. This preserves the HMI display configuration — operators will see the same thermocouple tag names, alarm setpoints, and trend displays on the DeltaV Operate interface without any graphics rebuild. Communication links between the SIS controller and the DeltaV DCS (if integrated via SIS-to-DCS peer-to-peer communication) remain unaffected.

For plants with redundant SIS architectures, the module swap can often be performed with the redundant channel remaining in service, further reducing safety risk during the maintenance window. After installation, a partial proof test of the replaced channel — verifying input accuracy against a calibrated thermocouple simulator — should be completed before the bypass is lifted. This approach keeps total controlled downtime to a minimum while satisfying IEC 61511 proof-test documentation requirements.

Retrofit Support FAQ

Q: Is the KJ3002X1-BG2 12P1731X022 a direct drop-in replacement for earlier KJ3002X1 variants?
A: Yes. The KJ3002X1-BG2 12P1731X022 is designed for direct installation into existing KJ3002-series carriers. No carrier modification or field wiring change is required. A DeltaV SIS configuration download is needed after installation to re-establish module diagnostics and safety loop integrity verification.
