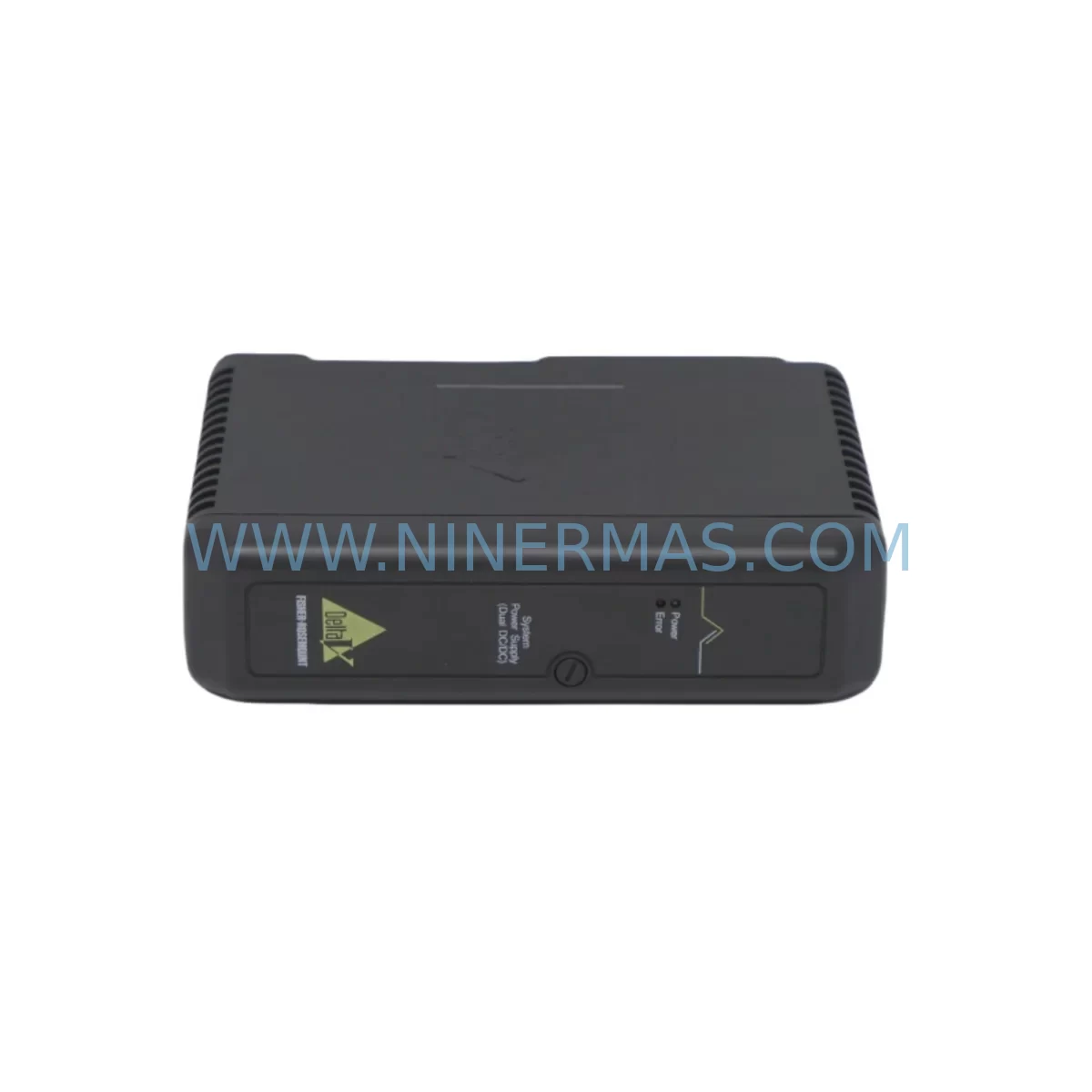

Emerson KJ1501X1-BC5 Retrofit-Compatible DC Power Supply

Emerson KJ1501X1-BC5 Retrofit-Compatible DC Power Supply for Legacy DeltaV Systems

The Emerson KJ1501X1-BC5 is a DC power supply module engineered for the DeltaV S-Series distributed control system, widely deployed across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing facilities. As legacy DeltaV installations age and original power supply modules approach end-of-life, the KJ1501X1-BC5 provides a proven, retrofit-compatible replacement path that preserves existing backplane architecture, wiring infrastructure, and control logic — without requiring a full system overhaul.

For maintenance engineers managing aging DCS infrastructure, sourcing a reliable KJ1501X1-BC5 replacement is often the difference between a controlled, planned shutdown and an unplanned production halt. NINERMAS maintains ready inventory of the KJ1501X1-BC5 to support emergency replacement, scheduled turnaround maintenance, and long-term spare parts stocking programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the KJ1501X1-BC5 in an operating DeltaV environment requires more than a simple module swap. A successful retrofit begins with a thorough audit of the surrounding power distribution architecture. Before removing the failed or degraded power supply, engineers should verify the upstream 24 VDC bus capacity — particularly if the cabinet hosts multiple KJ1501X1-series power supply modules operating in redundant or load-sharing configurations. Insufficient bus headroom after a single module failure is a common root cause of cascading faults.

The carrier and backplane assembly should be inspected for signs of thermal stress, connector oxidation, or mechanical wear. In older DeltaV S-Series cabinets, the KJ1501X1-BA1 or KJ1501X1-BC2 carrier modules may also require replacement if contact resistance has increased over years of service. Confirm that the replacement KJ1501X1-BC5 seats fully and that the backplane locking mechanism engages correctly before restoring power.

On the I/O side, the power supply feeds DeltaV S-Series I/O subsystems including analog input modules, discrete output modules, and HART-enabled field device interfaces. After the power supply swap, engineers should perform a channel-by-channel verification of critical I/O signals — particularly for 4–20 mA analog loops connected to transmitters, control valves, and safety instrumented system (SIS) interfaces. Any signal drift or offset should be investigated before returning the loop to automatic control.

Communication continuity is equally important. DeltaV S-Series controllers — including the MD Plus Controller (KJ2003X1-BA1) and associated CIOC (Controller I/O Card) — rely on stable DC power to maintain Ethernet-based DeltaV network links and redundant controller synchronization. A power interruption during module swap can trigger controller failover; coordinate with the control room before proceeding. If the site uses DeltaV SIS Logic Solvers in the same cabinet, confirm that SIS power rails are isolated and unaffected by the maintenance activity.

For facilities running PROFIBUS DP or Foundation Fieldbus H1 segments through DeltaV interface modules, verify that fieldbus segment power conditioners and terminators remain energized throughout the swap. Fieldbus segment dropout during a power supply replacement can cause field device re-initialization, which may trigger spurious alarms or process upsets. Having a fieldbus diagnostic tool on hand during commissioning is strongly recommended.

Finally, update the site’s spare parts inventory record after the replacement. Facilities with multiple DeltaV S-Series cabinets should maintain at least one KJ1501X1-BC5 per cabinet cluster as a cold standby. Pairing this with stocked KJ1501X1-series redundant power supply modules, DeltaV I/O terminal blocks, and 24 VDC DIN rail power supplies from the same cabinet BOM ensures that future power-related faults can be resolved within a single maintenance shift.

Downtime Control During System Migration

The KJ1501X1-BC5 is designed for hot-swap replacement in redundant DeltaV power supply configurations, minimizing process disruption when a standby module is available. In non-redundant installations, planned replacement during a scheduled maintenance window is strongly preferred over reactive replacement during a fault event.

To protect original program logic during the swap, ensure that the DeltaV controller has completed a checkpoint save and that the engineering workstation has a current backup of the module database. If the cabinet hosts a DeltaV MD Controller with redundant controller pair, initiate a manual switchover to the secondary controller before beginning work on the primary power rail. This preserves continuous PID loop execution and prevents setpoint drift on critical process variables.

Wiring adaptation is typically not required for a like-for-like KJ1501X1-BC5 replacement, as the module uses the same carrier connector pinout as previous revisions. However, if the site is migrating from an older KJ1501X1-BA3 or KJ1501X1-BC2 variant, verify terminal assignments against the current Emerson DeltaV hardware manual before energizing. Label all field wiring before disconnection and photograph the terminal block layout as a reference for post-installation verification.

Post-replacement commissioning should include a full power-on self-test observation, confirmation of green status LEDs on the KJ1501X1-BC5 and adjacent I/O modules, and a loop check on at least one representative analog and discrete channel per I/O subsystem. Document the replacement in the site’s maintenance management system (CMMS) with the module serial number, installation date, and technician sign-off to support future warranty claims and audit readiness.

Retrofit Support FAQ

Q1: Is the KJ1501X1-BC5 a direct replacement for older KJ1501X1-series power supply variants?
A: In most DeltaV S-Series installations, the KJ1501X1-BC5 is backward-compatible with earlier KJ1501X1 revisions sharing the same carrier format. However, always cross-reference the Emerson DeltaV hardware compatibility matrix and confirm the carrier part number before ordering. NINERMAS technical support can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the KJ1501X1-BC5?
A: Every KJ1501X1-BC5 unit shipped by NINERMAS undergoes functional power-on testing, output voltage verification, and visual inspection for connector integrity and board condition. Units are packed in anti-static ESD-safe packaging with individual test records available upon request.

Q3: Can NINERMAS supply KJ1501X1-BC5 modules for long-term stocking programs?
A: Yes. NINERMAS supports blanket order arrangements and scheduled delivery programs for facilities requiring ongoing DeltaV spare parts supply. Long-term supply agreements are available with priority allocation, fixed pricing, and dedicated inventory reservation. Contact sale@ninermas.com to discuss your stocking requirements.

Q4: What does the 12-month warranty cover for the KJ1501X1-BC5?
A: NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects, functional failure under normal operating conditions, and DOA (dead-on-arrival) replacement. Warranty claims are processed with priority turnaround to minimize site downtime. Physical damage caused by incorrect installation, overvoltage, or environmental exposure is excluded from warranty coverage.
