Emerson KJ1501X1-BC4 Safety-Reliable DC Power Module

Emerson KJ1501X1-BC4 Safety-Reliable DC Power Module for Critical Control Sites

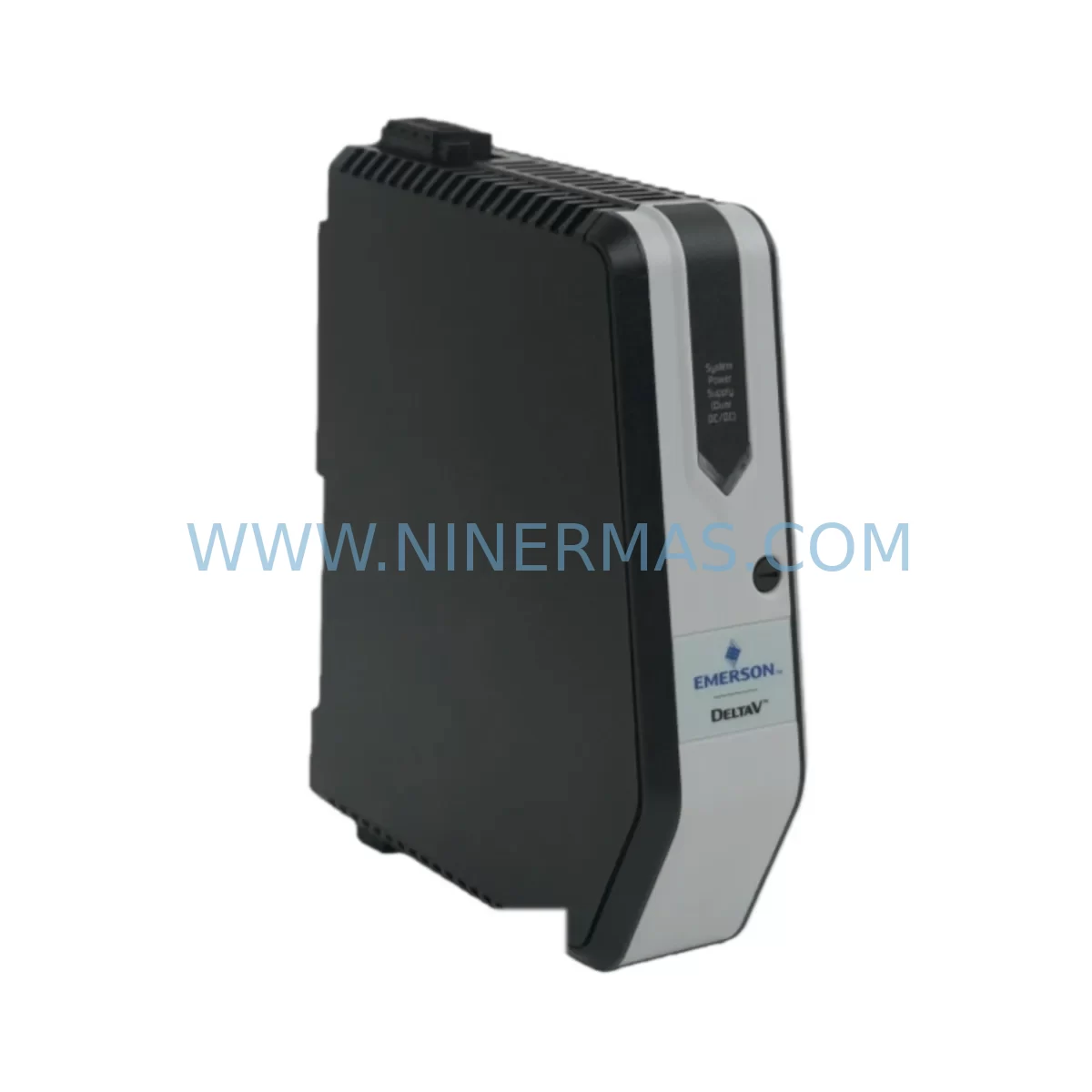

The Emerson KJ1501X1-BC4 is a ruggedized DC power supply module engineered for mission-critical industrial automation environments where power stability is non-negotiable. Designed for seamless integration into Emerson DeltaV distributed control system (DCS) architectures, this module delivers consistent, conditioned DC power to I/O subsystems, controller backplanes, and field interface cards — even under the most demanding operational conditions. Whether deployed in continuous petrochemical processing, high-voltage power generation switchgear rooms, underground mining control panels, or coastal water treatment facilities, the KJ1501X1-BC4 is built to keep your control loop energized and your safety instrumented system (SIS) online.

In modern industrial facilities, an unstable or interrupted DC power supply is one of the leading root causes of unplanned shutdowns, spurious trips, and safety interlock failures. The KJ1501X1-BC4 addresses this risk directly by providing a stable, regulated DC output with built-in surge suppression, overvoltage protection, and short-circuit immunity — safeguarding not only the DeltaV controller modules it powers but also the broader safety architecture that depends on them. When paired with redundant power configurations using a second KJ1501X1-BC4 unit or a compatible Emerson power bus carrier, the system achieves the high-availability power architecture required for SIL-rated control loops and emergency shutdown (ESD) systems.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered DeltaV control cabinet, the KJ1501X1-BC4 sits at the heart of the power distribution architecture. Its role extends beyond simply supplying voltage — it acts as the first line of defense against power-related faults that can cascade into process upsets or safety system failures. When integrated alongside the Emerson KJ1501X1-BA2 power bus carrier and the KJ2201X1-BA1 DeltaV I/O carrier, the KJ1501X1-BC4 ensures that every downstream card slot receives clean, stable power regardless of upstream grid fluctuations.

In facilities where the incoming AC supply is subject to voltage sags, harmonic distortion, or momentary interruptions — common in steel mills, aluminum smelters, and heavy port crane operations — the KJ1501X1-BC4’s regulated output prevents the KJ3002X1-BA1 analog input modules and KJ3222X1-BA1 digital output modules from experiencing brownout-induced signal drift or false output activation. This is particularly critical in safety instrumented functions (SIFs) where a spurious output could trigger an unintended valve closure or pump trip.

For control cabinets operating in high electromagnetic interference (EMI) zones — such as those adjacent to variable frequency drives (VFDs), large motor control centers (MCCs), or high-current bus bars — the KJ1501X1-BC4’s internal filtering and shielded design work in concert with the Emerson KJ1501X1-BC2 redundant power module to maintain signal integrity across the KJ4001X1-BA1 DeltaV FOUNDATION Fieldbus H1 interface cards. Communication anomalies on the fieldbus segment, often caused by power noise coupling, are significantly reduced when the power module maintains a clean DC rail.

In applications involving the Emerson VE4001S2T2B4 DeltaV SIS logic solver or the KJ4005X1-BA1 HART multiplexer interface, a stable power source is not merely a performance consideration — it is a functional safety requirement. The KJ1501X1-BC4 supports the power integrity demands of these safety-rated components, helping maintain the diagnostic coverage and proof-test intervals required under IEC 61511 for SIL 2 and SIL 3 safety loops. Alongside a properly specified Phoenix Contact QUINT-PS UPS module or equivalent DC UPS buffer, the KJ1501X1-BC4 contributes to a power architecture that can ride through brief supply interruptions without triggering a safe-state demand on the process.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, the KJ1501X1-BC4 powers the DeltaV controller nodes managing reactor temperature control, pressure relief interlock logic, and emergency depressurization sequences. Any power interruption to these nodes risks a loss of control event; the KJ1501X1-BC4’s surge-protected, regulated output ensures the control system remains energized through transient grid events common near large compressor motor starts.

Power Generation & Substation Control: Thermal and hydroelectric power plants rely on DeltaV-based turbine control and excitation systems where the KJ1501X1-BC4 provides the stable DC backbone. In substation automation panels, where high-voltage switching generates intense electromagnetic transients, the module’s EMI immunity prevents false trips in generator protection relays and AVR control loops.

Mining & Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the KJ1501X1-BC4 makes it well-suited for powering DeltaV nodes in conveyor control systems, crusher automation, and ventilation safety interlock panels where equipment failure can have life-safety consequences.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with zero tolerance for control system downtime. The KJ1501X1-BC4 supports the DeltaV controllers managing dosing pump control, UV disinfection sequencing, and SCADA interface nodes in high-humidity pump station environments where condensation and corrosive atmospheres challenge standard electronics.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting operations generate severe power quality disturbances. The KJ1501X1-BC4’s robust surge suppression and stable output protect the DeltaV I/O subsystems controlling ladle metallurgy, mold level control, and cooling water interlock systems from the voltage spikes and harmonic distortion inherent to heavy melting operations.

Port & Marine Automation: Ship-to-shore crane control systems and vessel automation panels operating in salt-laden, high-humidity coastal environments benefit from the KJ1501X1-BC4’s sealed panel-mount design and wide operating temperature range, ensuring reliable DeltaV power delivery in marine-grade control cabinets subject to constant vibration and corrosive air exposure.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the KJ1501X1-BC4?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance issues under normal operating conditions. Each unit undergoes pre-shipment functional testing including output voltage verification, protection circuit activation testing, and thermal cycling checks. If a unit fails within the warranty period under normal use, NINERMAS will arrange replacement or repair at no additional cost.

Q2: How is the KJ1501X1-BC4 tested before shipment?
Every KJ1501X1-BC4 unit is subject to a multi-point outgoing quality inspection that includes DC output voltage and current load testing, overvoltage and short-circuit protection verification, visual inspection for physical integrity, and functional compatibility verification against DeltaV backplane interface standards. Test records are available upon request for customers with traceability requirements.

Q3: Is the KJ1501X1-BC4 compatible with both S-Series and M-Series DeltaV systems?
The KJ1501X1-BC4 is primarily designed for Emerson DeltaV S-Series controller and I/O backplane architectures. Compatibility with M-Series or legacy DeltaV hardware should be confirmed against the specific backplane carrier and power bus configuration in your installation. Our technical team can assist with compatibility verification based on your system’s BOM and revision level.

Q4: Can NINERMAS guarantee long-term supply of the KJ1501X1-BC4 for ongoing maintenance and spare parts programs?
Yes. NINERMAS maintains dedicated inventory of the KJ1501X1-BC4 and related DeltaV power module variants to support customers’ multi-year spare parts programs and planned maintenance schedules. We understand that industrial facilities cannot afford last-minute sourcing delays for critical control system components, and our procurement team actively manages stock levels to ensure consistent availability for repeat orders and emergency replacement requirements.
