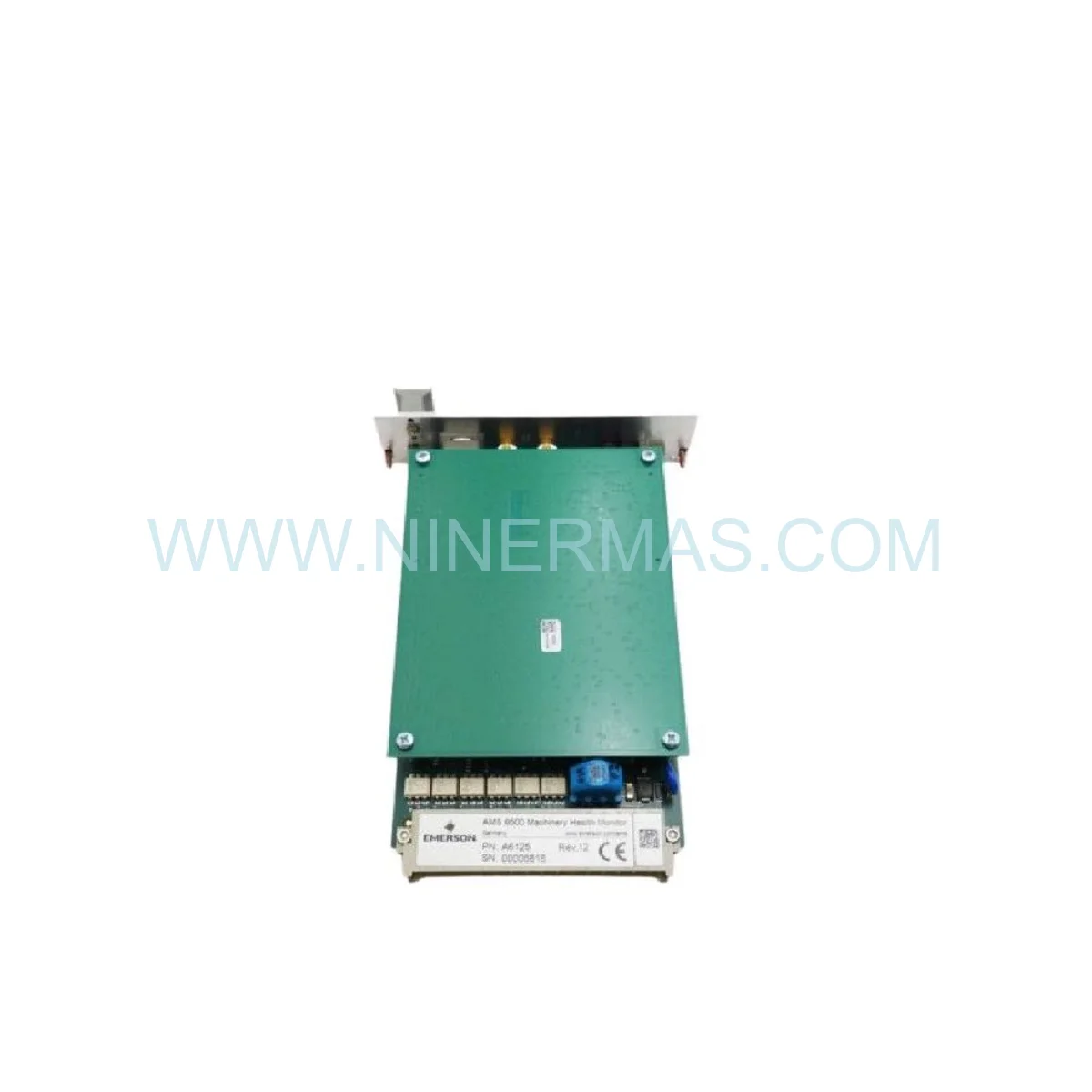

Emerson A6125 Machinery Health Monitor | Original & New Spare Parts

Emerson A6125 Machinery Health Monitor – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the Emerson A6125 is far more than a monitoring card — it is the sensory nerve of a distributed machinery protection architecture. Within any AMS 6500 Classic protection system, the A6125 occupies a mission-critical role: it continuously acquires vibration signals from piezoelectric accelerometers and velometers, converts raw analog data into actionable process control intelligence, and triggers automated protective responses before mechanical degradation escalates into catastrophic failure. This is not a peripheral component. It is the first line of defense in rotating equipment integrity management.

What distinguishes the A6125 from generic vibration input cards is its dual independent differential channel architecture, which enables simultaneous monitoring of two separate measurement points without signal cross-contamination. Engineers integrating this module into legacy DCS hardware or upgrading aging Fieldbus-based protection networks will find that the A6125 offers a level of backward compatibility that is increasingly rare in today’s discontinuation-heavy industrial landscape. Its configurable frequency bands — spanning from 2 Hz low-frequency velometer mode all the way to 8000 Hz high-speed accelerometer mode — make it adaptable across an exceptionally wide range of rotating equipment classes.

Original factory-sealed units of the A6125 are becoming progressively scarcer as Emerson’s product lifecycle management shifts focus toward newer platforms. For facilities operating legacy AMS 6500 systems, sourcing a genuine, untouched A6125 from certified supply chains is no longer a routine procurement task — it is a strategic imperative. Every unit we supply is verified for authenticity, stored under controlled conditions, and dispatched with full manufacturer documentation.

Key Technical Highlights

Dual Independent Differential Inputs: Two fully isolated channels eliminate cross-talk and enable simultaneous multi-point vibration acquisition on a single EURO card slot.

Broad Sensor Compatibility: Accepts piezoelectric accelerometers and velometers with input resistance >100 kΩ; constant current sensor supply (2-8 mA @ 30 VDC), galvanically isolated to prevent ground loops.

High-Speed Frequency Coverage: Accelerometer mode supports 30-8000 Hz (high range), 10-2000 Hz (medium), and 6-1000 Hz (low); velometer mode covers 2-250 Hz to 10-2000 Hz — full-spectrum Fieldbus-ready signal acquisition.

Redundancy-Grade Alert Architecture: Independent Alert and Danger threshold setpoints with password-protected configuration prevent unauthorized parameter drift in safety-critical environments.

Selectable Measurement Modes: RMS or zero-to-peak measurement selection allows application-specific signal characterization without external signal conditioning hardware.

Built-in Sensor Integrity Diagnostics: Automatic open-circuit and short-circuit detection ensures continuous loop supervision — a mandatory feature for SIS-adjacent machinery protection applications.

High-Density Rack Architecture: EURO card (DIN 41494) format, 100 — 160 mm, accommodates 14 modules per standard 19″ rack — maximizing channel density while minimizing panel footprint.

Vertical Industry Applications

Petrochemical & Refining: Continuous vibration surveillance of centrifugal pumps, compressors, and turbine trains in hydrocarbon processing units. The A6125’s dual-channel design allows simultaneous drive-end and non-drive-end bearing monitoring, reducing unplanned shutdown risk by enabling early fault signature detection weeks before failure.

Mining & Mineral Processing: Harsh-environment deployments on ball mills, SAG mills, and conveyor drive systems where vibration anomalies directly correlate with liner wear and gearbox degradation. The module’s IEC 68-2 vibration and shock compliance ensures reliable operation under the structural vibration inherent to mining infrastructure.

Marine & Offshore: Propulsion system and auxiliary machinery monitoring aboard vessels and offshore platforms, where the consequences of undetected bearing failure are compounded by the impossibility of rapid spare parts logistics. Factory Sealed A6125 units held as onboard maintenance stock eliminate critical lead-time exposure.

Power Generation: Integration into steam turbine and gas turbine protection systems within DCS-controlled power plants. The A6125’s compatibility with AMS 6500 Classic systems makes it the preferred Legacy Component for facilities that cannot justify full platform migration during active generation cycles.

Pulp & Paper / Chemical Processing: Monitoring of agitators, extruders, and high-speed rotating dryers where process continuity is directly tied to machinery health. Condition-based maintenance programs built around A6125 data streams have demonstrated measurable reductions in unscheduled downtime across continuous-process industries.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every A6125 unit dispatched from our facility is 100% original Emerson manufacture — no rebranded substitutes, no refurbished assemblies presented as new. Each module undergoes a multi-stage incoming inspection protocol: visual examination for factory seal integrity, label authentication cross-referenced against Emerson’s part numbering conventions, and functional pre-shipment verification where applicable.

Our 12-Month Comprehensive Warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams and maintenance engineers with the contractual assurance required for critical spare parts programs. For facilities managing Maintenance Stock strategies for aging Distributed Control System infrastructure, this warranty period aligns with standard annual maintenance planning cycles.

Emergency delivery is available globally via DHL Express, FedEx International Priority, and UPS Worldwide Express — with same-day dispatch for in-stock units confirmed before 14:00 CST. We understand that an unmonitored turbine or compressor is not a scheduling problem; it is a production and safety emergency. Our logistics infrastructure is built around that reality.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that an A6125 unit is genuinely factory-original and not a refurbished or counterfeit component?
Authentic A6125 modules carry Emerson’s original factory labeling with consistent part number formatting, date codes, and country-of-origin markings. The PCB surface should show no evidence of rework (solder bridges, flux residue, replaced components). Request a high-resolution photograph of both the front panel label and the PCB reverse side before purchase. We provide full photographic documentation for every unit upon request.

Q2: Can I obtain the official Emerson A6125 datasheet and configuration manual?
Yes. We supply the original Emerson technical documentation — including the A6125 installation manual, configuration guide, and wiring diagrams — with every order at no additional charge. For pre-purchase technical evaluation, our engineering team can provide specification sheets upon inquiry.

Q3: Is the A6125 compatible with AMS 6500 systems running older firmware versions?
The A6125 was designed as a core component of the AMS 6500 Classic platform and maintains backward compatibility across the primary firmware generations deployed in the field. However, specific rack backplane revisions and system software versions may affect configuration options. We recommend providing your AMS 6500 system version details at the time of inquiry so our technical team can confirm compatibility before shipment.

Q4: What is the lead time for A6125 units, and is emergency same-day shipping available?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST via DHL Express, FedEx International Priority, or UPS Worldwide Express. Estimated transit times range from 1-3 business days for major industrial hubs globally. For Emergency Repair scenarios where production continuity is at risk, contact us directly for priority handling.

Q5: Can the A6125 be used as a direct replacement for a failed module without system reconfiguration?
In most AMS 6500 Classic installations, a replacement A6125 can be installed as a hot-swap Legacy Component with configuration parameters restored from the system’s stored settings. However, if the original module’s configuration was not backed up, manual reconfiguration of frequency ranges, alert thresholds, and measurement modes will be required. We provide configuration support documentation to facilitate this process.

Q6: Why is the A6125 classified as a Critical Part for Industry Safety?
The A6125 sits at the intersection of Process Control and machinery protection — it is the hardware layer that converts physical vibration phenomena into the digital signals that trigger protective shutdowns. In petrochemical, power generation, and offshore environments, a failed or absent A6125 means a monitored machine becomes an unmonitored machine. The risk exposure from that gap — in terms of equipment damage, production loss, and personnel safety — is why this component is classified as a Critical Part for Industry Safety across multiple regulatory frameworks.
