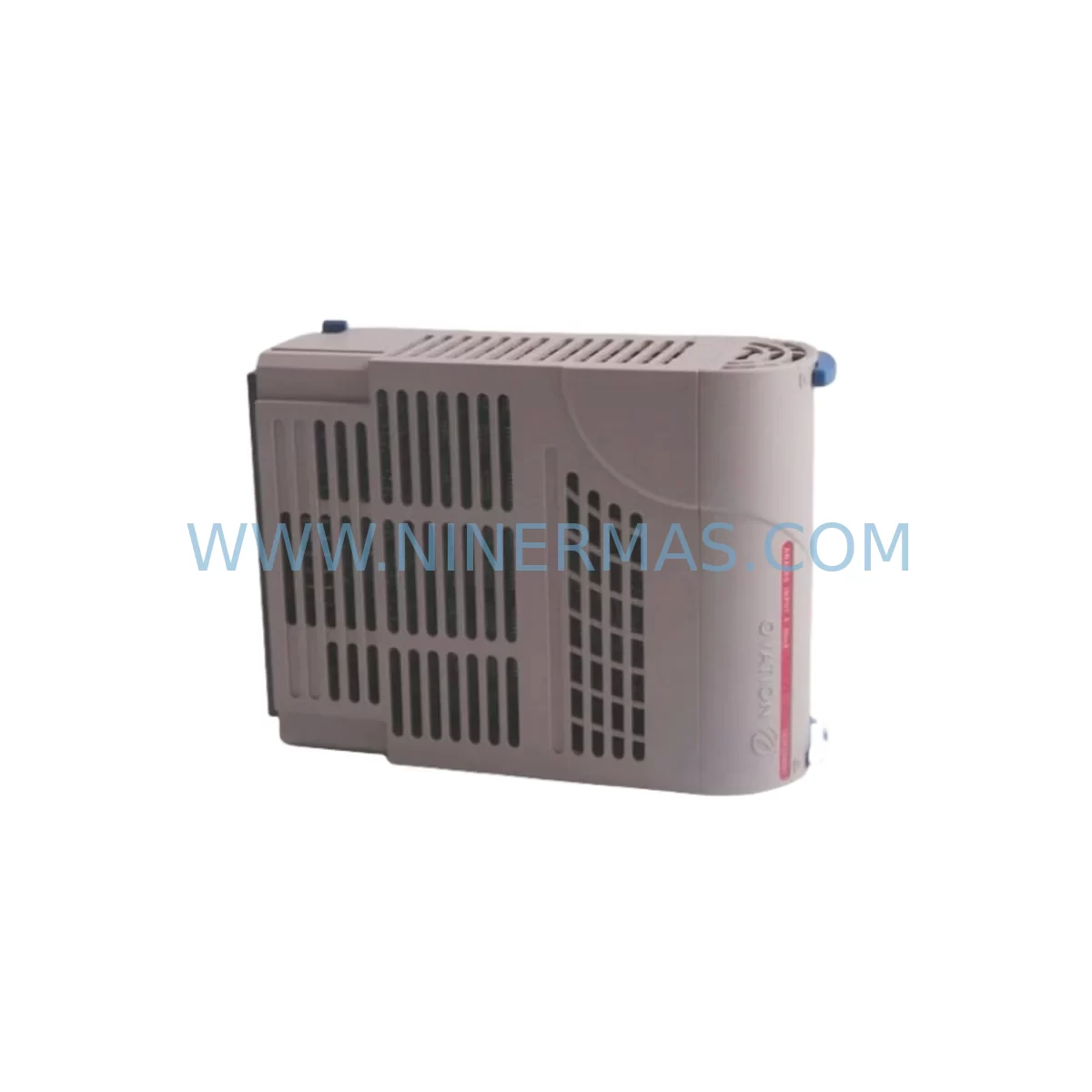

The Emerson 1C31169G01 is a critical spare part within the Emerson Ovation distributed control system (DCS) platform, widely deployed across power generation, oil & gas, chemical processing, and continuous manufacturing facilities. For maintenance engineers managing aging Ovation-based control architectures, securing a verified, pre-tested replacement unit of the 1C31169G01 is essential to minimizing unplanned downtime and sustaining long-term system reliability.

This module plays a key role in the Ovation control cabinet ecosystem. When a fault is detected — whether through diagnostic alarms, I/O signal anomalies, or communication dropouts — rapid identification and replacement of the 1C31169G01 can mean the difference between a controlled maintenance window and a costly production halt. Procurement engineers sourcing this part should prioritize suppliers who maintain ready stock, perform pre-shipment functional testing, and offer documented warranty coverage.

At NINERMAS, every 1C31169G01 unit is inspected and functionally tested prior to dispatch. We maintain long-term inventory reserves specifically for end-of-life and hard-to-source Ovation components, ensuring your maintenance team is never left waiting during a critical outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1C31169G01 in an Ovation DCS environment is rarely an isolated task. Experienced maintenance engineers know that a module failure often signals stress across adjacent components in the same control loop or power distribution chain. During any planned or emergency replacement of the 1C31169G01, a thorough cabinet inspection should include the following associated components:

The Emerson 1C31107G01 Ovation I/O module shares the same backplane architecture and should be checked for communication integrity and signal accuracy. Similarly, the Emerson 5X00070G01 power supply module — which feeds the Ovation controller rack — should be verified for stable DC output, as voltage fluctuations are a common root cause of module faults. The Emerson 1C31234G01 analog input module and 1C31110G01 digital output module within the same I/O cluster should be inspected for signal drift or relay chatter that may have contributed to the original fault condition.

Beyond the Ovation-specific components, maintenance teams should also inspect the terminal blocks and field wiring connectors on the associated marshalling cabinet, as loose or corroded terminations frequently cause intermittent faults that are misdiagnosed as module failures. The Emerson Ovation OCR400 controller — if present in the same rack — should have its firmware version confirmed for compatibility with the replacement 1C31169G01. Communication modules such as the Emerson 1C31238G01 communication interface card should also be checked for proper handshake and data exchange after the replacement is completed.

For facilities running redundant Ovation configurations, the redundancy switch module and associated fiber optic communication cables between primary and secondary controllers should be tested to confirm failover integrity is maintained post-replacement. Finally, the Emerson Ovation HMI workstation should be used to run a full I/O diagnostic scan after the 1C31169G01 is installed, confirming all process variables are reading correctly before returning the loop to automatic control.

Site Replacement Workflow

Replacing the Emerson 1C31169G01 on-site follows a structured workflow designed to minimize downtime and eliminate compatibility risks:

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number matches exactly (1C31169G01). Verify firmware revision compatibility with the existing Ovation system version. Review the last known fault log from the Ovation HMI to understand the failure mode before proceeding.

Step 2 — Safe Isolation: Follow site-specific lockout/tagout (LOTO) procedures. Place the affected control loop in manual mode at the DCS operator station. Notify the operations team of the planned maintenance window.

Step 3 — Physical Replacement: Remove the faulty 1C31169G01 from its backplane slot. Inspect the backplane connector for bent pins or contamination. Insert the replacement unit firmly until the locking mechanism engages. Reconnect all field wiring per the original termination schedule.

Step 4 — Post-Installation Commissioning: Power up the module and observe the status LEDs for normal initialization. From the Ovation HMI, run a full I/O diagnostic to confirm all channels are active and reading within expected ranges. Return the control loop to automatic mode and monitor for 15–30 minutes before signing off.

Step 5 — Documentation: Record the replacement in the site maintenance log, including the old module’s serial number, fault description, replacement date, and the new unit’s serial number and warranty start date. Retain the faulty unit for root cause analysis if required.

This structured approach reduces the risk of repeat failures, ensures system compatibility, and provides a clear audit trail for safety-critical process environments.
