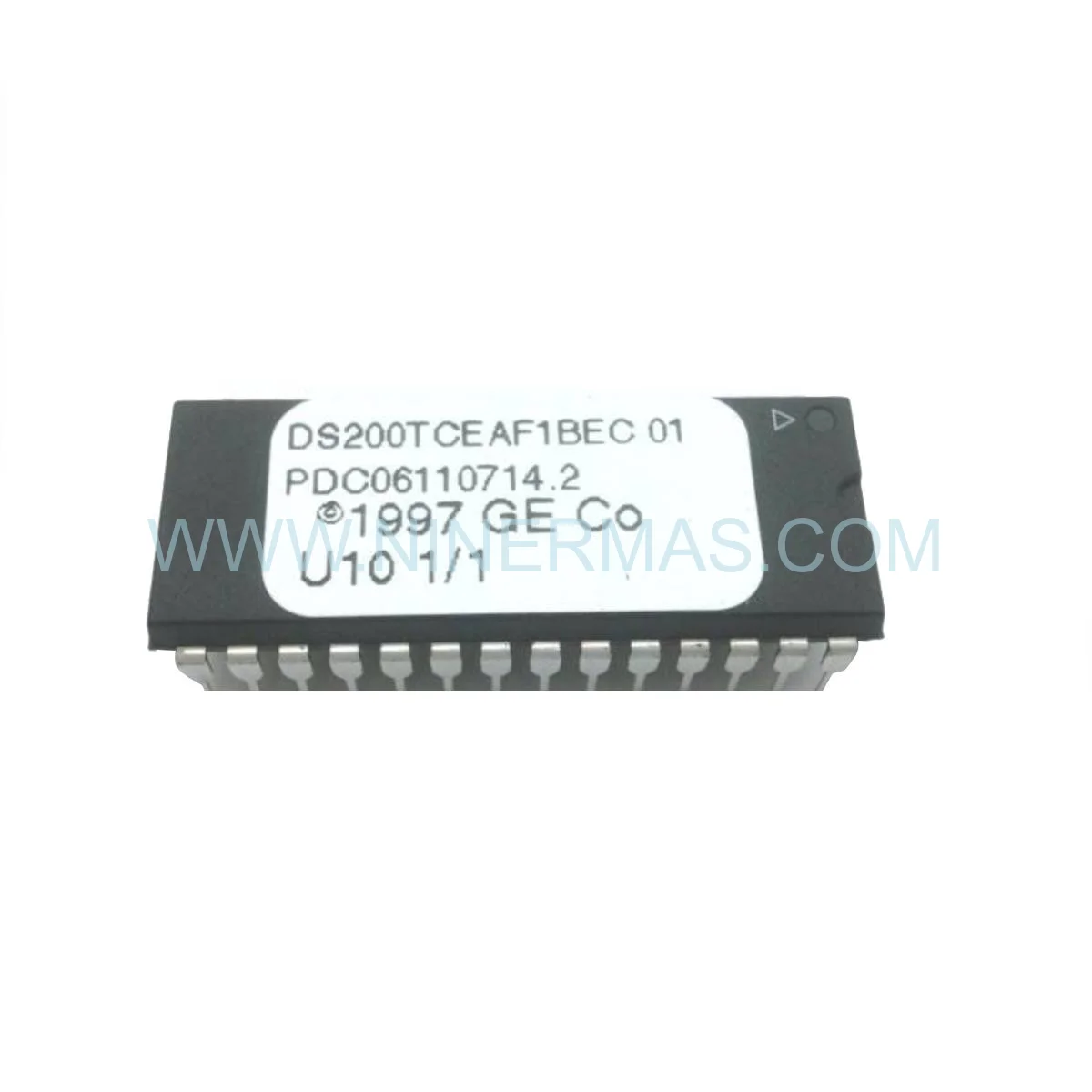

DS200TCEAF1BEC GE Mark V Overspeed Protection Board — New & Original

General Electric DS200TCEAF1BEC | Reliable Automation Component for Turbine Safety Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical turbine assets, the DS200TCEAF1BEC stands as a cornerstone of system availability within GE’s Mark V Speedtronic control architecture. This emergency overspeed protection board executes sub-10ms trip logic, directly preventing catastrophic rotor failures that can halt production for weeks. Its role in process optimization is not supplementary — it is foundational to operational excellence across power generation and oil & gas facilities where unplanned downtime carries six-figure hourly costs.

Engineered for deployment in harsh industrial environments, the DS200TCEAF1BEC features conformal-coated PCB assemblies rated for ambient temperatures from -40°C to +70°C and humidity levels up to 95% non-condensing. Field installation demands strict adherence to GE service procedures GEH-6195 and GEH-6421, including proper grounding, torque specifications on backplane connectors, and post-installation overspeed setpoint verification. Neglecting these steps introduces latent failure risk in an otherwise robust automation component.

Procurement teams and maintenance planners increasingly classify the DS200TCEAF1BEC as a Tier-1 critical spare — a designation reserved for components whose absence directly threatens system integration continuity. Stocking at least one verified unit on-site eliminates the lead-time gap that can extend emergency outages by days. For EOL and legacy Mark V installations, securing original factory inventory now is a proactive reliability strategy, not a reactive one.

Key Operational Features

Triple-Modular Redundancy (TMR): Sustains high availability by tolerating single-point failures without tripping the turbine — a defining feature for mission-critical applications.
Sub-10ms Emergency Trip Response: Deterministic overspeed detection ensures the protection loop closes before mechanical damage thresholds are reached.
Seamless Integration with Mark V I/O Modules: Plug-compatible with the existing Speedtronic backplane, enabling zero-modification system integration.
Self-Diagnostic Health Monitoring: Continuous internal diagnostics with fault annunciation reduce mean time to detect (MTTD) and accelerate corrective maintenance.
Hot-Swap Capable Architecture: Supports board replacement under controlled conditions, minimizing planned outage windows.
SIL 2/3 Functional Safety Compliance: Certified for use in safety instrumented systems (SIS) where IEC 61511 mandates documented safety integrity levels.

Maintenance & Performance Benchmarks

The DS200TCEAF1BEC is architected to serve both small-scale industrial co-generation units and large combined-cycle power plants with equal reliability. In TMR configurations, three independent voting channels process speed sensor signals simultaneously; a 2-of-3 logic scheme prevents spurious trips while guaranteeing protective action on genuine overspeed events. This architecture directly supports the redundancy requirements of IEC 61508 SIL 3 safety loops.

For simplex Mark V installations common in older petrochemical facilities, the board operates as a standalone overspeed detection module with hardwired trip relay outputs. Maintenance intervals should align with GE’s recommended 18-month functional proof test cycle, during which overspeed setpoints are dynamically verified using calibrated speed signal injection equipment. Field data consistently shows that boards maintained on this schedule exhibit mean time between failures (MTBF) exceeding 80,000 operating hours — a benchmark that underscores GE’s engineering standard in automation components.

Integration with distributed control systems (DCS) via the Mark V’s serial communication ports allows real-time diagnostic data — including channel health status and trip event logs — to be streamed to plant historians. This data pipeline is essential for predictive maintenance programs targeting operational excellence and reduced lifecycle costs.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every DS200TCEAF1BEC unit dispatched from our inventory is sourced directly from authorized channels and ships in original factory packaging with full traceability documentation — including manufacturer test reports, certificate of conformance, and serial number records. This eliminates counterfeit risk in a market where substandard automation components have caused documented safety incidents.

For in-stock units, same-day dispatch is available on orders confirmed before 14:00 CST, with DHL Express and FedEx Priority options covering over 180 countries. We maintain dedicated inventory buffers for EOL and legacy Mark V modules — including the DS200TCEAF1BEC — precisely because global supply for discontinued GE Speedtronic boards is finite and unpredictable. Securing stock now protects your maintenance program against future scarcity.

Our logistics team coordinates export documentation, HS code classification, and customs clearance support for international shipments, reducing the administrative burden on plant procurement departments. Worldwide express delivery typically achieves 2-5 business day transit to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas.

Engineering Support & FAQ

Q: What are the installation steps for the DS200TCEAF1BEC in a Mark V TMR cabinet?
A: Power down the affected channel per GE’s lockout/tagout procedure. Remove the existing board by releasing the VME ejector handles. Seat the DS200TCEAF1BEC firmly into the backplane slot, ensuring all connector pins are fully engaged. Restore power and verify channel health via the Mark V HMI diagnostic screen. Perform a functional overspeed test per GEH-6421 before returning the unit to service.

Q: Which firmware versions are compatible with the DS200TCEAF1BEC?
A: The board is compatible with Mark V Speedtronic firmware revisions R and later. Compatibility with specific application software versions should be confirmed against the site’s GE configuration baseline document (CBD). Contact our technical team with your CBD revision for a definitive compatibility assessment.

Q: How does the warranty claim process work?
A: All units carry a 12-month warranty from the date of shipment. To initiate a claim, submit the original invoice, a written fault description, and photographic evidence of the defect. Our engineering team will issue a Return Merchandise Authorization (RMA) within 48 hours. Replacement units are dispatched upon receipt and inspection of the returned board.

Q: Can the DS200TCEAF1BEC be used as a direct replacement for DS200TCEAF1AEC?
A: Suffix revisions (e.g., BEC vs. AEC) may reflect PCB layout or component changes. While physical form factor is typically identical, functional interchangeability must be verified against GE’s revision history documentation. We recommend consulting GE service bulletin GEK-105546 or contacting our technical advisors before substituting suffix variants in SIL-rated loops.

Q: Is calibration required after board replacement?
A: Yes. Overspeed trip setpoints are stored in the Mark V application software, not on the board itself, but the replacement board must be verified through a dynamic functional test. Speed signal injection at 100%, 110%, and 120% of rated speed confirms correct trip threshold response before the unit is cleared for operational service.

Q: Do you supply DS200TCEAF1BEC for legacy simplex Mark V systems?
A: Yes. We maintain stock for both TMR and simplex Mark V configurations. Simplex installations require additional attention to single-channel failure modes; our technical team can advise on supplementary protection measures to maintain functional safety integrity in non-redundant architectures.
