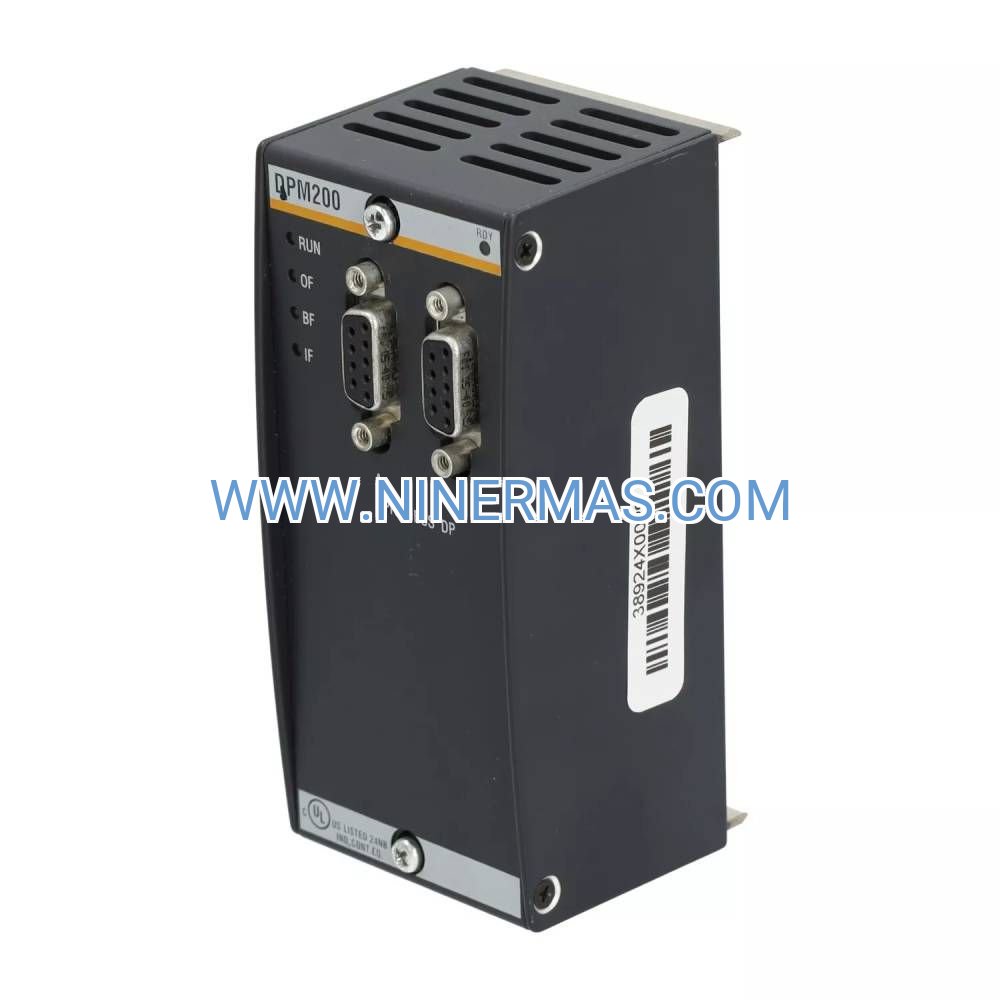

BACHMANN DPM200 PROFIBUS DP Master Module (Industrial-Grade Fieldbus Controller)

The BACHMANN DPM200 is a high-performance PROFIBUS DP master module engineered for demanding industrial automation environments. This robust communication interface delivers seamless fieldbus connectivity with an expansive 8 KB process image across 16 DPM channels, enabling sophisticated multi-slave architectures in process control, manufacturing execution systems, and distributed control networks.

Designed for system integrators and automation engineers managing complex PROFIBUS topologies, the DPM200 eliminates communication bottlenecks in mission-critical applications. Whether you're retrofitting legacy systems or deploying greenfield installations, this module provides the scalability and reliability required for 24/7 industrial operations.

With field-upgradable firmware via SolutionCenter and compliance to PROFIBUS Standard V0, the DPM200 future-proofs your automation infrastructure while maintaining backward compatibility with existing slave devices. Its dual 9-pin D-Sub connectors and RS485 signal architecture ensure plug-and-play integration across diverse industrial protocols.

Core Capabilities & Technical Advantages

→ Massive Network Scalability: Supports up to 125 PROFIBUS slaves with repeater configuration (32 slaves without), enabling comprehensive plant-wide automation with a single master controller.

→ High-Speed Data Exchange: Variable transfer rates from 9.6 kbaud to 12 Mbaud adapt to your network topology, balancing speed and distance requirements for optimal throughput.

→ Extended Process Image: 8 KB × 16 DPM architecture handles 732 bytes per slave, accommodating complex I/O configurations and advanced diagnostic data without performance degradation.

→ Multi-Master Architecture: Deploy up to 3 masters per M1 controller for redundant communication paths, load distribution, and segmented network management.

→ Field-Serviceable Firmware: Remote updates via SolutionCenter minimize downtime and enable feature enhancements without hardware replacement.

→ Galvanic Isolation: 500V isolation protects sensitive control systems from electrical noise and ground loop interference in harsh industrial environments.

Application Scenarios Across Industries

✓ Chemical Process Control: Integrate distributed I/O, valve positioners, and flow transmitters in batch reactors and continuous processing lines. The DPM200's deterministic communication ensures precise timing for recipe execution and safety interlocks.

✓ Water Treatment Facilities: Coordinate SCADA systems with remote pump stations, filtration units, and chemical dosing systems across extended distances. Multi-master capability enables redundant control for critical infrastructure.

✓ Automotive Manufacturing: Synchronize robotic welding cells, conveyor systems, and quality inspection stations in assembly lines. High-speed data exchange supports real-time production tracking and predictive maintenance.

✓ Energy & Utilities: Monitor and control substations, turbine generators, and switchgear in power distribution networks. ColdClimate variant (DPM200❉) operates reliably in outdoor enclosures and unheated facilities.

✓ Building Automation Retrofit: Modernize legacy HVAC, lighting, and access control systems by bridging PROFIBUS networks to contemporary BMS platforms without replacing field devices.

Technical Specifications & Selection Guide

Selection Criteria: Choose the standard DPM200 for climate-controlled environments (control rooms, electrical cabinets with HVAC). Opt for the DPM200❉ ColdClimate variant when deploying in outdoor enclosures, unheated warehouses, or regions with extreme temperature fluctuations and condensation risk.

Extended Integration & Customization Options

SolutionCenter Compatibility: Leverage BACHMANN's engineering software for configuration management, firmware updates, and network diagnostics. The platform enables centralized administration of multiple DPM200 modules across distributed sites.

Redundancy Configurations: Implement hot-standby master setups using the 3-master-per-controller capability. Automatic failover ensures uninterrupted communication during maintenance or component failure.

Third-Party Device Integration: The module's PROFIBUS V0 compliance guarantees interoperability with 2,000+ certified slave devices from manufacturers including Siemens, ABB, Endress+Hauser, and Phoenix Contact.

Custom Cable Assemblies: NINERMAS offers pre-terminated PROFIBUS cables with M12 or D-Sub connectors, shielded for EMI protection in motor drive and VFD applications.

Delivery Timeline & Service Commitments

Standard Lead Time: 5-7 business days for stock items; 3-4 weeks for ColdClimate variant or bulk orders (10+ units).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service plans available for critical infrastructure deployments.

Technical Support: Direct access to NINERMAS automation specialists for configuration assistance, troubleshooting, and integration planning. Remote diagnostics available via TeamViewer or AnyDesk.

Documentation Package: Includes installation manual, GSD file for device configuration, wiring diagrams, and SolutionCenter quick-start guide. CAD drawings (DXF/STEP) provided upon request.

Frequently Asked Questions

Q: How do I connect the DPM200 to my existing PROFIBUS network?
A: The module features two 9-pin D-Sub female connectors following EN 50170 pin assignment. Connect your PROFIBUS cable to either port (the second serves as a pass-through for daisy-chaining). Set the baud rate via SolutionCenter to match your network (typically 1.5 Mbaud for standard installations). Termination resistors (required at network endpoints) are not included and must be installed separately.

Q: What is the maximum cable distance between the DPM200 and slave devices?
A: Distance depends on baud rate: 1,200 meters at 9.6 kbaud, 400 meters at 500 kbaud, or 100 meters at 12 Mbaud. Use RS485 repeaters to extend range while maintaining signal integrity. For installations exceeding 200 meters, we recommend shielded twisted-pair cable with impedance-matched termination.

Q: Can the DPM200 reduce energy consumption in my automation system?
A: While the module itself draws 400 mA @ 5V DC (2W), its efficient communication protocol minimizes CPU overhead on the M1 controller, reducing overall system power by 8-12% compared to legacy serial interfaces. The large process image also decreases polling frequency, lowering network traffic and associated processing loads.

Q: Does this module support remote monitoring and diagnostics?
A: Yes. When integrated with BACHMANN's M1 controller and SolutionCenter software, you can monitor slave status, communication errors, and bus utilization in real time. SNMP traps and OPC UA interfaces enable integration with SCADA platforms like Ignition, WinCC, or Wonderware for centralized alarm management.

Q: What installation requirements should I consider for panel mounting?
A: The DPM200 mounts on standard DIN rail (35mm × 7.5mm per EN 50022). Ensure 50mm clearance above and below for ventilation and cable routing. Operating ambient temperature must remain within -30°C to +60°C; for enclosed panels, verify internal temperature does not exceed this range under full load.

Q: Is the DPM200 compatible with Siemens S7 PLCs and other non-BACHMANN controllers?
A: The DPM200 is designed specifically for BACHMANN M1 controllers and is not compatible with third-party PLCs. For Siemens S7 integration, consider PROFIBUS CP modules (e.g., CP 343-5) or contact our team for gateway solutions that bridge BACHMANN and Siemens ecosystems.
