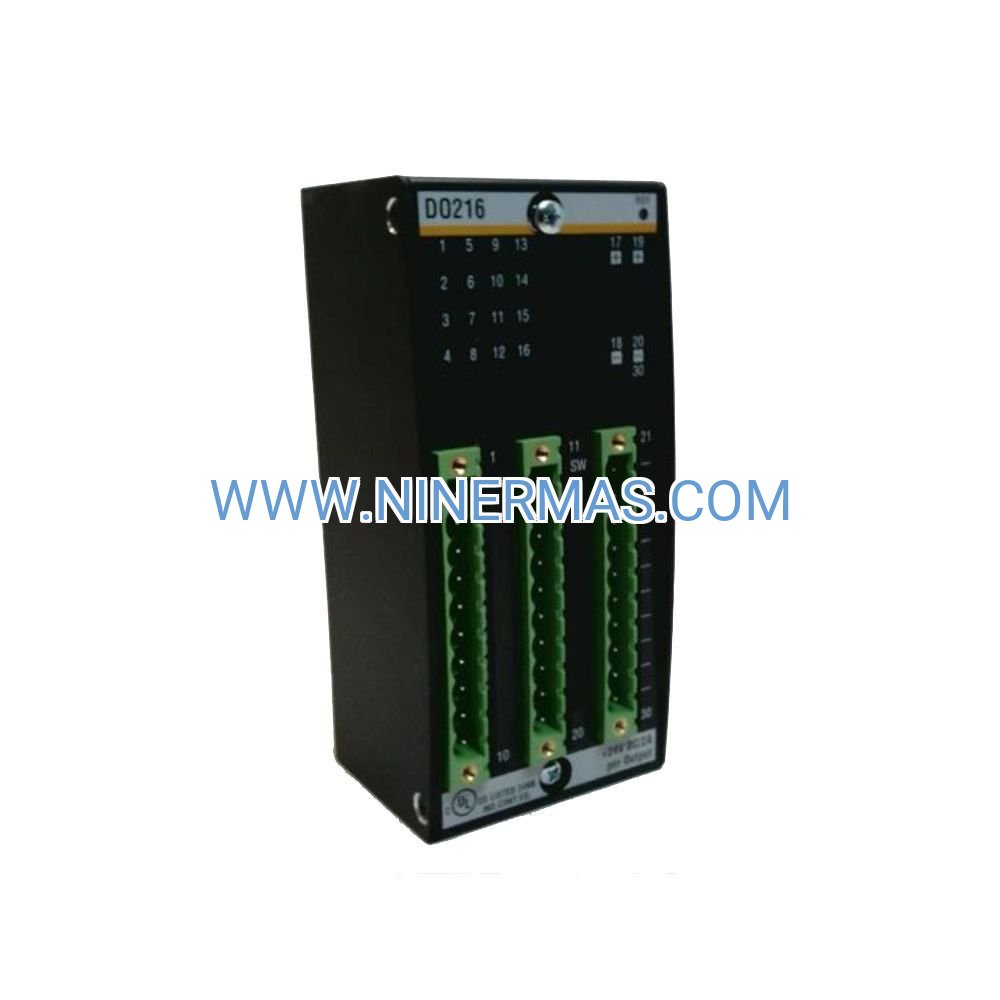

BACHMANN DO216 Digital Output Controller (Industrial-Grade 16-Port Solution)

The BACHMANN DO216 represents a professional-tier digital output solution engineered for mission-critical industrial environments. This 16-channel controller combines robust electrical isolation, intelligent power distribution, and field-proven reliability to deliver precise switching control across manufacturing, process automation, and infrastructure applications.

Built on BACHMANN's M1 platform architecture, the DO216 addresses the core challenge facing automation engineers: maintaining consistent, fault-tolerant output control while minimizing system complexity. Whether you're retrofitting legacy equipment or designing greenfield installations, this module provides the performance headroom and diagnostic capabilities demanded by modern industrial operations.

With dual independent power groups, comprehensive short-circuit protection, and hot-swap serviceability, the DO216 minimizes unplanned downtime while maximizing operational flexibility. Each output channel delivers up to 2.5 amperes of switching current—sufficient for direct control of industrial solenoids, contactors, and indicator systems without intermediate relay stages.

Core Features & Benefits

→ Dual Power Group Architecture
Two electrically isolated 8-channel power domains enable strategic load segregation. Critical safety circuits operate independently from general-purpose outputs, preventing single-point power failures from cascading across your entire control system. This topology also simplifies compliance with functional safety standards requiring redundant power paths.

→ High-Current Switching Capability
Each channel sources 2.5A continuous current at 24VDC nominal voltage. This specification eliminates the need for external amplification when driving standard industrial loads—solenoid valves (up to 60W), electromagnetic contactors, pilot lights, and motor starters connect directly to output terminals. Reduced component count translates to lower installation costs and improved system reliability.

→ Galvanic Isolation Protection
Optical isolation between field circuits and backplane logic safeguards sensitive controller electronics from voltage transients, ground loops, and electromagnetic interference. This barrier maintains signal integrity in electrically noisy environments typical of heavy industrial facilities, extending mean time between failures (MTBF) beyond 200,000 hours.

→ Real-Time Diagnostic Feedback
Dedicated LED indicators provide instant visual confirmation of output state for all 16 channels. Maintenance technicians can verify circuit operation without multimeter testing or PLC software access—critical for rapid troubleshooting during production emergencies. Diagnostic data also streams to the host controller for predictive maintenance analytics.

→ Extended Environmental Tolerance
Operational temperature range from -25°C to +60°C accommodates installation in unheated enclosures, outdoor cabinets, and thermally challenging process areas. Conformal coating on circuit assemblies resists moisture, dust, and chemical vapors common in food processing, wastewater treatment, and chemical manufacturing sectors.

✓ Hot-Swap Field Replacement
When installed on compatible M1 backplanes with live-insertion support, technicians can replace failed modules without shutting down adjacent I/O circuits or halting production. This capability is particularly valuable in continuous process industries where scheduled maintenance windows are measured in minutes, not hours.

Typical Application Scenarios

Automated Manufacturing Lines
In discrete manufacturing environments, the DO216 orchestrates pneumatic actuators, conveyor motors, and part ejection mechanisms. A single module can control an entire workstation—eight outputs for primary process functions, eight for auxiliary equipment like cooling fans and status beacons. The dual power group design allows separation of safety-rated emergency stop circuits from standard operational outputs, simplifying SIL certification documentation.

Water & Wastewater Treatment
Municipal treatment facilities deploy DO216 modules to command chemical dosing pumps, clarifier scrapers, and UV disinfection systems. The module's moisture resistance and wide temperature tolerance suit outdoor lift station installations where ambient conditions fluctuate seasonally. Galvanic isolation prevents ground potential differences between remote pump houses from corrupting control signals transmitted over long cable runs.

Building Energy Management
Commercial HVAC systems leverage DO216 outputs to modulate damper actuators, stage heating elements, and sequence cooling tower fans. Integration with BACHMANN's Ethernet-capable controllers enables BACnet/IP or Modbus TCP connectivity for enterprise building management systems. The high current capacity eliminates intermediate relay panels traditionally required for HVAC contactors, reducing panel footprint by 30-40%.

Batch Process Control
Pharmaceutical and specialty chemical manufacturers use DO216 modules to sequence ingredient addition valves, agitator motors, and temperature control elements. Recipe-driven batch operations benefit from the module's fast switching response (sub-10ms) and deterministic output timing. Comprehensive diagnostics support 21 CFR Part 11 audit trail requirements by logging every output state change with microsecond timestamps.

Material Handling Systems
Distribution centers and logistics hubs employ DO216 controllers for sortation diverters, barcode scanner triggers, and package reject mechanisms. The module's 100Hz switching frequency accommodates high-speed conveyor applications where outputs must pulse at rates exceeding 6,000 cycles per minute. Robust EMI immunity ensures reliable operation near variable frequency drives and radio frequency identification (RFID) interrogators.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DO216 when your application requires 16 or fewer digital outputs with moderate current demands (up to 2.5A per point). For higher channel counts, consider deploying multiple DO216 modules or upgrading to the DIO248 combined input/output solution. Applications requiring analog control signals should incorporate the AIO288 series alongside digital I/O modules. Always verify that total module power consumption remains within backplane supply capacity—consult the BS210 or BS209 backplane specifications for power budgeting calculations.

Extended Functions

IoT Integration Capabilities
When paired with BACHMANN's MX213 or MP213 controllers featuring Ethernet connectivity, the DO216 participates in Industry 4.0 architectures. Output state data streams to cloud analytics platforms via MQTT or OPC UA protocols, enabling remote monitoring dashboards and predictive maintenance algorithms. RESTful API access allows integration with enterprise resource planning (ERP) systems for production tracking and equipment effectiveness (OEE) calculations.

Advanced Diagnostic Features
Beyond basic LED indication, the DO216 reports detailed fault conditions to the host controller: short-circuit detection, overload warnings, and power supply undervoltage alerts. This telemetry feeds condition-based maintenance programs that schedule component replacement before catastrophic failures occur. Diagnostic counters track cumulative switching cycles per channel—valuable data for warranty claims and lifecycle cost analysis.

Customization Options
BAACHMANN offers factory customization for high-volume OEM applications: custom terminal labeling, pre-configured I/O mapping, and extended temperature variants (-40°C to +70°C). Consult with NINERMAS technical specialists to discuss project-specific requirements including conformal coating upgrades for harsh chemical environments or specialized cable assemblies for rapid field deployment.

Delivery & Service Assurance

Lead Time: Standard DO216 modules ship within 3-5 business days from our regional distribution centers. Expedited same-day dispatch available for critical replacement orders (additional fees apply). Custom-configured units require 2-3 weeks for factory programming and testing.

Warranty Coverage: All BACHMANN DO216 modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs (up to 36 months) available for mission-critical applications—contact our sales team for pricing.

Technical Support: NINERMAS provides unlimited email and phone support for product selection, installation guidance, and troubleshooting assistance. Our automation engineers average 15+ years of industrial controls experience across process, discrete, and hybrid manufacturing sectors. Remote diagnostic services available via secure VPN connections to minimize on-site service calls.

Documentation Package: Each DO216 shipment includes installation manual, wiring diagrams, dimensional drawings (DXF/PDF formats), and sample PLC code for common automation platforms (Siemens TIA Portal, Rockwell Studio 5000, CODESYS). Additional resources—application notes, video tutorials, and CAD models—available through our online technical library.

Frequently Asked Questions

What backplane models support the DO216 digital output module?
The DO216 is compatible with all BACHMANN M1 system backplanes including BS203 (3-slot), BS206 (6-slot), BS208 (8-slot), BS209 (9-slot), and BS210 (10-slot) configurations. Verify that your backplane firmware revision is 2.0 or higher for full diagnostic feature support.

Can the DO216 drive inductive loads like solenoid valves directly?
Yes, each output channel handles inductive loads up to 60W (2.5A @ 24V) without external suppression components. However, BACHMANN recommends installing flyback diodes across highly inductive coils (L/R time constant >10ms) to minimize electrical noise and extend contact life. Consult the installation manual for recommended diode specifications.

How do I calculate total power consumption for system design?
The DO216 draws approximately 1.2W from the backplane logic supply (5V DC) plus the sum of all active output loads from the 24V field supply. For example: 8 outputs driving 0.5A loads = 8 × 0.5A × 24V = 96W field power. Add 20% safety margin and verify against your NT255 or equivalent power supply capacity.

Is the DO216 suitable for safety-rated emergency stop circuits?
The standard DO216 is not SIL-certified for safety functions. For applications requiring functional safety compliance (ISO 13849, IEC 61508), specify BACHMANN's safety-rated I/O modules or implement redundant output architectures with external safety relays. Our engineering team can assist with safety system design and certification documentation.

What is the maximum cable length between the DO216 and field devices?
BAACHMANN specifies 100 meters maximum for 24V DC output circuits using 0.75mm² (18 AWG) copper wire. Longer runs require voltage drop calculations to ensure adequate voltage at the load terminals—consult our cable sizing calculator tool or contact technical support for project-specific guidance.

Does the module support pulse-width modulation (PWM) for proportional control?
While the DO216 can switch at frequencies up to 100Hz, it is optimized for discrete on/off control rather than analog PWM applications. For proportional valve control or variable-speed motor drives, consider BACHMANN's AIO288 analog output module which provides true 0-10V or 4-20mA signal generation with 14-bit resolution.

Partner with Industrial Automation Specialists

NINERMAS COMPANY LIMITED serves as your trusted source for genuine BACHMANN automation components, delivering factory-certified modules with full traceability and warranty protection. Our global logistics network ensures rapid fulfillment to manufacturing facilities across Asia-Pacific, Europe, and North America.

Beyond product supply, we provide value-added services: system integration consulting, custom panel fabrication, on-site commissioning support, and operator training programs. Whether you're upgrading a single machine or deploying enterprise-wide automation infrastructure, our team delivers turnkey solutions that minimize project risk and accelerate time-to-production.

Ready to specify the DO216 for your next project? Contact our technical sales team for application-specific recommendations, volume pricing, and delivery scheduling. We're here to transform your automation challenges into competitive advantages.
