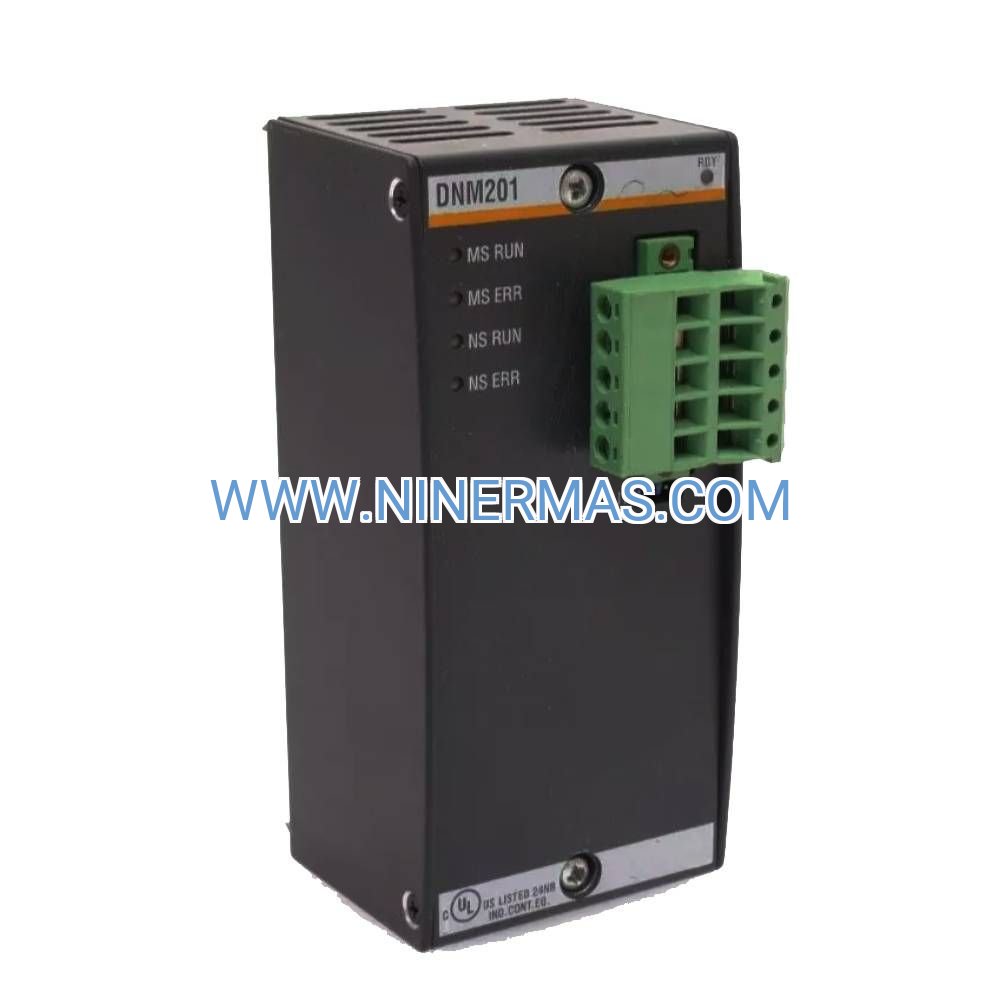

DNM201 DeviceNet Master Module (Industrial-Grade Network Controller)

The DNM201 represents a proven solution for industrial network management in automation environments demanding deterministic communication and electrical resilience. This master module orchestrates up to 64 DeviceNet nodes across manufacturing systems, integrating seamlessly with Bachmann M1 controller architectures while delivering 500V galvanic isolation to protect against electrical interference common in production facilities.

Designed for system integrators and plant engineers managing distributed I/O networks, servo drives, pneumatic systems, and intelligent sensors, the DNM201 eliminates communication bottlenecks through ODVA-compliant DeviceNet protocol implementation. Whether you're upgrading legacy fieldbus infrastructure or deploying new automation cells, this module provides the reliability and diagnostic capabilities required for mission-critical manufacturing operations.

With configurable baud rates spanning 125 to 500 kbit/s and comprehensive diagnostic tools, the DNM201 adapts to diverse network topologies while maintaining the real-time performance essential for synchronized motion control, high-speed packaging, and process automation applications.

Core Features & Business Value

→ 64-Node Network Capacity
Manage extensive device populations including sensors, actuators, drives, and HMI panels on a single master interface. This scalability reduces hardware costs and simplifies network architecture compared to multiple smaller networks, while maintaining deterministic scan times for time-critical applications.

→ 500V Galvanic Isolation Protection
Electrical isolation safeguards control systems from ground potential differences and voltage spikes prevalent in industrial power distribution systems. This protection minimizes unplanned downtime caused by electrical faults and extends equipment service life in electrically noisy environments such as welding cells and motor control centers.

→ Flexible Baud Rate Configuration (125/250/500 kbit/s)
Optimize the balance between communication speed and network reach based on your facility layout. Higher baud rates deliver faster update cycles for motion control applications, while lower rates enable extended cable runs up to 500 meters for distributed manufacturing zones.

✓ ODVA Certification & Multi-Vendor Compatibility
Full compliance with DeviceNet specifications ensures interoperability with thousands of certified devices from manufacturers including Allen-Bradley, Turck, Balluff, SMC, and Festo. This vendor independence protects your automation investment and simplifies device sourcing.

✓ Integrated Diagnostic & Fault Isolation
Real-time network health monitoring through LED indicators and software-accessible diagnostics accelerates troubleshooting. Identify failing nodes, cable faults, and configuration errors without specialized test equipment, reducing mean time to repair (MTTR) during production disruptions.

✓ Native M1 System Integration
Direct backplane mounting and native support in Bachmann SolutionCenter programming environment eliminates integration complexity. Share power and communication resources with M1 controller CPUs for compact, cost-effective control panel designs.

Typical Application Scenarios

Automotive Assembly Lines
DeviceNet's widespread adoption in automotive manufacturing makes the DNM201 ideal for body shop welding cells, paint application systems, and final assembly stations. Coordinate pneumatic grippers, conveyor systems, and safety devices while maintaining the deterministic communication required for takt-time production. The module's hot-swap capability enables device replacement during scheduled maintenance windows without line shutdown.

High-Speed Packaging Equipment
Form-fill-seal machines, cartoning systems, and labeling equipment demand synchronized motion between servo drives, vision systems, and product handling mechanisms. The DNM201 delivers sub-millisecond update rates necessary for registration control and quality inspection integration, while peer-to-peer messaging reduces master controller processing overhead during high-speed operation.

Material Handling & Sortation Systems
Conveyor networks, automated storage/retrieval systems (AS/RS), and parcel sortation facilities benefit from DeviceNet's distributed intelligence architecture. Deploy the DNM201 to manage zone controllers, barcode scanners, and diverter mechanisms across facilities spanning hundreds of meters, leveraging lower baud rates for extended cable runs while maintaining reliable communication.

Process-Discrete Hybrid Systems
Bridge discrete manufacturing networks with continuous process control in industries such as food & beverage, pharmaceuticals, and chemical processing. The DNM201 integrates with other Bachmann communication modules to create multi-protocol automation architectures, enabling data exchange between DeviceNet field devices and Ethernet-based SCADA systems.

Machine Tool & Metalworking Centers
CNC machining centers, laser cutting systems, and press brake automation require coordinated control of tool changers, part handling robots, and safety interlocks. The DNM201's galvanic isolation provides critical protection in environments with heavy electrical machinery and frequent welding operations that generate electromagnetic interference.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the DNM201 when your application requires DeviceNet protocol support within a Bachmann M1 controller architecture. This module is optimal for facilities with existing DeviceNet device investments or when integrating with equipment manufacturers that standardize on DeviceNet for machine-level communication.

For network distances exceeding 100 meters, configure the module at 125 kbit/s to achieve maximum trunk cable length of 500 meters. Applications requiring faster update rates (sub-10ms) should utilize 500 kbit/s configuration with appropriate cable length restrictions.

Verify that your M1 backplane (BS203, BS204, BS206, BS208, or BS210) has available slots and sufficient power budget to accommodate the DNM201's 150mA current draw. For systems requiring multiple communication protocols, the DNM201 can coexist with other Bachmann network modules including Profibus, CANopen, and Ethernet interfaces.

Extended Functions & Integration Capabilities

Advanced Diagnostic Features
Beyond basic network status monitoring, the DNM201 provides detailed diagnostic data accessible through Bachmann SolutionCenter software. Monitor individual node health, track communication error rates, identify cable quality issues through CAN bus error counters, and log network events for predictive maintenance analysis.

Multi-Protocol System Architecture
Combine the DNM201 with other Bachmann communication modules to create hybrid automation systems. Integrate DeviceNet field devices with Profibus DP drives, EtherNet/IP HMI systems, and Modbus RTU instruments within a single M1 controller platform, eliminating the need for external protocol gateways.

Customization & OEM Integration
Machine builders can leverage the DNM201's Electronic Data Sheet (EDS) support to create custom device profiles for proprietary equipment. Develop standardized network configurations that can be replicated across multiple machine builds, reducing commissioning time and ensuring consistent performance.

Remote Monitoring & IoT Connectivity
When paired with Bachmann Ethernet-enabled controllers and appropriate gateway software, DeviceNet network data can be published to cloud-based monitoring platforms, SCADA systems, or MES applications. Enable predictive maintenance strategies by analyzing network performance trends and device health metrics over time.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units to major industrial centers. Express shipping options available for urgent project requirements.

Custom Configuration: Pre-configured modules with customer-specific EDS files and network settings available with 7-10 business day lead time.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects and component failures. Extended warranty programs available for critical infrastructure applications.

Technical Support: Expert application engineering support included with purchase. Services include network design consultation, EDS file configuration assistance, troubleshooting guidance, and integration planning for complex multi-vendor DeviceNet installations.

Documentation Package: Each DNM201 ships with installation manual, quick-start guide, EDS file library, and access to online technical resources including application notes, wiring diagrams, and configuration examples.

Frequently Asked Questions

Q: What is the maximum cable distance supported by the DNM201 at different baud rates?
A: Cable length varies inversely with baud rate: 500 kbit/s supports up to 100 meters, 250 kbit/s extends to 250 meters, and 125 kbit/s enables maximum trunk cable length of 500 meters. These distances apply to trunk cable; drop cables have separate length restrictions based on network design.

Q: Can the DNM201 communicate with Allen-Bradley and other manufacturers' DeviceNet devices?
A: Yes, the DNM201 is fully ODVA-certified and compatible with all DeviceNet-compliant devices regardless of manufacturer. This includes products from Allen-Bradley, Turck, Balluff, SMC, Festo, Omron, and hundreds of other ODVA member companies.

Q: How many discrete I/O points can the DNM201 manage across the network?
A: The module supports 2048 input bytes and 2048 output bytes of process data. For discrete I/O, this translates to over 16,000 individual digital points, though practical limits depend on network scan time requirements and device configuration.

Q: Does the DNM201 support hot-swappable device replacement during operation?
A: Yes, when properly configured with appropriate network settings, DeviceNet supports hot-swap functionality allowing replacement of failed devices without master shutdown. However, this requires careful network design and device configuration to prevent communication disruptions.

Q: What programming software is required to configure the DNM201?
A: Configuration is performed using Bachmann SolutionCenter software, which includes integrated DeviceNet configurator tools. The software supports EDS file import for all ODVA-certified devices and provides graphical network configuration, diagnostic monitoring, and troubleshooting capabilities.

Q: Can I implement redundant DeviceNet networks for critical applications?
A: The standard DNM201 does not support media redundancy protocols. For critical applications requiring network redundancy, implement dual M1 controller systems with separate DeviceNet networks and appropriate application-level failover logic.
