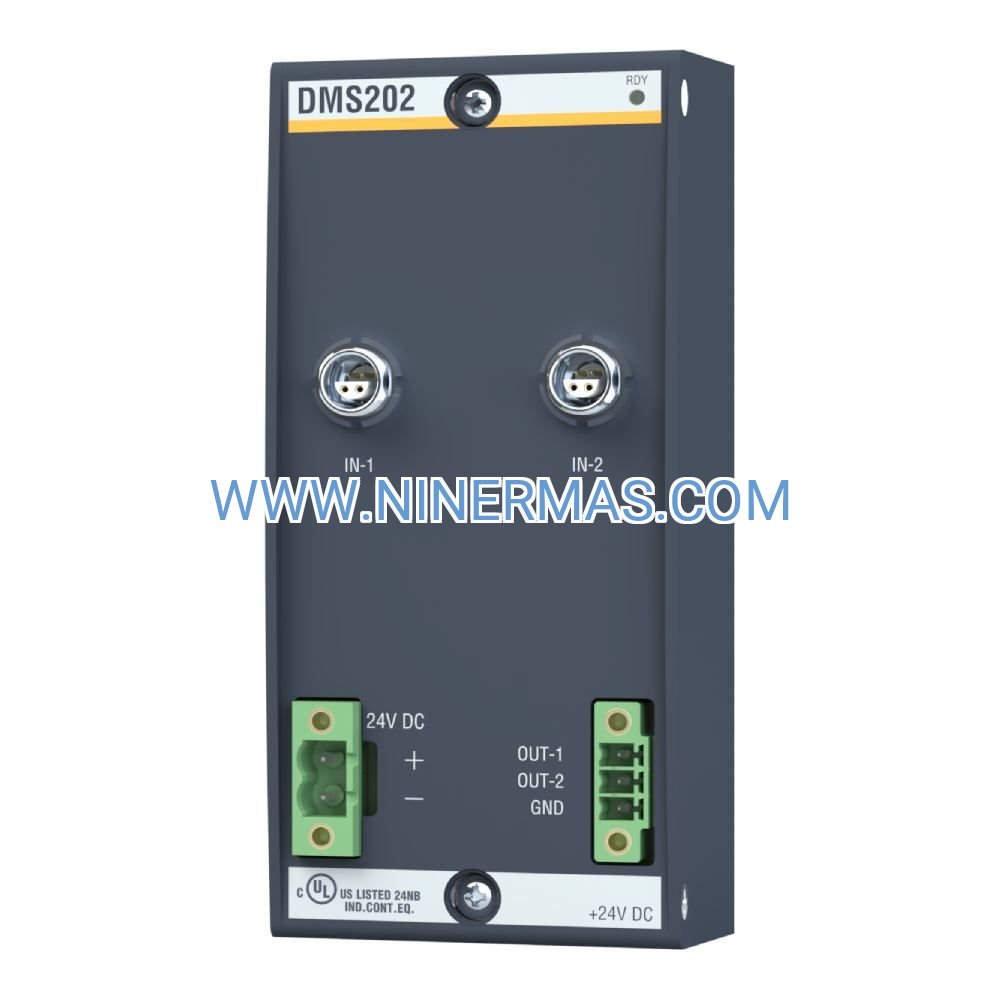

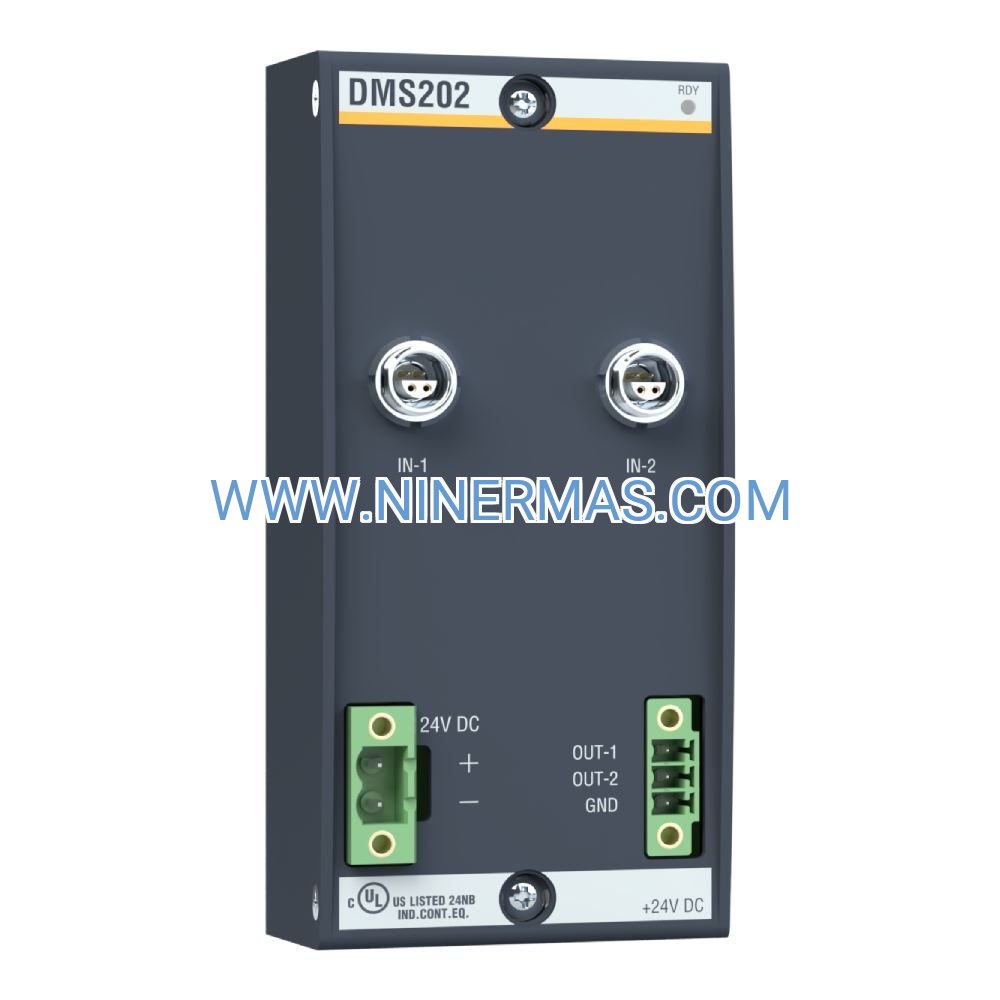

BACHMANN DMS202 Strain Gauge Input Module (Industrial-Grade Force & Torque Measurement)

The BACHMANN DMS202 represents a specialized analog input solution engineered for high-precision strain gauge signal acquisition in demanding industrial environments. This dual-channel module transforms mechanical stress measurements into actionable process data, enabling real-time monitoring of force, pressure, weight, and torque across manufacturing, testing, and process control applications.

Designed for seamless integration within BACHMANN M1 automation architectures, the DMS202 addresses critical measurement challenges where standard analog inputs fall short. Its 5 kHz bridge excitation frequency and 12-bit resolution deliver the accuracy required for quality control systems, material testing laboratories, and precision weighing operations. Built-in wire break detection safeguards against sensor failures, while support for full, half, and quarter bridge configurations ensures compatibility with diverse strain gauge sensor types.

Whether you're implementing automated force monitoring in assembly lines, capturing stress-strain data in R&D facilities, or building custom weighing systems, the DMS202 provides the measurement foundation for reliable, repeatable results. Its industrial-grade construction withstands harsh operating conditions from -40°C to +70°C, making it suitable for both climate-controlled laboratories and challenging production floor environments.

Core Features & Benefits

→ Dual-Channel Differential Inputs
Two independent strain gauge channels enable simultaneous multi-point measurement or redundant sensing configurations, reducing system complexity and wiring costs while improving measurement reliability.

→ Universal Bridge Compatibility
Configurable support for full-bridge (4-wire), half-bridge (3-wire), and quarter-bridge (2-wire) sensors eliminates the need for external signal conditioning, simplifying installation and reducing component count.

→ 5 kHz Bridge Excitation
High-frequency carrier signal minimizes noise interference and enables faster measurement response times compared to DC-excited systems, critical for dynamic force monitoring applications.

→ Integrated Fault Diagnostics
Automatic wire break detection identifies open circuits and sensor disconnections in real-time, triggering alarms before measurement errors impact product quality or process safety.

→ 12-Bit Resolution
Provides 4,096 discrete measurement steps across the input range, delivering the precision necessary for detecting small force variations in quality control and material testing scenarios.

→ Extended Temperature Range
Operates reliably from -40°C to +70°C without derating, suitable for outdoor installations, cold storage facilities, and high-temperature manufacturing environments.

Typical Application Scenarios

Manufacturing Quality Control
In automated assembly operations, the DMS202 monitors press-fit forces, torque application, and component seating pressure. Real-time force profiling detects assembly defects before products leave the production line, reducing warranty claims and improving first-pass yield rates. Integration with BACHMANN controllers enables automatic rejection of out-of-specification assemblies.

Material Testing & Research
Laboratories conducting tensile, compression, and fatigue testing rely on the DMS202 for accurate stress-strain curve generation. The module's high resolution captures subtle material behavior changes during destructive and non-destructive testing protocols, supporting compliance with ASTM, ISO, and industry-specific testing standards.

Weighing & Batching Systems
Precision weighing applications in pharmaceutical, food processing, and chemical industries benefit from the DMS202's stable bridge excitation and noise immunity. The module enables legal-for-trade weighing systems when paired with calibrated load cells, supporting batch formulation accuracy requirements down to 0.1% of full scale.

Process Force Monitoring
Continuous monitoring of hydraulic press forces, injection molding clamp pressure, and web tension control relies on the DMS202's real-time measurement capabilities. Trend analysis identifies gradual equipment wear, enabling predictive maintenance before catastrophic failures occur.

Structural Health Monitoring
Civil engineering and infrastructure applications use the DMS202 to track stress levels in bridges, buildings, and heavy equipment. Long-term strain monitoring detects structural fatigue and overload conditions, supporting safety compliance and maintenance scheduling.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DMS202 when your application requires direct strain gauge interfacing without external signal conditioners. For applications needing more than two measurement points, combine multiple DMS202 modules on a single M1 backplane. If your sensors output standard voltage or current signals (0-10V, 4-20mA), consider BACHMANN's AIO or AI series modules instead. For temperature measurement alongside force monitoring, pair the DMS202 with PTAI216 temperature input modules for comprehensive process data acquisition.

Extended Functions

✓ SCADA Integration
The DMS202 seamlessly connects to supervisory control systems via BACHMANN's Ethernet-based communication modules. Real-time force data streams to HMI panels, historians, and cloud analytics platforms for remote monitoring and long-term trend analysis.

✓ Advanced Calibration
Software-based calibration through BACHMANN's SolutionCenter programming environment enables multi-point linearization, zero offset adjustment, and span calibration without hardware modifications. Store calibration coefficients directly in the controller for automatic sensor compensation.

✓ Alarm & Event Management
Configure threshold-based alarms for overload detection, underload conditions, and sensor fault events. Programmable hysteresis prevents alarm chatter, while time-stamped event logging supports quality traceability and compliance documentation.

✓ Customization Options
NINERMAS offers pre-configured DMS202 modules with customer-specific calibration data, terminal labeling, and tested sensor assemblies. Turnkey measurement subsystems reduce commissioning time and eliminate field calibration requirements.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock modules | 2-3 weeks for custom-configured systems
Warranty Coverage: 12 months against manufacturing defects and material failures
Technical Support: Email and phone support during business hours (GMT+8), remote diagnostics assistance available
Documentation Package: User manual, wiring diagrams, sample PLC code, calibration certificates (upon request)

All DMS202 modules undergo factory testing including bridge excitation verification, resolution accuracy checks, and diagnostic function validation before shipment. Modules ship with protective packaging suitable for international freight and include mounting hardware for standard M1 backplanes.

Frequently Asked Questions

How do I connect different strain gauge bridge configurations to the DMS202?
The module's terminal block accommodates all bridge types through software configuration. Full bridges use four terminals (excitation+ excitation- signal+ signal-), half bridges require three (with internal completion resistor), and quarter bridges use two terminals with internal bridge completion. Consult the wiring diagram in the user manual for specific terminal assignments.

What is the maximum cable length between strain gauges and the DMS202 module?
For optimal noise immunity, limit cable runs to 50 meters using shielded twisted-pair cable. Longer distances up to 100 meters are possible with low-capacitance cable and proper grounding practices. The 5 kHz carrier frequency provides superior noise rejection compared to DC-excited systems, enabling longer cable runs than conventional strain gauge amplifiers.

Can the DMS202 improve measurement accuracy in high-vibration environments?
Yes. The AC carrier excitation method inherently rejects low-frequency vibration noise and DC drift. Additionally, the module's differential input architecture cancels common-mode interference from electromagnetic fields and ground potential differences, making it well-suited for measurements on rotating machinery and mobile equipment.

Does the module support remote calibration and zero adjustment?
Absolutely. All calibration parameters are software-configurable through the BACHMANN controller. Operators can perform zero tare operations, span adjustments, and multi-point linearization remotely via HMI or SCADA without physical access to the module. Calibration data persists in controller memory across power cycles.

What happens when the DMS202 detects a wire break condition?
The integrated diagnostic circuit continuously monitors sensor continuity. Upon detecting an open circuit, the module sets a fault flag in the controller's I/O status table and can trigger configurable alarm actions (email notification, process shutdown, operator alert). The measurement channel outputs a predefined safe value (typically zero or last valid reading) until the fault is cleared.

Is the DMS202 suitable for legal-for-trade weighing applications?
While the DMS202 provides excellent measurement accuracy, legal-for-trade certification depends on the complete weighing system including load cells, controller, and software. The module can be integrated into certified weighing systems when combined with approved components and proper calibration procedures. Consult local weights and measures authorities for specific certification requirements.

Start Your Precision Measurement Project

Ready to implement reliable strain gauge measurement in your automation system? Contact our technical sales team for application-specific recommendations, system configuration assistance, and quotations. We'll help you select compatible BACHMANN components, design wiring layouts, and provide sample PLC code to accelerate your project timeline.
