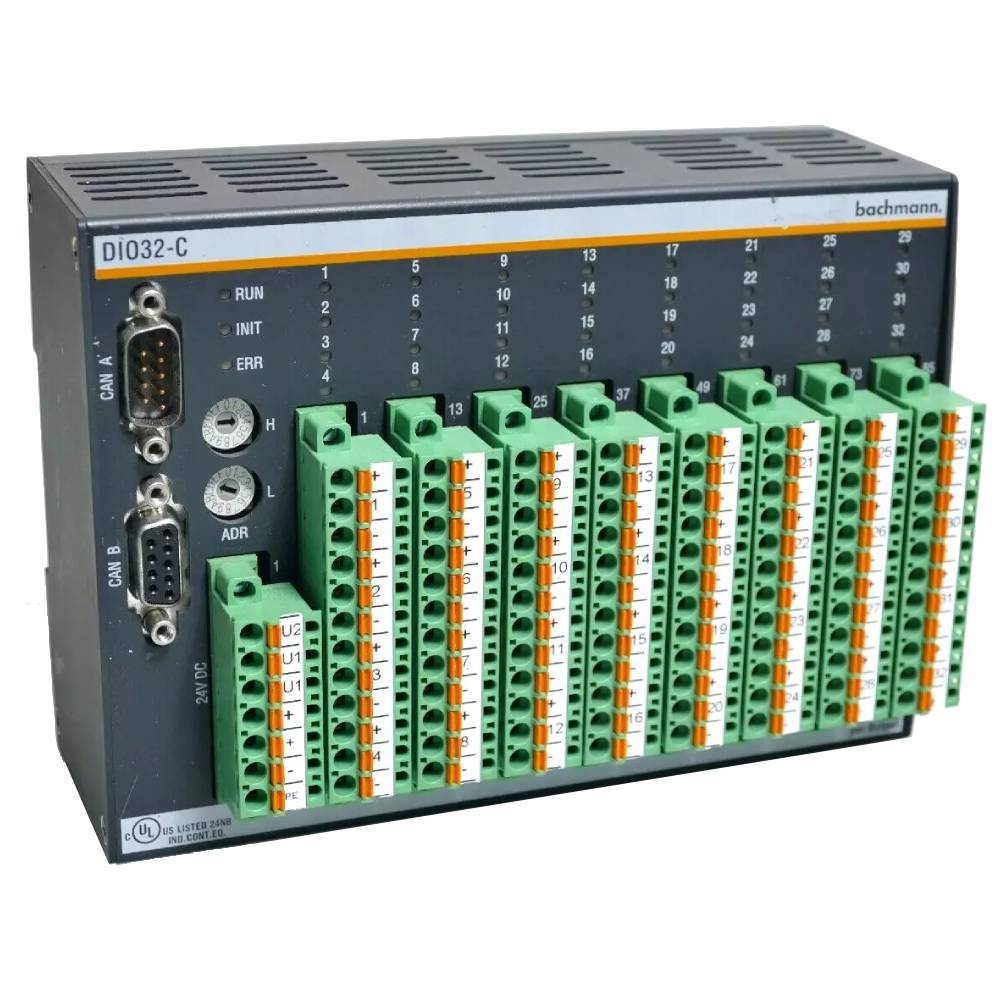

Bachmann DIO32-C Digital I/O Module (Industrial-Grade CANopen Controller)

The Bachmann DIO32-C represents a versatile solution for distributed control architectures requiring flexible digital signal processing. This compact CAN slave module delivers up to 32 configurable I/O channels with robust 1A continuous output capability, making it ideal for demanding industrial environments where reliability and adaptability are paramount.

Designed for system integrators and automation engineers, the DIO32-C addresses the challenge of expanding I/O capacity without complex wiring infrastructure. Its dual CANopen interfaces enable seamless network integration while maintaining galvanic isolation for enhanced system protection. Whether you're retrofitting legacy equipment or designing new control systems, this module provides the scalability and performance modern automation demands.

Key advantages include tool-free configuration via rotary switches, EN 50022 DIN rail mounting for rapid installation, and operation across extended temperature ranges (-30°C to +60°C) without additional cooling. The DIO32-C combines German engineering precision with practical field-proven design, delivering measurable uptime improvements in process control, material handling, and machine automation applications.

Core Features & Benefits

→ Flexible Channel Architecture: Configure all 32 channels independently as inputs or outputs based on application requirements, eliminating the need for multiple specialized modules and reducing spare parts inventory by up to 40%.

→ High-Current Output Capability: Each digital output supports 1A continuous current with short-circuit protection, enabling direct control of industrial solenoids, contactors, and indicator lights without external relay interfaces.

→ Dual CANopen Connectivity: Two internally connected 9-pin D-Sub interfaces support cable loop-through topology, simplifying network wiring and reducing installation time by approximately 30% compared to star configurations.

→ Galvanic Isolation Protection: 500V isolation between CAN bus and control electronics safeguards sensitive PLC systems from electrical noise and ground potential differences common in industrial environments.

→ Tool-Free Configuration: Rotary switches allow on-site adjustment of baud rate (10 Kbaud to 1 Mbaud) and node ID (1-254) without programming tools, accelerating commissioning and troubleshooting procedures.

→ Extended Operating Range: Proven performance from -30°C to +60°C without forced cooling enables deployment in harsh environments including outdoor enclosures, foundries, and cold storage facilities.

Typical Application Scenarios

✓ Conveyor System Control: In automated warehousing operations, the DIO32-C manages photoeye sensors, diverter gates, and motor starters across distributed zones. The module's fast input response (<3.5ms) ensures accurate package detection at speeds up to 2m/s, while dual CAN interfaces enable redundant network paths for 99.9% uptime reliability.

✓ Process Equipment Monitoring: Chemical processing plants utilize the DIO32-C to interface with level switches, pressure transmitters, and valve position indicators. Galvanic isolation protects SCADA systems from electrical transients generated by high-power pumps and mixers, reducing nuisance trips by 60%.

✓ Packaging Machine Integration: High-speed packaging lines leverage the 500Hz switching frequency for precise control of pneumatic actuators and servo-driven pick-and-place mechanisms. The module's 12A per block current capacity supports multiple outputs simultaneously without thermal derating.

✓ Building Automation Networks: HVAC control systems employ the DIO32-C for damper control, fan status monitoring, and alarm panel integration. CANopen DS 401 device profile compatibility ensures plug-and-play operation with major building management platforms.

✓ Mobile Equipment Control: Construction and agricultural machinery integrate the DIO32-C for implement control and operator interface functions. The 18-34V DC supply voltage range accommodates battery voltage fluctuations, while reverse polarity protection prevents installation errors.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DIO32-C when your application requires more than 16 I/O points in a single location, demands flexible input/output configuration, or needs CANopen network integration. For applications requiring analog signal processing or higher channel density (64+), consider the Bachmann AIO or modular M1 system alternatives. Verify that your CANopen master supports DS 301/DS 401 profiles for seamless integration.

Extended Functions

CANopen Protocol Support: Full implementation of DS 301 communication profile and DS 401 device profile enables advanced features including PDO mapping, SDO configuration, and heartbeat monitoring. Network management tools can remotely adjust I/O parameters without physical access to the module.

Status Diagnostics: Dedicated LEDs provide real-time indication of RUN status, initialization state, and error conditions. Individual channel LEDs (green) confirm input states and output activation, accelerating troubleshooting during commissioning and maintenance.

Modular System Integration: As part of the Bachmann M1 automation platform, the DIO32-C integrates with CPU modules, analog I/O, motion controllers, and communication gateways. This scalability supports system expansion from 32 to 1000+ I/O points using standardized backplane architecture.

Custom Configuration Services: NINERMAS offers pre-configured modules with customer-specific node IDs, baud rates, and tested CANopen object dictionaries. This service reduces on-site commissioning time by up to 50% for multi-module installations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Typical delivery to major industrial centers: Asia 3-5 days, Europe 5-7 days, Americas 7-10 days.

Custom Configuration: Pre-programmed modules with specific network settings available with 5-7 business day lead time. Includes factory testing and configuration documentation.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Direct access to application engineers via email (sale@ninermas.com) and phone (+0086 187 5021 5667). Response time: <4 hours for technical inquiries, <24 hours for configuration assistance.

Documentation Package: Each module includes installation manual, CANopen EDS file, wiring diagrams, and quick-start guide. Additional resources available: sample PLC code, network configuration examples, and troubleshooting flowcharts.

Frequently Asked Questions

Q: How do I connect the DIO32-C to my existing CANopen network?
A: The module features two 9-pin D-Sub connectors wired in parallel for daisy-chain topology. Connect your CAN_H and CAN_L signals to pins 7 and 2 respectively, set the baud rate and node ID via rotary switches, and apply 24VDC power. The module auto-initializes and appears on the network within 2 seconds. Ensure 120Ω terminating resistors are installed at both network ends.

Q: What is the maximum cable distance between DIO32-C modules on the CAN bus?
A: Total network length depends on baud rate: 1000m at 50 Kbaud, 500m at 125 Kbaud, 250m at 250 Kbaud, 100m at 500 Kbaud, 40m at 1 Mbaud. Use twisted-pair cable (120Ω characteristic impedance) such as DeviceNet thick or thin cable for reliable communication.

Q: Can I mix inputs and outputs on the same DIO32-C module?
A: Yes, all 32 channels are individually configurable via CANopen object dictionary parameters. For example, you can assign channels 1-16 as inputs for sensor monitoring and channels 17-32 as outputs for actuator control. Configuration is stored in non-volatile memory and persists through power cycles.

Q: Does the module support remote monitoring and diagnostics?
A: The DIO32-C provides comprehensive diagnostics via CANopen SDO (Service Data Object) access. You can remotely read input states, output status, supply voltage, internal temperature, and error registers. Emergency messages (EMCY) automatically notify the master controller of fault conditions such as short circuits or over-temperature events.

Q: What type of loads can the digital outputs directly control?
A: Each output handles resistive, inductive, and capacitive loads up to 1A continuous at 24VDC. Typical applications include 24VDC solenoid valves (0.3-0.8A), indicator lamps (0.1-0.3A), small contactors (0.2-0.5A), and relay coils (0.1-0.2A). For inductive loads, the module's internal flyback diodes protect against voltage spikes. Loads exceeding 1A require external relay or contactor interfaces.

Q: How does the DIO32-C handle power supply interruptions?
A: The module features reverse polarity protection and operates across 18-34V DC range, tolerating ±25% supply voltage variations. During power-up, the module performs self-diagnostics and enters CANopen pre-operational state within 500ms. Output states default to OFF (safe state) until the CANopen master issues operational commands, preventing unintended actuator activation.

Get Started with Industrial-Grade I/O Control

Ready to simplify your distributed control architecture? Contact our automation specialists to discuss your specific I/O requirements, receive application-specific wiring diagrams, and obtain a detailed quotation. For immediate technical questions, reach us at sale@ninermas.com or +0086 187 5021 5667. Request your DIO32-C datasheet and sample CANopen configuration files today.
