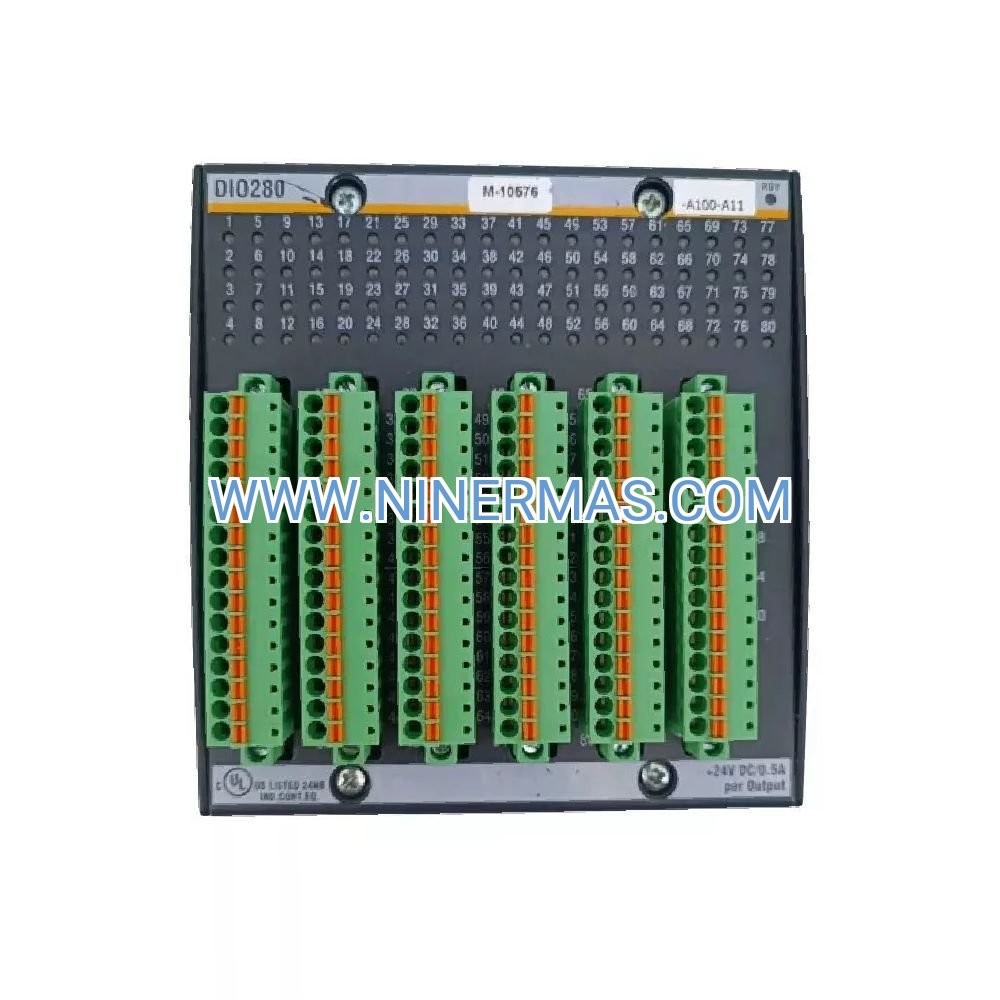

Bachmann DIO280 Digital Input Module (Industrial-Grade Multi-Channel Solution)

The Bachmann DIO280 represents a cutting-edge digital input solution engineered for demanding industrial environments. This high-density I/O module delivers up to 48 configurable digital input channels with specialized interrupt processing, enabling precise monitoring and rapid event detection across manufacturing, energy, and building automation sectors.

Designed for seamless integration with Bachmann M1 controller ecosystems, the DIO280 addresses critical challenges in modern automation: limited I/O density, slow response times, and inadequate signal isolation. Whether you're upgrading legacy systems or deploying new installations, this module provides the reliability and performance required for mission-critical operations.

With proven track records in safety-critical applications and 24/7 industrial operations, the DIO280 combines German engineering precision with practical field-tested durability. Its compact DIN-rail design maximizes cabinet space efficiency while maintaining full industrial-grade specifications from -25°C to +60°C operating ranges.

Core Features & Benefits

→ High-Density Input Architecture
Configure 32 to 48 digital input channels within a single compact module, reducing cabinet footprint by up to 40% compared to traditional distributed I/O solutions while maintaining full diagnostic capabilities.

→ Ultra-Fast Interrupt Processing
Eight dedicated interrupt inputs deliver sub-50 microsecond response times, ensuring critical safety events and emergency conditions trigger immediate controller action without polling delays.

→ Universal Sensor Compatibility
Wide 10-30 VDC input voltage range accommodates diverse sensor types—proximity switches, photoelectric sensors, limit switches, and safety devices—without requiring additional signal conditioning.

→ Industrial-Hardened Protection
500V galvanic isolation shields control systems from electrical noise, ground loops, and transient voltage spikes common in heavy industrial environments, extending system lifespan and reducing maintenance costs.

→ Extreme Environment Operation
Certified for -25°C to +60°C ambient temperatures with IP20 protection rating, the DIO280 maintains specification accuracy in foundries, cold storage facilities, and outdoor enclosures.

→ Plug-and-Play System Integration
Direct compatibility with Bachmann M1 backplanes enables tool-free installation and hot-swap capability, minimizing commissioning time and supporting live system modifications without production interruptions.

Typical Application Scenarios

✓ Automated Manufacturing Lines
Monitor conveyor position sensors, robotic cell interlocks, and quality inspection gates across multi-stage production processes. The DIO280's high channel density consolidates dozens of discrete signals into centralized control, reducing wiring complexity and troubleshooting time by 60%.

✓ Energy Distribution & Substation Monitoring
Track circuit breaker status, transformer alarm contacts, and protective relay outputs in electrical distribution systems. Interrupt inputs provide millisecond-level fault detection for rapid isolation and system protection.

✓ Building Management Systems
Integrate HVAC zone sensors, access control door contacts, fire alarm panels, and occupancy detectors into unified facility automation platforms. Wide voltage tolerance simplifies integration with legacy building systems.

✓ Water & Wastewater Treatment
Collect pump status signals, level switch inputs, valve position feedback, and chemical feed system alarms. Galvanic isolation protects against harsh electrical environments typical in municipal infrastructure.

✓ Machine Safety Systems
Implement emergency stop circuits, safety door monitoring, light curtain inputs, and two-hand control verification. Fast interrupt response ensures compliance with ISO 13849 and IEC 62061 safety standards when paired with certified safety controllers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DIO280 when your application requires more than 24 digital inputs in a single location, demands interrupt-driven event processing, or needs to consolidate multiple smaller I/O modules. For mixed input/output requirements, consider the DIO248 or DIO264 combination modules. Applications with fewer than 16 inputs may benefit from the more economical DIO216 model.

Extended Functions

Advanced Diagnostics: Built-in channel-level diagnostics detect wire breaks, short circuits, and out-of-range voltages. LED indicators provide at-a-glance status verification, while detailed fault logs accessible through Bachmann SolutionCenter software enable predictive maintenance strategies.

Flexible Configuration: Software-configurable input filtering eliminates contact bounce and electrical noise without external components. Adjustable debounce times from 0.1ms to 20ms accommodate everything from high-speed encoders to mechanical limit switches.

System Scalability: Combine multiple DIO280 modules on Bachmann BS203, BS206, BS209, or BS210 backplanes to create distributed I/O networks exceeding 500 digital inputs. Modular architecture supports phased expansion as production requirements grow.

Protocol Integration: Native support for PROFIBUS, Modbus TCP, and EtherCAT communication protocols enables integration with third-party SCADA systems, HMI panels, and enterprise MES platforms without protocol converters.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with specialized firmware require 10-15 business days. Expedited processing available for critical downtime situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for mission-critical installations requiring 3-year or 5-year coverage.

Technical Support: Direct access to application engineers with industrial automation expertise. Support includes pre-sales system design consultation, commissioning assistance, and lifetime troubleshooting guidance via email, phone, and remote diagnostics.

Documentation Package: Each module includes installation manual, wiring diagrams, SolutionCenter configuration guide, and CAD drawings for panel layout. Downloadable firmware updates and application notes available through customer portal.

Frequently Asked Questions

What is the maximum recommended cable length for digital input connections?
For shielded twisted-pair cables in industrial environments, we recommend maximum runs of 100 meters to maintain signal integrity. Longer distances may require signal repeaters or transition to fieldbus-based remote I/O.

Can the DIO280 interface with 12VDC or 48VDC sensor systems?
Yes, the 10-30 VDC input range accommodates 12V automotive-grade sensors and 24V industrial sensors. For 48VDC systems, voltage divider networks or signal conditioning modules are required.

Does this module support hot-swapping during system operation?
When installed on compatible Bachmann backplanes with redundant power configurations, the DIO280 supports hot-swap replacement without shutting down the entire control system, minimizing production interruptions.

How many DIO280 modules can operate on a single M1 backplane?
Backplane capacity depends on model: BS203 supports 3 modules, BS206 supports 6 modules, BS209 supports 9 modules, and BS210 supports 10 modules. Total system I/O is limited by processor module scan time and memory capacity.

What diagnostic capabilities help troubleshoot wiring issues?
Channel-specific LED indicators show real-time input status. SolutionCenter software provides detailed diagnostics including input voltage levels, transition counters, and historical fault logs for rapid troubleshooting.

Is the DIO280 suitable for SIL-rated safety applications?
The standard DIO280 is designed for general industrial use. For safety-critical applications requiring SIL certification, consult our technical team regarding certified safety I/O modules and system architecture validation.
