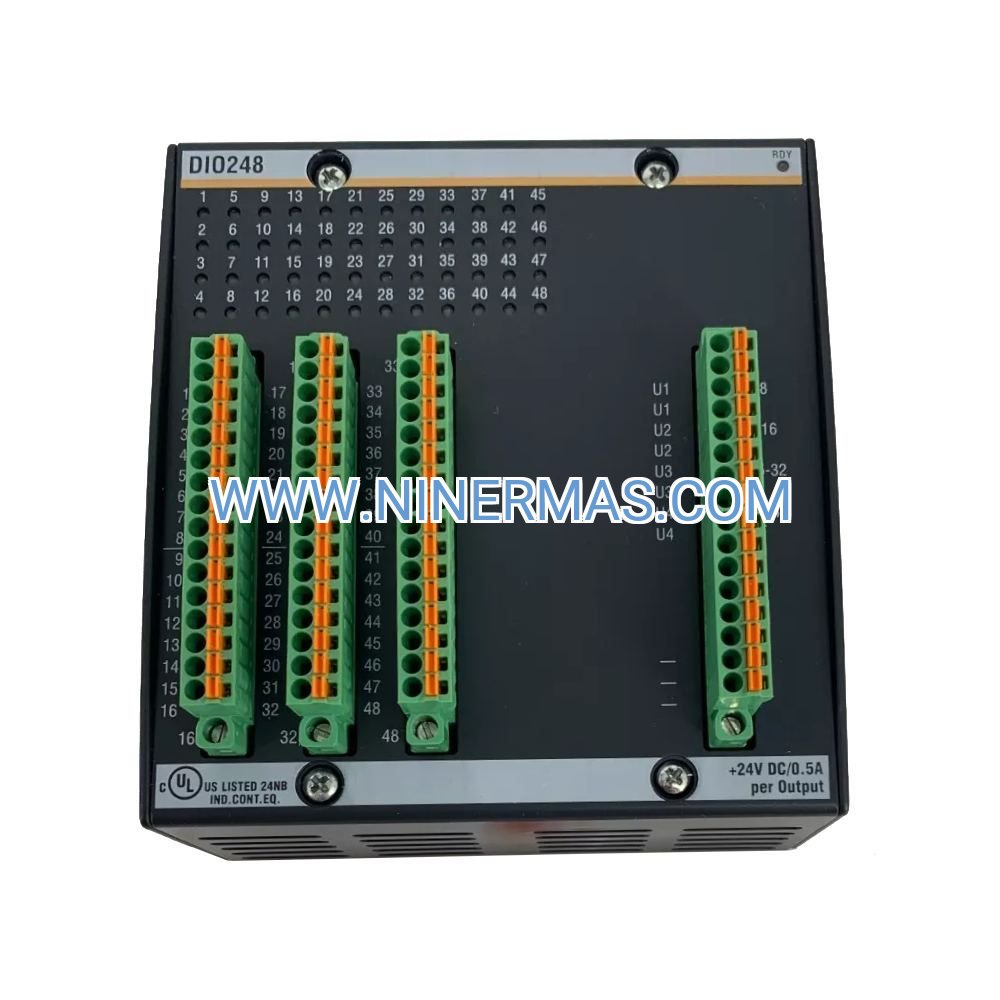

Bachmann DIO248 Digital I/O Module (Industrial-Grade 24VDC Control Interface)

The Bachmann DIO248 represents a versatile digital interface solution engineered for mission-critical industrial environments. This module delivers up to 32 individually configurable I/O channels with native 24VDC operation, combining rapid interrupt processing with robust galvanic isolation to meet the demands of modern automation architectures.

Designed for seamless integration within Bachmann M1 control systems, the DIO248 addresses the core challenge of reliable signal management in harsh industrial settings. Whether you're managing discrete manufacturing processes, implementing safety-critical interlocks, or building distributed control networks, this module provides the flexibility and performance required for professional-grade automation solutions.

With extended temperature tolerance (-40°C to +70°C), sub-millisecond response times, and comprehensive diagnostic capabilities, the DIO248 ensures operational continuity in applications where downtime is not an option. Its DIN rail mounting and compact form factor enable efficient cabinet integration while maintaining full compatibility with the broader M1 ecosystem.

Core Features & Benefits

→ Adaptive Channel Architecture
Each of the 16-32 channels can be independently configured as input or output, allowing you to tailor the module precisely to your application requirements without over-provisioning hardware. This flexibility reduces inventory complexity and simplifies system design.

→ High-Speed Event Capture
8 dedicated interrupt-capable inputs enable real-time response to critical process events with typical latency under 1 millisecond. This capability is essential for emergency stop circuits, quality inspection triggers, and synchronization tasks in high-speed production lines.

→ Industrial-Hardened Construction
Galvanic isolation on every channel protects against ground loops and electrical noise, while the extended operating range (-40°C to +70°C) ensures reliable performance in extreme environments—from refrigerated warehouses to foundry control rooms.

✓ Native M1 Integration
Direct backplane communication eliminates external wiring complexity and reduces commissioning time. The module auto-configures within the M1 system architecture, streamlining both initial deployment and future expansions.

✓ Built-In Diagnostics
Real-time channel status monitoring, short-circuit detection, and communication health indicators provide immediate visibility into system integrity, reducing troubleshooting time and preventing unplanned downtime.

✓ Proven Reliability
Bachmann's industrial heritage ensures MTBF ratings exceeding 500,000 hours under typical operating conditions, delivering the long-term dependability required for continuous process industries.

Typical Application Scenarios

Continuous Process Manufacturing
In chemical processing, food & beverage, and pharmaceutical production, the DIO248 manages valve actuators, pump controls, and sensor inputs across distributed process units. The module's isolation and diagnostic features ensure compliance with FDA 21 CFR Part 11 and GAMP 5 validation requirements. Typical deployment: 4-8 modules per process skid, handling 128-256 discrete I/O points with centralized PLC coordination.

Safety Instrumented Systems (SIS)
For SIL 2-rated safety applications, the DIO248's interrupt inputs monitor emergency stop circuits, light curtains, and safety relay outputs with deterministic response times. Galvanic isolation prevents common-mode failures, while dual-channel configurations support 1oo2 voting logic. Common use: perimeter guarding on robotic work cells, burner management systems, and machine safeguarding per ISO 13849-1.

Packaging & Material Handling
High-speed packaging lines leverage the DIO248's fast interrupt processing for product detection, reject mechanisms, and conveyor synchronization. A single module can coordinate up to 32 photoelectric sensors and pneumatic actuators, reducing cabinet space by 40% compared to traditional relay-based systems. Achieves cycle times under 50ms for pick-and-place operations.

Building Automation & HVAC
In commercial facilities, the DIO248 interfaces with damper actuators, fan starters, and occupancy sensors to create energy-efficient climate control systems. The extended temperature rating supports rooftop equipment installations, while the M1 platform enables integration with BACnet and Modbus building management systems.

Water & Wastewater Treatment
Municipal treatment plants deploy the DIO248 for pump sequencing, valve control, and alarm monitoring across distributed lift stations and clarifiers. The module's robust design withstands high-humidity environments, and its diagnostic capabilities support predictive maintenance programs that reduce service calls by 30%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DIO248 when your application requires flexible I/O allocation, fast event response, or harsh environment operation. For applications needing more than 32 points per module, consider the DIO280 variant. If analog signals are also present, evaluate hybrid configurations combining DIO248 with AIO-series modules on a shared backplane.

Extended Functions

IoT & Remote Monitoring Integration
When paired with Bachmann MX-series controllers featuring Ethernet connectivity, the DIO248's status data can be published to MQTT brokers, OPC UA servers, or cloud platforms like AWS IoT Core and Azure IoT Hub. This enables predictive maintenance dashboards, mobile HMI access, and integration with enterprise MES/ERP systems.

Advanced Configuration Options
The module supports pulse counting (up to 10kHz on interrupt inputs), frequency measurement, and PWM output generation through firmware configuration—eliminating the need for dedicated specialty modules in many applications. Custom channel grouping allows logical organization of I/O points to match process flow diagrams.

Redundancy & Hot-Swap Capability
In critical applications, deploy dual DIO248 modules with automatic failover logic programmed in the M1 controller. The backplane architecture supports hot-insertion on powered systems (with appropriate safety procedures), minimizing downtime during maintenance activities.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days. Custom-configured modules or bulk orders (10+ units) typically require 7-10 business days for quality verification and programming.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our application engineers provide pre-sales consultation, system design review, and post-installation troubleshooting support via email, phone, and remote desktop sessions. Average response time: <4 hours during business hours.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration software, and sample PLC code for common applications. CAD models (STEP/IGES) and EPLAN macros available for download.

Frequently Asked Questions

How do I configure channels as inputs versus outputs on the DIO248 module?
Channel direction is set through the M1 configuration software during system commissioning. Each channel has independent configuration—you can mix inputs and outputs in any combination up to the 32-channel maximum. Configuration changes take effect immediately without power cycling.

What cable length is supported for 24VDC digital signals with this module?
With shielded twisted-pair cable and proper grounding, reliable operation is achieved at distances up to 100 meters (328 feet) for standard I/O. Interrupt inputs should be limited to 50 meters to maintain sub-millisecond response times. Use 0.5mm² minimum conductor size for runs exceeding 30 meters.

Can the DIO248 interface with non-Bachmann PLCs or third-party controllers?
The DIO248 is designed exclusively for Bachmann M1 system integration via the proprietary backplane bus. For interfacing with Allen-Bradley, Siemens, or other PLC brands, consider Bachmann's Ethernet-based remote I/O solutions or protocol gateway modules.

What diagnostic information does the module provide for troubleshooting?
The DIO248 reports per-channel status (active/inactive), short-circuit detection, over-current conditions, and backplane communication health. Diagnostics are accessible through the M1 programming environment and can trigger alarms or email notifications when integrated with SCADA systems.

Is this module suitable for hazardous location installations per NEC 500 or ATEX?
The standard DIO248 carries IP20 rating for general industrial use. For Class I Division 2 or ATEX Zone 2 applications, consult Bachmann's hazardous location product line or implement the module within a purged/pressurized enclosure per NFPA 496 guidelines.

How does power consumption scale with the number of active channels?
The module's internal circuitry consumes approximately 3W regardless of channel count. However, you must account for the power drawn by connected field devices (sensors, indicators, solenoids). A fully loaded module with 32 active outputs driving 100mA loads will draw an additional 76.8W from the 24VDC supply.

Ready to Optimize Your Control System?

Contact our automation specialists today to discuss your specific I/O requirements, receive application-specific configuration recommendations, and obtain a detailed quotation. We offer volume pricing for system integrators and OEMs, plus technical training programs to accelerate your team's proficiency with Bachmann M1 platforms.
