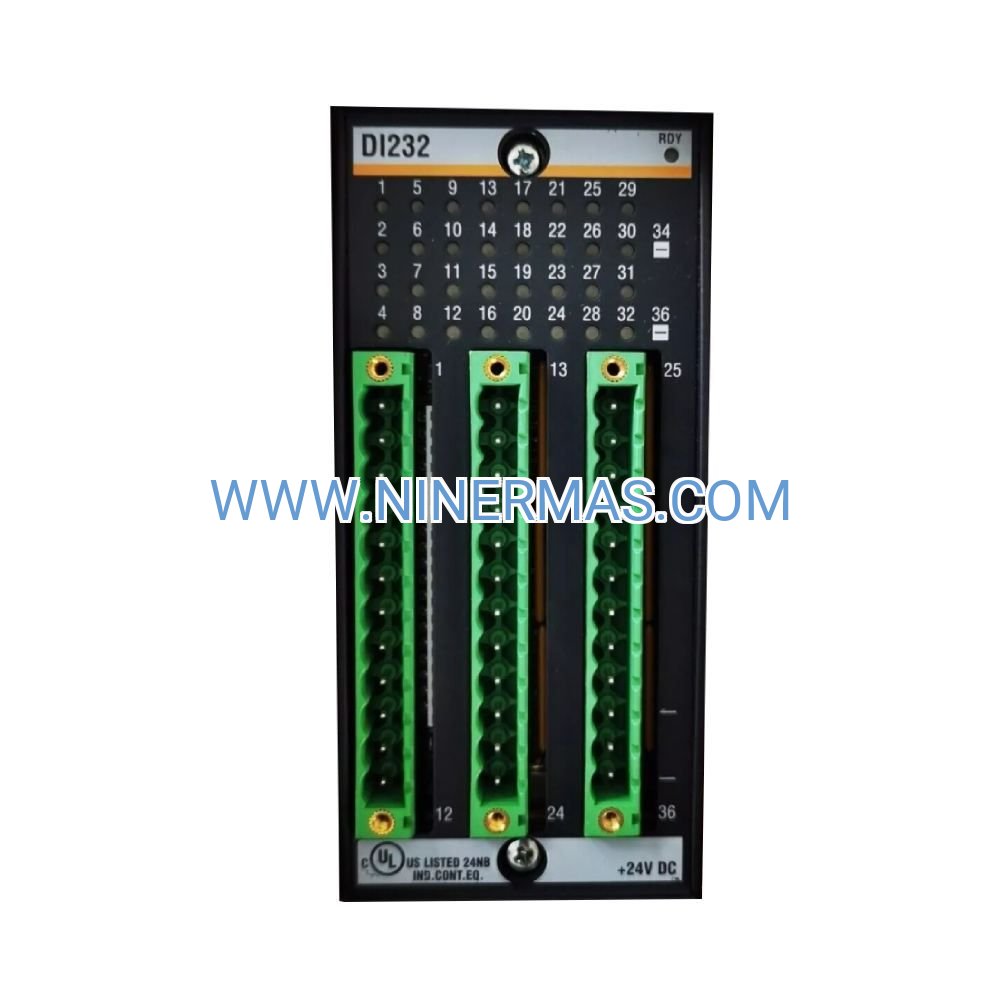

BACHMANN DI232 Digital Input Module (Industrial-Grade 32-Channel Acquisition System)

The BACHMANN DI232 represents a professional-tier digital signal acquisition solution engineered for mission-critical industrial environments. This 32-channel input module combines galvanic isolation technology with high-density packaging to deliver dependable monitoring across manufacturing, process control, and infrastructure automation sectors. Designed for integration within BACHMANN M1 modular control platforms, the DI232 addresses the core challenge of reliable signal capture in electrically noisy industrial settings where conventional I/O systems struggle with ground loops and interference.

Process engineers and automation specialists deploy the DI232 when applications demand simultaneous monitoring of multiple discrete sensors, limit switches, or safety interlocks. The module's per-channel isolation architecture prevents cross-contamination between signal paths while maintaining fast response characteristics essential for real-time control loops. Whether coordinating conveyor systems, monitoring valve positions, or tracking safety circuit status, the DI232 provides the signal integrity foundation that modern automated facilities require.

Built to BACHMANN's industrial standards, this input module operates reliably across extended temperature ranges and integrates seamlessly with M1 system processors and backplanes. The combination of diagnostic LED arrays, robust terminal connections, and proven isolation technology makes the DI232 a strategic choice for facilities prioritizing uptime, maintainability, and long-term system scalability.

Core Features & Benefits

→ 32 Galvanically Isolated Input Channels
Each input features electrical isolation that eliminates ground loop interference and protects control systems from field-side voltage transients. This architecture enables reliable operation in multi-building facilities or applications with distributed grounding systems, reducing troubleshooting time and improving overall system availability.

→ 24V DC Industrial Standard Compatibility
Accepts nominal 24V DC signals with wide operating range (19-30V DC), ensuring compatibility with standard industrial sensors, proximity switches, and photoelectric devices. Low input current draw (5-7 mA typical) minimizes load on field power supplies and sensor outputs.

→ Sub-3ms Response Time
Fast signal acquisition supports high-speed automation sequences and safety-critical monitoring applications. The rapid response enables precise event timestamping and coordination of multi-axis motion control or synchronized process operations.

→ Individual Channel Status Indication
Dedicated diagnostic LEDs for each input channel accelerate commissioning and troubleshooting. Maintenance personnel can verify signal states at a glance without requiring diagnostic software or controller access, reducing mean time to repair during production incidents.

✓ M1 System Integration
Direct mounting on BACHMANN M1 backplanes with hot-swap capability enables flexible system expansion and online module replacement. The standardized form factor and backplane communication protocol simplify spare parts management and reduce training requirements for maintenance teams.

✓ Extended Operating Temperature Range
Rated for -25°C to +60°C operation, the DI232 functions reliably in unheated enclosures, outdoor installations, and thermally challenging industrial environments without requiring supplemental cooling or environmental conditioning.

Application Scenarios

Chemical & Pharmaceutical Processing
In batch processing facilities, the DI232 monitors safety interlock chains, valve limit switches, and emergency stop circuits across reactor vessels and material handling systems. The galvanic isolation prevents ground potential differences between process areas from introducing false signals, while the high channel density reduces panel space requirements in crowded control cabinets. Typical installations monitor 20-30 discrete safety points per module, with diagnostic LEDs enabling rapid verification during safety system testing and regulatory compliance audits.

Water & Wastewater Treatment
Municipal treatment plants utilize the DI232 for pump status monitoring, level switch detection, and flow sensor acquisition across distributed lift stations and treatment stages. The module's extended temperature rating supports outdoor installation in pump control panels, while the isolated inputs accommodate long cable runs between remote sensor locations and central control rooms. Integration with BACHMANN M1 processors enables SCADA connectivity and historical data logging for regulatory reporting.

Material Handling & Logistics
Automated warehouse and distribution systems deploy the DI232 to track conveyor position sensors, package detection photoelectric switches, and sortation gate confirmations. The fast response time supports high-speed conveyor operations (up to 2 meters/second), while the high channel count reduces the number of I/O modules required for complex sortation systems. Maintenance teams benefit from the visual LED diagnostics when troubleshooting jammed conveyors or misaligned sensors during peak operational periods.

Manufacturing Assembly Lines
Discrete manufacturing facilities integrate the DI232 into assembly automation cells for part presence verification, fixture clamp confirmation, and quality inspection gate signals. The module coordinates with robotic pick-and-place systems and vision inspection stations, providing the discrete I/O foundation for Industry 4.0 production lines. The isolated architecture prevents electrical noise from welding equipment or motor drives from corrupting sensor signals.

Building Infrastructure & HVAC
Commercial building automation systems employ the DI232 for monitoring damper end switches, fan status contacts, and occupancy sensor networks across multi-zone HVAC installations. The module's ability to handle distributed sensor networks with varying ground potentials makes it ideal for campus-style facilities or high-rise buildings where control panels span multiple electrical services.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DI232 when your application requires high-density discrete input monitoring with electrical isolation. For applications with fewer than 16 inputs, consider the DI212 compact module to optimize cost and panel space. If your sensor network includes both PNP and NPN devices, evaluate the DIO264-C configurable I/O module for mixed polarity support. When safety-rated inputs are mandatory (SIL 2/3 applications), consult BACHMANN's safety I/O portfolio or implement redundant standard I/O architectures with safety logic controllers.

For installations requiring analog signal acquisition alongside digital inputs, pair the DI232 with GIO212 or AI208 analog input modules on the same M1 backplane. Maximum cable length recommendations: 100 meters with shielded twisted-pair cable in typical industrial environments; reduce to 50 meters in high-EMI areas or extend with signal repeaters for longer runs.

Extended Functions

Configurable Input Filtering: Software-adjustable debounce times accommodate both mechanical contact inputs (requiring longer debounce periods) and solid-state sensor outputs (benefiting from minimal filtering for fast response). Configuration via BACHMANN programming tools allows per-channel optimization.

Diagnostic Data Integration: The module reports comprehensive diagnostic information to the M1 controller, including individual channel status, module temperature, and backplane communication health. This data integrates with SCADA systems and predictive maintenance platforms for condition-based monitoring strategies.

Hot-Swap Capability: When installed in M1 systems with redundant power and controller configurations, the DI232 supports online replacement without system shutdown. This feature minimizes downtime during preventive maintenance or emergency module replacement scenarios.

Customization Options: For OEM applications or specialized installations, BACHMANN offers custom terminal labeling, conformal coating for harsh environments, and extended temperature variants. Consult factory representatives for minimum order quantities and lead times for customized modules.

Delivery & Service Assurance

Standard Delivery: In-stock DI232 modules ship within 3-5 business days for standard orders. Expedited shipping options available for urgent replacement requirements or project deadlines.

Custom Configuration Lead Time: Factory-configured modules with custom labeling or specialized firmware require 4-6 weeks from order confirmation. Bulk orders (10+ modules) may qualify for reduced lead times through production scheduling coordination.

Warranty Coverage: All BACHMANN DI232 modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship under normal industrial operating conditions. Extended warranty programs (24-36 months) available for critical infrastructure applications.

Technical Support: Lifetime technical support includes configuration assistance, troubleshooting guidance, and firmware updates. Support channels include email, phone, and remote diagnostic sessions. Response time: 4 business hours for standard support; 1-hour response available with premium support contracts.

Documentation Package: Each module ships with installation quick-start guide, terminal wiring diagrams, and digital access to comprehensive technical manuals, CAD drawings (DXF/STEP formats), and configuration software. Multilingual documentation available in English, German, and Chinese.

Frequently Asked Questions

What maximum cable distance can I use between sensors and the DI232 input module?
For standard industrial environments with moderate electrical noise, shielded twisted-pair cable supports runs up to 100 meters while maintaining signal integrity. In high-EMI environments (near VFDs, welding equipment, or RF sources), limit cable length to 50 meters or implement signal repeaters. Always use shielded cable with 360-degree shield termination at the module end for optimal noise immunity.

Can the DI232 interface with both 2-wire and 3-wire proximity sensors?
Yes, the DI232 accommodates standard 3-wire PNP proximity sensors (brown=+24V, blue=0V, black=signal). For 2-wire sensors, ensure the sensor's residual current is below the module's input threshold (typically < 1.5 mA) to prevent false triggering. Some 2-wire sensors may require external pull-down resistors; consult sensor datasheets for compatibility verification.

How do I configure input debounce times for mechanical switch inputs?
Debounce parameters are configured through BACHMANN's M1 programming software (SolutionCenter or compatible IEC 61131-3 development environments). Typical settings: 0.5-2 ms for solid-state sensors, 10-20 ms for mechanical limit switches, 50-100 ms for manual pushbuttons. Per-channel configuration allows mixed sensor types on a single module.

Is the DI232 suitable for safety-critical emergency stop monitoring applications?
The DI232 provides industrial-grade reliability but is not certified for safety-related functions per IEC 61508 or ISO 13849. For safety applications (emergency stops, light curtains, safety interlocks), use BACHMANN's safety-rated I/O modules or implement redundant architectures with safety PLCs. The DI232 can monitor non-safety-critical aspects of the same equipment.

What diagnostic capabilities help troubleshoot wiring issues during commissioning?
Each input channel features an individual green LED that illuminates when the input is active (24V applied). This visual feedback enables rapid circuit verification without requiring laptop connections or software tools. The module also reports wire-break detection and power supply faults to the controller, accessible through HMI displays or SCADA systems for remote diagnostics.

Can I mix the DI232 with other BACHMANN I/O modules on the same backplane?
Absolutely. The M1 system architecture supports heterogeneous I/O mixing on a single backplane. Common configurations combine DI232 digital input modules with DO216 digital output modules, AI208 analog input modules, and communication modules (Ethernet, Profibus, etc.). The backplane automatically handles module addressing and data exchange with the M1 processor.
