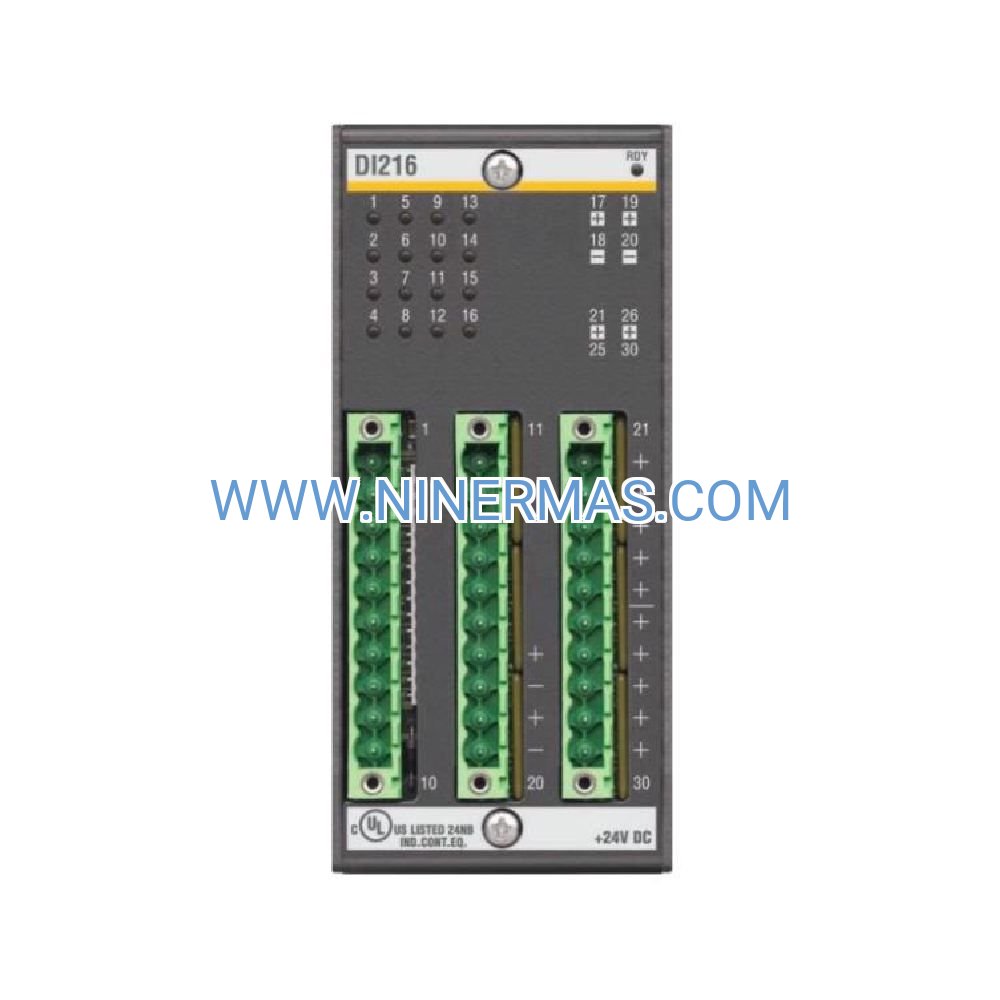

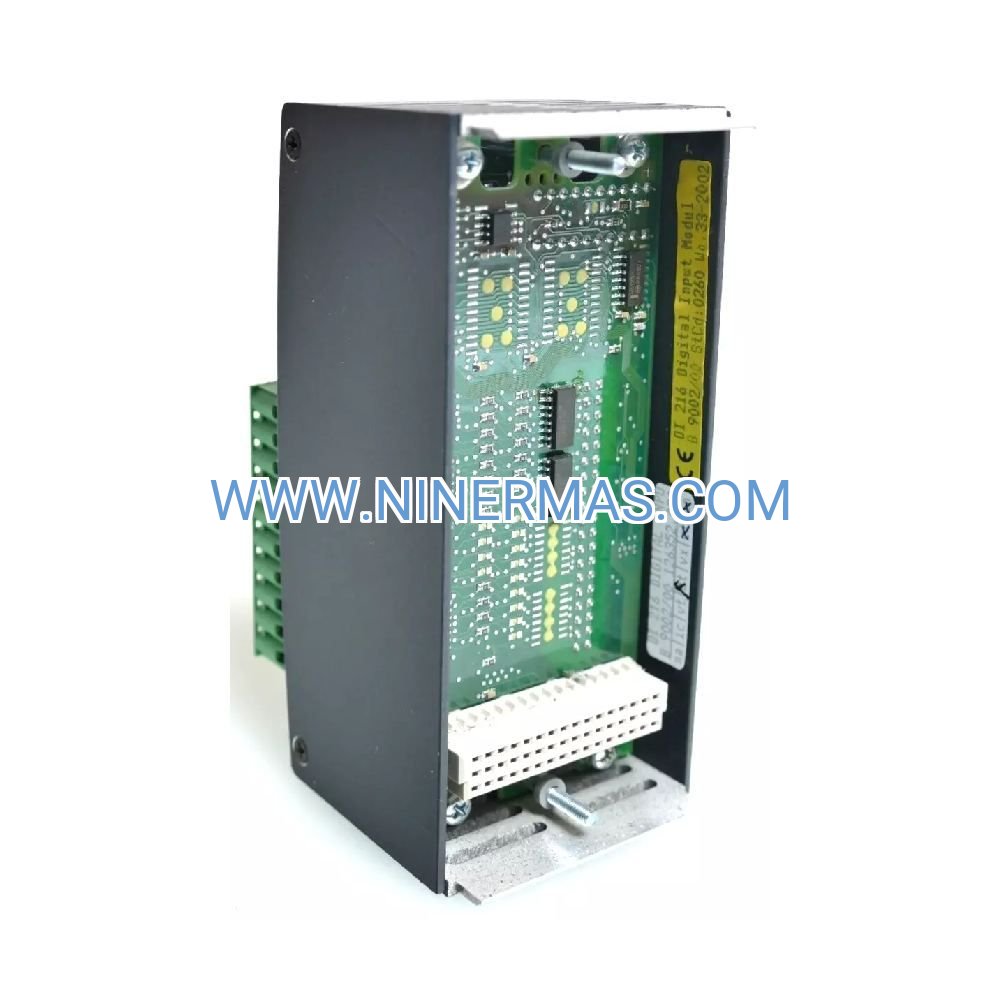

BACHMANN DI216 Digital Input Module – Industrial-Grade 16-Channel Signal Acquisition

The BACHMANN DI216 is a high-performance digital input module engineered for critical signal monitoring in industrial automation environments. With 16 galvanically isolated 24V DC input channels, this module delivers reliable data acquisition for process control, machine safety systems, and distributed I/O architectures where signal integrity is non-negotiable.

Designed for seamless integration with BACHMANN M1 and MX200 controller platforms, the DI216 addresses the challenge of monitoring multiple discrete sensors—limit switches, proximity detectors, emergency stops, and status indicators—while maintaining electrical isolation to protect sensitive control circuits from ground loops and electrical noise.

Whether you're upgrading legacy systems or designing new automation solutions, the DI216 combines proven reliability with modern diagnostic capabilities, making it the preferred choice for engineers who demand precision and uptime in harsh industrial conditions.

Core Features & Technical Advantages

→ 16 Isolated Input Channels
Each channel features galvanic isolation up to 500V AC, eliminating cross-talk and protecting against voltage spikes common in industrial power distribution systems.

→ Sub-3ms Response Time
Captures critical events with minimal latency, essential for safety-critical applications and high-speed machine control where every millisecond counts.

→ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme environments—from outdoor installations in arctic climates to enclosed panels near heat-generating equipment.

→ Low Power Consumption (7mA per channel)
Reduces heat generation and power supply requirements, allowing higher I/O density in compact control cabinets without thermal management concerns.

→ Per-Channel LED Diagnostics
Visual status indicators accelerate troubleshooting during commissioning and maintenance, reducing mean time to repair by up to 40%.

→ DIN Rail Mounting & Hot-Swap Support
Tool-free installation on standard 35mm DIN rails, with hot-swap capability in redundant systems to enable maintenance without production interruption.

Application Scenarios & Industry Solutions

Chemical Process Control
Monitor valve limit switches, pump run status, and level sensor outputs in continuous process plants. The DI216's isolation protects control systems from electrical noise generated by variable frequency drives and high-power motors, while its extended temperature rating suits installations in non-climate-controlled pump houses.

Packaging Line Automation
Interface with photoelectric sensors, inductive proximity switches, and mechanical limit switches on high-speed packaging equipment. The module's fast response time ensures accurate product counting and jam detection at line speeds exceeding 200 units per minute.

Safety Instrumented Systems (SIS)
Integrate emergency stop buttons, safety gate interlocks, and light curtain outputs in SIL-rated safety circuits. Pair with BACHMANN safety controllers for certified functional safety applications in accordance with IEC 61508 standards.

Water Treatment Facilities
Collect status signals from flow switches, pressure transmitters, and motor contactors in municipal water and wastewater treatment plants. The module's corrosion-resistant construction and wide operating temperature range suit outdoor control panel installations.

Building Management Systems
Monitor HVAC equipment status, door/window contacts, and occupancy sensors in intelligent building automation. The DI216's compact footprint maximizes I/O density in space-constrained electrical rooms.

Technical Specifications & Selection Guide

Selection Criteria: Choose the DI216 when your application requires high-density digital input acquisition with electrical isolation. For mixed I/O requirements, consider the BACHMANN DIO216/4 configurable module. For applications requiring more than 16 inputs, multiple DI216 modules can be installed on BACHMANN BS208, BS209, or BS210 backplane systems.

Extended Capabilities & System Integration

Modular System Architecture
The DI216 integrates into BACHMANN's M1 modular automation platform, allowing you to build scalable control systems from 8 to 200+ I/O points. Combine with BACHMANN MX213 or MX220 processor modules for complete PLC functionality, or use with BACHMANN NT255 power supply modules for reliable 24V DC distribution.

Advanced Diagnostics & Predictive Maintenance
Beyond basic LED indicators, the DI216 reports detailed channel diagnostics to the host controller, including wire-break detection and input frequency monitoring. This data enables predictive maintenance strategies that identify failing sensors before they cause unplanned downtime.

Fieldbus & Network Integration
When paired with BACHMANN communication modules, the DI216 supports integration into PROFIBUS, PROFINET, EtherCAT, and Modbus TCP networks, enabling distributed I/O architectures that reduce wiring costs and improve system flexibility.

Customization & OEM Solutions
For high-volume OEM applications, BACHMANN offers custom firmware configurations, specialized connector options, and extended temperature variants. Contact our technical sales team to discuss application-specific requirements.

Delivery, Warranty & Technical Support

Lead Time: Standard DI216 modules ship within 3-5 business days from our regional distribution centers. Expedited same-day shipping available for urgent requirements (additional fees apply).

Warranty Coverage: Every DI216 module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our application engineering team provides pre-sales consultation, system design review, and post-installation troubleshooting support. Access includes phone/email support during business hours and online knowledge base with configuration examples and wiring diagrams.

Documentation Package: Each module ships with installation manual, wiring diagrams, and configuration software. Complete technical documentation available for download in PDF format, including CAD drawings for panel layout design.

Frequently Asked Questions

What is the maximum recommended cable length for connecting sensors to the DI216?
For 24V DC signals, shielded twisted-pair cables up to 100 meters are supported without signal degradation. For installations exceeding 100 meters, use signal repeaters or consider fiber optic I/O solutions to maintain signal integrity.

Can the DI216 interface with both 2-wire and 3-wire proximity sensors?
Yes, the module accepts both 2-wire (DC) and 3-wire (PNP/NPN) proximity sensors. Ensure proper wiring configuration based on sensor output type—consult the installation manual for specific wiring diagrams.

Does the DI216 support hot-swapping during system operation?
Hot-swap capability is supported when used with redundant BACHMANN controller configurations. For non-redundant systems, power down the backplane before removing or installing modules to prevent data corruption.

What diagnostic information is available for troubleshooting input failures?
The DI216 provides per-channel LED status indicators for visual diagnostics. Additionally, the module reports detailed channel status to the controller, including input state, wire-break detection, and over-voltage conditions for advanced troubleshooting.

Is the DI216 suitable for use in hazardous area classifications?
The standard DI216 is rated for Zone 2 / Division 2 hazardous locations. For Zone 1 / Division 1 applications requiring intrinsic safety barriers, consult BACHMANN's IS-series I/O modules or contact our safety application specialists.

How does the DI216 compare to competitive digital input modules?
The DI216 offers superior isolation voltage (500V AC vs. typical 250V), faster response time (<3ms vs. 5-10ms), and wider operating temperature range compared to equivalent modules from Allen-Bradley, Siemens, and Schneider Electric—at a competitive price point.

Ready to Optimize Your Control System?

The BACHMANN DI216 digital input module represents proven engineering for demanding industrial applications. Whether you're designing a new automation system or upgrading existing infrastructure, our technical team is ready to assist with product selection, system configuration, and integration support.

Contact our automation specialists today: Request a technical datasheet, discuss volume pricing, or schedule a consultation to review your specific application requirements. We maintain extensive inventory for immediate shipment and offer flexible payment terms for qualified customers.
