Deep Sea Electronics DSE7320 MKII Retrofit-Compatible AMF Control: Legacy System Compatibility & Smooth Upgrade Path

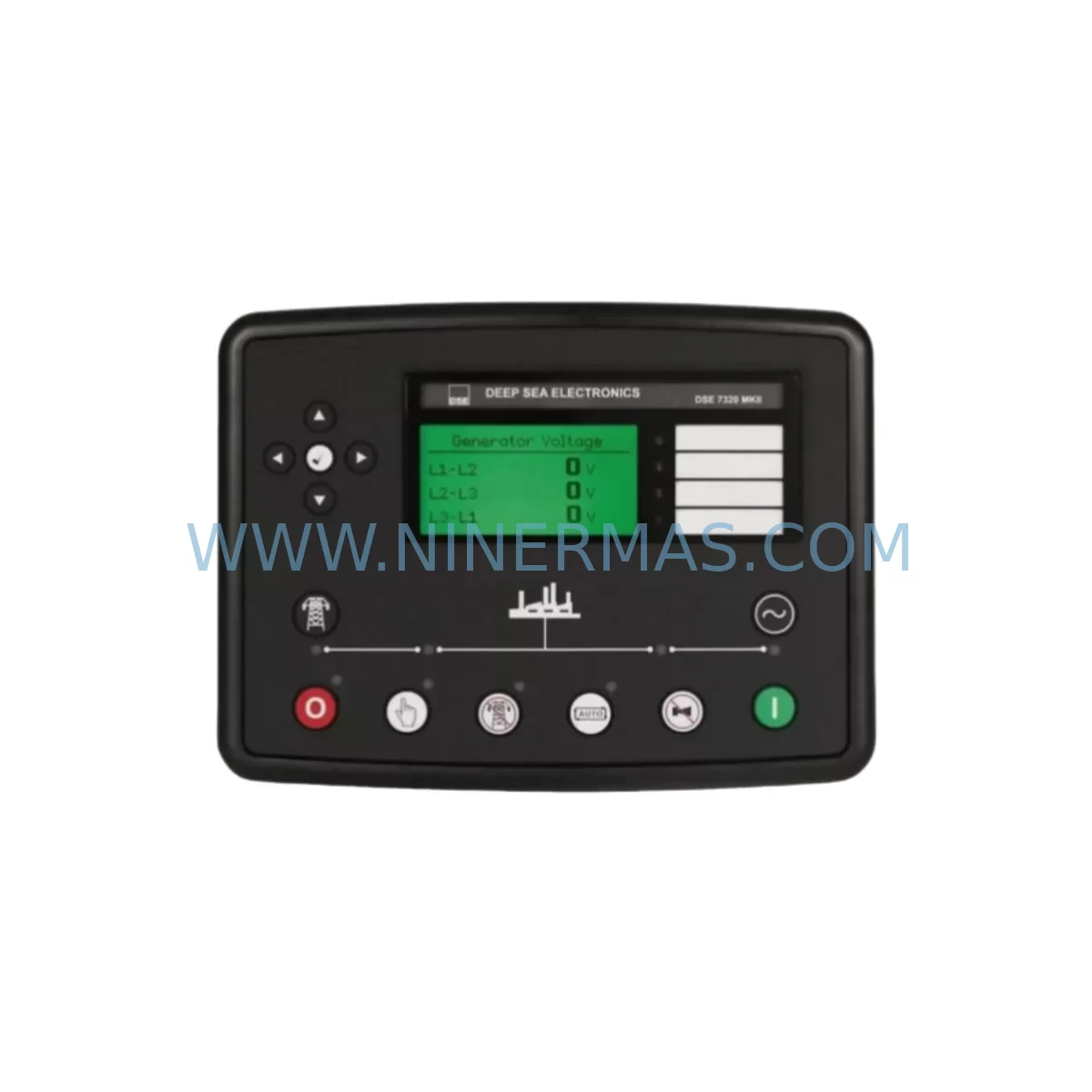

The Deep Sea Electronics DSE7320 MKII is a proven Auto Mains Failure (AMF) controller widely deployed in standby generator systems, critical power infrastructure, and industrial genset control panels across global markets. As legacy DSE7310 and first-generation DSE7320 units reach end-of-service life, the DSE7320 MKII has become the primary retrofit and drop-in replacement solution for operators seeking to modernise control cabinets without full panel redesign or PLC reprogramming.

At NINERMAS, we maintain verified stock of the DSE7320 MKII and support customers through the full retrofit lifecycle — from pre-shipment compatibility verification to post-installation commissioning guidance. Every unit ships with a 12-month warranty and undergoes functional testing prior to dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DSE7320 MKII into an existing control cabinet begins well before the unit arrives on site. Engineers replacing a legacy DSE7310 or first-generation DSE7320 should start by auditing the existing terminal wiring diagram and confirming that the DC supply rail — typically sourced from the generator battery or a dedicated DSE855 battery charger module — delivers stable voltage within the 8–35V DC operating range of the MKII.

Terminal block layout is a critical checkpoint. The DSE7320 MKII uses a defined connector pinout for mains sensing inputs, generator sensing inputs, digital outputs (fuel, start, load transfer), and analogue sender inputs for oil pressure, coolant temperature, and fuel level. Where the legacy unit used a different terminal sequence, a wiring adapter harness or direct re-termination will be required. Labelling all conductors before disconnecting the old unit is strongly recommended to avoid commissioning errors.

For panels that previously relied on a DSE125 MKII PC interface lead or DSE8610 MKII remote annunciator for remote monitoring, these accessories remain compatible with the DSE7320 MKII communication architecture. If the site is migrating from RS-232-only communication to Ethernet-based SCADA integration, the optional DSE873 Ethernet communications interface can be fitted to extend connectivity without replacing the core controller.

I/O expansion requirements should be assessed during the planning phase. Sites with high digital output demand — for example, multi-pump systems or multi-feeder transfer schemes — may need to supplement the DSE7320 MKII with a DSE2130 remote I/O expansion module to replicate the full output count of the legacy system. Module addressing and I/O mapping must be configured in the DSE Configuration Suite software prior to installation.

HMI screen layouts used by operators on the old controller will need to be reviewed. The MKII’s backlit LCD and menu-driven interface differ from earlier generation displays, and where a DSE8610 MKII remote annunciator panel is installed in the control room, the alarm and status page assignments should be verified against the new controller’s event log configuration. Operator familiarisation sessions before live handover reduce the risk of misinterpretation during the first mains failure event.

For sites running parallel generator sets, the DSE7320 MKII supports load sharing and synchronisation when paired with a DSE8610 MKII or integrated into a multi-unit scheme using DSE8620 MKII load sharing modules. Confirm inter-unit communication wiring and synchronisation parameter settings during the factory acceptance test phase.

Installation space confirmation is often overlooked. Measure the existing panel cutout and compare against the DSE7320 MKII bezel dimensions. In older cabinets, the cutout may need to be enlarged or a blanking plate fitted. Confirm that the depth behind the panel is sufficient for the unit body and connector clearance, particularly where cable management trays or DIN rail-mounted components such as a DSE9480 automatic transfer switch controller or auxiliary relay modules occupy the rear of the cabinet.

Downtime Control During System Migration

Minimising downtime during a DSE7320 MKII retrofit is achievable with structured pre-work. The most effective approach is to complete all wiring preparation, software configuration, and parameter pre-loading on the bench before the scheduled outage window begins.

Using the DSE Configuration Suite, engineers can export the full parameter set from the legacy controller (where the software version supports it), adapt the configuration to the MKII parameter structure, and load it to the new unit before it is installed. This eliminates the need for on-site parameter entry during the outage and significantly reduces the risk of entry errors under time pressure.

During the physical swap, the original control program logic — AMF timing, mains voltage and frequency thresholds, load transfer delay, and engine protection trip points — should be documented and cross-referenced against the MKII configuration before the panel is re-energised. Where the legacy system used hardwired interlock logic rather than controller-internal logic, confirm that the external relay and contactor wiring remains intact and compatible with the MKII’s output contact ratings.

A simulated mains failure test should be conducted before the system is returned to live service. This confirms that the DSE7320 MKII correctly detects mains loss, initiates the start sequence, monitors engine parameters during run-up, executes the load transfer, and returns to standby mode on mains restoration — all within the timing parameters required by the site’s power continuity specification.

Where a DSE8610 MKII remote annunciator or SCADA system is connected, verify that alarm and status signals are correctly received and displayed before signing off the installation. Keeping the legacy controller available as a tested spare during the initial weeks of MKII operation provides an additional safety net and supports rapid recovery if an unexpected issue arises.

Retrofit Support FAQ

Q: Is the DSE7320 MKII a direct drop-in replacement for the DSE7310 and first-generation DSE7320?
A: The DSE7320 MKII is functionally compatible and uses the same panel-mount format, but terminal pinout differences between generations mean that wiring must be verified against the MKII terminal diagram before installation. A direct swap without wiring review is not recommended. NINERMAS can provide the relevant wiring documentation to support your retrofit planning.

Q: Can I reuse my existing DSE PC software configuration file with the DSE7320 MKII?
A: Configuration files from older DSE software versions may not import directly into the current DSE Configuration Suite. Parameters should be manually cross-referenced and re-entered or adapted using the MKII parameter set. NINERMAS recommends completing this step on the bench prior to the installation outage to avoid delays on site.

Q: What communications options are available on the DSE7320 MKII, and are they compatible with my existing SCADA system?
A: The DSE7320 MKII supports RS-232 and USB as standard interfaces, with optional Ethernet connectivity via the DSE873 module. Modbus RTU protocol is supported for SCADA integration. If your existing system uses RS-232 Modbus, the MKII is directly compatible. Ethernet-based integration requires the optional communications module and network configuration.

Q: Does NINERMAS provide tested stock and warranty coverage for the DSE7320 MKII?
A: Yes. All DSE7320 MKII units supplied by NINERMAS are functionally tested prior to shipment and covered by a 12-month warranty from the date of dispatch. We maintain available inventory to support urgent retrofit and breakdown replacement requirements. Contact our team for lead time and stock confirmation before placing your order.
