DSE DSE6120 MKIII Service-Ready Spare Part

DSE DSE6120 MKIII Service-Ready Spare Part for Industrial Maintenance

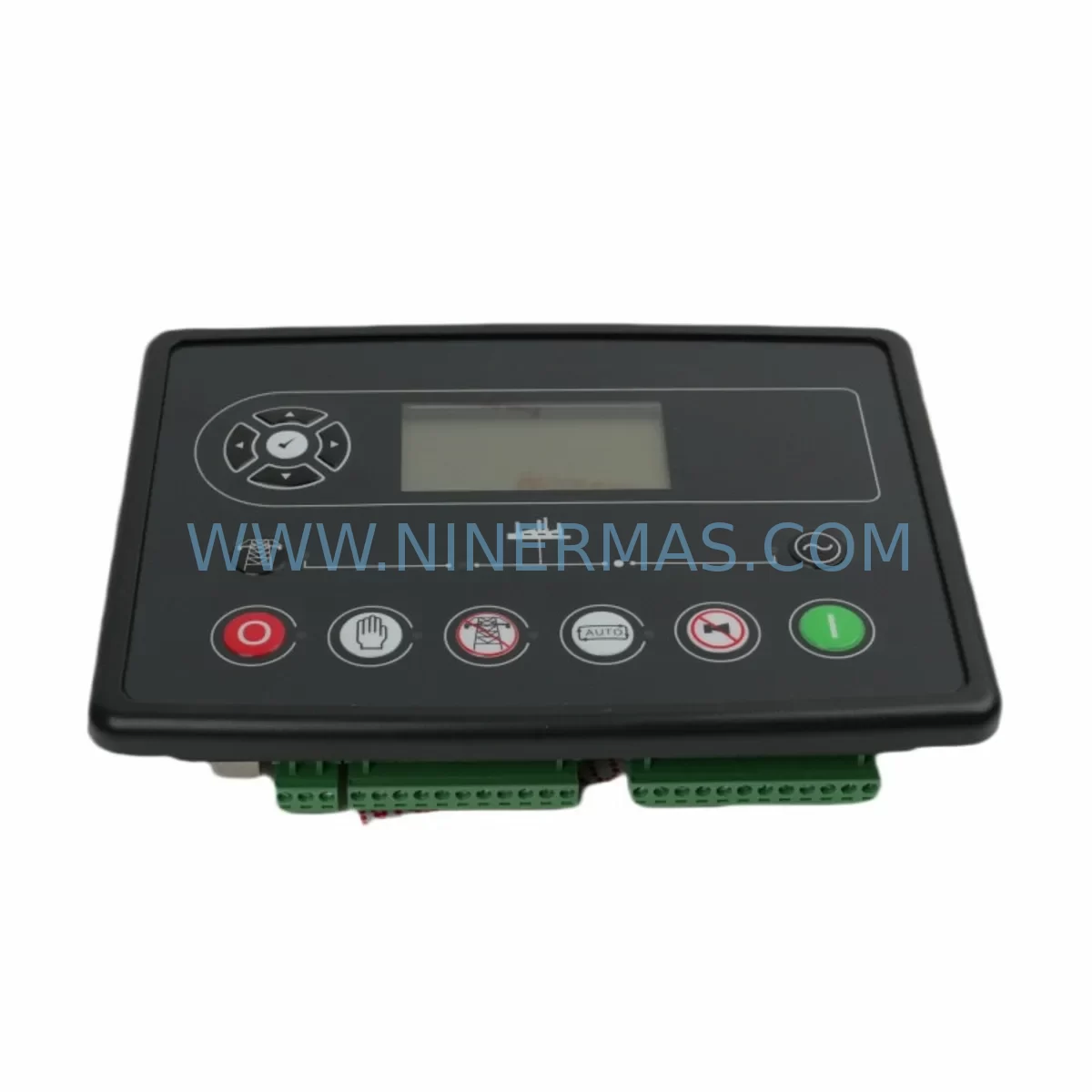

The Deep Sea Electronics DSE6120 MKIII is a professional-grade Auto Mains Failure (AMF) generator controller designed for standby power systems in industrial, commercial, and critical infrastructure environments. As a service-ready spare part, the DSE6120 MKIII is stocked to support maintenance engineers and procurement teams who require fast, reliable replacement of failed or end-of-life generator control modules — minimising unplanned downtime and restoring system availability with confidence.

The DSE6120 MKIII belongs to Deep Sea Electronics’ established DSE 6000 Series of AMF controllers, a platform widely deployed across power generation panels globally. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts inventory for a critical facility, the DSE6120 MKIII delivers the compatibility, reliability, and documentation support that maintenance professionals depend on.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSE6120 MKIII fails or reaches end of service life, experienced maintenance engineers know that a thorough inspection of the surrounding control panel components is equally important to a successful restoration. A generator control panel is an integrated system — replacing the controller alone without verifying the condition of adjacent components can lead to repeat failures and extended downtime.

Begin by inspecting the battery charging circuit and the dedicated DSE battery charger module (such as the DSE9255 or DSE9480 series), as a degraded charger is a common root cause of controller supply voltage instability. Verify that the control panel fuse assembly and associated terminal blocks (typically DIN-rail mounted, 4mm² or 6mm² rated) are intact and free from corrosion or loose connections — these are frequent failure points in humid or vibration-prone environments.

Check the engine interface wiring harness connecting the DSE6120 MKIII to the genset’s magnetic pickup unit (MPU), oil pressure sender, coolant temperature sender, and fuel solenoid. Damaged or corroded harness connectors can cause false alarms or prevent the controller from starting the engine correctly. If the panel uses a DSE855 MKII remote annunciator or a DSE4520 MKII load control module in a parallel configuration, confirm that the RS-485 communication link between modules is intact and that Modbus addresses are correctly assigned.

For facilities using SCADA or BMS integration, verify the RS-485 to Ethernet gateway (such as a Moxa NPort or equivalent industrial serial server) that bridges the DSE6120 MKIII’s Modbus RTU output to the site network. A controller replacement is an ideal opportunity to update the gateway firmware and re-validate the communication mapping with the site’s monitoring platform.

If the panel includes an automatic transfer switch (ATS) contactor assembly — whether a 3-pole or 4-pole mechanically interlocked contactor pair — inspect the contactor coils, auxiliary contacts, and mechanical interlock linkage for wear. The DSE6120 MKIII’s digital outputs drive these contactors directly, and worn auxiliary contacts can cause transfer sequence errors that are misdiagnosed as controller faults.

Finally, review the engine ECU interface if the genset uses a modern electronic engine (Cummins, Perkins, Volvo Penta, or similar). The DSE6120 MKIII supports J1939 CAN bus communication on compatible firmware versions — confirm that the CAN termination resistors are correctly installed and that the engine ECU’s J1939 PGN configuration matches the controller’s expectations. A DSE PC software configuration kit (USB cable and DSE Configuration Suite) is recommended to verify and back up the controller configuration before and after replacement.

Site Replacement Workflow

A structured replacement workflow for the DSE6120 MKIII minimises downtime and reduces the risk of commissioning errors on site.

Step 1 — Pre-replacement preparation: Download and save the existing controller configuration using DSE Configuration Suite via the USB port before powering down. Record all active alarm thresholds, timer settings, input/output assignments, and communication parameters. Photograph the existing wiring at the controller terminals for reference.

Step 2 — Isolation and removal: Isolate the generator set from the mains supply and engage the manual bypass if available. Disconnect the battery supply to the control panel. Label and disconnect all wiring from the DSE6120 MKIII terminals systematically. Release the panel-mount retaining clips and remove the controller from the front-face cutout.

Step 3 — Installation of replacement unit: Fit the new DSE6120 MKIII into the panel cutout and secure the retaining clips. Reconnect all wiring according to the terminal photograph and the DSE6120 MKIII wiring diagram. Verify that the battery supply polarity is correct before energising.

Step 4 — Configuration upload and verification: Connect the USB configuration cable and upload the saved configuration file using DSE Configuration Suite. Verify all parameters against the site’s commissioning record. Confirm that the LCD display shows correct mains voltage, frequency, and engine status readings.

Step 5 — Functional test: Simulate a mains failure condition to verify that the controller correctly initiates the engine start sequence, transfers load to the generator, and returns to mains supply on restoration. Confirm that all protection functions respond correctly and that remote monitoring communication is re-established.

This workflow is applicable whether replacing a failed DSE6120 MKII with the MKIII variant or performing a like-for-like MKIII replacement. The MKIII’s backward-compatible wiring pinout and configuration file format significantly reduce commissioning time compared to cross-series migrations.

Spare Parts Support FAQ

Q1: Is the DSE6120 MKIII a direct drop-in replacement for the DSE6120 MKII or DSE6110 MKII?
Yes. The DSE6120 MKIII uses the same panel cutout dimensions and terminal wiring layout as the DSE6120 MKII and DSE6110 MKII, making it a direct mechanical and electrical replacement. Configuration files from MKII units can be imported into the MKIII using DSE Configuration Suite, though a full parameter review is recommended to take advantage of MKIII firmware enhancements.

Q2: How is the DSE6120 MKIII tested before shipment?
Every unit undergoes a full functional test prior to dispatch, including supply voltage verification, input/output continuity checks, display and LED function, and communication port validation. A test report is available upon request. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: What is the warranty coverage and how are warranty claims handled?
The DSE6120 MKIII is covered by a 12-month warranty from the date of shipment. Warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, contact our technical support team with the unit serial number and fault description. Replacement or repair will be arranged with priority handling to minimise your system downtime.

Q4: Can long-term supply of the DSE6120 MKIII be arranged for multi-site maintenance programmes?
Yes. We maintain stock of the DSE6120 MKIII to support both emergency single-unit requirements and planned bulk procurement for multi-site facility management programmes. Framework supply agreements with agreed lead times and pricing are available for customers managing large generator fleets or critical infrastructure portfolios. Contact our sales team to discuss your inventory strategy.
