Danaher DMC251540P Spare Part for Industrial Maintenance

Danaher DMC251540P Spare Part for Industrial Maintenance

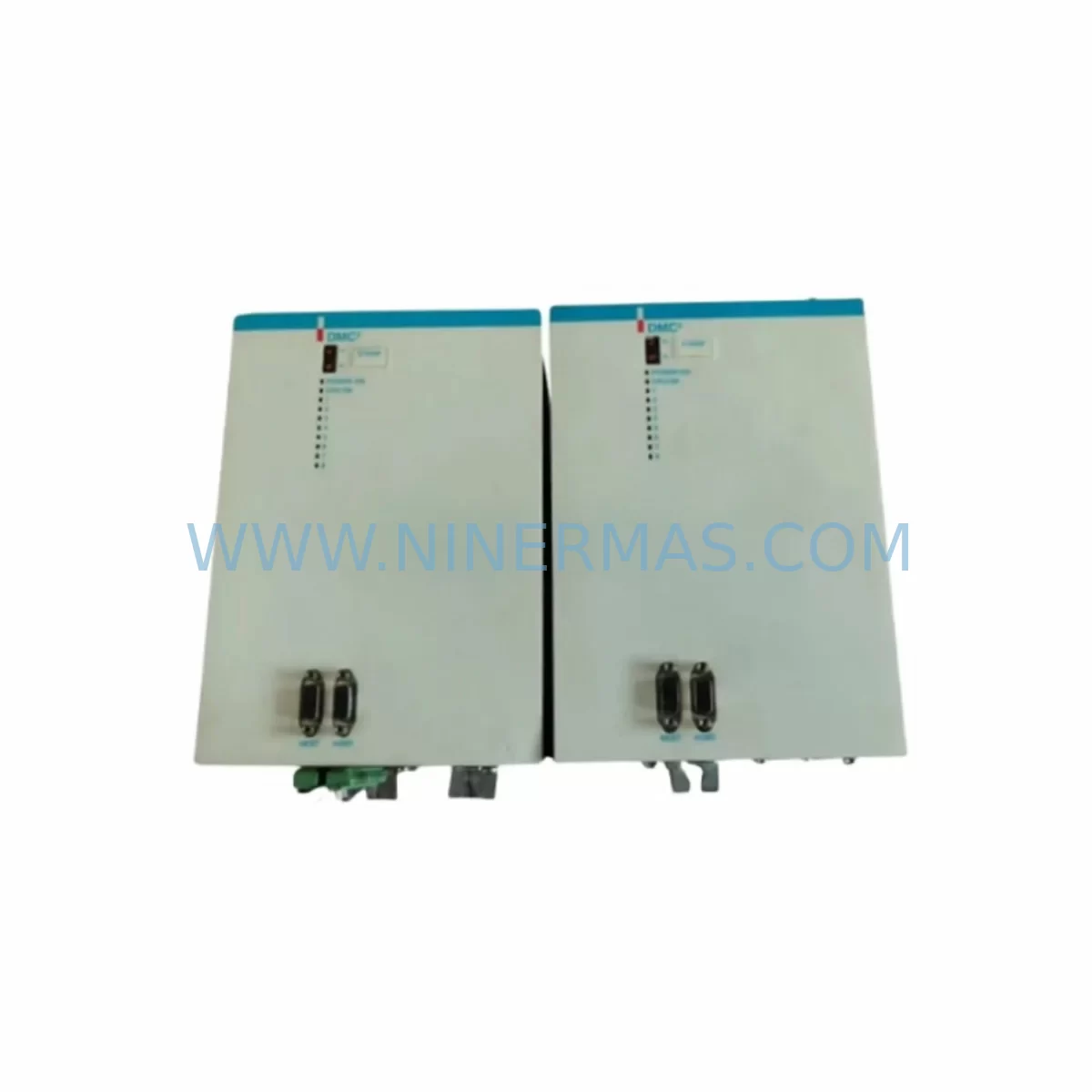

The Danaher DMC251540P is an original ruggedized digital controller module from the Danaher Motion DMC25 series, engineered for demanding industrial environments where vibration, thermal stress, and continuous duty cycles place extreme loads on control hardware. For maintenance engineers managing legacy motion control systems, the DMC251540P represents a critical spare — one whose failure can halt production lines, conveyor systems, CNC axes, or automated assembly cells with little warning. Sourced directly from authorized distribution channels and tested prior to shipment, this unit is supplied service-ready with a 12-month warranty, supporting both emergency replacement and planned preventive maintenance programs.

Whether you are managing a scheduled annual overhaul, responding to an unplanned axis fault, or building a strategic spare parts inventory for a multi-line facility, the DMC251540P delivers the compatibility and reliability that Danaher Motion systems demand. Its ruggedized design — with conformal coating, extended temperature tolerance, and vibration-resistant construction — makes it equally suited to machine tool cabinets, packaging line control panels, and heavy industrial drive enclosures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DMC251540P controller module is flagged during routine inspection or fails in service, experienced maintenance engineers know that the root cause is rarely isolated to a single component. A thorough site assessment should accompany every module replacement to prevent repeat failures and minimize future downtime risk.

Begin by inspecting the 24VDC control power supply feeding the DMC25 controller rack — voltage sag or ripple under load is a common contributor to controller resets and axis faults. Check the DMC25 backplane for oxidized connector pins, cracked PCB traces, or signs of thermal stress; a degraded backplane can cause intermittent communication errors that mimic controller module failure. Review the encoder feedback cables and connectors on each controlled axis: damaged shielding or loose terminations introduce noise that the DMC251540P’s digital input circuitry must filter, accelerating wear on the signal processing stage.

Examine the I/O expansion modules installed alongside the DMC251540P — particularly any digital input cards handling limit switches, home sensors, or fault interlock signals. A failed I/O module can prevent the controller from completing its initialization sequence, producing symptoms that appear to originate in the controller itself. Similarly, inspect relay output modules used for brake control or contactor switching: contact wear and coil degradation in these units can generate voltage spikes that stress the controller’s output drivers.

For systems using serial communication modules (RS-232/RS-485) or fieldbus interface cards for upstream PLC or SCADA connectivity, verify termination resistors, cable continuity, and node addressing. A communication fault at the network layer can cause the DMC251540P to enter a safe-state hold that is misdiagnosed as hardware failure. Check signal isolators on analog command inputs — degraded isolation can allow ground loops to corrupt velocity or position reference signals, causing erratic axis behavior.

Do not overlook the 24VDC fuse blocks and terminal strips within the control cabinet. Loose terminal connections cause intermittent voltage drops that are notoriously difficult to trace during normal operation but become apparent under thermal cycling. Inspect motor drive amplifiers paired with the DMC251540P for fault history logs, DC bus voltage stability, and regenerative braking resistor condition. Finally, if the system includes an HMI panel for operator interface, confirm that its communication link to the controller is intact and that no watchdog timeout parameters have drifted from commissioning values.

Building a structured spare parts kit around the DMC251540P — including a spare backplane, at least one I/O module of each type in use, a replacement power supply module, and a set of pre-terminated encoder cables — is the most effective strategy for reducing mean time to repair (MTTR) on Danaher Motion-controlled equipment.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record all axis parameters, PID tuning values, homing offsets, and communication settings from the existing DMC251540P using the Danaher Motion configuration utility or a terminal session. Save the configuration file to a secure location before powering down.

Step 2 — Safe isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Discharge the DC bus on any associated servo amplifiers before opening the enclosure. Wear appropriate ESD protection before handling the controller module.

Step 3 — Module extraction: Release the DMC251540P from the DMC25 backplane by loosening the retaining screws and carefully rocking the module free of the edge connector. Inspect the backplane connector for bent pins or contamination before installing the replacement unit.

Step 4 — Replacement installation: Seat the new DMC251540P firmly into the backplane connector, ensuring full engagement before tightening retaining hardware to the specified torque. Reconnect all I/O, encoder, and communication cables, verifying correct orientation and secure locking.

Step 5 — Configuration restore and commissioning: Power up the system and load the saved configuration file. Verify axis homing, travel limits, and communication link status before releasing the machine to production. Perform a low-speed test cycle on each controlled axis and confirm encoder feedback counts match expected values.

Step 6 — Documentation update: Record the replacement date, new module serial number, and any parameter changes in the equipment maintenance log. Update your spare parts inventory to trigger reorder of a replacement DMC251540P, maintaining your buffer stock level.

Spare Parts Support FAQ

Q1: Is the DMC251540P a direct drop-in replacement for the original Danaher Motion unit?
Yes. The DMC251540P is an original Danaher Motion part number designed for direct replacement within the DMC25 series controller rack. No hardware modifications are required. Configuration parameters from the outgoing unit can be restored via the standard Danaher Motion software utility, ensuring minimal commissioning time after installation.

Q2: What testing is performed before shipment?
Each DMC251540P unit undergoes functional verification prior to dispatch, including power-on self-test, communication interface check, and I/O continuity verification. Units are packed in anti-static packaging with appropriate cushioning for international freight. A 12-month warranty covers manufacturing defects and functional failure from the date of shipment.

Q3: Can you support long-term supply for multi-unit facilities or OEM maintenance contracts?
Yes. NINERMAS maintains ongoing sourcing relationships for end-of-life and hard-to-find Danaher Motion components including the DMC25 series. We can support blanket purchase orders, consignment stock arrangements, and annual supply agreements to ensure your facility is never exposed to extended lead times on critical spare parts.

Q4: How do I confirm compatibility if my system uses a variant of the DMC25 platform?
Provide your full system model number, existing controller module part number, and backplane revision to our technical team at sale@ninermas.com. We will cross-reference against our compatibility database and confirm suitability before order confirmation, eliminating the risk of receiving an incompatible unit.
