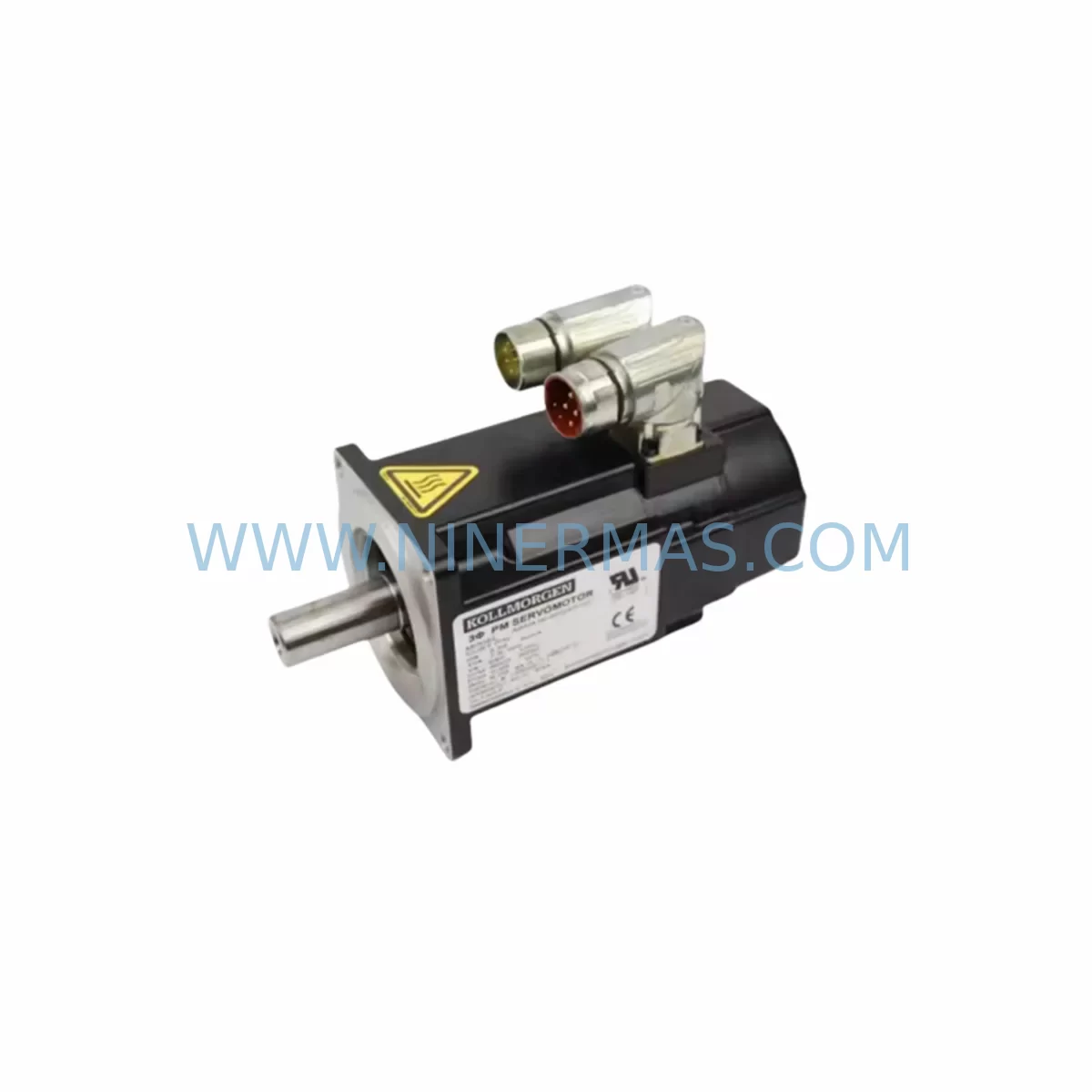

The Danaher AKM22C-ANMN2-00 is a compact, high-performance AC servo motor from the AKM (Asynchronous Kollmorgen Motor) series, engineered for precision motion control in demanding industrial automation environments. As a service-ready spare part, this unit is stocked and tested to support rapid replacement, minimise unplanned downtime, and sustain continuous production across legacy and current-generation control architectures. Whether you are managing a scheduled annual overhaul, responding to an emergency axis fault, or building a strategic spare parts inventory for a multi-axis servo system, the AKM22C-ANMN2-00 delivers the dimensional and electrical compatibility required for a direct drop-in replacement without drive re-commissioning in most AKM-compatible servo drive configurations.

Maintenance engineers working with Kollmorgen or Danaher motion platforms will recognise the AKM22C frame as a workhorse in compact-axis applications — commonly deployed in packaging machinery, semiconductor handling, medical device assembly, and precision CNC auxiliary axes. The -ANMN2-00 suffix encodes the specific winding configuration, feedback device, shaft and connector options, making exact SKU matching critical when ordering a replacement. Substituting an incorrect variant can result in drive fault codes, encoder mismatch errors, or thermal overload conditions that extend downtime rather than resolve it.

When replacing the AKM22C-ANMN2-00 in the field, a disciplined site inspection of the surrounding electrical circuit is essential. Maintenance teams should simultaneously inspect the Kollmorgen AKD servo drive (or legacy S300/S600 drive) powering this axis — check DC bus voltage, check for stored fault history, and verify the drive firmware is compatible with the replacement motor’s feedback type. The motor power cable and feedback cable should be inspected for insulation damage, connector pin corrosion, and correct shielding continuity; a degraded motor feedback cable assembly is a frequent root cause of recurring encoder faults that are misdiagnosed as motor failures. The 24 VDC brake supply (where a holding brake option is fitted) should be verified at the connector before installation.

At the control cabinet level, the associated servo drive enable relay and STO (Safe Torque Off) safety relay module should be tested for correct switching response. If the system uses a Kollmorgen WorkBench or third-party PLC (Siemens S7, Allen-Bradley ControlLogix, Beckhoff TwinCAT) for motion coordination, confirm that the axis parameters — including motor model selection, encoder resolution, current limits, and velocity loop gains — are correctly mapped to the replacement unit. For multi-axis systems, the shared DC bus capacitor bank and regenerative braking resistor should be checked for capacity and condition, as a failing regen resistor can cause bus overvoltage faults on motor startup.

From a procurement engineering perspective, the AKM22C-ANMN2-00 should be treated as a long-lead, safety-critical spare. Danaher’s AKM series has an extended production lifecycle, but regional distributor stock can be inconsistent. Establishing a minimum stock level of 1–2 units per production line is recommended for facilities running continuous or three-shift operations. Companion spares to consider alongside the AKM22C-ANMN2-00 include the AKM22E-ANMN2-00 (higher torque variant for the same frame), AKM24E for adjacent higher-power axes, and the AKM11B for smaller auxiliary axes in the same cabinet. Stocking the correct motor connector kit and a spare feedback cable assembly (matched to the encoder type — resolver, SFD, or EnDat) eliminates the most common installation delay.

For facilities managing older Danaher or Kollmorgen motion systems, the AKM22C-ANMN2-00 is also a viable upgrade path from discontinued legacy servo motors of equivalent frame size, provided the drive supports the feedback protocol. Our technical team can assist with compatibility verification before shipment. All units are tested prior to dispatch, shipped with full documentation, and covered by a 12-month warranty from the date of delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A robust maintenance plan for any system running the AKM22C-ANMN2-00 should extend beyond the motor itself. During a planned shutdown or annual inspection, maintenance engineers should use the opportunity to audit the full servo axis assembly. Begin with the Kollmorgen AKD servo drive — check the drive’s internal fan, DC bus capacitors, and fault log. Inspect the motor power cable (typically a 4-conductor shielded cable rated for continuous flexing if on a moving axis) for jacket cracking, connector pin oxidation, and shield termination integrity at both the drive and motor ends.

The motor feedback cable — whether carrying resolver signals, SFD digital feedback, or EnDat absolute encoder data — is statistically the most failure-prone component in a servo axis and should be treated as a consumable in high-cycle applications. Keep at least one spare feedback cable assembly per motor type in your cabinet spares kit. The 24 VDC control power supply feeding the drive enable circuit and brake (if fitted) should be load-tested; a sagging 24 V rail is a common cause of intermittent drive enable faults that are difficult to diagnose under load.

At the safety circuit level, verify the STO safety relay module (e.g., Pilz PNOZ, Sick or Schmersal equivalent) for correct response time and contact wear. The emergency stop relay and associated safety-rated terminal blocks (Phoenix Contact or Weidmüller series) should be inspected for contact resistance and mechanical condition. For multi-axis cabinets, the shared DC bus fuse assembly and regenerative braking resistor thermal condition should be logged. If the system communicates over EtherCAT, PROFINET, or CANopen, verify the communication module firmware version and cable shielding at each node — a degraded fieldbus connection can cause axis synchronisation errors that mimic motor faults.

For the HMI and operator interface layer, confirm that the operator panel (Kollmorgen MMI or third-party HMI) correctly reflects axis status after motor replacement and that any motor-specific parameters stored in the HMI project are updated to match the replacement unit’s nameplate data. Stocking a spare AKM22E-ANMN2-00 (higher torque variant) alongside the AKM22C provides flexibility for applications where load conditions have increased since original commissioning.

Site Replacement Workflow

Step 1 — Isolation & Safety: Isolate the servo drive from mains supply and verify zero voltage on the DC bus (allow minimum 5 minutes for bus capacitor discharge). Engage lockout/tagout per site procedure. Confirm STO input is de-energised.

Step 2 — Documentation: Photograph the existing motor nameplate, cable routing, and connector orientation before disconnection. Record the drive’s current parameter set (motor model, encoder type, Km, Kt values) from WorkBench or the PLC motion axis configuration.

Step 3 — Disconnection: Disconnect the motor power connector and feedback connector. Label cables if not already marked. Remove the motor from the machine — note the coupling or gearbox interface for reassembly reference.

Step 4 — Verification: Confirm the replacement AKM22C-ANMN2-00 nameplate matches the original: frame size, winding code, feedback type, shaft diameter, and connector option. Do not install if any parameter differs without engineering sign-off.

Step 5 — Installation: Mount the replacement motor, reconnect power and feedback cables. Verify cable shield terminations. Restore 24 VDC control power.

Step 6 — Commissioning: Power up the drive in a controlled state. Use Kollmorgen WorkBench (or equivalent) to confirm motor model recognition, encoder feedback signal quality, and zero-speed holding. Run a low-speed jog test before returning the axis to automatic mode.

Step 7 — Documentation & Stock Update: Log the replacement in the maintenance management system (CMMS). Update spare parts inventory and initiate a reorder for the consumed unit to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the AKM22C-ANMN2-00 a direct drop-in replacement for my existing motor?
Yes, provided the replacement unit matches the original on all suffix parameters: winding (C), feedback type (N = resolver/SFD per position), brake option (N = no brake), shaft (M = smooth), and connector option (2-00). If your existing motor has a different suffix, contact our technical team for compatibility verification before ordering.

Q2: What is the warranty coverage and what does pre-shipment testing include?
All AKM22C-ANMN2-00 units supplied by NINERMAS carry a 12-month warranty from the date of delivery. Pre-shipment testing includes electrical continuity checks on all windings, insulation resistance testing, feedback signal verification (where applicable), and a rotation test to confirm bearing condition and smooth operation. A test report is available on request.

Q3: Can you support long-term supply for this SKU across multiple sites?
Yes. NINERMAS specialises in long-term spare parts programs for industrial automation components, including discontinued and hard-to-source Danaher/Kollmorgen SKUs. We can establish a blanket order or consignment stock arrangement for facilities requiring guaranteed availability across multiple production sites or annual maintenance cycles.

Q4: How do I confirm compatibility if my drive is not a Kollmorgen AKD?
