Industrial-Grade Combined I/O Module for Multi-Signal Process Control

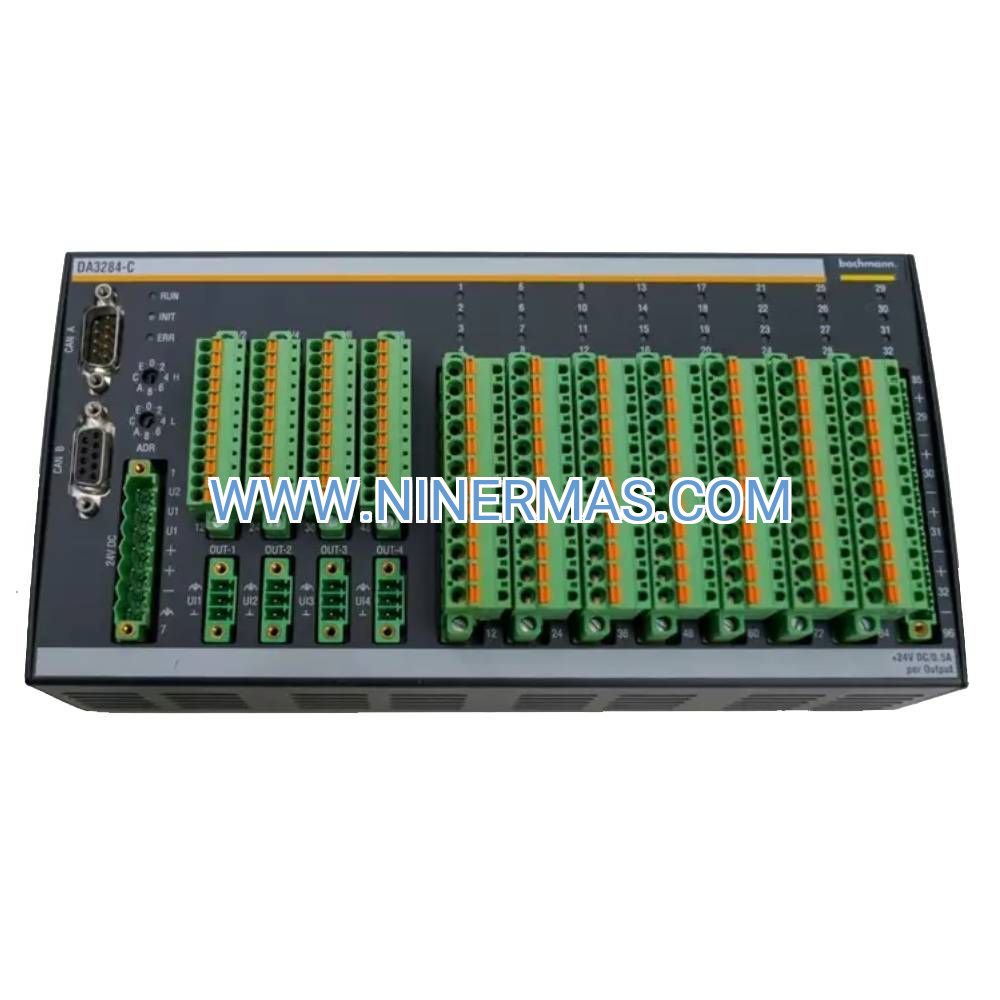

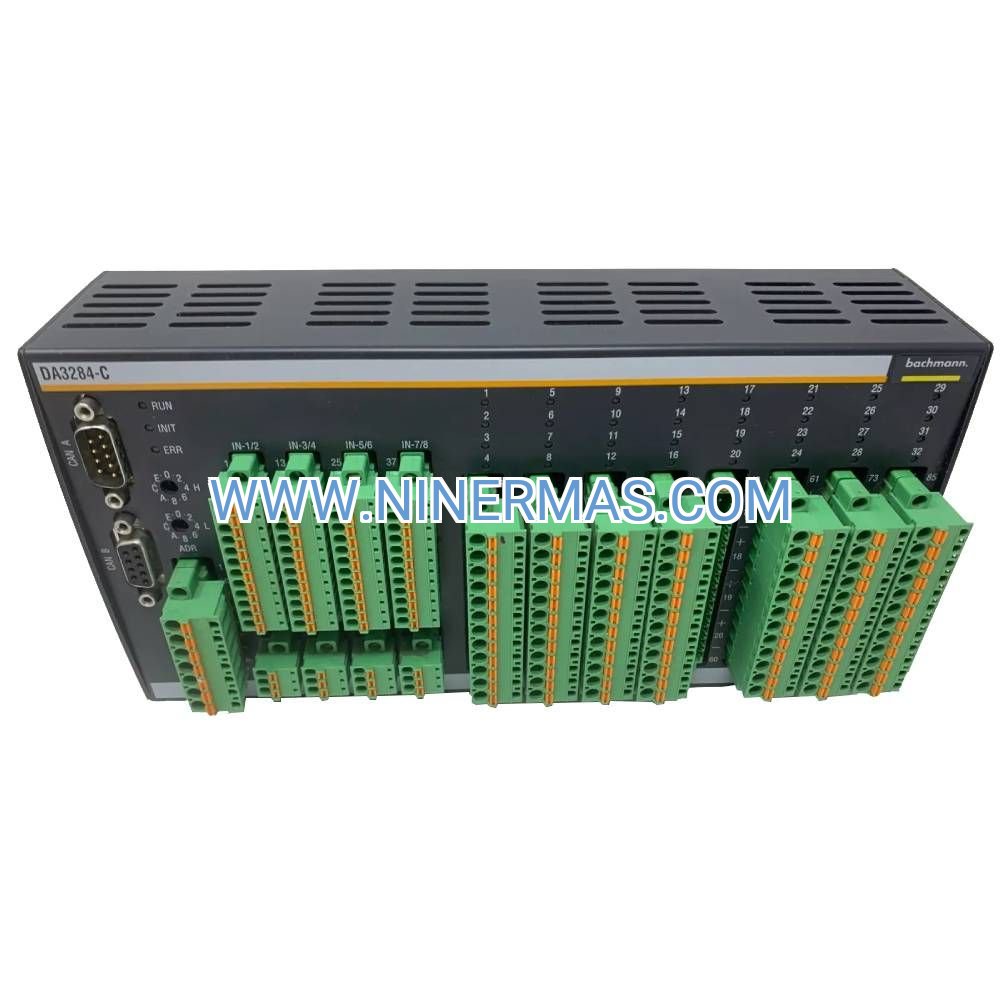

The Bachmann DA3284-C represents a sophisticated solution for industrial environments demanding simultaneous analog signal acquisition and digital control output. Engineered for process automation systems, this module consolidates RTD temperature measurement, current loop interfacing, and discrete output control into a single compact unit, reducing installation complexity while maintaining measurement integrity across diverse sensor types.

Manufacturing facilities, chemical processing plants, and energy management systems rely on the DA3284-C to bridge the gap between field instrumentation and centralized control logic. By accepting both resistance temperature detectors (Pt100/Pt1000) and industry-standard 4-20mA transmitters, this module eliminates the need for separate signal conditioning equipment, streamlining system architecture and reducing points of potential failure.

Built to withstand industrial operating conditions from -40°C to +70°C, the DA3284-C delivers consistent performance in challenging environments where temperature extremes, electrical noise, and vibration are constant factors. Galvanic isolation between channels ensures signal integrity even in electrically harsh installations, making it the preferred choice for engineers prioritizing reliability and measurement accuracy.

Core Capabilities & Technical Advantages

✓ Universal RTD Compatibility
Direct connection to Pt100 and Pt1000 resistance temperature detectors with software-selectable configuration. Supports both 3-wire and 4-wire RTD connections, with 4-wire mode eliminating lead resistance errors for maximum accuracy in long-distance sensor installations. Temperature measurement range spans -200°C to +850°C, covering virtually all industrial process requirements.

✓ Precision Current Loop Processing
Accepts 0-20mA and 4-20mA analog signals with 16-bit resolution, delivering ±0.1% full-scale accuracy for critical process variables. Built-in loop power capability supports 2-wire transmitters without external power supplies, simplifying wiring and reducing installation costs. Maximum cable length of 1000 meters enables flexible sensor placement.

✓ Integrated Digital Output Control
Configurable digital outputs provide direct actuator control based on analog input conditions or PLC logic. Eliminates the need for separate relay modules in many applications, consolidating control functions within a single I/O point and reducing cabinet space requirements.

✓ Channel-to-Channel Isolation
Galvanic isolation prevents ground loops and electrical interference between measurement channels, ensuring accurate readings even when sensors operate at different ground potentials. This isolation architecture is essential for multi-zone temperature monitoring and mixed-signal applications.

✓ Hot-Swap Capability
Field-replaceable design allows module exchange without system shutdown in redundant configurations, minimizing downtime during maintenance operations. DIN rail mounting enables tool-free installation and removal, accelerating commissioning and service activities.

✓ Advanced Diagnostics
Real-time sensor break detection, out-of-range alarms, and channel status monitoring provide immediate fault notification. Diagnostic data accessible through system software enables predictive maintenance and rapid troubleshooting, reducing mean time to repair.

Industrial Application Scenarios

→ Chemical Batch Processing
In pharmaceutical and specialty chemical manufacturing, the DA3284-C monitors reactor vessel temperatures via Pt100 sensors while simultaneously processing 4-20mA signals from pressure transmitters and flow meters. Digital outputs trigger cooling valves and agitator controls based on temperature setpoints, enabling precise batch recipe execution. The module's high accuracy ensures compliance with FDA 21 CFR Part 11 validation requirements for temperature-critical processes.

→ Building Automation & HVAC
Commercial building management systems utilize the DA3284-C for multi-zone climate control, interfacing with Pt1000 room temperature sensors and 4-20mA duct pressure transducers. Digital outputs command VAV damper actuators and fan speed controllers, optimizing energy consumption while maintaining occupant comfort. The module's wide operating temperature range supports installation in mechanical rooms and rooftop equipment enclosures.

→ Water & Wastewater Treatment
Municipal water treatment facilities deploy the DA3284-C to monitor clarifier temperatures and receive current loop signals from pH analyzers, turbidity meters, and chlorine residual sensors. When combined with digital output control of chemical dosing pumps, operators achieve closed-loop water quality management. The module's isolation architecture prevents measurement errors caused by varying ground potentials across large treatment plants.

→ Food & Beverage Production
Dairy processing and brewing operations leverage the DA3284-C for pasteurization temperature monitoring and CIP (clean-in-place) system control. Pt100 sensors track product temperatures while 4-20mA transmitters monitor flow rates and conductivity. Digital outputs sequence spray ball activation and divert valve operation, ensuring sanitation cycle completion and product safety.

→ Energy Management Systems
Combined heat and power (CHP) installations use the DA3284-C to monitor generator coolant temperatures, exhaust gas temperatures, and bearing RTDs. Current loop inputs from vibration transmitters and oil pressure sensors provide comprehensive machinery health monitoring. Early fault detection through integrated diagnostics prevents catastrophic equipment failures and extends asset life.

Technical Parameters & Selection Criteria

Selection Guidelines:
Choose the DA3284-C when your application requires simultaneous RTD temperature measurement and current loop signal processing within a single I/O module. This module is ideal for systems where cabinet space is limited and mixed analog signal types must be acquired. For applications requiring only RTD inputs or only current loop inputs, consider dedicated single-function modules for optimized channel density. When building distributed I/O networks with more than 8 analog points, combine multiple DA3284-C modules on a common backplane for scalable architecture.

Extended Functionality & System Integration

IoT Connectivity & Remote Monitoring
When paired with Bachmann M1 controllers featuring Ethernet connectivity, the DA3284-C enables cloud-based data logging and remote process visualization. OPC UA server functionality provides standardized data access for SCADA systems, MES platforms, and Industry 4.0 analytics applications. Secure VPN tunneling allows authorized personnel to monitor critical process variables from any location.

Redundancy & High Availability
The DA3284-C supports hot-standby configurations when deployed in redundant controller architectures. Automatic failover ensures continuous process monitoring even during controller maintenance or unexpected failures. Dual backplane connectivity options provide additional reliability for mission-critical applications.

Custom Calibration & Linearization
Advanced users can implement custom linearization curves for non-standard RTD types or specialized transmitters. Software-based calibration adjustment compensates for sensor drift over time, extending calibration intervals and reducing maintenance costs. Multi-point calibration tables support complex sensor characteristics.

Energy Efficiency Features
Low-power design minimizes heat generation in densely populated control cabinets, reducing cooling requirements and overall energy consumption. Sleep mode capability for unused channels further optimizes power usage in partially populated systems.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock DA3284-C modules ship within 2-3 business days via express courier service. Typical transit time to major industrial centers is 5-7 business days, with expedited options available for urgent requirements.

Custom Configuration: Pre-configured modules with customer-specific parameter settings ship within 7-10 business days. Configuration services include sensor range setup, alarm threshold programming, and documentation package preparation.

Warranty Coverage: Every DA3284-C module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our automation specialists provide unlimited phone and email support for configuration assistance, troubleshooting, and application engineering consultation. Remote diagnostic services available for complex system integration challenges.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample PLC code examples. CAD drawings and 3D STEP files available for download to support mechanical design integration.

Frequently Asked Questions

How does the DA3284-C handle RTD sensor failures or open circuits?
The module features automatic sensor break detection that immediately flags open RTD circuits through diagnostic status bits. When a sensor failure is detected, the module can be configured to hold the last valid reading, output a predefined safe value, or trigger an alarm condition to the control system. This prevents erroneous temperature readings from affecting process control logic.

What cable specifications are recommended for 4-20mA current loop connections?
For optimal noise immunity and signal integrity, use shielded twisted-pair cable with 18-22 AWG conductors. Shield should be grounded at the module end only to prevent ground loops. Maximum recommended cable length is 1000 meters for standard 4-20mA transmitters; shorter runs may be required for low-power 2-wire devices depending on loop resistance.

Can I mix different RTD types on separate channels of the same module?
Yes, each analog input channel is independently configurable. You can simultaneously connect Pt100 sensors on some channels and Pt1000 sensors on others, with each channel configured through software for its specific sensor type. This flexibility allows the DA3284-C to interface with existing instrumentation without sensor standardization.

Does the module provide loop power for 2-wire transmitters?
The DA3284-C includes integrated loop power supply capability for 2-wire 4-20mA transmitters, eliminating the need for external power distribution modules. Loop power voltage is typically 24VDC, sufficient for most industrial transmitters. Consult transmitter specifications to verify compatibility with module loop power characteristics.

What programming software is required to configure the DA3284-C?
Configuration is performed through Bachmann M1 system software, which provides graphical parameter setting for input types, ranges, filtering, and alarm thresholds. The software runs on standard Windows PCs and connects to the controller via Ethernet. No specialized programming knowledge is required for basic configuration; advanced users can access parameters through IEC 61131-3 PLC code.

How does the module perform in high electrical noise environments?
Galvanic isolation between channels and robust EMC design ensure reliable operation in electrically noisy industrial settings. The module meets EN 61000-6-2 immunity standards for industrial environments, including resistance to electrostatic discharge, radiated RF fields, and conducted disturbances. Proper installation practices such as cable routing separation and shield grounding further enhance noise immunity.

Start Your Process Control Upgrade Today

The DA3284-C Bachmann analog digital I/O module delivers the measurement accuracy, signal versatility, and industrial reliability your critical processes demand. Whether you're modernizing legacy control systems or designing new automation architectures, this module provides the foundation for precise, dependable process variable acquisition.

Ready to enhance your control system capabilities? Contact our automation specialists to discuss your specific application requirements, receive technical recommendations, and obtain project pricing. Our team has extensive experience integrating Bachmann M1 systems across diverse industries and can guide you toward the optimal configuration for your needs.

Request a quote today: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with an application engineer. Fast quotation turnaround, competitive pricing, and expert technical support ensure your project stays on schedule and within budget.
