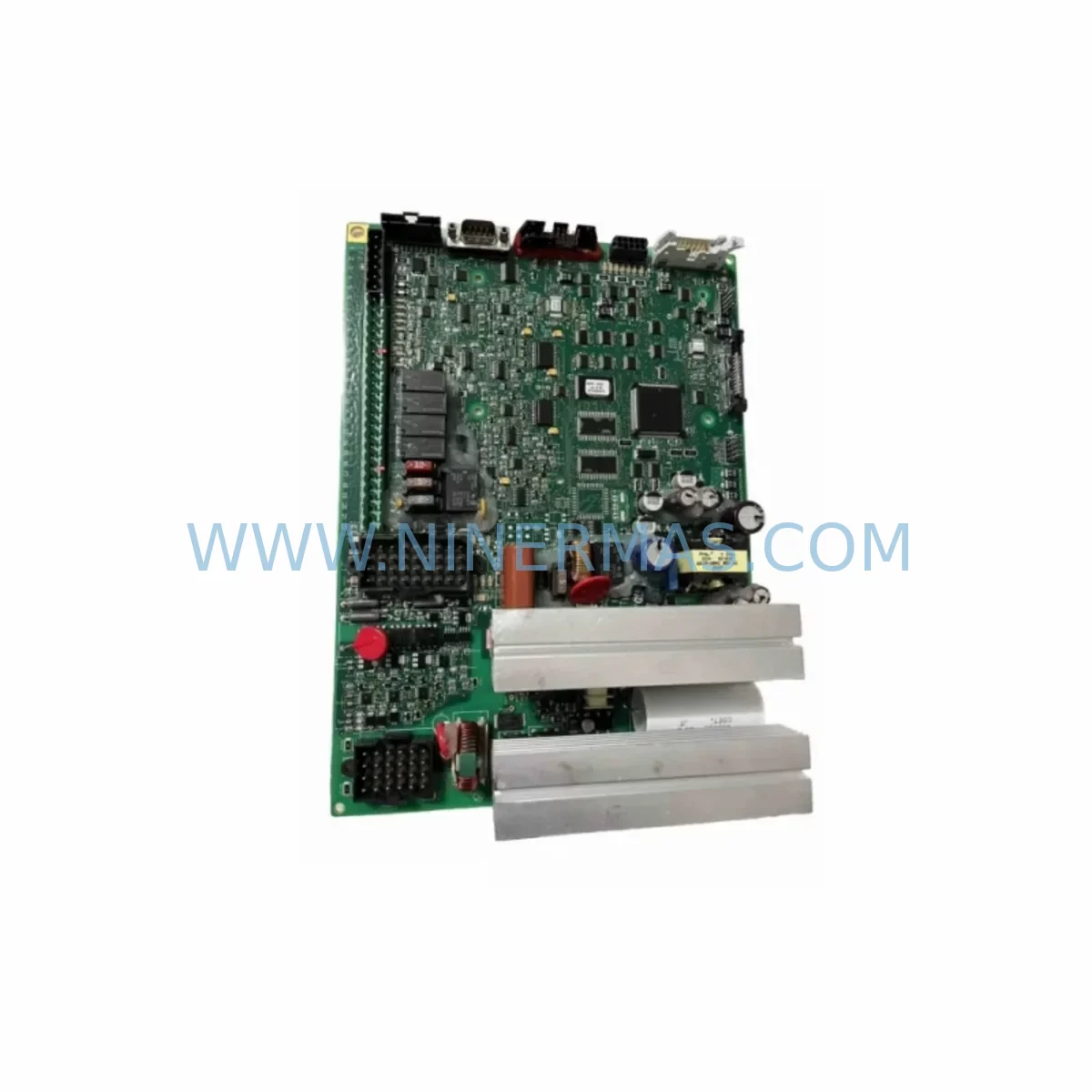

The Cummins 300-4969 (cross-reference: AX1005414) is a critical PCB assembly used in Cummins QSX and QSK series engine control systems deployed across industrial generator sets, marine propulsion units, oil & gas compression trains, and heavy-duty power generation facilities. When this board fails, the entire engine management loop is compromised — fuel injection timing, load sensing, fault diagnostics, and communication with the plant DCS or SCADA system all depend on its reliable operation. Unplanned downtime caused by a failed 300-4969 can halt production lines, trip generator protection relays, and trigger cascading shutdowns across interconnected electrical panels.

NINERMAS maintains service-ready stock of the Cummins 300-4969 PCB assembly, pre-tested under simulated load conditions before dispatch. Each unit is verified for signal integrity, power rail stability, and communication bus response prior to packaging. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions. Our global logistics network supports urgent air freight to minimize mean time to repair (MTTR) for critical assets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Cummins 300-4969 PCB assembly is rarely an isolated task. Experienced maintenance engineers know that a failed control board is often a symptom of broader electrical stress in the engine control cabinet. Before returning the system to service, a structured inspection of adjacent components is essential to prevent repeat failures and protect the new board from premature damage.

Begin with the Cummins 4921776 Engine Control Module (ECM) — the primary processor that interfaces directly with the 300-4969 board. If the ECM has sustained voltage spikes or thermal stress, replacing the PCB without addressing the ECM may result in immediate re-failure. Inspect the Cummins 3408501 wiring harness for chafing, corroded terminals, and broken shield grounds; a degraded harness is the most common root cause of PCB signal corruption on QSX/QSK platforms.

Check the Cummins 4903120 injector driver module — this component shares the same 24 VDC power rail as the 300-4969 and is susceptible to the same overvoltage events. Inspect the Cummins 3096662 power supply module for output ripple and voltage regulation accuracy; an out-of-tolerance power supply will stress the replacement PCB from the first power-on cycle. The Cummins 4921493 sensor interface module should also be verified — faulty sensor inputs can cause the new board to log false fault codes and trigger unnecessary shutdowns.

For sites running Cummins engines integrated into a plant DCS, verify the Cummins 4995445 J1939 communication gateway module for correct baud rate configuration and termination resistance. A misconfigured gateway will prevent the replacement PCB from establishing communication with the supervisory control layer. Additionally, inspect the Cummins 3408300 electronic actuator for mechanical wear and calibration drift — actuator feedback errors are frequently misdiagnosed as PCB failures, and an uncalibrated actuator will generate recurring fault codes on the new board.

At the cabinet level, check the Cummins 3096685 relay and protection board for contact wear and coil resistance. Inspect all terminal blocks and fuse holders in the engine control circuit — a high-resistance connection or a slow-blow fuse operating near its rating can cause intermittent voltage drops that corrupt PCB memory registers. For installations with signal isolation requirements, verify that any installed Cummins-compatible signal isolator modules on the analog I/O channels are within calibration tolerance before commissioning the replacement board.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Isolate the engine control cabinet from all power sources. Apply LOTO (Lockout/Tagout) per site safety procedures. Allow capacitors to discharge for a minimum of 5 minutes before opening the ECM housing.

Step 2 — Document Current Configuration: Before removing the 300-4969 board, photograph all connector positions, cable routing, and any visible parameter labels. Download the current ECM calibration file using Cummins INSITE software if accessible. This ensures the replacement board can be programmed to the same calibration baseline.

Step 3 — Board Removal: Disconnect all harness connectors from the PCB assembly in sequence. Note connector keying and locking tab positions. Remove the board from its mounting bracket using the appropriate ESD-safe tools. Place the failed board in an anti-static bag for return or failure analysis.

Step 4 — Installation of Cummins 300-4969 Replacement: Install the service-ready 300-4969 PCB assembly into the ECM housing. Reconnect all harness connectors, verifying positive latch engagement on each connector. Restore power and perform a system self-test using Cummins INSITE or the site’s diagnostic terminal.

Step 5 — Calibration and Commissioning: Load the saved calibration file or apply the OEM default calibration for the specific engine serial number. Verify all sensor readings, actuator responses, and communication bus status on the diagnostic display. Run the engine at no-load for 15 minutes and monitor for fault codes before returning to full production load.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the new board serial number, installation date, and technician sign-off. Update the spare parts inventory to trigger a replenishment order for the next 300-4969 unit — maintaining at least one spare on-site is strongly recommended for critical power assets.

Spare Parts Support FAQ

Q1: Is the Cummins 300-4969 compatible with both QSX15 and QSK series engines?
Yes. The 300-4969 PCB assembly is designed for use across the Cummins QSX15, QSK19, QSK23, QSK38, QSK50, and QSK60 engine platforms. Always verify the engine serial number and ECM part number against the Cummins parts catalog or contact NINERMAS with your engine nameplate data for compatibility confirmation before ordering.

Q2: How is the 300-4969 tested before shipment?
Every unit dispatched by NINERMAS undergoes a pre-shipment functional test that includes power-on verification, CAN bus communication check, signal rail voltage measurement, and a simulated load cycle. Test results are documented and available upon request. This process ensures the board is confirmed operational before it reaches your site, reducing the risk of a second unplanned outage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of dispatch. It does not cover damage caused by incorrect installation, overvoltage events beyond the specified operating range, or physical damage during handling. NINERMAS provides warranty replacement or repair at no additional cost within the warranty period upon receipt of the failed unit for inspection.

Q4: Can NINERMAS support long-term supply of the 300-4969 for fleet maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for end-of-life and legacy industrial components. We support annual blanket orders, reserved inventory agreements, and scheduled delivery programs for maintenance teams managing large fleets of Cummins QSX/QSK engines. Contact our procurement team to discuss volume pricing, lead time guarantees, and consignment stock arrangements tailored to your maintenance schedule.
