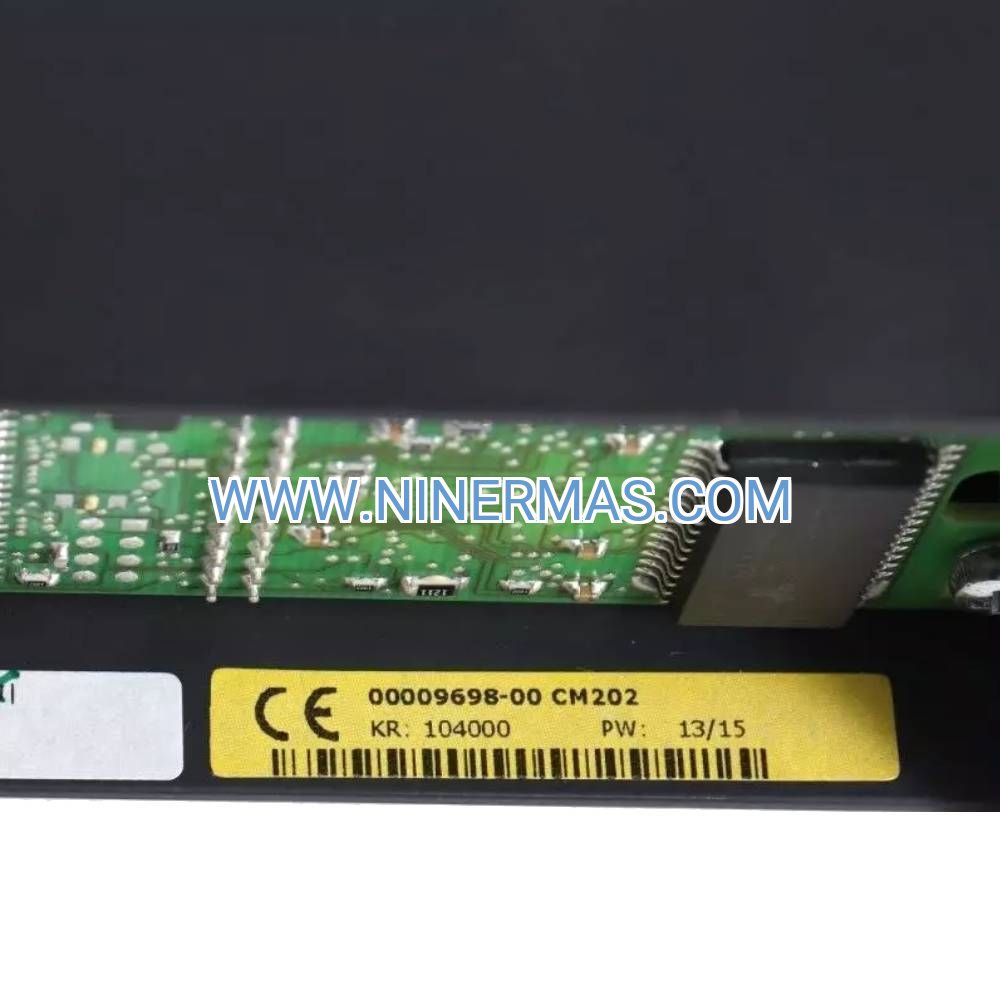

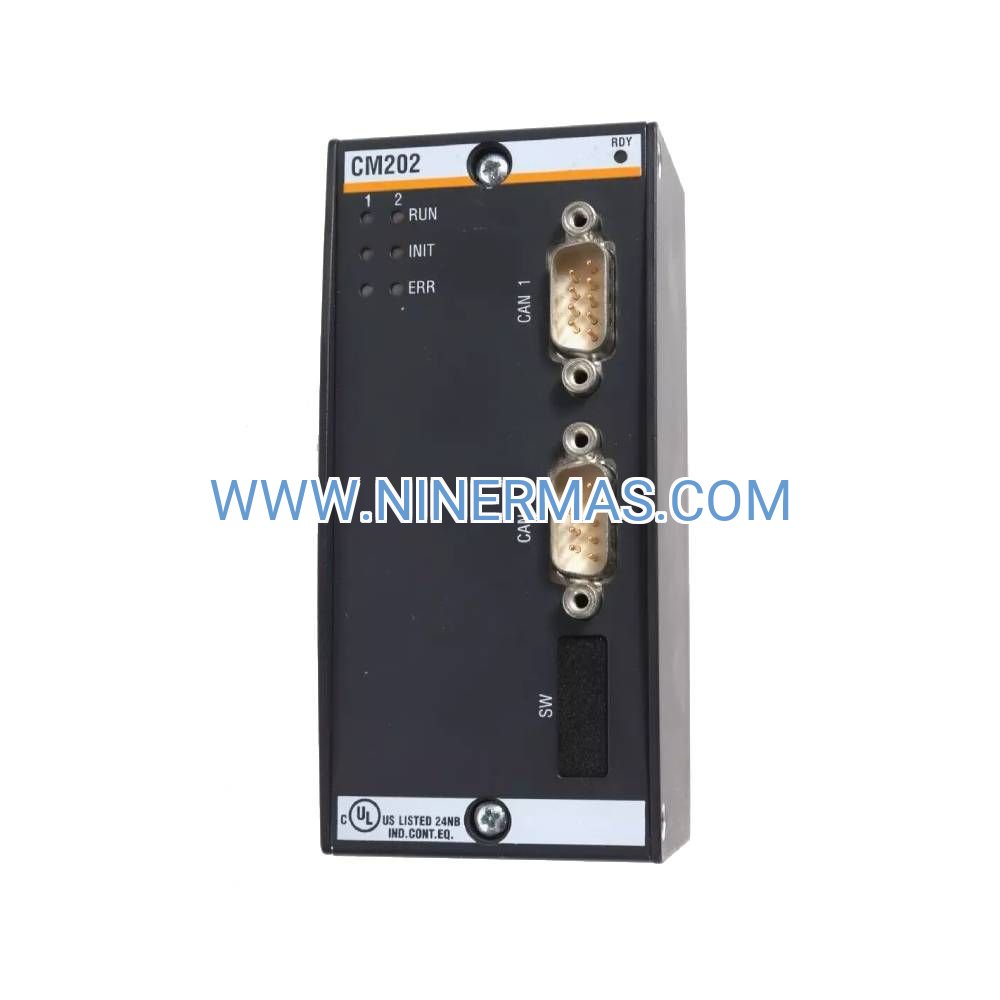

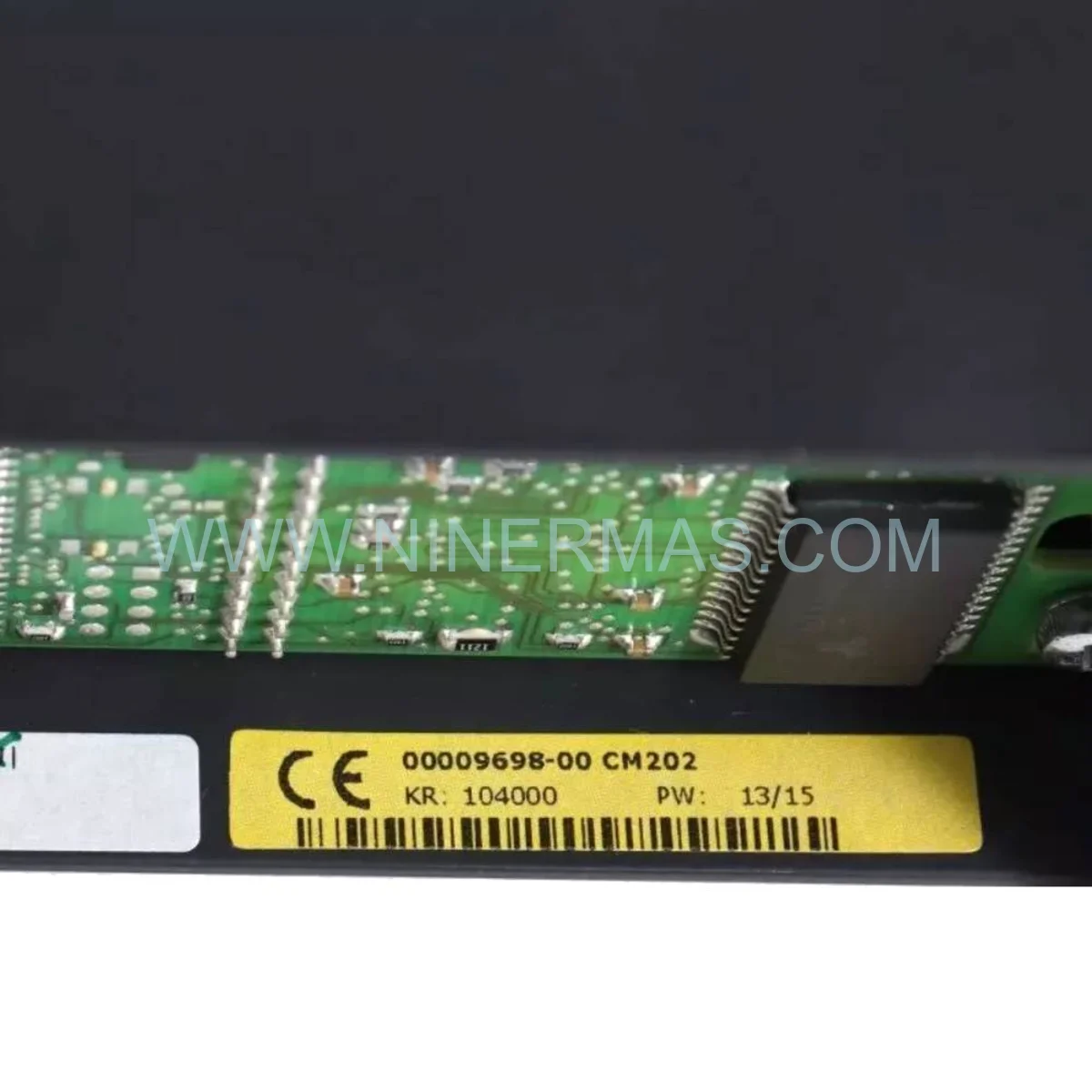

BACHMANN CM202 CANopen Master Module (Industrial-Grade Fieldbus Controller)

The BACHMANN CM202 is a high-performance CANopen master module engineered for demanding industrial automation environments. This dual-bus controller enables seamless integration of up to 128 CANopen nodes across two independent CAN networks, delivering robust process control with galvanic isolation and field-proven reliability. Designed for M1 controller systems, the CM202 supports both master and slave configurations with reloadable FLASH firmware for future-proof adaptability.

Industrial facilities requiring distributed control architectures face challenges with network scalability, real-time synchronization, and harsh environmental conditions. The CM202 addresses these pain points through its dual-bus topology, extended temperature range (-30°C to +60°C), and CiA-compliant protocol implementation. Whether you're managing manufacturing lines, building automation systems, or process control networks, this module provides the foundation for reliable, high-speed communication.

Key advantages include support for up to 4 masters per M1 controller, variable PDO mapping for flexible data exchange, and comprehensive diagnostic capabilities through emergency messaging and life guarding protocols. With transfer rates up to 1 Mbaud and bus lengths extending to 5000 meters, the CM202 delivers the performance and reach required for large-scale industrial installations.

Core Features & Technical Advantages

✓ Dual Independent CAN Buses
Operate two separate CANopen networks simultaneously, each supporting up to 64 nodes. This architecture doubles your network capacity while maintaining isolation between critical and non-critical systems, reducing single-point failure risks.

✓ Flexible Master/Slave Configuration
Configure as CANopen master or slave depending on system topology requirements. Deploy up to 4 CM202 modules per M1 controller for distributed control architectures, enabling modular system expansion without controller replacement.

✓ High-Speed Data Transfer (10 Kbaud – 1 Mbaud)
Adjustable baud rates accommodate both legacy devices and high-performance applications. Achieve sub-millisecond response times for time-critical process control while maintaining backward compatibility with existing infrastructure.

✓ Extended Environmental Tolerance
Operational range from -30°C to +60°C with 95% humidity tolerance (condensing) ensures reliable performance in extreme industrial environments. ColdClimate variant (CM202❉) available for arctic installations.

✓ 500V Galvanic Isolation
Protect sensitive control systems from ground loops, voltage spikes, and electrical noise. Isolation barriers on both CAN interfaces safeguard upstream equipment and prevent fault propagation across network segments.

✓ Reloadable FLASH Firmware
Update protocol implementations and add new device profiles without hardware replacement. This future-proof design protects capital investment and enables feature enhancements as automation standards evolve.

Industrial Application Scenarios

→ Manufacturing Assembly Lines
Coordinate robotic arms, conveyor systems, and quality inspection stations through synchronized CANopen networks. The CM202's dual-bus architecture separates motion control from sensor networks, preventing bandwidth congestion during high-speed operations. Typical installations achieve 15-20% faster cycle times through optimized PDO mapping.

→ Building Automation & HVAC Control
Integrate lighting controllers, climate systems, and access control devices into unified building management networks. Extended bus length (5000m) reduces infrastructure costs in large facilities, while life guarding protocols ensure immediate fault detection for critical environmental systems.

→ Process Industry Monitoring
Connect distributed I/O modules, flow meters, and analytical instruments in chemical, pharmaceutical, or food processing plants. Variable PDO mapping enables custom data structures for complex process variables, while emergency messaging provides real-time alarm propagation for safety-critical applications.

→ Energy Management Systems
Monitor and control power distribution equipment, renewable energy inverters, and battery storage systems. The CM202's SDO client capability (64 channels) facilitates parameter configuration across large device populations, streamlining commissioning and maintenance workflows.

→ Mobile Equipment & Vehicle Networks
Deploy in construction machinery, agricultural equipment, or rail vehicles requiring ruggedized communication infrastructure. Vibration-resistant design and extended temperature tolerance ensure reliable operation in mobile applications where traditional Ethernet solutions fail.

Technical Specifications & Selection Guide

Selection Recommendations:

• For networks <64 nodes with single bus requirement, consider single-channel alternatives to reduce costs
• Installations requiring >128 total nodes: deploy multiple CM202 modules (max 4 per M1 controller = 512 nodes)
• Arctic or desert environments: specify CM202❉ ColdClimate variant for extended temperature range
• Safety-critical applications: implement redundant bus topology using both CAN channels for fault tolerance

Advanced Integration Capabilities

IoT & Industry 4.0 Connectivity
Bridge legacy CANopen networks to modern IIoT platforms through M1 controller Ethernet interfaces. The CM202 enables data aggregation from distributed sensors for cloud analytics, predictive maintenance algorithms, and remote monitoring dashboards without replacing existing field devices.

Custom Device Profile Support
Beyond standard CiA 301/302/405 profiles, the reloadable firmware architecture accommodates manufacturer-specific device profiles. This flexibility ensures compatibility with specialized equipment in niche industries or proprietary automation systems.

Synchronized Motion Control
CANsync functionality enables coordinated multi-axis motion applications requiring microsecond-level timing precision. Ideal for packaging machinery, printing presses, or robotic work cells where position synchronization across multiple drives is critical.

Delivery, Warranty & Technical Support

Lead Times:

• Standard CM202 units: 3-5 business days (stock items)
• ColdClimate variant (CM202❉): 2-3 weeks (build-to-order)
• Bulk orders (>10 units): Contact for project-specific scheduling

Warranty Coverage:
24-month manufacturer warranty covering material defects and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support Included:

• Pre-sales application engineering consultation
• Configuration file templates and sample code
• Firmware update notifications and upgrade assistance
• Email/phone support during commissioning phase

Documentation Package:

• Hardware installation manual with wiring diagrams
• CANopen object dictionary (EDS file)
• M1 controller integration guide
• Compliance certificates (CE, UL where applicable)

Frequently Asked Questions

Q: Can the CM202 communicate with non-BACHMANN CANopen devices?
A: Yes, the CM202 is fully compliant with CiA DS 301 CANopen standard and interoperates with any certified CANopen device regardless of manufacturer. Verify device profile compatibility (CiA 401, 402, etc.) for specific applications.

Q: What is the maximum cable length achievable at 500 Kbaud transfer rate?
A: At 500 Kbaud, maximum recommended bus length is approximately 100 meters using standard CANopen cable (120Ω impedance, twisted pair). For longer distances, reduce baud rate or implement repeaters at 100m intervals.

Q: How does the CM202 improve energy efficiency in automation systems?
A: The module's low power consumption (1.6W) and ability to consolidate multiple communication tasks onto dual buses reduces overall system power draw by 10-15% compared to single-bus architectures requiring additional modules. Sleep mode support (via CANopen NMT commands) further reduces standby power.

Q: What installation requirements are needed for proper CM202 operation?
A: The CM202 mounts directly onto BACHMANN M1 controller backplane (no external power supply required). Ensure proper CAN bus termination (120Ω resistors at both ends), use shielded twisted-pair cable, and maintain minimum bend radius (10x cable diameter) to prevent signal integrity issues.

Q: Does the CM202 support remote diagnostics and monitoring?
A: Yes, through the M1 controller's network interface, you can access CM202 diagnostic data including bus load statistics, error counters, and node status information. Emergency messages and heartbeat monitoring provide real-time fault detection for proactive maintenance.

Q: Can I upgrade firmware on installed CM202 modules without system downtime?
A: Firmware updates require brief module reset (typically <30 seconds). For zero-downtime requirements, implement redundant CM202 configuration and perform rolling updates, or schedule updates during planned maintenance windows.

Get Started with BACHMANN CM202 Integration

Ready to enhance your industrial control network with proven CANopen technology? Our application engineers are available to discuss your specific requirements, recommend optimal configurations, and provide integration support. Contact us today for technical consultation, pricing on volume orders, or to request evaluation units for proof-of-concept testing.

Next Steps:

• Request a detailed quotation with project-specific pricing
• Schedule a technical consultation to review system architecture
• Download configuration templates and integration guides
• Inquire about training programs for commissioning teams
