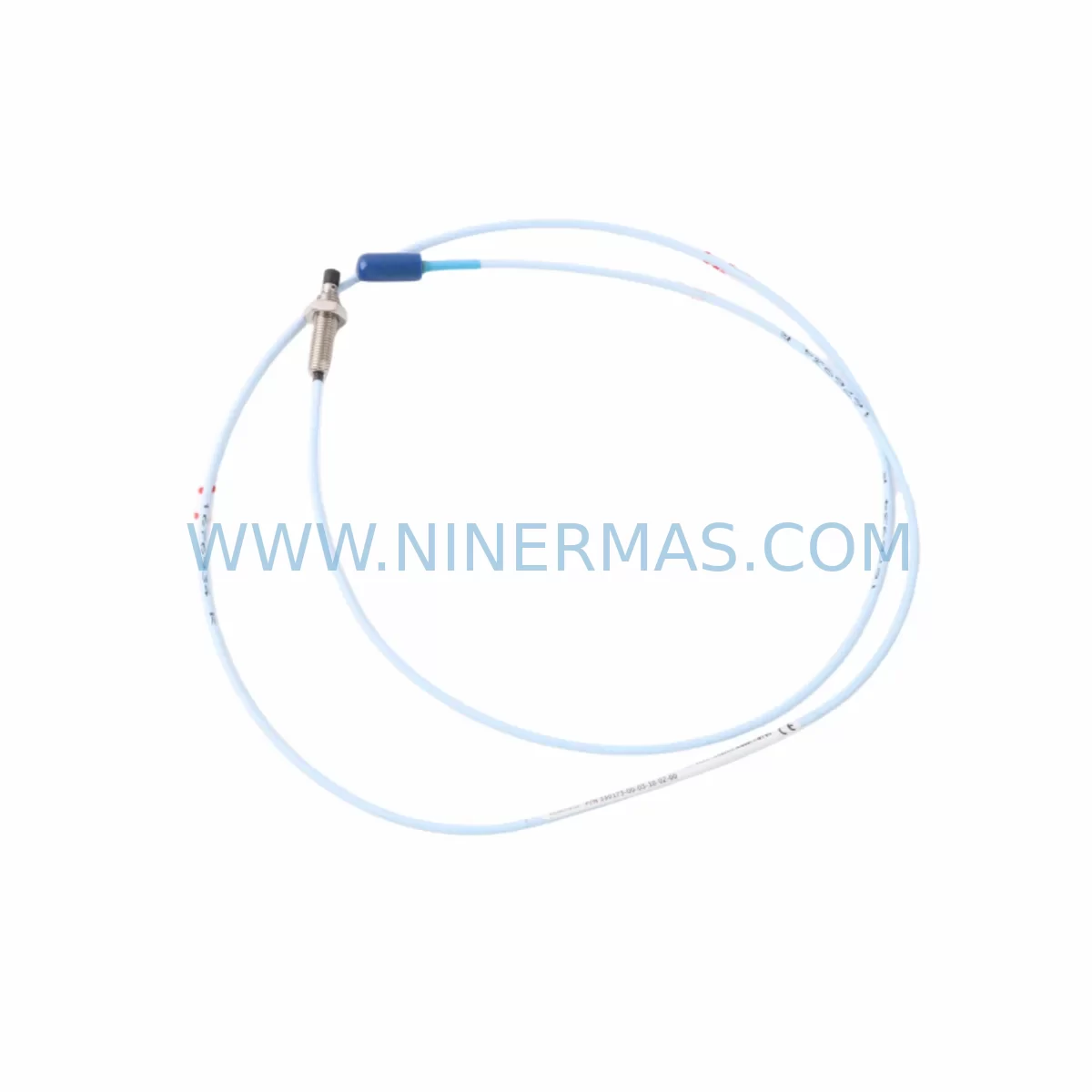

Bently Nevada 330173-00-03-10-02-00 Vibration Monitor

Bently Nevada 330173-00-03-10-02-00 Vibration Monitor: Safety Control for Critical Industrial Sites

The Bently Nevada 330173-00-03-10-02-00 is a precision vibration monitoring module from the renowned 3300 XL Series, engineered for continuous, safety-critical condition monitoring of rotating machinery in demanding industrial environments. Designed to operate reliably in high electromagnetic interference (EMI), elevated temperature, mechanical vibration, and moisture-laden atmospheres, this module is a cornerstone component in turbine protection systems, compressor trains, pump monitoring loops, and critical interlock circuits across the process industries.

At NINERMAS, every unit of the 330173-00-03-10-02-00 is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory program ensures rapid availability for planned maintenance shutdowns and emergency spare replacements, minimising unplanned downtime risk at your critical production site.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a safety-instrumented control cabinet protecting a high-speed compressor or steam turbine, a single point of failure in the vibration monitoring chain can trigger uncontrolled machinery rundown, process upset, or catastrophic mechanical damage. The Bently Nevada 330173-00-03-10-02-00 eliminates this risk by providing a stable, drift-free signal path from field-mounted proximity probes — such as the Bently Nevada 330500-02-05 8 mm proximity probe — through to the trip relay logic within the 3300 XL rack.

When integrated with the Bently Nevada 3500/42M Proximitor / Seismic Monitor or operating alongside the 3300 XL 16-channel rack, the 330173-00-03-10-02-00 ensures that radial vibration, axial position, and differential expansion measurements remain accurate even under severe electrical noise generated by variable frequency drives (VFDs), large motor starters, and high-current bus bars sharing the same switchroom. Signal drift and false trips — two of the most disruptive failure modes in rotating machinery protection — are actively suppressed by the module’s internal signal conditioning circuitry.

For power supply integrity within the same protection system, pairing this module with a Bently Nevada 3300 XL Power Supply (such as the 125800-01 series) provides redundant 24 VDC rail support, preventing monitoring blackouts during utility voltage sags or transient surge events. Where surge protection at the field cable entry is required, inline transient suppressors and shielded twisted-pair cabling to IEC 61000-4-5 standards are recommended to protect the module’s input circuitry from lightning-induced surges on long cable runs in outdoor substations or exposed process areas.

In safety interlock architectures, the 330173-00-03-10-02-00 trip relay outputs can be wired directly into a Pilz PNOZ or Rockwell Allen-Bradley GuardLogix safety PLC input module, forming a certified machinery protection loop. For DCS-integrated sites running Emerson DeltaV SIS or Honeywell Safety Manager, the 4–20 mA analogue output feeds directly into the SIS analogue input card, enabling continuous online diagnostics without interrupting the protection function. Communication integrity between the 3300 XL system and the plant DCS historian can be further secured using Bently Nevada System 1 software with OPC-DA or Modbus TCP gateway modules, ensuring that vibration trend data reaches the control room without latency or packet loss even on congested plant networks.

For cabinets operating in high-dust or high-humidity zones — common in cement plants, mineral processing facilities, and coastal LNG terminals — the 3300 XL rack’s sealed backplane connector system, combined with periodic cleaning and the use of conformal-coated PCB variants where available, significantly extends mean time between failures (MTBF) compared to open-frame monitoring systems.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330173-00-03-10-02-00 is widely deployed on catalytic cracker wet gas compressors, crude charge pump trains, and reactor recycle gas blowers where API 670 machinery protection compliance is mandatory. Its ability to maintain accurate radial vibration measurement during process upsets — including rapid load swings and steam quality variations — makes it indispensable for preventing unplanned shutdowns in continuous refining operations.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, this module protects turbine-generator shaft systems from sub-synchronous resonance, oil whirl, and bearing wear events. Integrated with the plant’s existing Bently Nevada 3500 Series rack or as a cost-effective 3300 XL retrofit, it provides the same measurement fidelity required for grid-synchronised machinery operating under strict availability targets.

Mining & Mineral Processing: Ball mill pinion bearings, SAG mill trunnion bearings, and large slurry pump shafts in open-cut and underground mining operations are subject to extreme shock loading and abrasive dust ingress. The 330173-00-03-10-02-00’s robust signal conditioning tolerates the high-vibration, high-EMI environment generated by large dragline motors and crusher drives without nuisance tripping.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous pump and blower availability. Deploying this module on primary effluent pumps and aeration blowers enables early detection of impeller imbalance and bearing degradation, allowing condition-based maintenance scheduling that avoids emergency pump failures during peak demand periods.

Metallurgy & Steel: Rolling mill main drive motors, continuous caster withdrawal rolls, and blast furnace top gas compressors operate in extreme thermal and vibration environments. The 330173-00-03-10-02-00 maintains measurement stability across the full operating temperature range, supporting the high-availability targets demanded by integrated steelworks with no scheduled process interruptions.

Port & Marine: Ship propulsion shaft monitoring, crane slew ring bearing surveillance, and port bulk-handling conveyor drive protection are emerging applications where the 3300 XL platform’s compact form factor and proven reliability provide a cost-effective alternative to bespoke marine monitoring systems.

Safety and Quality FAQ

Q1: Does the 330173-00-03-10-02-00 come with a warranty, and what does it cover?
Yes. Every unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with rapid replacement dispatch to minimise your site downtime.

Q2: How is each unit tested before shipment?
All 330173-00-03-10-02-00 modules undergo pre-shipment functional verification, including power-on self-test, signal input/output calibration check, and relay output continuity confirmation. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing 3300 Series racks, or only 3300 XL?
The 330173-00-03-10-02-00 is designed for the 3300 XL rack platform. Compatibility with earlier 3300 Series racks depends on backplane revision and firmware version. NINERMAS technical support can assist with compatibility verification based on your existing rack serial number and configuration prior to purchase.

Q4: Can NINERMAS support long-term or scheduled spare parts supply for this module?
Yes. NINERMAS operates a structured spare parts inventory program for Bently Nevada 3300 XL Series components, including the 330173-00-03-10-02-00. We support annual maintenance contracts, shutdown kitting, and emergency stock reservation arrangements for clients with critical machinery protection requirements across multiple sites.
