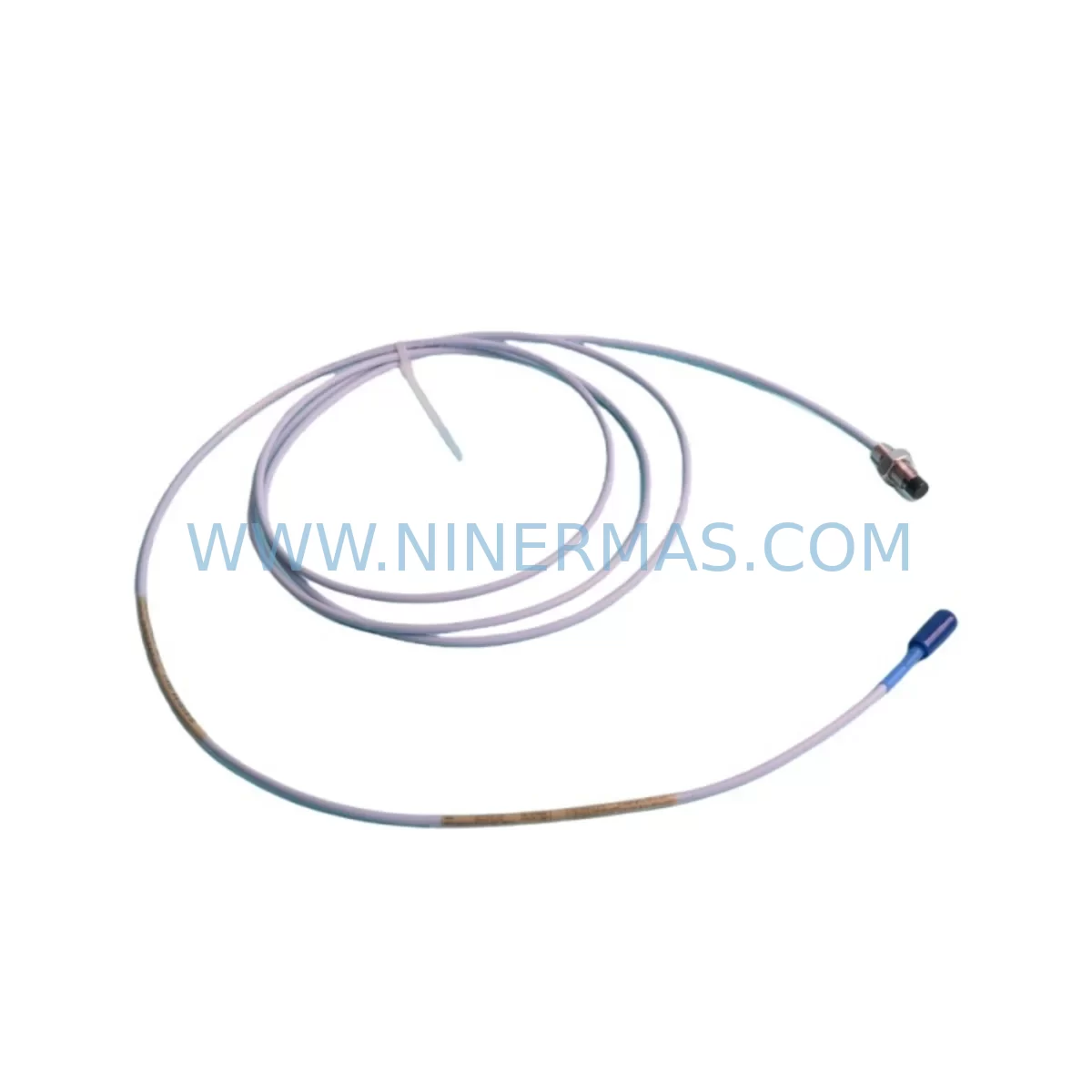

Bently Nevada 330104-00-05-50-02-00 Proximity Sensor Module

Bently Nevada 330104-00-05-50-02-00 Proximity Sensor Module: Retrofit-Compatible Upgrade for Legacy Vibration Monitoring Systems

The Bently Nevada 330104-00-05-50-02-00 is a ruggedized proximity sensor module designed for continuous vibration and position monitoring in demanding industrial environments. As part of the Bently Nevada 3300 Series eddy-current proximity system, this module serves as a critical interface between rotating machinery and the plant’s condition monitoring infrastructure. With many legacy installations still relying on 3300 Series hardware, sourcing a verified replacement or retrofit-compatible unit is essential for maintaining system uptime and avoiding costly unplanned shutdowns.

Whether you are managing a planned outage, responding to a failed sensor channel, or executing a broader control system modernization project, the 330104-00-05-50-02-00 provides a reliable, specification-matched solution. NINERMAS maintains inventory of this module to support customers across petrochemical, power generation, oil & gas, pulp and paper, and heavy manufacturing sectors where Bently Nevada monitoring systems remain deeply embedded in plant infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity sensor in an operating plant is rarely a simple swap. The 330104-00-05-50-02-00 sits at the field end of a three-component measurement chain: the probe itself, an extension cable (typically from the Bently Nevada 330130 series), and a driver or proximitor (such as the 3300 XL 8mm Proximitor or the 330180 series driver). All three components must be matched in terms of cable length, system sensitivity, and scale factor. When retrofitting, engineers should confirm that the existing extension cable and driver remain serviceable — replacing only the probe while retaining a degraded extension cable is a common source of post-retrofit calibration failures.

At the monitor rack level, the signal from this proximity sensor feeds into a Bently Nevada 3500 Series monitor card — commonly the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor for dual-channel applications. Before pulling the old probe, technicians should document the current gap voltage (typically between -10 VDC and -18 VDC for most shaft materials) and the OK status relay state. This baseline allows rapid verification after the new 330104-00-05-50-02-00 is installed and gapped.

For plants running older Bently Nevada 3300 Series monitor racks, the retrofit may also require evaluation of the rack’s backplane and power supply. The 3300/16 power supply module and associated I/O termination blocks should be inspected for corrosion or loose terminals, as proximity sensor faults are frequently misdiagnosed when the root cause is actually a degraded power rail or a high-resistance terminal connection rather than a failed probe. If the 3300 rack is being decommissioned as part of a broader migration to a 3500 Series chassis, the new rack will require its own 3500/15 power supply and a 3500/20 rack interface module to integrate with the plant’s communication network.

In DCS-integrated plants, the proximity sensor output is often wired through a signal isolator or signal conditioner before reaching the DCS analog input card. During retrofit, verify that the isolator’s input range is compatible with the -24 VDC bias output of the new probe. Some older isolators were calibrated for specific Bently Nevada probe models and may require recalibration or replacement when the probe SKU changes — even within the same product family. Plants using Rockwell Automation or Siemens S7 DCS platforms with third-party vibration I/O modules should also confirm that the module’s input impedance does not load the proximity signal excessively.

Where HMI screens display vibration trend data sourced from Bently Nevada monitors, the retrofit should include a verification step to confirm that the HMI tag scaling matches the new probe’s scale factor (typically 200 mV/mil or 7.87 V/mm for standard 8mm probes). Mismatched scale factors will cause the HMI to display incorrect vibration amplitude values without triggering any system fault, creating a silent measurement error that may persist undetected through multiple operating cycles.

Downtime Control During System Migration

Minimizing downtime during a proximity sensor replacement requires preparation that begins well before the maintenance window opens. For the 330104-00-05-50-02-00, the critical path items are: confirming the replacement unit is on-site and pre-tested, preparing the correct gap-setting tools (non-ferrous feeler gauges or a calibrated gap voltage meter), and briefing the control room operator on the expected OK relay dropout sequence during probe removal.

Where the plant’s safety instrumented system (SIS) or machinery protection system uses the proximity sensor’s OK relay as a permissive for turbine or compressor start, the maintenance team must coordinate with the SIS engineer to place the affected channel in bypass before beginning work. Failure to do so can result in a spurious trip or, conversely, a masked protective function — both of which carry significant operational and safety consequences.

For plants executing a phased migration from 3300 Series to 3500 Series hardware, a common strategy is to run the new 3500 rack in parallel with the existing 3300 rack during a transition period, with both systems monitoring the same machine. This parallel-run approach allows the maintenance team to validate the new probe’s calibration and the 3500 monitor’s alarm setpoints against the established 3300 baseline before cutting over. The original program logic, alarm thresholds, and HMI displays can be preserved and migrated incrementally, reducing the risk of introducing configuration errors during the cutover window.

NINERMAS supports customers through this process by providing pre-shipment functional testing on all 330104-00-05-50-02-00 units, detailed calibration records on request, and technical coordination for customers managing complex multi-channel retrofits. All units are backed by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q1: Is the 330104-00-05-50-02-00 a direct drop-in replacement for other 330104 suffix variants?
The 330104 base part number covers a family of proximity probes with varying cable lengths and connector configurations encoded in the suffix. The -00-05-50-02-00 suffix specifies a particular cable length and configuration. Before ordering, confirm that the suffix of your existing probe matches your installation’s cable routing requirements. If the cable length needs to change, the extension cable (330130 series) must be re-selected to maintain the correct total system cable length for accurate scale factor.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, set the probe gap to achieve the target gap voltage specified on the 3500 or 3300 monitor card’s configuration sheet — typically between -10 VDC and -18 VDC depending on shaft material and probe type. Verify the OK relay energizes and the monitor card displays a valid gap voltage within the OK range. Confirm vibration amplitude readings are consistent with baseline values at known machine speeds before releasing the machine to service.

Q3: Can NINERMAS supply the matching extension cable and driver for a complete system replacement?
Yes. NINERMAS maintains inventory of Bently Nevada 330130 series extension cables and 330180 series drivers to support complete three-component proximity system replacements. When ordering, provide the total required cable length (probe cable + extension cable) and the target system sensitivity to ensure correct component matching.

Q4: What warranty and testing documentation is provided with the 330104-00-05-50-02-00?
All units supplied by NINERMAS are functionally tested prior to shipment and covered by a 12-month warranty from the date of delivery. Test records and, where available, original manufacturer documentation can be provided upon request. For customers requiring expedited delivery to support emergency maintenance, NINERMAS offers priority processing — contact our team directly to confirm current lead times and stock availability.
