Bently Nevada 21000-28-05-15-024-03-02 Retrofit Proximity Probe

Bently Nevada 21000-28-05-15-024-03-02 Retrofit Proximity Probe: Legacy System Compatible Upgrade

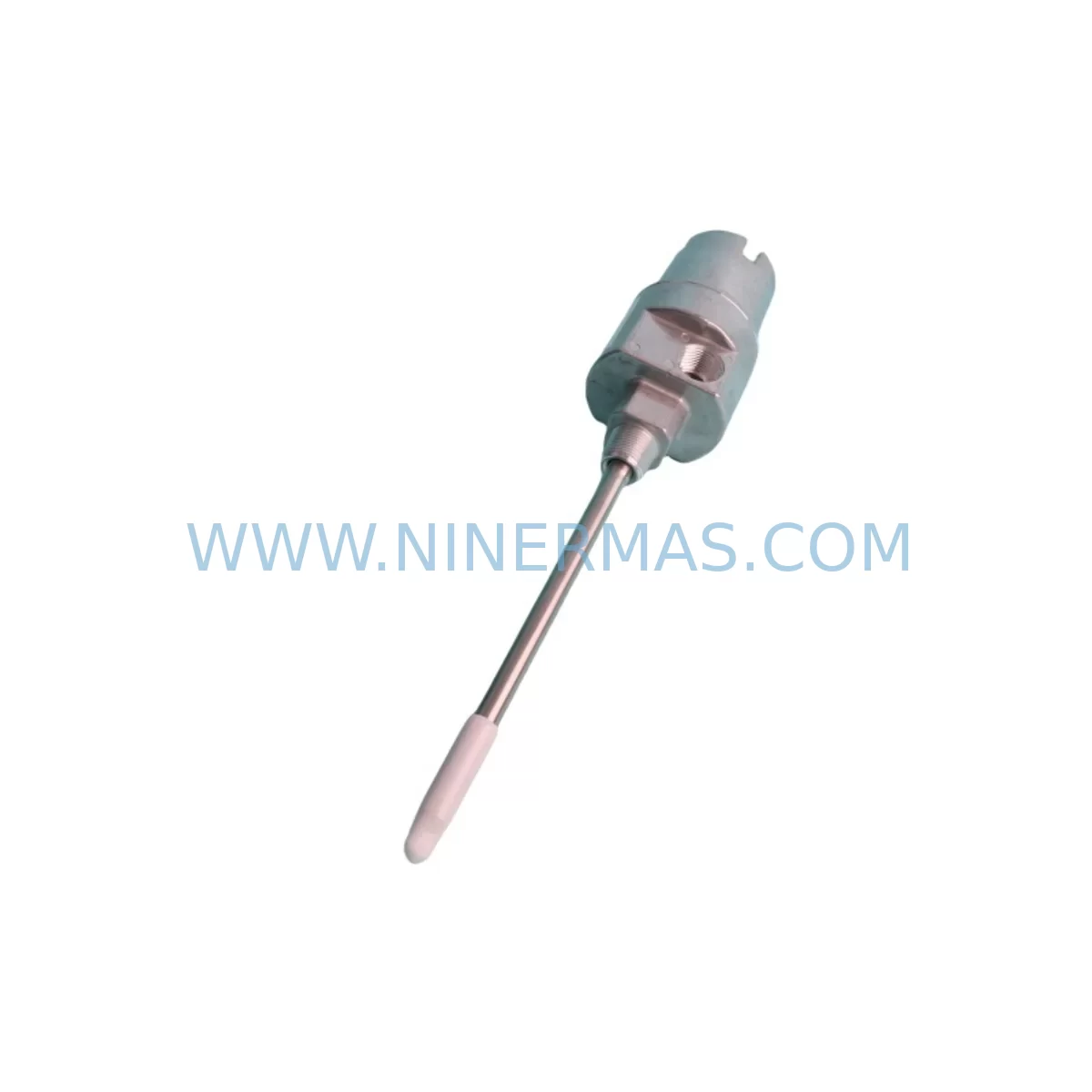

The Bently Nevada 21000-28-05-15-024-03-02 is a retrofit-compatible proximity probe housing designed for seamless integration into legacy vibration monitoring and machinery protection systems. As aging 21000 Series installations approach end-of-life or face discontinued spare part availability, this unit provides a verified drop-in replacement path that preserves existing wiring, signal conditioning infrastructure, and DCS/PLC interface logic — minimizing engineering rework and unplanned downtime.

NINERMAS maintains ready inventory of the 21000-28-05-15-024-03-02 to support urgent maintenance windows, planned turnarounds, and long-term sparing strategies for rotating machinery applications including compressors, turbines, pumps, and gearboxes. Each unit ships with a 12-month warranty and undergoes pre-shipment functional verification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 21000-28-05-15-024-03-02 into an existing machinery protection architecture requires a structured pre-installation review. Engineers should begin by auditing the current signal chain: from the probe tip through the extension cable — typically a Bently Nevada 330130 or 330180 Series extension cable — into the proximitor or driver module, such as the Bently Nevada 3300 XL 8mm Proximitor or the 7200 Series Proximitor, and finally into the monitor rack, commonly a Bently Nevada 3500 Series machinery protection system.

When the existing probe housing is discontinued or physically damaged, the replacement process must account for the full signal path. The 3500/42M position monitor card or 3500/40M proximitor I/O module should be checked for input range compatibility. If the site uses a Keyphasor module (3500/25) for phase reference, confirm that the new probe’s output characteristics remain within the accepted voltage window (-2 VDC to -18 VDC at the operating gap).

For control cabinets integrating Bently Nevada monitors with a broader DCS or safety system — such as a Honeywell Safety Manager, Emerson DeltaV SIS, or Yokogawa ProSafe-RS — the analog output from the 3500 rack feeds into the safety logic solver via hardwired 4–20 mA or discrete trip contacts. No software reconfiguration is typically required when replacing a like-for-like probe housing, but the site I&E team should verify terminal block wiring at the marshalling cabinet and confirm shield grounding continuity.

Where the installation involves a System 1 Evolution software platform for online condition monitoring, the probe channel configuration (gap voltage, scale factor, OK limits) should be reviewed in the software after physical replacement to ensure alarm setpoints remain valid. If the site is migrating from an older Bently Nevada 7200 Series or 9000 Series platform to the current 3500 architecture, the 21000-28-05-15-024-03-02 can serve as an interim sparing solution while the full rack migration is planned, reducing the risk of forced outages due to probe unavailability.

Field technicians should also confirm the probe-to-target gap using a calibrated gap voltage meter during commissioning. The standard eddy current gap for most 8mm probes is set to approximately 1.0 mm (corresponding to -10.0 VDC), though the exact setpoint depends on the target material and shaft surface finish. A Bently Nevada 3300 RAM (Rack Adapter Module) or equivalent signal conditioning accessory may be required if the existing rack slot configuration differs from the replacement module footprint.

Downtime Control During System Migration

Replacing the 21000-28-05-15-024-03-02 in an operating plant requires careful outage planning to protect production continuity. For critical rotating machinery — turbines, compressors, or boiler feed pumps — the probe replacement is typically scheduled during a planned maintenance window or opportunistic outage rather than a forced shutdown.

Prior to the maintenance window, the site team should prepare a pre-tested replacement probe assembly, verify the extension cable condition, and confirm that the 3500 Series monitor rack is in bypass mode or that the trip function is inhibited per the site’s management of change (MOC) procedure. The original program logic in the safety system or DCS should be documented and backed up before any field wiring is disturbed.

During the swap, the technician should label all terminal connections at the junction box and marshalling panel before disconnecting the old probe. After installing the 21000-28-05-15-024-03-02, the gap voltage should be set and verified before the bypass is removed. The entire replacement process — from isolation to re-energization — can typically be completed within 2 to 4 hours for a single probe channel, significantly reducing the risk of extended production loss.

For sites with redundant probe configurations (XY probe pairs), one channel can often remain active during the replacement of the other, maintaining continuous vibration monitoring and avoiding a full machinery trip. This approach is particularly valuable for high-availability assets where any monitoring gap must be minimized.

NINERMAS supports urgent delivery requirements with expedited shipping options, ensuring that critical spare parts such as the 21000-28-05-15-024-03-02 reach the site before the maintenance window opens. All units are pre-tested and shipped with documentation to support site acceptance testing and quality records.

Retrofit Support FAQ

Q1: Is the 21000-28-05-15-024-03-02 a direct replacement for my existing Bently Nevada proximity probe housing?
A: Yes, the 21000-28-05-15-024-03-02 is designed as a retrofit-compatible replacement within the Bently Nevada 21000 Series. Confirm the thread specification, cable length suffix, and target material compatibility before installation. NINERMAS technical support can assist with cross-reference verification.

Q2: What extension cable and proximitor should I pair with this probe housing?
A: This probe is typically paired with a Bently Nevada 330130 or 330180 Series extension cable and a 3300 XL 8mm Proximitor or 7200 Series Proximitor, depending on your existing rack configuration. Confirm the total system length (probe + extension) matches the proximitor’s calibrated range.

Q3: Will I need to reconfigure my 3500 Series monitor after replacing the probe?
A: For a like-for-like replacement, monitor reconfiguration is generally not required. However, the site team should verify gap voltage, OK limits, and alarm setpoints in System 1 Evolution or the 3500 rack configuration software after installation to confirm all parameters remain within specification.

Q4: What warranty and testing does NINERMAS provide for the 21000-28-05-15-024-03-02?
A: Every unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. Pre-shipment functional testing is performed on each unit. Inventory is maintained in stock for immediate dispatch to support planned and emergency maintenance requirements.
