Bently Nevada 330173-00-03-10-02-CN Spare Part

Bently Nevada 330173-00-03-10-02-CN Spare Part: Reliable Replacement for Vibration Monitoring Systems

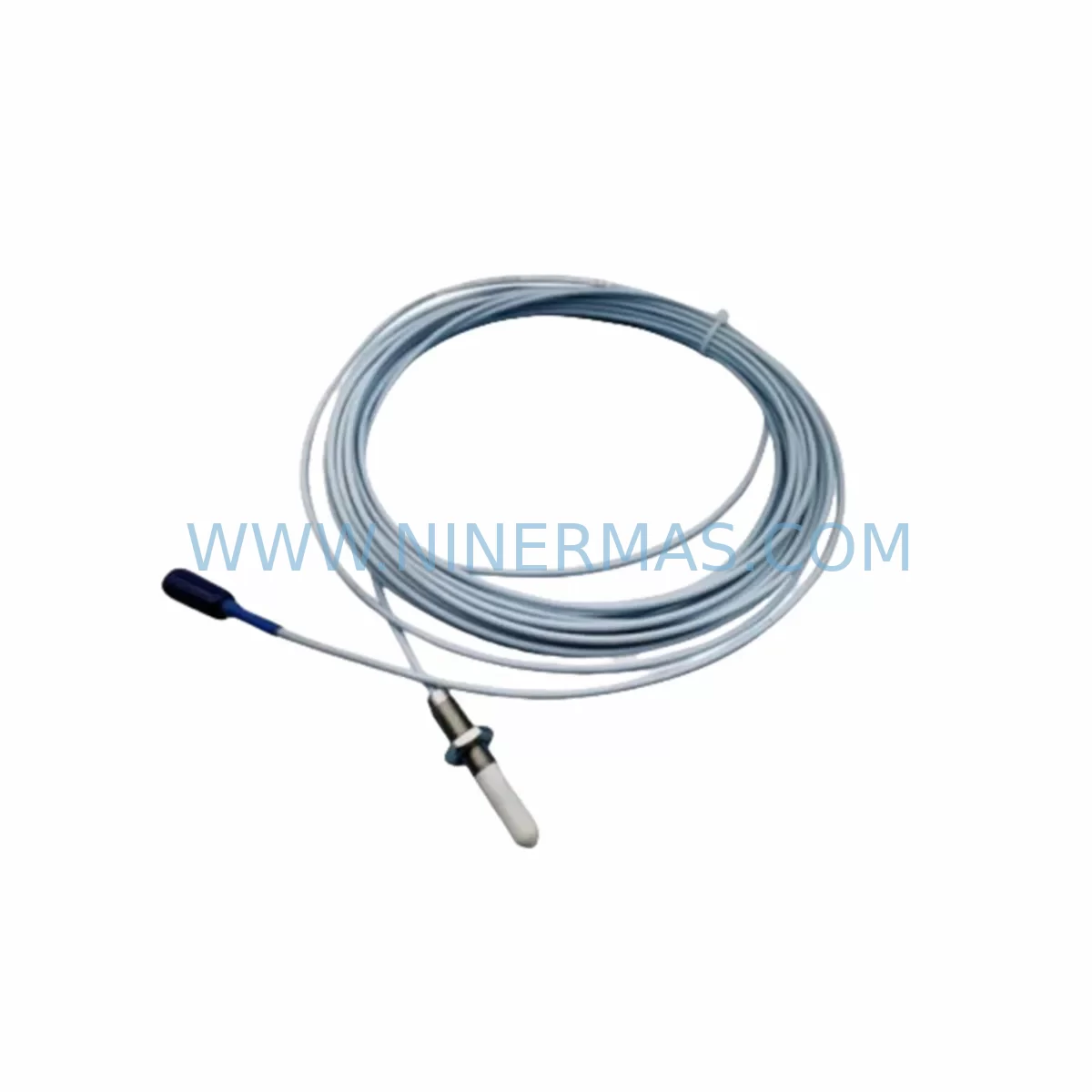

The Bently Nevada 330173-00-03-10-02-CN is a factory-specification proximity probe extension cable designed for use within the Bently Nevada 3300 XL continuous vibration monitoring platform. This cable serves as the critical signal-carrying link between the proximity probe tip and the Bently Nevada 3300 XL proximitor/oscillator driver, enabling accurate non-contact displacement and vibration measurement on rotating machinery including turbines, compressors, pumps, and gearboxes.

For maintenance engineers managing aging machinery protection systems, sourcing a verified OEM-equivalent extension cable is essential. A degraded or incorrect cable introduces signal noise, offset errors, and false trip conditions — all of which compromise the integrity of the entire vibration monitoring loop. The 330173-00-03-10-02-CN is engineered to maintain the precise electrical characteristics required by the 3300 XL system, including correct impedance, shielding continuity, and connector compatibility with the proximitor driver housing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 330173-00-03-10-02-CN extension cable, a thorough maintenance engineer will treat the cable swap as an opportunity to inspect the entire vibration measurement loop — not just the cable itself. The 3300 XL transducer system is a three-component assembly: the proximity probe tip, the extension cable, and the proximitor driver. All three must be matched as a calibrated set. If the Bently Nevada 330103-00-14-10-02-CN proximity probe tip has accumulated mechanical wear or tip damage from contact with the shaft, it should be replaced simultaneously to avoid recalibration errors after the cable swap.

The Bently Nevada 3300 XL Proximitor / Oscillator Driver (typically mounted in the field junction box or machinery protection rack) should be inspected for connector pin corrosion, housing seal integrity, and correct gap voltage output (nominally –12 VDC at the calibrated gap). If the proximitor driver is showing drift or erratic output, replacing only the extension cable will not resolve the underlying fault. Maintenance teams should also verify the Bently Nevada 3500/42M or 3500/40M vibration monitor card in the 3500 rack is receiving a clean signal within the –2 VDC to –18 VDC operating window before closing out the work order.

From a control cabinet perspective, the field wiring from the proximitor driver back to the Bently Nevada 3500 Rack I/O terminal blocks should be checked for shield grounding continuity. Improper shield termination at the rack end is a common source of 50/60 Hz interference that manifests as elevated overall vibration readings. Terminal blocks within the marshalling cabinet — particularly Phoenix Contact MKDS or Weidmüller WDU series — should be torqued to specification and inspected for oxidation.

The Bently Nevada 3500/20 Power Supply module feeding the 3500 rack should be confirmed as delivering stable ±24 VDC rails. A marginal power supply can cause intermittent proximitor output that mimics a faulty cable, leading to unnecessary component replacements. If the site operates a redundant power supply configuration, both the primary and backup 3500/20 modules should be load-tested during the maintenance window.

For sites running the Bently Nevada System 1 condition monitoring software, the replacement event should be logged as a calibration reference point. After cable replacement, a static gap check should be performed using a calibrated gap tool or by referencing the proximitor’s gap voltage against the known shaft-to-probe gap distance. The resulting gap voltage should be documented in System 1 as a baseline for future trend analysis.

Procurement engineers sourcing the 330173-00-03-10-02-CN for annual maintenance kits should also consider stocking the companion 330130-080-00-00 proximitor driver and a selection of 330104-00-06-10-05-CN probe tips to cover the most common failure modes in a single purchase order. Maintaining a minimum of two extension cables per critical machine train is a widely adopted best practice in turbomachinery protection programs, particularly for unspared equipment where a single cable failure can trigger an unplanned shutdown.

Site Replacement Workflow

Replacing the 330173-00-03-10-02-CN extension cable on an operating machine train requires careful coordination to minimise downtime and avoid inadvertent trips. The recommended workflow is as follows:

Step 1 — Pre-work verification: Confirm the replacement cable part number matches the installed cable exactly, including length suffix (03 = 3 metres) and connector configuration (10-02-CN). Mismatched cable lengths alter the total system inductance and capacitance, shifting the calibration curve of the proximitor driver. Verify the new cable against the machine’s as-built documentation or the original Bently Nevada system drawing.

Step 2 — Bypass and inhibit: Place the affected channel in bypass on the Bently Nevada 3500 rack to prevent a spurious trip during disconnection. Notify the control room operator and confirm the bypass is active on the 3500/22M transient data interface or the operator HMI screen before proceeding.

Step 3 — Cable disconnection and inspection: Disconnect the extension cable at both the probe tip and the proximitor driver. Inspect the connector pins for corrosion, bent contacts, or contamination. Clean with approved contact cleaner if required. Inspect the cable jacket for mechanical damage, particularly at conduit entry points where abrasion is common.

Step 4 — New cable installation: Route the new 330173-00-03-10-02-CN cable following the original cable path. Avoid sharp bends at the probe end — maintain a minimum bend radius of 50 mm. Secure the cable with appropriate cable ties or clamps, ensuring the shield drain wire is terminated at one end only (typically at the proximitor driver end) to prevent ground loops.

Step 5 — Gap voltage verification: With the new cable installed, measure the proximitor output voltage at the field terminal. Compare against the calibration sheet gap voltage for the installed probe-cable-proximitor set. Adjust the probe gap if the measured voltage deviates by more than ±0.5 VDC from the target value.

Step 6 — Remove bypass and confirm: Remove the channel bypass on the 3500 rack. Confirm the vibration reading on the operator HMI is stable and within the expected baseline range. Document the replacement in the site CMMS and update the System 1 asset record.

Spare Parts Support FAQ

Q1: Is the 330173-00-03-10-02-CN a direct drop-in replacement for the original Bently Nevada cable?
Yes. The 330173-00-03-10-02-CN supplied by NINERMAS is an OEM-equivalent spare manufactured to the original Bently Nevada electrical and mechanical specification. It is a direct replacement for the installed cable without requiring recalibration of the proximitor driver, provided the probe tip and proximitor driver are in good condition and the gap is set correctly after installation.

Q2: How do I confirm compatibility with my existing 3300 XL or 3500 system?
Compatibility is determined by three factors: cable length (the “03” suffix indicates 3 metres), connector type (10-02 designates the standard MIL-style connector configuration), and the CN suffix indicating the cable is suitable for use with the standard 3300 XL proximitor driver. Cross-reference the part number against your machine’s as-built Bently Nevada system drawing or contact NINERMAS with your existing cable label photograph for confirmation before ordering.

Q3: What pre-shipment testing is performed on this spare part?
All 330173-00-03-10-02-CN cables supplied by NINERMAS undergo electrical continuity testing, shield integrity verification, and connector pin inspection prior to dispatch. Each unit is individually packaged with a test record. For critical applications, NINERMAS can provide a system-level functional test report on request. All spare parts are covered by a 12-month warranty from the date of shipment.

Q4: Can NINERMAS support long-term supply for annual maintenance programmes?
Yes. NINERMAS maintains standing inventory of the 330173-00-03-10-02-CN and related 3300 XL system components to support annual maintenance contracts, turnaround shutdowns, and emergency call-off orders. Customers operating multiple machine trains with Bently Nevada vibration monitoring systems are encouraged to discuss a blanket purchase agreement with our sales team to secure pricing and guaranteed lead times. Contact: sale@ninermas.com | +0086 187 5021 5667.
