Bently Nevada 190501-06-00-CN Retrofit-Compatible Velomitor CT

Bently Nevada 190501-06-00-CN Retrofit-Compatible Velomitor CT for Legacy System Upgrades

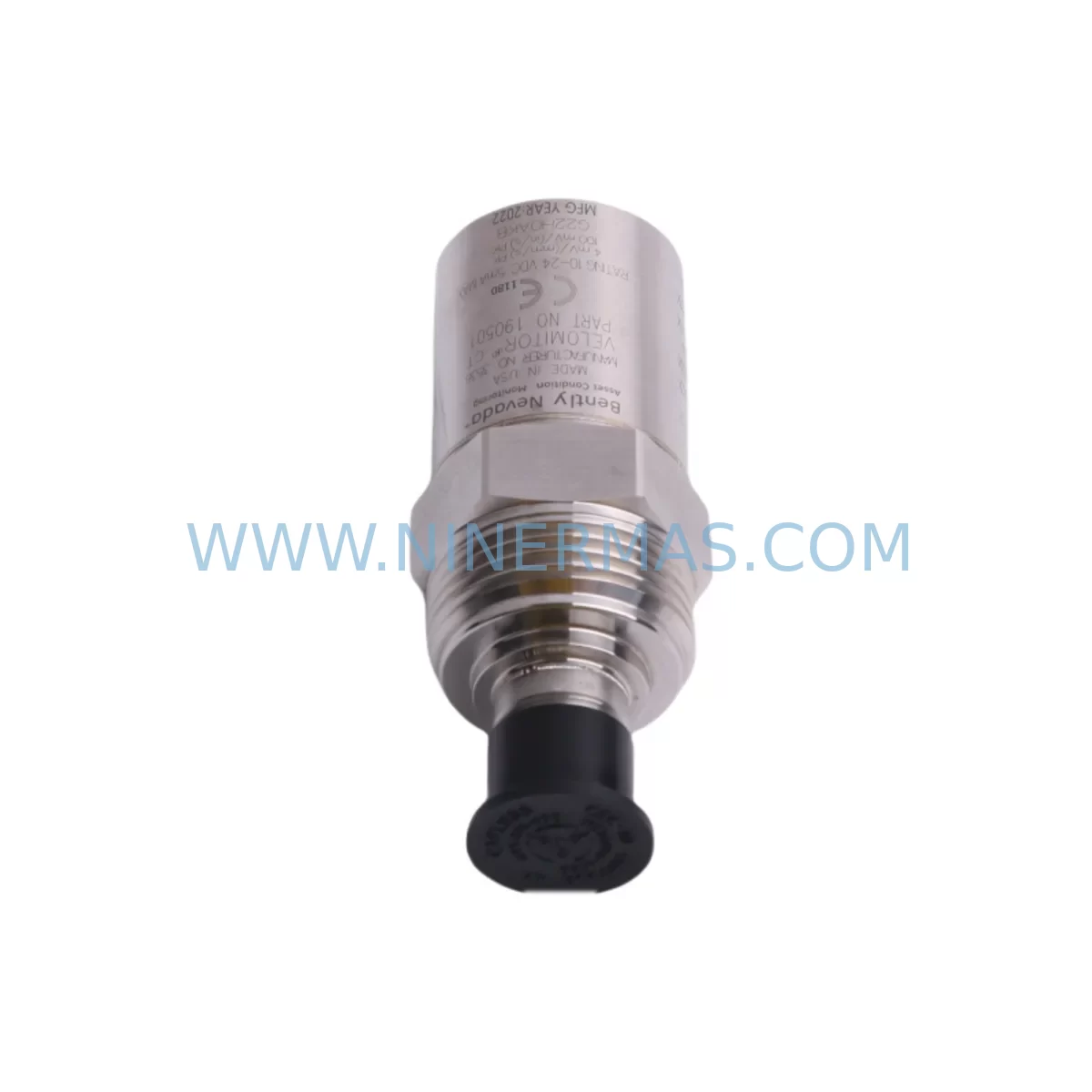

The Bently Nevada 190501-06-00-CN is a Velomitor CT piezo-velocity seismic transducer engineered for high-reliability vibration monitoring in rotating machinery applications. As legacy Bently Nevada 3500 Series monitoring systems approach end-of-life and original spare parts become increasingly scarce, the 190501-06-00-CN has become a critical retrofit component for engineers tasked with sustaining continuous plant operations without full system replacement. Whether you are upgrading a turbine protection panel, restoring a compressor monitoring rack, or migrating from an older 7200 Series platform, this transducer provides a direct-fit, signal-compatible solution that minimises engineering rework and reduces planned downtime windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 190501-06-00-CN into an existing machinery protection system begins well before the transducer arrives on site. Engineers should start by auditing the current 3500 Series rack configuration, confirming which monitor modules — such as the 3500/42M Proximitor/Seismic Monitor or the 3500/45 Position Monitor — are assigned to the affected measurement points. Each monitor card’s channel configuration must be reviewed in the rack’s System 1 database to ensure the input type is set to accept a velocity transducer signal rather than a proximity probe output.

Terminal wiring is the next critical checkpoint. The 190501-06-00-CN uses a shielded, armoured cable terminated with a standard 2-pin connector. When replacing an older unit that was wired directly to a 3500/20 Rack Interface Module or a junction box, technicians must verify that the existing field cable shield is grounded at one end only — typically at the monitor rack — to prevent ground loop interference that can corrupt vibration readings. If the original installation used a Bently Nevada 3500/92 Communication Gateway for Modbus or Ethernet/IP data export, no changes to the gateway configuration are required, as the analogue signal chain remains identical.

Power supply capacity is frequently overlooked during transducer retrofits. The 3500/05 Standard Power Supply or the 3500/05-01-02-00-00-01 Dual Power Supply module must have sufficient headroom to support the transducer’s quiescent current draw alongside all other powered modules in the rack. A load calculation should be performed before energising the replacement unit, particularly in racks that also house 3500/22M Transient Data Interface modules or additional I/O expansion cards.

For plants migrating from the older Bently Nevada 7200 Series monitoring platform, the 190501-06-00-CN provides a compatible signal output, but the field cable connector pinout may differ. In these cases, a short adapter harness is required between the transducer’s MIL-spec connector and the existing 7200-style junction box. The HMI display configuration in the control room — whether running on a DCS such as a Honeywell Experion or an Emerson DeltaV — will need the engineering unit scaling verified to match the new transducer’s sensitivity specification, ensuring that alarm setpoints and trip thresholds remain accurate after the swap.

Where the plant uses a Bently Nevada 3500/53 Overspeed Detection System in the same rack, technicians should confirm that the replacement transducer’s installation does not disturb the overspeed probe wiring or the module’s configuration, as any unintended trip during commissioning can result in an unplanned unit shutdown. Similarly, if a 3500/40M Proximitor Monitor shares the same rack and monitors shaft displacement on the same machine train, its channel health status should be verified before and after the Velomitor replacement to confirm no cross-channel interference.

Finally, all retrofit work should be documented with a pre- and post-installation vibration baseline reading. Using a portable data collector or the System 1 software trend display, engineers can confirm that the 190501-06-00-CN is producing a clean, noise-free signal at the expected sensitivity level before the machine is returned to service. This baseline record also supports future predictive maintenance analysis and provides evidence of correct installation for warranty purposes.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern when replacing a vibration transducer on a running machine train. The 190501-06-00-CN is designed to support a hot-swap replacement strategy where the machine can remain in a controlled shutdown state for the shortest possible window. Before the maintenance window opens, the replacement transducer should be bench-tested against a known reference signal to confirm its sensitivity and frequency response are within specification. This pre-shipment functional test is performed at our facility and a test report is included with every unit shipped.

During the replacement window, the affected monitor channel should be placed in bypass mode within the 3500 rack to prevent a spurious trip while the field cable is disconnected and reconnected. The bypass function is accessible through the rack’s front-panel keyswitch or through the System 1 software interface, depending on the rack firmware version. Once the new transducer is connected and the cable shield continuity is verified, the channel can be taken out of bypass and the live vibration reading compared against adjacent channels and historical baseline data.

Programme logic in the associated DCS or safety instrumented system (SIS) does not require modification, as the 190501-06-00-CN produces the same analogue output format as the unit it replaces. HMI faceplate displays and historian tags will continue to receive valid data without any configuration changes, preserving the integrity of the plant’s condition monitoring records. For facilities operating under IEC 61511 functional safety requirements, the replacement should be documented as a like-for-like substitution with equivalent safety integrity, and the site’s management of change (MOC) procedure should be followed to maintain SIL compliance.

Total replacement time for a prepared maintenance team is typically 2–4 hours, including cable inspection, connector cleaning, torque verification of the mounting stud, signal verification, and documentation. Having a pre-tested 190501-06-00-CN in local inventory — rather than waiting on a long-lead procurement cycle for an obsolete original part — is the single most effective way to compress this window and return the machine to full monitored operation.

Retrofit Support FAQ

Q1: Is the 190501-06-00-CN a direct drop-in replacement for earlier Velomitor models such as the 190501-06-00 (without the CN suffix)?
A: In most installations, yes. The CN designation indicates a specific cable and connector configuration. Before installation, verify that the field cable connector and the mounting thread match your existing installation. If the original unit used a different cable length or connector style, a short adapter or field-terminated cable end may be required. Our technical team can advise based on your rack drawing and cable schedule.

Q2: What commissioning steps are required after installing the 190501-06-00-CN?
A: After mechanical installation and cable connection, perform a channel bypass release in the 3500 monitor module and observe the live velocity reading in System 1 or your DCS historian. Compare the reading against the machine’s last known baseline and adjacent channel values. If the reading is within ±10% of the expected baseline at the same operating condition, the installation is confirmed. A full calibration check using a portable shaker or reference calibrator is recommended for critical machinery or SIL-rated applications.

Q3: Can this transducer be used with non-Bently Nevada monitoring systems, such as third-party vibration monitors or DCS analogue input cards?
A: Yes. The 190501-06-00-CN produces a standard analogue velocity output that is compatible with any monitoring system designed to accept a piezo-velocity transducer signal. Confirm the input impedance and voltage range of the receiving module against the transducer’s output specification before wiring. Signal conditioning may be required if the receiving system expects a 4–20 mA loop-powered input rather than a voltage output.

Q4: What does the 12-month warranty cover, and what is included with each shipment?
A: Every 190501-06-00-CN unit is covered by a 12-month warranty against manufacturing defects from the date of shipment. Each unit is functionally tested prior to dispatch and ships with a test report confirming sensitivity and frequency response. In the event of a warranty claim, we provide a replacement unit or full refund after inspection. Units damaged by incorrect installation, overvoltage, or mechanical impact are not covered under the standard warranty terms. Contact our team at sale@ninermas.com for warranty claims or technical support.
