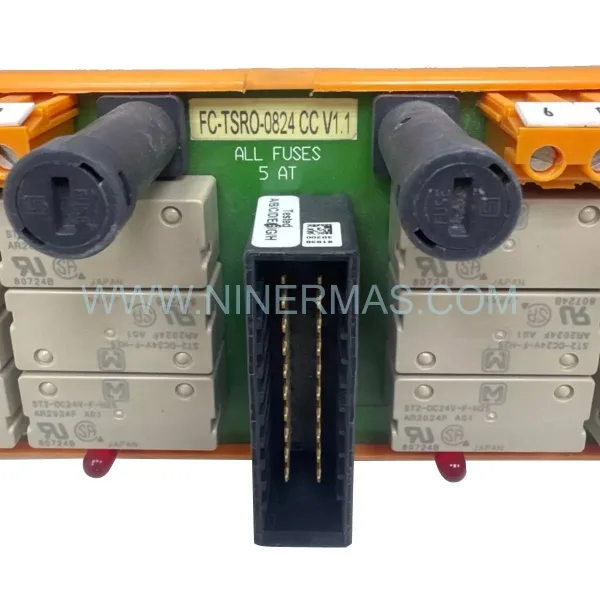

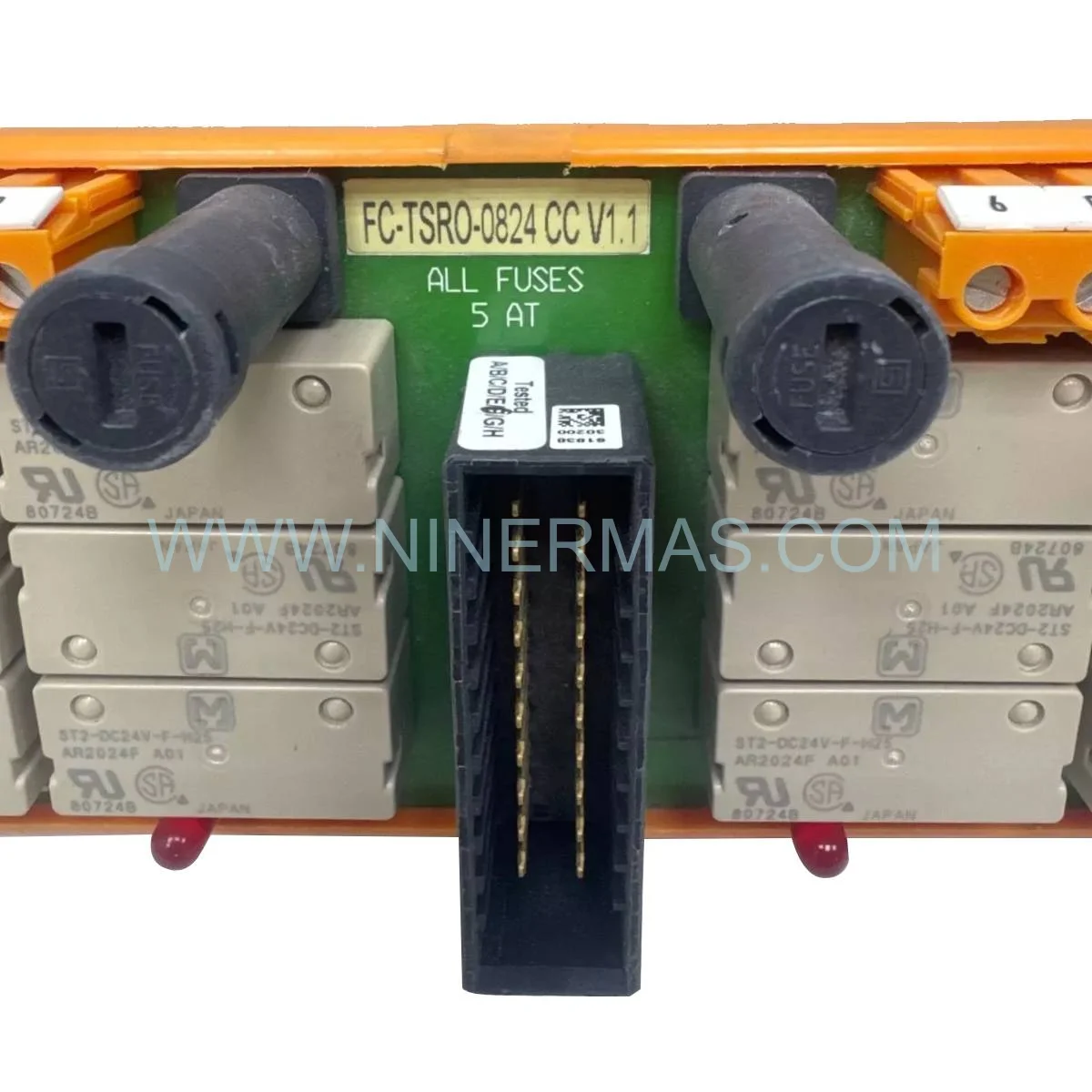

Honeywell FC-TSRO-0824 CCV 1.1 SIL3 Relay Output Field Termination Assembly

Honeywell FC-TSRO-0824 CCV 1.1 Digital Output FTA – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a relay-based field termination assembly deployed within a Safety Instrumented System. The Honeywell FC-TSRO-0824 CCV 1.1 is precisely that kind of mission-critical hardware — an 8-channel relay output Field Termination Assembly engineered to serve as the final switching layer between a Safety Manager controller and field-level actuators in high-consequence Process Control environments. Whether managing emergency shutdown valves in a refinery or isolating electrical circuits in a power generation facility, this module is the last line of defense that operators trust with their lives and assets.

What distinguishes the FC-TSRO-0824 CCV 1.1 from generic relay modules is its deep integration with Honeywell’s Safety Manager architecture and its certified compliance with IEC 61508 SIL3 — the highest functional safety rating applicable to a single hardware component. Its technical compatibility extends across multiple generations of Honeywell DCS Hardware platforms, making it an ideal candidate for Legacy Upgrade projects where engineers must maintain backward compatibility while improving system reliability. The module’s Form C (SPDT) relay contacts, rated at 2A @ 30VDC / 250VAC, provide the electrical versatility demanded by Distributed Control System integrators working across diverse field device types.

Original factory-sealed units of the FC-TSRO-0824 CCV 1.1 are increasingly scarce on the global market. As Honeywell continues to evolve its safety platform portfolio, procurement teams and maintenance engineers face mounting pressure to secure certified spare inventory before this model reaches full end-of-life status. Sourcing a factory-sealed, fully documented unit today is not merely a purchasing decision — it is a risk mitigation strategy for any facility where unplanned downtime carries six- or seven-figure consequences.

Key Technical Highlights

SIL3 Certified per IEC 61508 — Meets the most stringent functional safety requirements for Safety Instrumented Systems in hazardous process environments.
8 Independent Relay Output Channels — Form C (SPDT) contacts rated 2A @ 30VDC / 250VAC, supporting diverse field actuator types without external signal conditioning.
High-Speed Response — Typical response time under 100ms ensures rapid actuation of final elements during emergency shutdown sequences, minimizing process hazard exposure.
Redundancy-Ready Architecture — Supports 1oo2, 2oo2, and 2oo3 voting configurations, enabling full Redundancy in safety-critical loops without additional hardware.
Diagnostic Coverage >99% — Continuous self-diagnostics monitor relay coil integrity and contact status, detecting latent faults before they compromise system safety.
Fieldbus & DCS Integration — Seamlessly interfaces with Honeywell Safety Manager via dedicated backplane communication, supporting Fieldbus-compatible system architectures.
Wide Operating Temperature Range — Rated from -40°C to +70°C, suitable for both climate-controlled control rooms and harsh outdoor enclosures.
Hot-Swap Capable — Removable terminal blocks and DIN rail mounting allow field replacement without full system shutdown, dramatically reducing maintenance downtime.

Vertical Industry Applications

Petrochemical & Refining: In high-pressure hydrocarbon processing units, the FC-TSRO-0824 CCV 1.1 controls emergency isolation valves and blowdown systems. Its SIL3 rating satisfies IEC 61511 requirements for Safety Instrumented Functions, reducing the probability of dangerous failure on demand to levels acceptable for HAZOP-validated safety loops. Facilities report measurable reductions in spurious trip rates when migrating from older relay panels to this integrated FTA solution.

Oil & Gas Upstream Production: Wellhead control panels and subsea production systems demand relay outputs that can withstand extreme temperature cycling and vibration. This module’s robust construction and certified diagnostic coverage make it the preferred choice for HIPPS (High-Integrity Pressure Protection System) applications, where a single missed actuation can result in catastrophic well blowout.

Power Generation & Utilities: Turbine protection systems and boiler management applications rely on fast, reliable relay switching to execute emergency trips. The FC-TSRO-0824 CCV 1.1 integrates directly with vibration monitoring and flame safeguard systems, providing the deterministic response times required by API 670 and NFPA 85 standards.

Mining & Minerals Processing: Conveyor emergency stop systems, crusher protection, and ventilation control in underground mining operations benefit from this module’s wide temperature tolerance and high diagnostic coverage. In environments where Legacy Components must coexist with modern DCS Hardware, this FTA bridges the gap without requiring full system replacement.

Marine & Offshore Platforms: Offshore oil platforms and LNG carriers operate under DNV and ABS classification requirements. The FC-TSRO-0824 CCV 1.1’s certified safety performance and compact form factor make it suitable for fire and gas suppression system outputs, ballast control, and emergency generator management in space-constrained marine control cabinets.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the FC-TSRO-0824 CCV 1.1 offered through our supply chain is 100% Original Honeywell OEM hardware, sourced exclusively from authorized distribution channels and verified factory-sealed inventory. We do not deal in refurbished, reconditioned, or counterfeit components — a commitment backed by serialized traceability documentation available upon request.

Each module undergoes pre-shipment inspection including visual verification of factory seals, label authenticity checks, and packaging integrity assessment. For customers requiring additional assurance, third-party inspection reports can be arranged prior to dispatch.

Warranty Coverage: All units carry a 12-Month Comprehensive Warranty covering manufacturing defects, component failures, and workmanship issues. Warranty claims are processed with priority turnaround to minimize your facility’s exposure to unplanned downtime.

Emergency Delivery Capability: We understand that safety system failures do not follow business hours. Our logistics infrastructure supports emergency dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for in-stock units. Customs documentation, including commercial invoices, packing lists, and certificates of origin, are prepared in parallel with shipment to eliminate border clearance delays.

For Maintenance Stock procurement programs, we offer reserved inventory agreements that guarantee unit availability for your facility’s annual maintenance schedule — eliminating the last-minute sourcing scramble that plagues aging DCS Hardware environments.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the FC-TSRO-0824 CCV 1.1 I receive is 100% original Honeywell hardware?
A: Authentic units feature Honeywell’s holographic certification label on the module housing, a unique serial number traceable through Honeywell’s manufacturing records, and factory-sealed anti-tamper packaging. We provide the original Honeywell product label photograph and serial number prior to shipment upon request. If you have access to a Honeywell-authorized service center, serial number verification can be performed against Honeywell’s production database.

Q2: Where can I obtain the official Datasheet and Safety Manual for the FC-TSRO-0824 CCV 1.1?
A: The official Honeywell Safety Manager FTA documentation, including the FC-TSRO-0824 CCV 1.1 datasheet, installation guide, and IEC 61508 safety manual, is available through Honeywell’s MyProcess portal for registered users. We can also provide copies of the technical documentation package with your purchase to support your facility’s safety case documentation requirements.

Q3: Is the FC-TSRO-0824 CCV 1.1 compatible with all versions of the Honeywell Safety Manager platform?
A: The FC-TSRO-0824 CCV 1.1 is designed for use with Honeywell Safety Manager SM and SMX series controllers. Compatibility with specific firmware versions should be confirmed against your Safety Manager system’s hardware compatibility matrix. Our technical team can assist with version compatibility verification if you provide your controller’s firmware revision and chassis configuration details.

Q4: Can this module be used as a direct replacement for an older CCV version in an existing installation?
A: The CCV 1.1 designation indicates the hardware revision level. In most cases, CCV 1.1 units are backward compatible with earlier CCV revisions within the same Safety Manager generation. However, we strongly recommend consulting Honeywell’s Field Change Notice (FCN) documentation and your system integrator before performing a revision-level substitution in a live SIL3 safety loop.

Q5: What is the typical lead time for emergency orders of the FC-TSRO-0824 CCV 1.1?
A: For in-stock units, same-day dispatch is available with delivery to most global destinations within 1-3 business days via DHL/FedEx/UPS express services. For facilities experiencing active safety system failures, we offer a dedicated Emergency Repair hotline to prioritize your order and coordinate with freight forwarders for the fastest possible customs clearance.

Q6: Is the FC-TSRO-0824 CCV 1.1 considered an end-of-life (EOL) component?
A: Honeywell has been transitioning its safety platform portfolio toward next-generation architectures. While the FC-TSRO-0824 CCV 1.1 remains a supported component at the time of this listing, procurement teams managing long-term maintenance strategies should consider building a Maintenance Stock reserve. This is a Critical Part for Industry Safety — securing certified inventory now protects your facility against future supply chain disruptions that could force unplanned system upgrades at the worst possible time.
