Bently Nevada 190501-05-00-01 Service-Ready Spare Part

Bently Nevada 190501-05-00-01 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

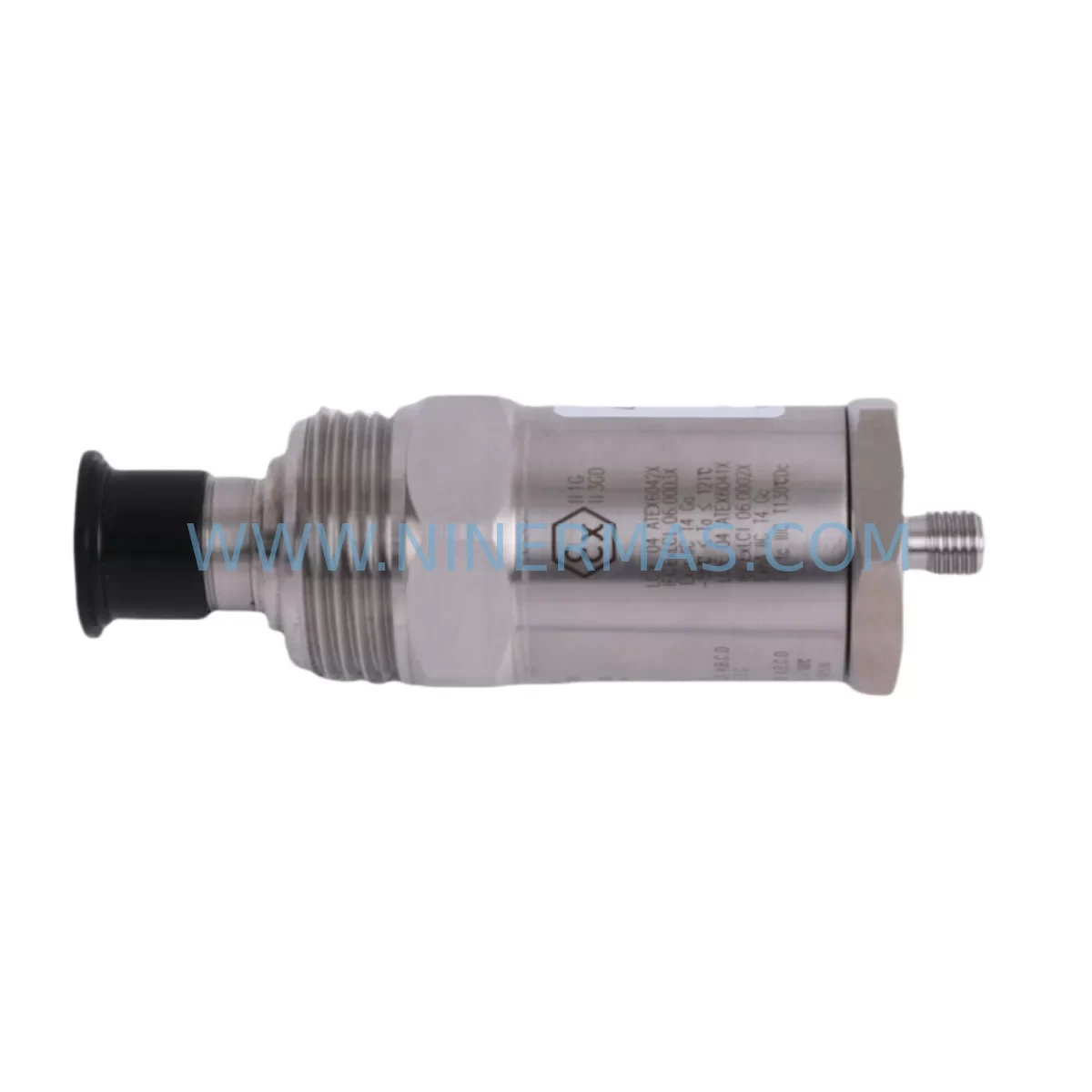

The Bently Nevada 190501-05-00-01 is an original Velomitor CT piezoelectric velocity transducer engineered for continuous vibration monitoring in critical rotating machinery environments. Designed for seamless integration with Bently Nevada 3300 and 3500 series monitoring systems, this sensor delivers reliable seismic velocity measurement across a broad frequency range, making it an essential service-ready spare part for maintenance engineers managing turbines, compressors, pumps, motors, and gearboxes in oil & gas, power generation, petrochemical, and heavy manufacturing facilities.

At NINERMAS, every 190501-05-00-01 unit is sourced from authorized supply channels, inspected prior to dispatch, and backed by a 12-month warranty. Our inventory is maintained to support both emergency replacement orders and planned annual overhaul procurement, ensuring your spare parts strategy is never compromised by long lead times or counterfeit risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Bently Nevada 190501-05-00-01 Velomitor CT sensor is flagged for replacement during a routine vibration survey or condition monitoring review, experienced maintenance engineers know that the sensor itself is rarely the only component requiring attention. A structured inspection of the surrounding measurement chain and control cabinet is essential to restore full system integrity and prevent repeat failures.

Begin by verifying the integrity of the sensor interconnect cable — the coaxial or shielded signal cable running from the 190501-05-00-01 to the monitor rack. Cable insulation degradation, connector corrosion, or shield continuity loss are common causes of spurious vibration alarms that are misattributed to sensor failure. Replacement cables compatible with Bently Nevada field wiring standards should be kept as part of any rotating machinery spare parts kit.

Next, inspect the associated Bently Nevada 3500/42M or 3500/45 Vibration Monitor module in the rack. These I/O modules process the velocity signal from the 190501-05-00-01 and generate alarm and trip outputs. If the sensor has been operating in a high-temperature or high-vibration zone, the monitor card’s input circuitry may have experienced stress. Confirm channel calibration and alarm setpoints after sensor replacement.

The 3500 Rack Power Supply module — typically a 3500/15 or 3500/05 — should also be checked for output voltage stability. An unstable rack power supply can introduce noise into sensor signal conditioning circuits, producing false readings even with a new sensor installed. Measure DC rail voltages under load and compare against specification.

For systems using Keyphasor transducers (such as the Bently Nevada 330180 series) in the same machinery train, verify that the Keyphasor signal is clean and phase-locked. The Keyphasor reference is used for synchronous vibration analysis and its degradation will affect the diagnostic value of the velocity data from the 190501-05-00-01.

If the machinery is also monitored for axial position or radial shaft displacement, inspect the associated proximity probe and extension cable assemblies (e.g., 3300 XL 8mm or 11mm probe systems). These components share the same monitor rack and their condition directly affects overall machinery protection system reliability.

In control cabinets housing the 3500 rack, check the terminal blocks and field wiring terminations. Loose or corroded terminals on the sensor signal wiring are a frequent source of intermittent faults. Inspect and re-torque all field terminations as part of the replacement workflow.

Where the vibration monitoring system interfaces with a DCS or PLC via 4–20 mA analog output or Modbus/RS-485 communication, verify that the communication module (e.g., 3500/92 Communication Gateway) is correctly configured and that the host system is receiving valid data after the sensor swap. A communication module firmware mismatch or address conflict can mask a successful sensor replacement.

For facilities running Bently Nevada System 1 software for online machinery diagnostics, ensure that the sensor channel configuration in the software database is updated to reflect the replacement unit’s serial number and calibration data. Failure to update the asset database can result in incorrect trend baselines and missed early-warning indicators.

Finally, if the 190501-05-00-01 is installed on a machine that also uses temperature monitoring via thermocouple or RTD input modules, cross-check bearing temperature trends against the vibration data post-replacement. A simultaneous rise in bearing temperature and vibration amplitude may indicate a mechanical root cause that the sensor replacement alone will not resolve.

NINERMAS maintains stock of complementary Bently Nevada spare parts including monitor modules, power supply cards, Keyphasor transducers, proximity probe systems, and communication gateways to support complete control cabinet restocking and annual overhaul procurement.

Site Replacement Workflow

Step 1 – Pre-Replacement Verification: Confirm the existing sensor part number against the machine’s instrumentation drawing. The 190501-05-00-01 is a direct replacement for earlier Velomitor CT variants used in 3300 and 3500 series installations. Cross-reference the monitor channel configuration to ensure input impedance and sensitivity settings match the replacement unit’s output specification.

Step 2 – Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Isolate the monitor channel at the rack before disconnecting the sensor. This prevents false trip signals from propagating to the machinery protection system during the swap.

Step 3 – Physical Replacement: Remove the old 190501-05-00-01 from its mounting stud. Inspect the mounting surface for corrosion or mechanical damage. Install the replacement sensor, torque to specification, and reconnect the signal cable. Verify connector seating and cable routing to avoid mechanical stress on the cable jacket.

Step 4 – Signal Verification: Re-enable the monitor channel and verify that the output signal is within the expected range for the machine’s normal operating condition. Use a portable vibration analyzer or the System 1 software trend display to confirm baseline agreement with historical data.

Step 5 – Documentation: Record the replacement in the plant maintenance management system (CMMS). Log the old sensor’s serial number, failure mode (if identified), replacement date, and the new unit’s serial number. Update the spare parts inventory to trigger reorder of a replacement unit for the next maintenance cycle.

This structured workflow minimizes unplanned downtime, maintains system compatibility, and ensures that the machinery protection system is fully operational within the shortest possible window after a sensor fault is identified.

Spare Parts Support FAQ

Q1: Is the 190501-05-00-01 compatible with both the Bently Nevada 3300 and 3500 series monitoring systems?
Yes. The Velomitor CT 190501-05-00-01 is designed for use with Bently Nevada 3300 XL and 3500 series vibration monitors, including the 3500/42M, 3500/45, and 3500/46M modules. Always verify the monitor channel’s input configuration (sensitivity, frequency range, and signal conditioning settings) against the sensor’s output specification before installation to ensure full compatibility.

Q2: What pre-shipment testing does NINERMAS perform on the 190501-05-00-01 before dispatch?
Every unit undergoes a functional inspection and output signal verification prior to shipment. We confirm that the sensor’s sensitivity and frequency response are within the manufacturer’s published specification. Units that do not pass inspection are not dispatched. All shipped units are covered by a 12-month warranty from the date of delivery.

Q3: Can NINERMAS support long-term or blanket purchase orders for the 190501-05-00-01?
Yes. NINERMAS supports long-term supply agreements, annual overhaul procurement schedules, and blanket purchase orders for the 190501-05-00-01 and related Bently Nevada spare parts. We maintain buffer stock to support emergency replacement orders with lead times of 2–5 business days for in-stock items. Contact our team at sale@ninermas.com to discuss volume pricing and supply continuity arrangements.

Q4: What should I do if the replacement 190501-05-00-01 shows an alarm condition immediately after installation?
An immediate alarm after sensor replacement is most commonly caused by one of the following: incorrect monitor channel sensitivity settings, a damaged signal cable or connector, a loose field wiring termination, or a mechanical condition on the machine itself (such as misalignment or imbalance). Follow the site replacement workflow above to systematically isolate the cause. If the issue persists after verifying all electrical connections and monitor configuration, contact NINERMAS technical support — our team can assist with compatibility verification and, if required, arrange a warranty replacement unit.
