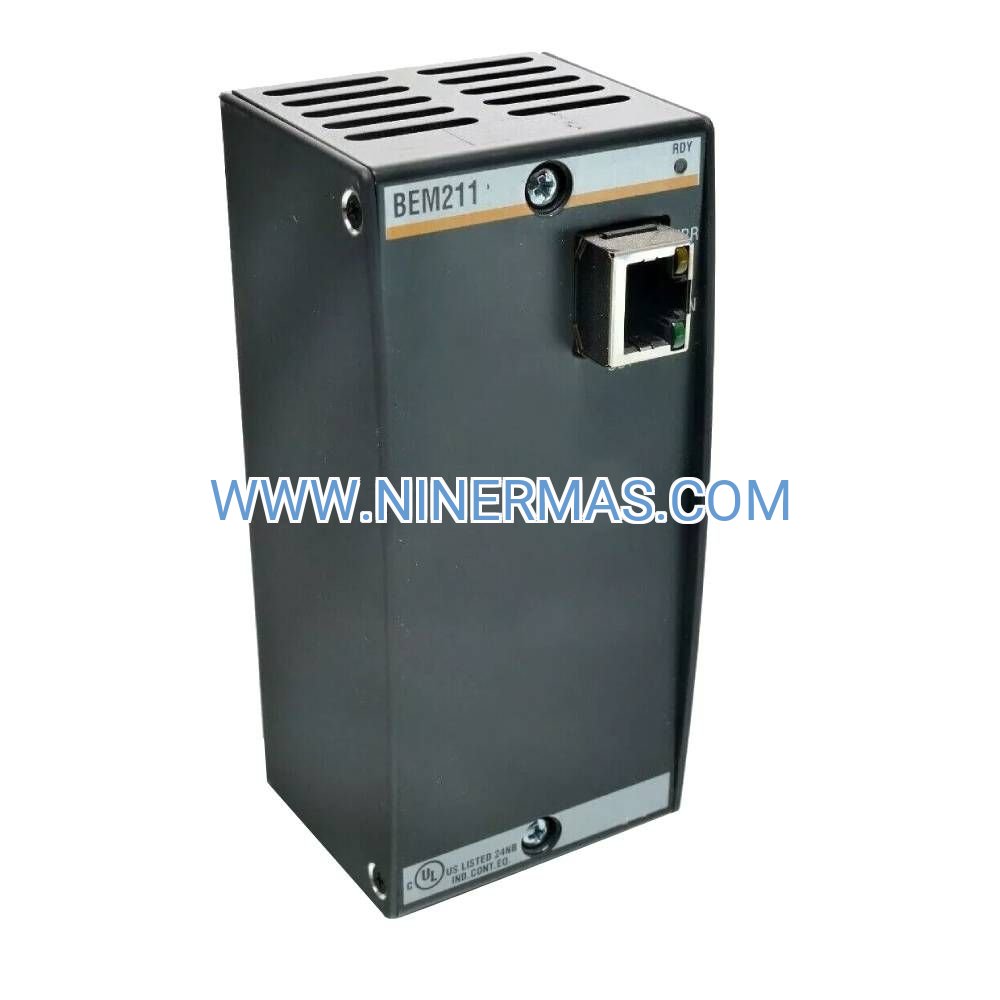

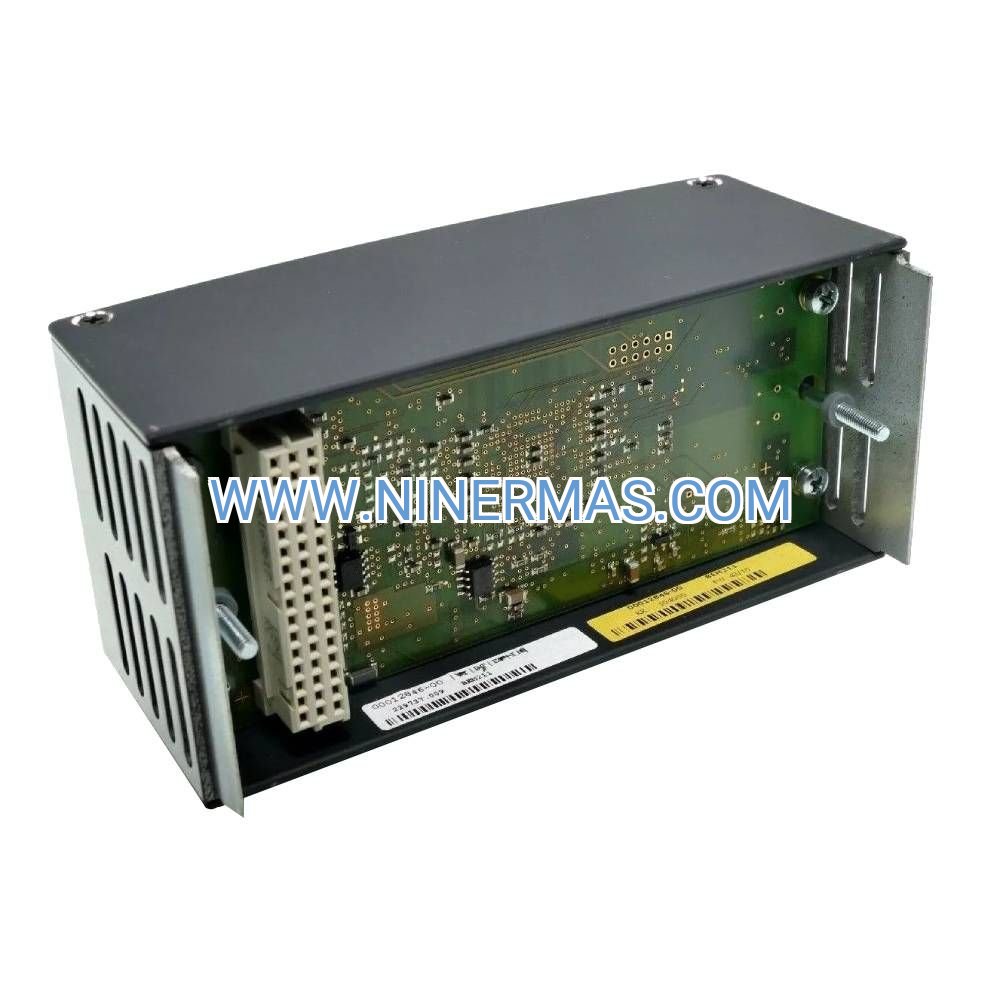

BEM211 Industrial Bus Expansion Module (Master-Slave Communication Platform)

The BEM211 represents a critical infrastructure component for expanding Bachmann M1 automation networks through deterministic master-slave bus architecture. This industrial-grade expansion module facilitates synchronized communication across distributed control substations, delivering the reliability and performance demanded by process-critical applications in manufacturing, utilities, and industrial automation environments.

Designed for system integrators and automation engineers managing complex distributed control architectures, the BEM211 eliminates communication bottlenecks while maintaining signal integrity across extended network topologies. Whether coordinating multi-cabinet control systems or scaling I/O capacity across production lines, this expansion module provides the foundation for robust, maintainable automation infrastructure.

With support for up to 15 interconnected substations and proven compatibility across the Bachmann M1 ecosystem, the BEM211 delivers the scalability and interoperability essential for future-proof automation investments.

Core Features & Benefits

→ Multi-Substation Connectivity: Link up to 15 distributed control nodes through a single bus segment, reducing wiring complexity and installation costs while maintaining deterministic communication timing.

→ Industrial-Grade Signal Integrity: Engineered for harsh industrial environments with -25°C to +60°C operating range, IP20 protection, and CE/UL/cUL certification ensuring compliance with global safety standards.

→ Standardized 24VDC Operation: Integrates seamlessly with existing industrial power infrastructure, eliminating the need for specialized power supplies and simplifying system design.

→ Plug-and-Play M1 Compatibility: Direct backplane mounting across BS203-BS213 series backplanes with automatic bus configuration, accelerating commissioning and reducing integration errors.

→ Real-Time Diagnostic Visibility: Onboard LED indicators provide instant status feedback for power, communication activity, and fault conditions, minimizing troubleshooting time during commissioning and maintenance.

→ Deterministic Communication Protocol: Proprietary Bachmann bus architecture ensures predictable data exchange timing critical for coordinated motion control, process sequencing, and safety-rated applications.

Application Scenarios

✓ Distributed Manufacturing Control Systems
Coordinate multiple production cells across factory floors where centralized control creates single points of failure. The BEM211 enables distributed intelligence architectures where each cell maintains autonomous control while synchronizing with upstream MES systems through master-slave communication.

✓ Water & Wastewater Treatment Networks
Manage geographically dispersed pump stations, filtration systems, and chemical dosing units across treatment facilities. The module's extended temperature range and robust communication protocol ensure reliable operation in challenging environmental conditions.

✓ Power Generation & Distribution
Integrate protection relays, generator controls, and switchgear monitoring across substations and generation facilities. Deterministic bus timing supports time-critical protective functions while reducing copper wiring infrastructure costs.

✓ Process Industry Batch Control
Orchestrate multi-stage batch processes across reactors, mixing vessels, and packaging lines where recipe synchronization and material tracking demand coordinated control across distributed equipment.

✓ Building Automation & HVAC
Scale HVAC control across multi-building campuses or high-rise structures where centralized controllers cannot efficiently manage distributed air handlers, chillers, and boiler systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the BEM211 when your application requires distributed control architecture with more than 5 remote substations, when cabinet-to-cabinet distances exceed economical hardwired I/O limits (typically >10 meters), or when future expansion flexibility justifies modular bus-based topology over point-to-point wiring.

Extended Functions

Advanced Network Topologies: Deploy multiple BEM211 modules in hierarchical configurations to create multi-tier control architectures supporting hundreds of I/O points across complex facilities.

Hot-Standby Redundancy: When paired with redundant M1 processor modules, the BEM211 supports failover architectures where backup controllers automatically assume control during primary system faults.

Third-Party Integration: Bridge Bachmann M1 systems to SCADA platforms, MES systems, and enterprise databases through processor-level gateways while maintaining deterministic bus performance for time-critical local control.

Custom Configuration Services: Factory pre-configuration available for high-volume OEM applications requiring standardized bus addressing, diagnostic thresholds, and communication parameters.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-direct orders during standard production cycles.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions.

Technical Support: Direct access to application engineers with Bachmann M1 system expertise for integration planning, troubleshooting, and performance optimization throughout product lifecycle.

Documentation Package: Complete technical manual including installation procedures, wiring diagrams, diagnostic procedures, and integration examples with common M1 system configurations.

Frequently Asked Questions

What is the maximum total bus length when connecting 15 BEM211 substations?
With 3-meter maximum spacing between consecutive substations, the theoretical maximum bus length reaches 45 meters (15 substations × 3m spacing). However, practical installations should consider signal integrity margins and typically limit total bus length to 40 meters for optimal performance.

Can the BEM211 interface with non-Bachmann control systems?
The BEM211 utilizes proprietary Bachmann bus protocol and is designed exclusively for M1 system integration. For interfacing with third-party controllers, use Bachmann processor modules with Ethernet, Profibus, or Modbus gateway capabilities.

What power supply capacity is required for BEM211 operation?
The BEM211 draws approximately 150mA from the 24VDC backplane supply. When sizing power supplies, account for total module count across the backplane plus 20% safety margin. A typical NT255 power module supports 8-10 BEM211 modules depending on other installed modules.

Is field firmware updating supported on the BEM211?
The BEM211 contains fixed firmware optimized for bus communication reliability. Firmware updates are not required or supported. For systems requiring updateable communication protocols, consider processor-level gateway modules.

How do I troubleshoot communication failures on the BEM211 bus?
Begin with LED status indicators: solid green indicates normal operation, flashing red signals communication errors, and no illumination suggests power supply issues. Verify 24VDC supply voltage, check inter-substation cable continuity, confirm proper cable shielding and grounding, and ensure all substations are properly seated in backplane connectors.

What environmental conditions affect BEM211 reliability?
While rated for -25°C to +60°C operation, optimal reliability occurs within 0°C to +50°C. Avoid installations near high-frequency VFDs without proper EMI filtering, ensure adequate panel ventilation to prevent heat accumulation, and maintain relative humidity below 95% non-condensing.

Ready to Expand Your M1 Automation Network?

Contact our automation specialists to discuss your distributed control requirements, receive application-specific configuration recommendations, and obtain volume pricing for multi-system deployments. Our team provides comprehensive support from initial system design through commissioning and ongoing optimization.
