Belden AF100 9688 0101000 Service-Ready Spare Part

Belden AF100 9688 0101000 Service-Ready Spare Part for Industrial Maintenance

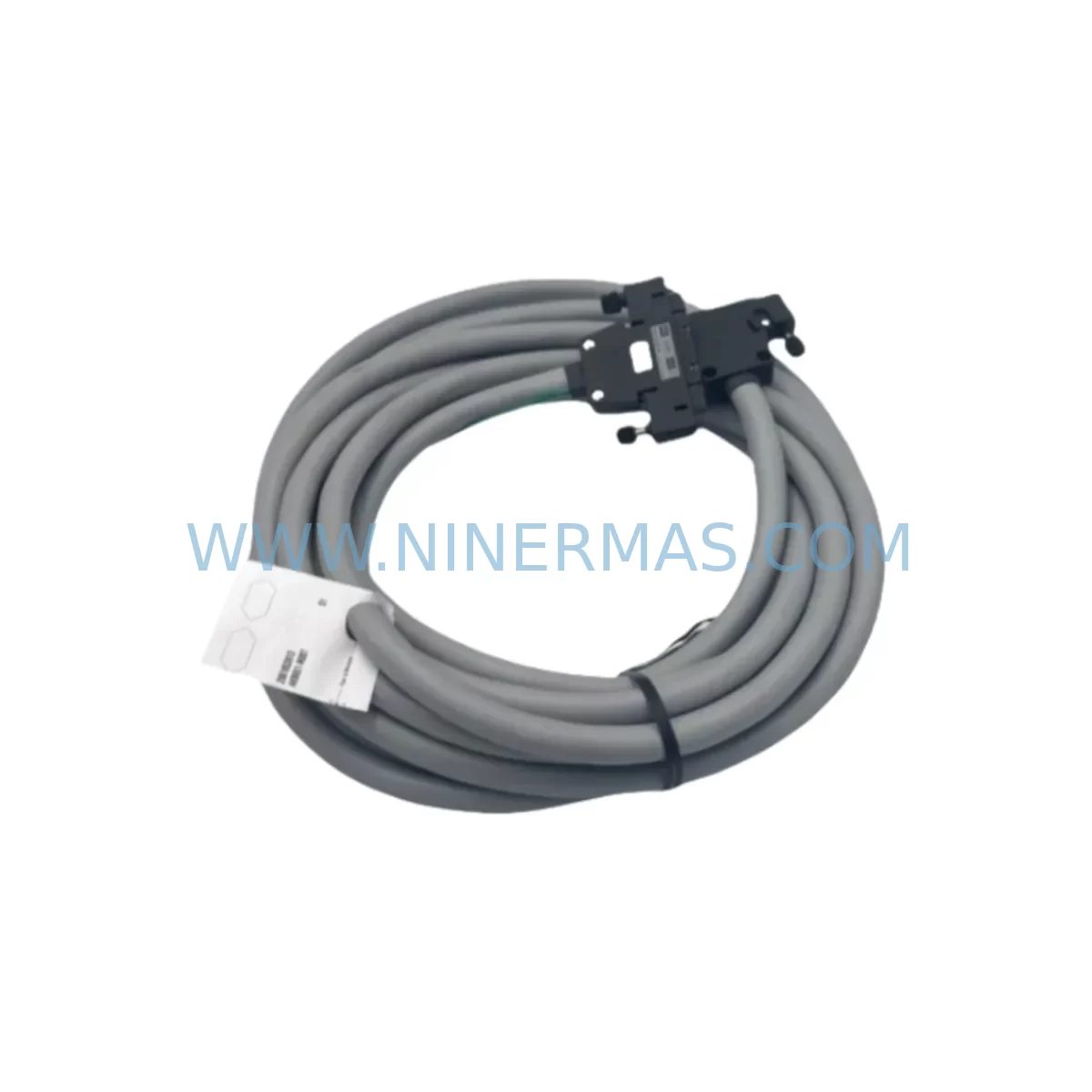

The Belden AF100 9688 0101000 is a ruggedized wire and cable assembly engineered for continuous operation in demanding industrial environments. As a direct-replacement spare part, it is designed to restore signal integrity, power distribution, and control circuit continuity in process control panels, PLC enclosures, and DCS field junction boxes where cable degradation or insulation failure can trigger unplanned shutdowns. Maintenance engineers and procurement teams managing aging Belden AF100 Series installations rely on this SKU to maintain system uptime, reduce mean time to repair (MTTR), and eliminate the risk of sourcing non-compliant substitutes that may compromise EMI shielding or mechanical durability.

Belden’s AF100 Series ruggedized cables are widely deployed across oil and gas processing, chemical plants, power generation facilities, and heavy manufacturing lines where ambient temperature extremes, chemical exposure, mechanical abrasion, and continuous vibration accelerate cable wear. The AF100 9688 0101000 variant is specified for harsh-environment routing — including conduit runs, cable trays, and direct-burial applications — where standard instrumentation cables would fail prematurely. Stocking this part as a ready-to-install spare eliminates the lead time risk that typically extends emergency downtime from hours to days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Belden AF100 9688 0101000 during a scheduled outage or emergency callout, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure the restored system meets its original design specification. Maintenance engineers should treat cable replacement as an opportunity to audit the full signal and power path.

Begin by verifying the integrity of the terminal blocks and DIN rail assemblies at both ends of the cable run — corroded or loose terminations are a leading cause of premature cable failure and intermittent signal faults. Inspect the cable glands and conduit fittings for seal degradation, which allows moisture ingress that accelerates insulation breakdown. If the AF100 9688 0101000 is part of an analog instrumentation loop, check the associated signal isolators and loop-powered transmitters for drift or ground fault conditions that may have contributed to the original cable fault.

For installations where the cable interconnects a Belden 9501 or 9502 Series instrumentation cable segment to a field device, confirm that the junction splice or connector is rated for the same environmental class. In PLC panel applications — particularly those using Siemens S7-300/S7-400 or Allen-Bradley ControlLogix I/O modules — verify that the cable’s shielding is properly grounded at one end only to prevent ground loops that introduce noise into analog input cards.

Procurement engineers should also consider stocking complementary Belden components alongside the AF100 9688 0101000: Belden 9841 DeviceNet cable for fieldbus segments in the same panel, Belden 3105A paired instrumentation cable for thermocouple extension runs, and Belden 8723 shielded multi-conductor cable for multi-drop analog signal wiring. Where the cable interfaces with Phoenix Contact or Weidmüller terminal blocks, inspect the spring-clamp or screw-clamp connections for signs of thermal cycling fatigue. In high-vibration environments, cable ties, P-clamps, and strain relief brackets should be replaced simultaneously to prevent mechanical stress from transferring to the new cable’s termination points. Finally, if the installation includes a Belden 9729 or equivalent data cable for serial communications (RS-232/RS-485) in the same conduit bundle, verify that the new cable routing maintains adequate separation to avoid cross-talk.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout (LOTO): De-energize the circuit at the upstream breaker or fuse disconnect. Apply LOTO hardware and verify zero-energy state with a calibrated voltage tester before touching any terminations.

Step 2 — Documentation: Photograph or sketch the existing cable routing, labeling, and termination points before removal. Cross-reference against the panel wiring diagram and I/O list to confirm signal assignments. This step is critical for multi-conductor cables where incorrect re-termination will cause I/O mapping errors in the PLC or DCS controller.

Step 3 — Removal and Inspection: Remove the failed AF100 9688 0101000 and inspect the conduit or cable tray for sharp edges, moisture, or chemical residue that may have caused the original failure. Address root causes before installing the replacement.

Step 4 — Installation: Route the new Belden AF100 9688 0101000 following the original path. Maintain minimum bend radius per Belden’s published specification. Terminate conductors using the correct ferrule type and torque specification for the terminal block model in use. Connect shield drain wire per the original grounding scheme.

Step 5 — Verification: Perform a point-to-point continuity check and insulation resistance test (500 VDC megger) before re-energizing. Confirm signal levels at the controller I/O card match expected engineering unit values. Document the replacement in the maintenance management system (CMMS) with the new part’s serial number and installation date.

Step 6 — System Restoration: Re-energize in sequence, monitor for alarms, and confirm normal process operation before releasing the equipment back to production.

Spare Parts Support FAQ

Q1: Is the Belden AF100 9688 0101000 a direct drop-in replacement for older AF100 Series cable assemblies?
Yes. The AF100 9688 0101000 is manufactured to Belden’s current AF100 Series specification and is a direct mechanical and electrical replacement for earlier AF100 variants used in the same conduit size and termination configuration. Always verify conductor count, gauge, and shielding type against your original wiring documentation before installation.

Q2: What is the recommended inventory quantity for a continuous production facility?
For facilities with more than 20 AF100 Series cable runs, we recommend maintaining a minimum of 2–3 spare units of the AF100 9688 0101000 on-site. High-criticality loops — such as those serving safety instrumented systems (SIS) or primary process control — warrant dedicated spares held in a climate-controlled store to prevent insulation degradation from heat or humidity.

Q3: How is the cable tested before shipment?
Every unit undergoes continuity testing across all conductors, insulation resistance verification, and a visual inspection for jacket integrity and connector condition before dispatch. A test report is available upon request for quality-critical procurement.

Q4: What long-term supply options are available for this SKU?
NINERMAS offers blanket order and long-term supply agreements for the Belden AF100 9688 0101000, supporting annual maintenance budgets and multi-site spare parts programs. All units supplied under long-term agreements carry the same 12-month warranty from the date of each individual shipment. Contact our team to discuss volume pricing and scheduled delivery programs.
