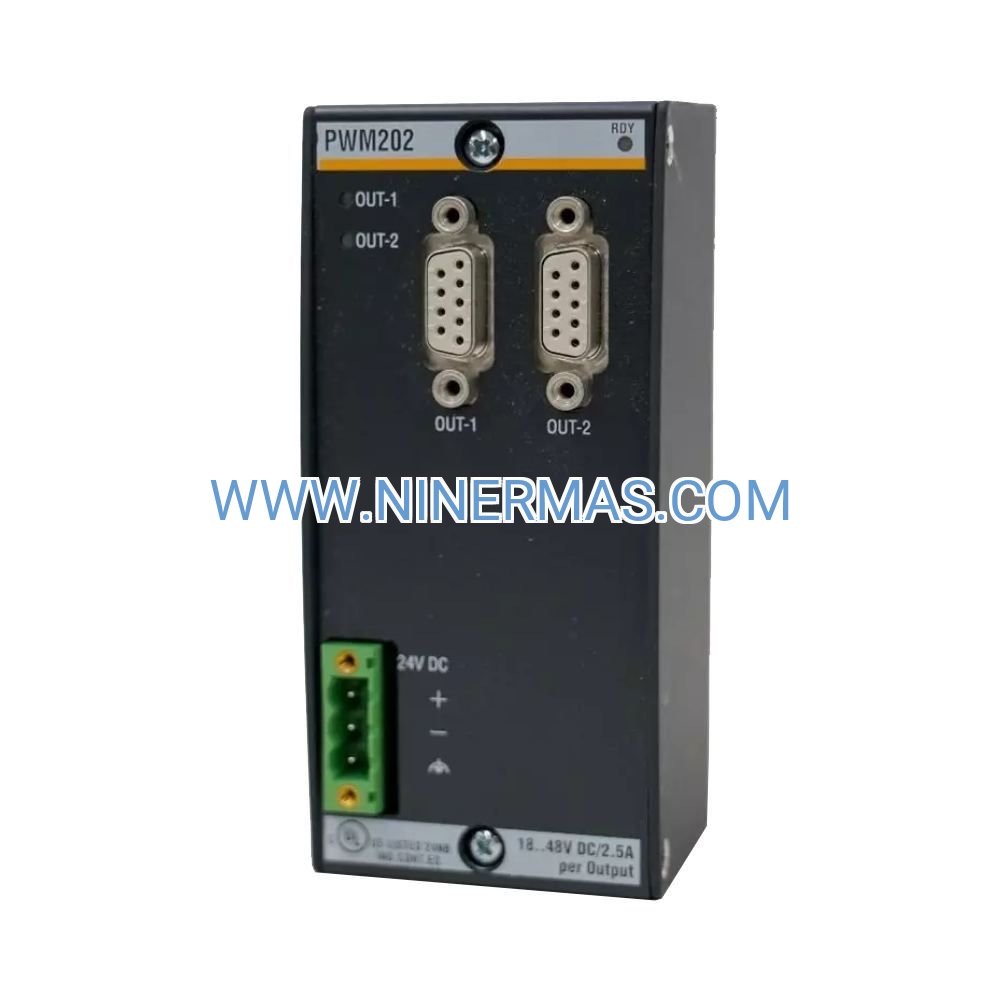

PWM202 Dual-Channel Motor Controller (Industrial-Grade PWM Drive)

The PWM202 is an industrial pulse width modulation controller designed for precision DC motor speed regulation, proportional valve actuation, and variable-load control in factory automation environments. Built on the Bachmann M1 platform, this dual-output module combines 12-bit resolution with robust thermal protection to deliver consistent performance across -25°C to +60°C operating ranges.

Manufacturing facilities rely on the PWM202 for conveyor belt speed synchronization, packaging line tension control, and automated material handling where smooth acceleration curves prevent product damage. Its 50Hz to 50kHz frequency range accommodates both low-inertia servo applications and high-torque DC drives without external filtering.

With hot-swap capability and integrated short-circuit protection, the PWM202 minimizes unplanned downtime while safeguarding connected motors and actuators. Each channel independently drives up to 2A continuous current, making it suitable for small robotic arms, linear actuators, and proportional hydraulic valves in process control systems.

Core Capabilities & Technical Advantages

→ Dual Independent Channels
Control two separate DC motors or actuators from a single module slot, reducing backplane footprint and system cost in multi-axis applications.

→ 12-Bit Resolution (4096 Steps)
Fine-grained speed control eliminates jerky motion in precision positioning tasks, critical for assembly robots and pick-and-place systems.

→ Wide Frequency Bandwidth (50Hz - 50kHz)
Adapt to motor characteristics without hardware changes—low frequencies for high-inductance motors, high frequencies for minimal audible noise.

→ Triple-Layer Protection
Simultaneous short-circuit detection, thermal shutdown, and overload limiting protect both the module and connected equipment from fault conditions.

→ M1 Backplane Integration
Plug directly into Bachmann BS205/BS210 backplanes for seamless communication with MX213 processors and GIO212 analog I/O modules.

→ Extended Temperature Rating
Operates reliably in foundries, cold storage facilities, and outdoor enclosures where standard electronics fail.

Industrial Application Scenarios

Conveyor Speed Synchronization
Packaging lines require multiple conveyors to run at matched speeds to prevent product jams. The PWM202 synchronizes belt motors through closed-loop feedback, maintaining ±0.5% speed accuracy across production shifts. Reduces material waste by 18% compared to fixed-speed drives.

Proportional Valve Control
Hydraulic presses and injection molding machines use proportional valves for precise flow regulation. The PWM202's analog input compatibility enables pressure feedback loops, achieving ±2% setpoint accuracy while reducing energy consumption through demand-based flow control.

Automated Guided Vehicle (AGV) Steering
Warehouse AGVs require differential motor control for navigation. Dual PWM202 channels independently drive left/right wheel motors, enabling tight-radius turns and smooth path following with 12-bit speed resolution.

Textile Winding Tension Control
Fabric and wire winding operations demand constant tension despite changing spool diameters. The PWM202 adjusts motor torque in real-time based on dancer arm feedback, preventing material stretching or breakage.

LED Panel Dimming
Process visualization displays and machine status indicators use PWM dimming for brightness control. The module's 50kHz capability eliminates visible flicker while extending LED lifespan through reduced thermal stress.

Technical Specifications & Selection Guide

Selection Criteria: Choose the PWM202 when your application requires dual-channel control with moderate current demands (under 2A per motor). For higher currents up to 10A, consider the Bachmann PWM410 series. Applications needing more than two channels should use multiple PWM202 modules or the 4-channel PWM404 variant.

Advanced Integration Options

Closed-Loop Speed Regulation: Pair the PWM202 with encoder feedback modules for PID-based speed control. The GIO212 analog input module processes tachometer signals, enabling the MX213 processor to adjust PWM duty cycle in real-time for ±0.1% speed stability.

Multi-Axis Coordination: Synchronize up to 8 motors across four PWM202 modules using the Bachmann M1 backplane's deterministic communication. Ideal for gantry systems and coordinated conveyor networks.

Remote Monitoring: Integrate with Bachmann's web-based HMI for real-time current monitoring, fault diagnostics, and PWM frequency adjustment without PLC programming changes.

Custom Waveforms: Advanced users can program non-standard PWM patterns for specialized actuators like piezoelectric drivers or ultrasonic transducers through the MX213's function block library.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock units via express courier with tracking. Bulk orders (10+ modules) ship within 10 business days.

Custom Configuration: Factory-programmed modules with pre-set PWM frequencies or custom firmware ship within 15 business days. Minimum order quantity: 5 units.

Warranty Coverage: 24-month manufacturer warranty covering component defects and workmanship issues. Extended 5-year coverage available for critical infrastructure applications.

Technical Support: Lifetime email/phone support for configuration assistance, troubleshooting, and system design consultation. Average response time: 4 hours during business days.

Documentation Package: Each module includes installation manual, wiring diagrams, sample PLC code (IEC 61131-3), and CAD drawings for panel layout planning.

Frequently Asked Questions

What cable type should I use for motor connections to minimize electrical noise?
Use shielded twisted-pair cable (minimum 18AWG) with 360° shield termination at the module end. Maximum recommended length: 50 meters. For longer runs, add ferrite cores every 10 meters.

Can the PWM202 drive 12VDC motors with 24VDC output voltage?
Yes, by limiting the maximum duty cycle to 50% in software. However, verify the motor's current rating stays within the 2A continuous limit. For native 12V operation, consider using a DC-DC converter.

How many PWM202 modules fit on a single M1 backplane?
The BS205 backplane accommodates 3 modules (plus processor), while the BS210 supports 8 modules. Each module consumes one slot and draws 150mA from the backplane power supply.

Does the module support regenerative braking for DC motors?
No, the PWM202 provides unidirectional control only. For four-quadrant motor control with regenerative braking, use the Bachmann ACR222 axis controller module.

What PWM frequency should I use for silent motor operation?
Set frequency above 20kHz to push switching noise beyond human hearing range. Note that higher frequencies may increase switching losses—monitor module temperature during initial testing.

Is the PWM202 compatible with non-Bachmann PLCs via Modbus?
Yes, when paired with the Bachmann MX213 processor configured as a Modbus RTU slave. The processor maps PWM parameters to Modbus holding registers for third-party PLC integration.

Take the Next Step

Ready to optimize your motor control system? Contact our automation specialists for application-specific configuration guidance, volume pricing, or technical compatibility verification. We'll help you design a complete solution including backplane selection, power supply sizing, and PLC programming templates.

Request a quote: Email your motor specifications and application requirements to receive a detailed proposal within 24 hours.
