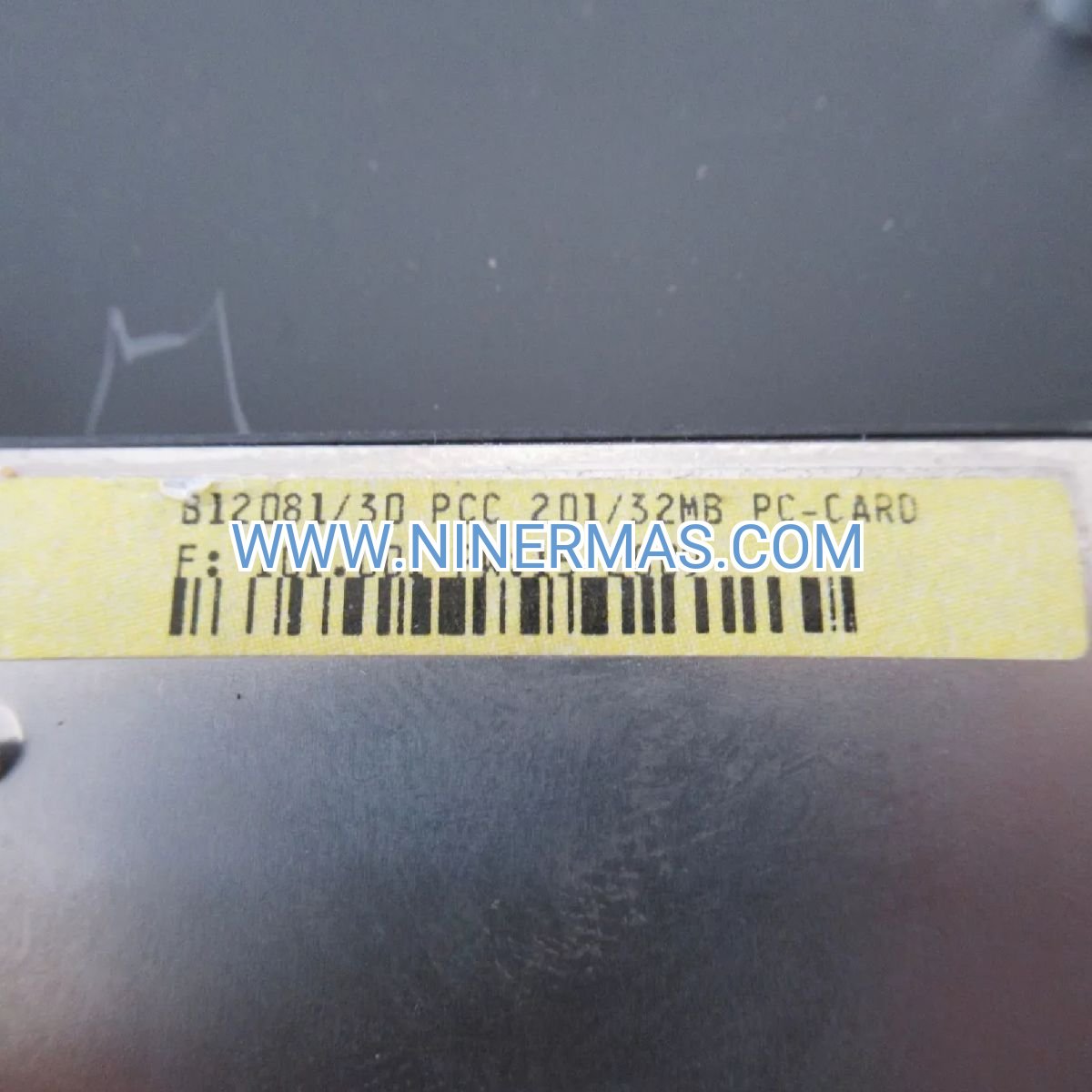

PCC201 32MB Industrial-Grade PCMCIA Memory Card

The PCC201 represents a purpose-built storage solution engineered specifically for Bachmann M200 automation platforms. This 32MB PCMCIA-compatible memory module delivers non-volatile data retention for mission-critical control applications, combining industrial durability with seamless system integration. Designed to withstand harsh manufacturing environments, the PCC201 ensures your operating systems, application logic, and configuration data remain secure and accessible across extended operational lifecycles.

Built for system integrators and automation engineers who demand reliability, this PC card eliminates the complexity of external programming tools through direct M200 processor formatting capabilities. Whether you're deploying new control systems or upgrading legacy installations, the PCC201 provides the storage foundation your automation infrastructure requires.

With proven compatibility across the entire M200 controller family and comprehensive certification compliance, the PCC201 streamlines procurement, reduces integration time, and delivers long-term operational confidence for industrial control applications worldwide.

Core Features & Technical Advantages

→ Direct M200 Formatting
Eliminate external card readers and programming stations. Format and write data directly through your M200 processor interface, reducing setup time and simplifying field deployments.

→ Multi-Purpose Storage Architecture
Store complete operating system images, device driver libraries, PLC application programs, HMI configurations, and comprehensive technical documentation within a single compact module.

→ Industrial Environmental Resilience
Operate reliably from 0°C to +60°C with storage capability down to -40°C. Withstand humidity levels up to 95% non-condensing, ensuring performance in demanding factory floor conditions.

✓ Software-Managed Write Protection
Control data integrity through operating system-level write protection rather than mechanical switches, enabling flexible security policies and remote management capabilities.

✓ 16-Bit Data Bus Performance
Leverage full 16-bit access width for optimized read/write throughput, minimizing boot times and accelerating program transfers during system updates.

✓ Certified Compliance Portfolio
Deploy with confidence backed by CE, UKCA, and cULus certifications, meeting international safety and electromagnetic compatibility standards for industrial equipment.

Industrial Application Scenarios

Manufacturing Line Control
In high-speed packaging operations, the PCC201 stores production recipes, quality parameters, and machine configurations for M200-based line controllers. When recipe changes occur, operators load new parameter sets directly from the card without production interruptions, maintaining throughput while ensuring product consistency.

Water Treatment Automation
Municipal water facilities utilize PCC201 cards to archive SCADA configurations, alarm histories, and regulatory compliance data within distributed M200 control nodes. The card's wide temperature tolerance ensures reliable operation in outdoor pump stations and remote monitoring sites.

Energy Management Systems
Building automation integrators deploy PCC201 modules to maintain HVAC control logic, scheduling databases, and energy optimization algorithms across multi-building M200 networks. Backup configurations stored on the card enable rapid system recovery following power events.

Material Handling Networks
Warehouse conveyor systems leverage PCC201 storage for zone controller programs, barcode routing tables, and diagnostic logs. The card's software-based write protection prevents accidental configuration overwrites during maintenance operations.

Renewable Energy Control
Wind farm operators store turbine control firmware, performance calibration data, and maintenance schedules on PCC201 cards installed in nacelle-mounted M200 controllers, where extreme temperature cycling demands industrial-grade storage reliability.

Technical Parameters & Selection Guide

Capacity Selection Criteria:
The 32MB variant suits most standard M200 applications with typical OS footprints (8-12MB) plus moderate application storage. For systems requiring extensive data logging, large HMI projects, or multiple OS versions, consider the 64MB PCC201 variant (part number 00012081-40). Evaluate your total storage requirements including OS size, application programs, documentation files, and 20-30% overhead for future expansion.

Extended Integration Capabilities

Multi-Controller Deployment
Standardize on PCC201 cards across heterogeneous M200 installations to simplify spare parts inventory and enable rapid controller swaps during emergency maintenance. Pre-configure backup cards with tested application images for immediate deployment.

Version Control & Archiving
Maintain multiple PCC201 cards labeled with firmware versions and application releases. This physical version control strategy enables quick rollback to known-good configurations without network dependencies or external storage infrastructure.

Field Programming Flexibility
Technicians can update M200 controller programs on-site by swapping PCC201 cards, eliminating the need for laptop connections or network access in secure or hazardous environments where IT infrastructure is restricted.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units
Express Shipping: Next-day delivery available for urgent replacements
Warranty Coverage: 12-month manufacturer warranty against defects
Technical Support: Direct access to automation specialists for integration assistance
Documentation Package: Datasheet, compatibility matrix, and M200 integration guide included

All PCC201 cards ship with factory testing certification and are individually inspected for electrical continuity, data integrity, and PCMCIA compliance before dispatch.

Frequently Asked Questions

How do I format the PCC201 card using my M200 controller?
Access the M200 system menu, navigate to Storage Management, select the PCMCIA slot, and choose Format. The process completes in 30-60 seconds without removing the card. Detailed formatting procedures are included in the M200 user manual section 7.3.

What is the maximum file size I can store on the 32MB card?
The PCC201 supports individual files up to 16MB using FAT16 formatting. For applications requiring larger single files, partition the card or upgrade to the 64MB variant with FAT32 support.

Can I use the PCC201 with non-Bachmann PCMCIA readers?
Yes, with the A-PCC200 adapter (part 00009540-00), the card interfaces with standard PC PCMCIA slots for offline programming or data extraction. However, direct M200 formatting is the recommended workflow.

Does the card retain data during power loss?
Absolutely. The PCC201 uses non-volatile FLASH memory technology that maintains data integrity indefinitely without power, making it ideal for backup storage and portable configuration transfer.

What happens if I exceed the operating temperature range?
The card enters thermal protection mode, suspending write operations to prevent data corruption. Read operations may continue at reduced reliability. Install M200 controllers in temperature-controlled enclosures to maintain the 0-60°C operating window.

Is the PCC201 compatible with legacy M200 firmware versions?
The card maintains backward compatibility with M200 firmware releases dating to 2008. Consult the compatibility matrix in the technical documentation to verify support for your specific firmware version.

Ready to Secure Your M200 Storage?

Ensure your automation infrastructure has the reliable storage foundation it demands. Order your PCC201 32MB PC Card today and receive expert integration support, comprehensive documentation, and fast delivery to keep your projects on schedule.

Need assistance with capacity selection or M200 system design? Contact our automation specialists for personalized recommendations based on your application requirements.
