Industrial PCMCIA Storage Card for Bachmann M1/M200 Automation Controllers

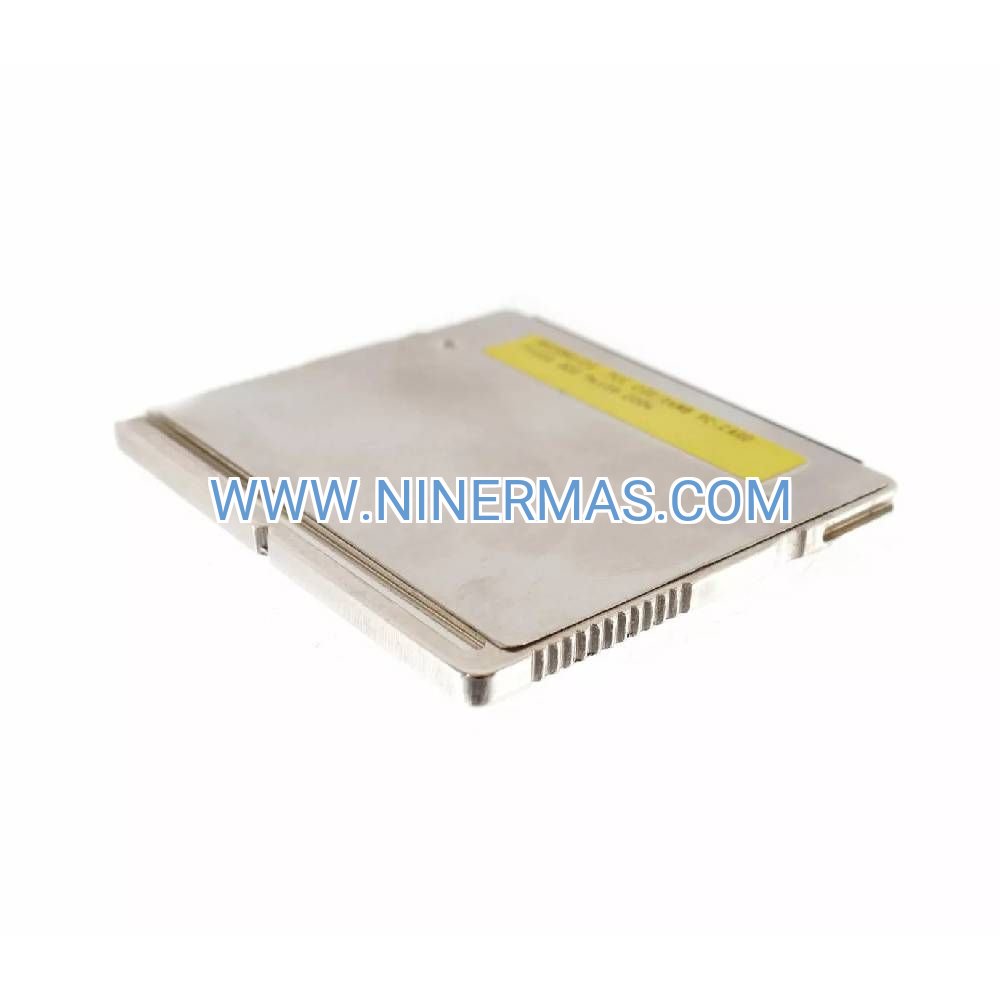

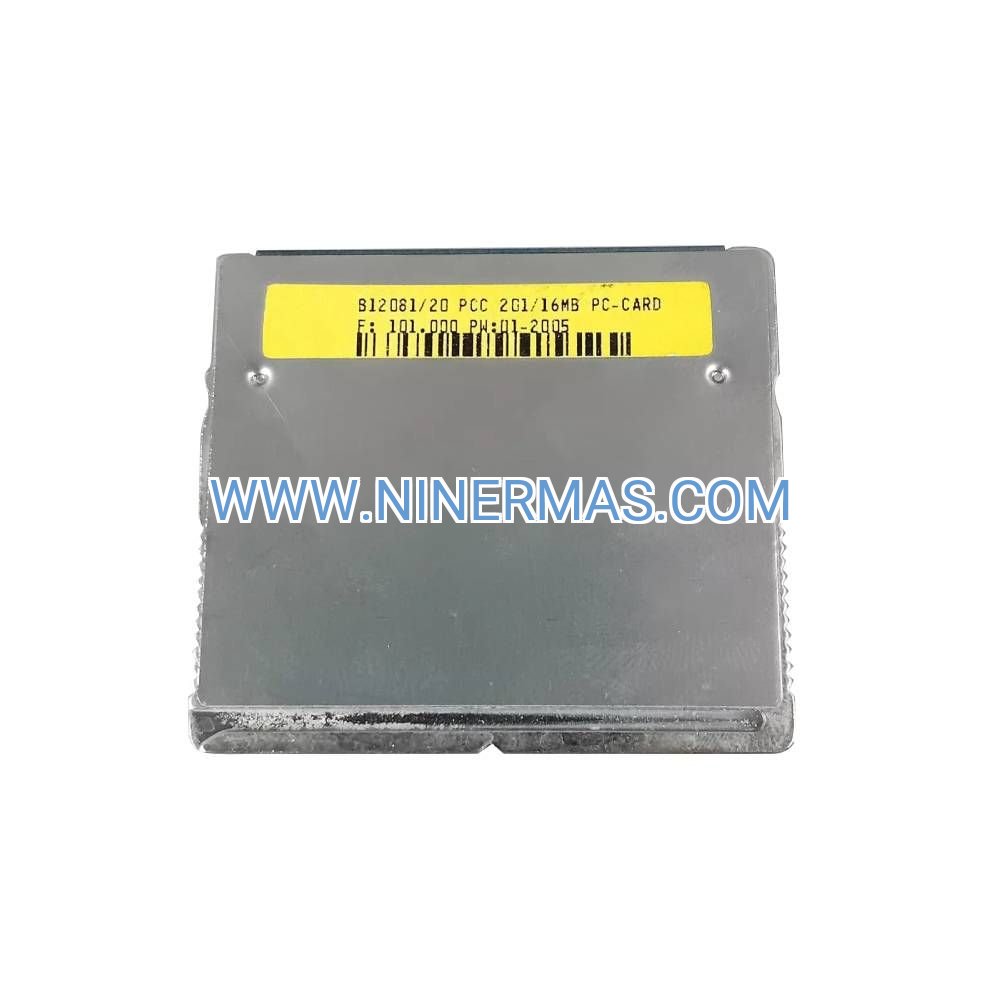

The Bachmann PCC201 series represents a critical storage solution engineered specifically for industrial automation environments. These PCMCIA Type II flash memory cards—available in 32MB (PCC201/32) and 64MB (PCC201/64) configurations—serve as the primary storage medium for M1 and M200 controller operating systems, device drivers, and mission-critical application software. Designed to withstand extreme temperatures, shock, and vibration, the PCC201 ensures your automation programs remain secure and accessible even in the harshest industrial settings.

Whether you're managing process control systems in chemical plants, coordinating manufacturing automation lines, or maintaining building management networks, the PCC201 delivers the reliability and longevity your operations demand. With over 10 years of guaranteed data retention and compatibility across the entire Bachmann M1 controller family, this storage card eliminates concerns about program loss or system downtime.

Ready to secure your automation infrastructure? The PCC201 integrates seamlessly with your existing Bachmann systems—contact our technical team today for compatibility verification and rapid deployment support.

Core Capabilities & Technical Advantages

Each feature of the Bachmann PCC201 translates directly into operational benefits for your automation systems:

→ Extended Temperature Performance (-40°C to +85°C): Operates reliably in extreme environments from Arctic installations to desert facilities, eliminating the need for climate-controlled enclosures and reducing infrastructure costs by up to 30%.

→ Dual Capacity Architecture (32MB/64MB): Scale storage to match application complexity—32MB handles standard PLC programs while 64MB supports advanced SCADA applications with historical data logging, providing future-proof expansion without hardware replacement.

→ Industrial Shock Resistance (1500G, 0.5ms): Survives mechanical impacts from vibrating machinery, forklift collisions, and seismic events, protecting critical programs in high-movement environments like automotive assembly plants.

→ Long-Term Data Integrity (10+ Years): Flash memory technology maintains program integrity without power, reducing maintenance cycles and ensuring compliance with regulatory requirements for equipment validation in pharmaceutical and food processing industries.

→ Plug-and-Play Compatibility: Recognized instantly by all M1/M200 controllers without driver installation, reducing commissioning time from hours to minutes and minimizing skilled labor requirements during system upgrades.

✓ PCMCIA Type II Standard: Compact 54mm × 85.6mm × 5mm form factor fits existing controller slots without modification, preserving panel space for additional I/O modules.

Industry Applications & Problem-Solving Scenarios

Chemical Process Control & Batch Manufacturing
In pharmaceutical production facilities, the PCC201/64 stores complex batch recipes and regulatory compliance data alongside the controller OS. When integrated with Bachmann MX213 processors, the card enables rapid recipe changeovers—reducing downtime from 45 minutes to under 5 minutes—while maintaining FDA 21 CFR Part 11 audit trails. The extended temperature rating proves essential in reactor control panels exposed to process heat.

Water & Wastewater Treatment Automation
Municipal treatment plants deploy PCC201/32 cards in remote pump stations where temperature fluctuations range from -30°C in winter to +70°C in summer. The cards store PID control algorithms for chemical dosing systems, surviving years of continuous operation without data corruption. Vibration resistance ensures reliability despite pump-induced mechanical stress on control cabinets.

Automotive Assembly Line Control
Manufacturing engineers use PCC201/64 cards to version-control robot programming across multiple production cells. When paired with Bachmann MP213/E controllers, technicians swap cards to deploy updated welding sequences in under 2 minutes—eliminating the 30-minute network download process and reducing line changeover time by 40%.

Building Energy Management Systems
Commercial HVAC installations leverage PCC201/32 cards to store energy optimization algorithms and occupancy schedules. The 10-year data retention eliminates the need for battery-backed RAM, reducing maintenance costs by $200-$500 per controller over the system lifecycle while ensuring schedule persistence during power outages.

Oil & Gas Pipeline Monitoring
Remote pipeline monitoring stations in extreme climates rely on PCC201 cards rated for -40°C operation. The cards store SCADA communication protocols and leak detection algorithms, maintaining program integrity despite temperature cycling and electromagnetic interference from high-voltage equipment.

Technical Specifications & Selection Criteria

How to Select the Right Capacity:

Choose PCC201/32 (32MB) when your application involves standard PLC logic programs under 20MB, basic HMI interfaces, or simple process control without data logging. Ideal for discrete manufacturing, pump control, and HVAC systems with limited recipe storage.

Select PCC201/64 (64MB) for complex SCADA applications requiring historical data buffering, multi-language HMI support, or systems with frequent program updates and version archiving. Recommended for batch processing, energy management systems with trend logging, and applications requiring on-card backup storage.

Advanced Integration & IoT Connectivity

Modern automation demands extend beyond basic storage—the PCC201 enables advanced system architectures when combined with Bachmann's communication modules. Store edge computing algorithms that pre-process sensor data before cloud transmission, reducing bandwidth costs by 60-80% in IIoT deployments.

The card's fast read/write performance supports real-time data logging applications, capturing process variables at 100ms intervals for predictive maintenance analytics. Integration with OPC UA servers allows the stored programs to expose data models compliant with Industry 4.0 standards, facilitating seamless MES/ERP integration.

For cybersecurity-conscious installations, the PCC201 supports encrypted program storage when used with Bachmann's secure boot controllers, protecting intellectual property and preventing unauthorized program modifications in compliance with IEC 62443 industrial security standards.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock PCC201 cards ship within 24-48 hours via express courier, with typical delivery to major industrial centers in 3-5 business days. We maintain inventory of both 32MB and 64MB variants to ensure immediate availability.

Warranty Coverage: Every PCC201 card includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options up to 36 months available for critical infrastructure applications.

Technical Support: Our automation specialists provide pre-sales compatibility verification, installation guidance, and troubleshooting assistance throughout the product lifecycle. Access to Bachmann technical documentation, programming examples, and configuration tools included with purchase.

Quality Assurance: Each card undergoes factory testing including write/read verification, temperature cycling, and vibration testing before shipment. Certificates of conformity and test reports available upon request for regulated industries.

Frequently Asked Questions

How do I determine which capacity is sufficient for my automation project?
Calculate your total program size including the M1 operating system (typically 8-12MB), device drivers (2-4MB), and your application code. Add 30% overhead for future updates. If the total exceeds 20MB, select the 64MB variant. For applications with data logging or recipe storage, always choose 64MB to prevent capacity constraints.

Can the PCC201 card be used for hot-swapping during controller operation?
No, the PCMCIA interface is not designed for hot-swap operation. Always power down the controller completely before inserting or removing the card to prevent file system corruption and potential hardware damage. Plan for redundant controllers in applications requiring zero-downtime maintenance.

What is the expected write endurance for frequent program updates?
The flash memory supports a minimum of 100,000 write cycles per sector. With wear-leveling algorithms, typical applications performing weekly program updates will exceed 20 years of service life. For applications requiring daily updates, consider implementing a program versioning strategy to distribute writes across the card.

Is the PCC201 compatible with legacy M1 controllers from the early 2000s?
Yes, the PCC201 maintains backward compatibility with all M1 and M200 controller generations. However, verify that your controller firmware is updated to the latest version to ensure optimal performance and access to advanced features like wear-leveling and error correction.

How does the card perform in high-vibration environments like mobile machinery?
The PCC201's 20G vibration resistance exceeds requirements for most stationary industrial applications. For mobile machinery (construction equipment, mining vehicles), consider additional mechanical securing methods such as card retention clips or conformal coating of the controller assembly to prevent connector fatigue.

What backup strategy should I implement to protect against card failure?
Maintain at least one spare PCC201 card with an identical program image for critical systems. Use Bachmann's SolutionCenter software to create weekly backup images stored on your engineering workstation. For high-availability applications, deploy redundant controllers with synchronized program storage.

Secure Your Automation Infrastructure Today

Don't risk program loss or system downtime with unreliable storage solutions. The Bachmann PCC201 PCMCIA card delivers industrial-grade reliability backed by over two decades of proven performance in demanding automation environments worldwide.

Ready to order? Contact our technical sales team at sale@ninermas.com or call +0086 187 5021 5667 for immediate availability confirmation, compatibility verification, and volume pricing. Same-day quotes provided for orders of 5+ units.

Need technical consultation? Our automation engineers can review your system architecture and recommend the optimal storage configuration for your specific application requirements—complimentary service for all customers.
