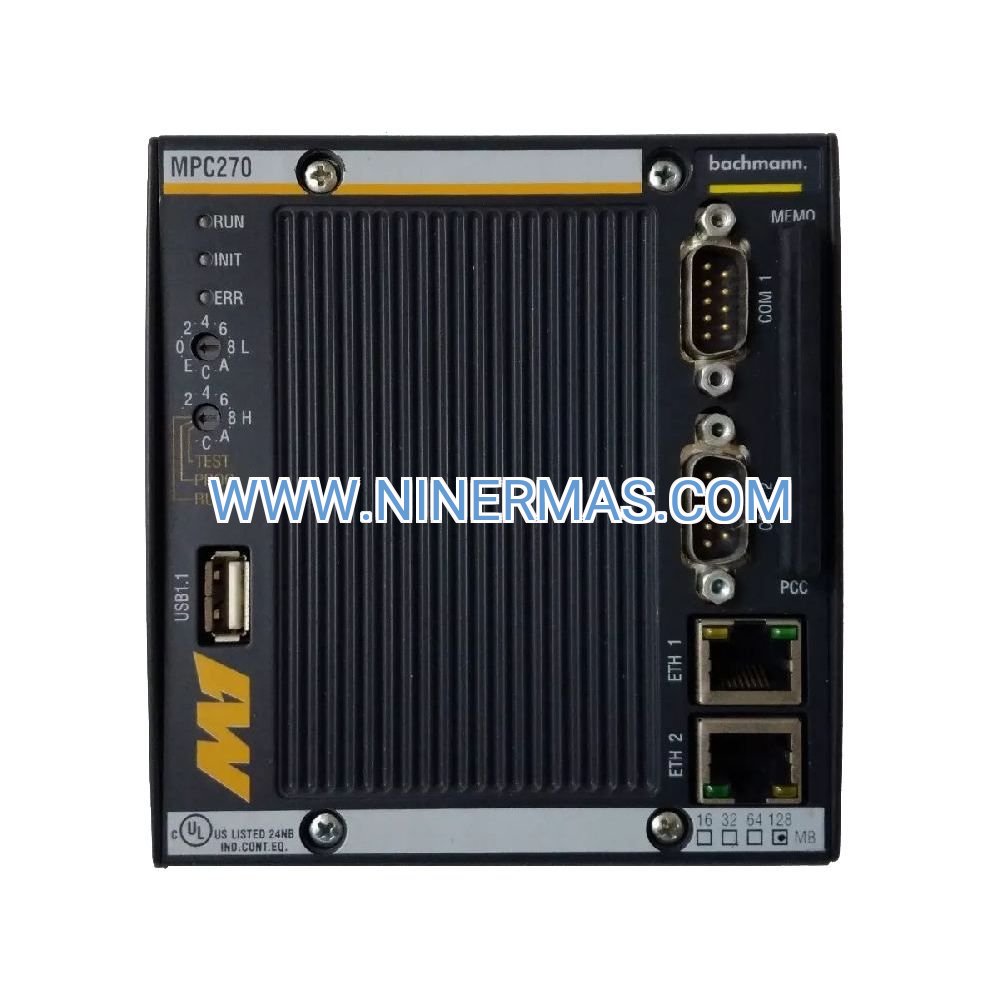

MPC270 Industrial-Grade CPU Processor Module

The BACHMANN MPC270 represents a proven solution in industrial computing, delivering robust processing power for mission-critical automation environments. Built around a 700MHz Pentium III architecture, this CPU module combines reliable performance with comprehensive connectivity options, making it an ideal choice for manufacturers seeking dependable control system integration.

Designed for demanding industrial applications, the MPC270 addresses the core challenge of maintaining continuous operation in harsh manufacturing environments. System integrators and plant engineers rely on this module to power distributed control systems, process automation networks, and real-time monitoring applications where downtime translates directly to production losses.

With dual Ethernet interfaces, flexible serial communication, and extensive memory configurations, the MPC270 delivers the connectivity and processing headroom required for modern industrial IoT deployments while maintaining backward compatibility with legacy fieldbus protocols.

Core Features & Technical Advantages

✓ High-Performance Processing Core
700MHz Pentium III embedded architecture ensures rapid scan cycles and deterministic response times, critical for time-sensitive control loops and multi-axis motion applications.

✓ Redundant Network Connectivity
Dual 10/100 Base-TX Ethernet ports enable network redundancy, protocol segregation, or simultaneous connection to plant-floor and enterprise networks without additional hardware.

✓ Multi-Tier Memory Architecture
128MB DRAM working memory, 512kB battery-backed SRAM, and 64kB non-volatile RAM provide layered data retention strategies, protecting critical process parameters during power interruptions.

✓ Flexible Serial Communication
One RS232 port plus one configurable RS232/422/485 interface support legacy devices, HMI panels, barcode scanners, and third-party instruments without protocol converters.

✓ Expandable Storage Options
CompactFlash slot and PC Card socket accommodate field-upgradable program storage, data logging, and recipe management without opening the control cabinet.

✓ Industrial-Hardened Design
Integrated watchdog timer, real-time clock with battery backup, and status LEDs ensure system integrity monitoring and simplified diagnostics in 24/7 production environments.

Typical Application Scenarios

→ Discrete Manufacturing Automation
In automotive assembly lines and electronics production facilities, the MPC270 coordinates multi-station work cells, managing I/O distribution, motion control, and quality data collection. Its dual Ethernet capability allows simultaneous connection to machine-level networks and MES systems, eliminating data silos and enabling real-time production visibility.

→ Process Control Systems
Chemical plants and food processing operations deploy the MPC270 for batch recipe execution, temperature profiling, and regulatory compliance logging. The battery-backed SRAM preserves critical process setpoints during maintenance shutdowns, while the CompactFlash slot stores audit trails required for FDA 21 CFR Part 11 compliance.

→ Building Automation & HVAC
Commercial facilities leverage the MPC270's multi-protocol support to integrate legacy BACnet devices with modern IP-based building management systems. The RS485 interface connects to existing sensor networks, while Ethernet ports link to cloud-based analytics platforms for predictive maintenance.

→ Water Treatment & Utilities
Municipal water systems utilize the MPC270 for SCADA applications requiring remote monitoring across distributed pump stations. The module's robust memory architecture ensures data integrity during telemetry transmission failures, while the watchdog timer automatically recovers from communication faults.

→ Material Handling & Logistics
Warehouse automation systems employ the MPC270 to orchestrate conveyor networks, sortation systems, and automated storage/retrieval systems. USB connectivity simplifies barcode scanner integration, while the real-time clock synchronizes time-stamped events across multiple control zones.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the MPC270 when your application requires proven Pentium III reliability with comprehensive connectivity. The 700MHz processor handles typical PLC scan cycles under 10ms while supporting up to 8,000 I/O points. Dual Ethernet ports eliminate single points of network failure in critical infrastructure. The battery-backed SRAM is essential for applications requiring parameter retention during extended power outages, while the CompactFlash slot suits projects needing field-accessible program updates or historical data storage exceeding 32MB.

Extended Functions & Integration Capabilities

Industrial IoT Connectivity
The MPC270's dual Ethernet architecture supports modern Industry 4.0 initiatives. Connect one port to your existing control network while dedicating the second to cloud gateways, enabling predictive analytics and remote diagnostics without compromising real-time control performance. OPC UA server capabilities (when configured with appropriate software) facilitate secure data exchange with enterprise systems.

Advanced Fieldbus Support
Integrated synchronization pulse generation coordinates time-critical fieldbus protocols including SERCOS for motion control, CAN for mobile equipment, and Ethernet-based protocols like PROFINET or EtherCAT (via appropriate expansion modules). This timing precision ensures jitter-free multi-axis coordination in packaging and robotics applications.

Customization Options
The PC Card slot accepts BACHMANN PCC201 modules with 32MB or 64MB Flash configurations, allowing program memory scaling based on application complexity. CompactFlash support extends to industrial-grade cards up to 2GB, suitable for recipe storage, batch records, or video frame buffering in vision-guided applications.

Delivery Timeline & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom configurations with specific PC Card or CompactFlash pre-loading require 5-7 business days for preparation and testing.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure deployments.

Technical Support: Direct access to application engineers familiar with BACHMANN M1 system architecture. Support includes configuration assistance, troubleshooting guidance, and firmware update recommendations. Response time: 4 hours for critical production issues.

Documentation Package: Each unit includes installation manual, quick-start guide, pinout diagrams, and sample ladder logic programs. Downloadable resources include CAD drawings for panel layout, communication protocol specifications, and integration examples for common HMI platforms.

Frequently Asked Questions

Q: How does the MPC270 integrate with existing Modbus RTU devices?
A: Configure the RS232/422/485 port for RS485 mode to connect Modbus RTU slaves. The port supports baud rates from 300 to 115,200 bps with automatic RTS control for half-duplex operation. Up to 32 Modbus devices can share the bus using standard termination resistors.

Q: What memory capacity is recommended for a project with 5,000 I/O points and 200 PID loops?
A: The MPC270's 128MB DRAM easily accommodates this configuration. Typical memory usage: 5,000 I/O points consume approximately 40MB, 200 PID loops require 15MB, leaving ample headroom for user programs and data tables. Consider adding a 64MB PC Card for program backup and version control.

Q: Can the MPC270 reduce energy consumption compared to older CPU modules?
A: Yes. The Pentium III embedded architecture draws approximately 12W under full load, roughly 30% less than equivalent Pentium II-based modules. The integrated power management features reduce consumption during idle periods, and the maintenance-free nvRAM-1 eliminates battery replacement cycles.

Q: What are the physical installation requirements for the MPC270?
A: The module mounts in BACHMANN M1 system backplanes with standard Eurocard spacing. Ensure adequate ventilation: minimum 50mm clearance above and below the module. Operating temperature range: 0°C to +55°C. The unit requires external 5V and ±15V power rails supplied via the backplane connector.

Q: Does the MPC270 support remote monitoring and diagnostics?
A: Absolutely. Configure one Ethernet port for VPN access, enabling secure remote connections via standard RDP or VNC protocols. The status LEDs provide local diagnostics (power, run, error), while SNMP traps can alert network management systems to fault conditions. The real-time clock timestamps all events for accurate troubleshooting.

Q: How do I perform firmware updates on the MPC270?
A: Firmware updates load via CompactFlash card or Ethernet download. For maximum safety, use the CompactFlash method: copy the update file to the card, insert into the slot, and follow the boot menu prompts. The 8MB internal Flash reserves 4MB for system software, ensuring recovery options if updates are interrupted.

Ready to Upgrade Your Control System?

The BACHMANN MPC270 delivers the processing power, connectivity, and reliability your industrial automation project demands. Whether you're modernizing legacy systems or designing new installations, our team provides the technical guidance and rapid delivery you need to keep projects on schedule.

Contact our automation specialists today:
→ Request a detailed quotation with volume pricing
→ Discuss system architecture and integration requirements
→ Arrange technical training for your engineering team
→ Schedule a demonstration with sample applications

Email: sale@ninermas.com | Phone: +0086 187 5021 5667
