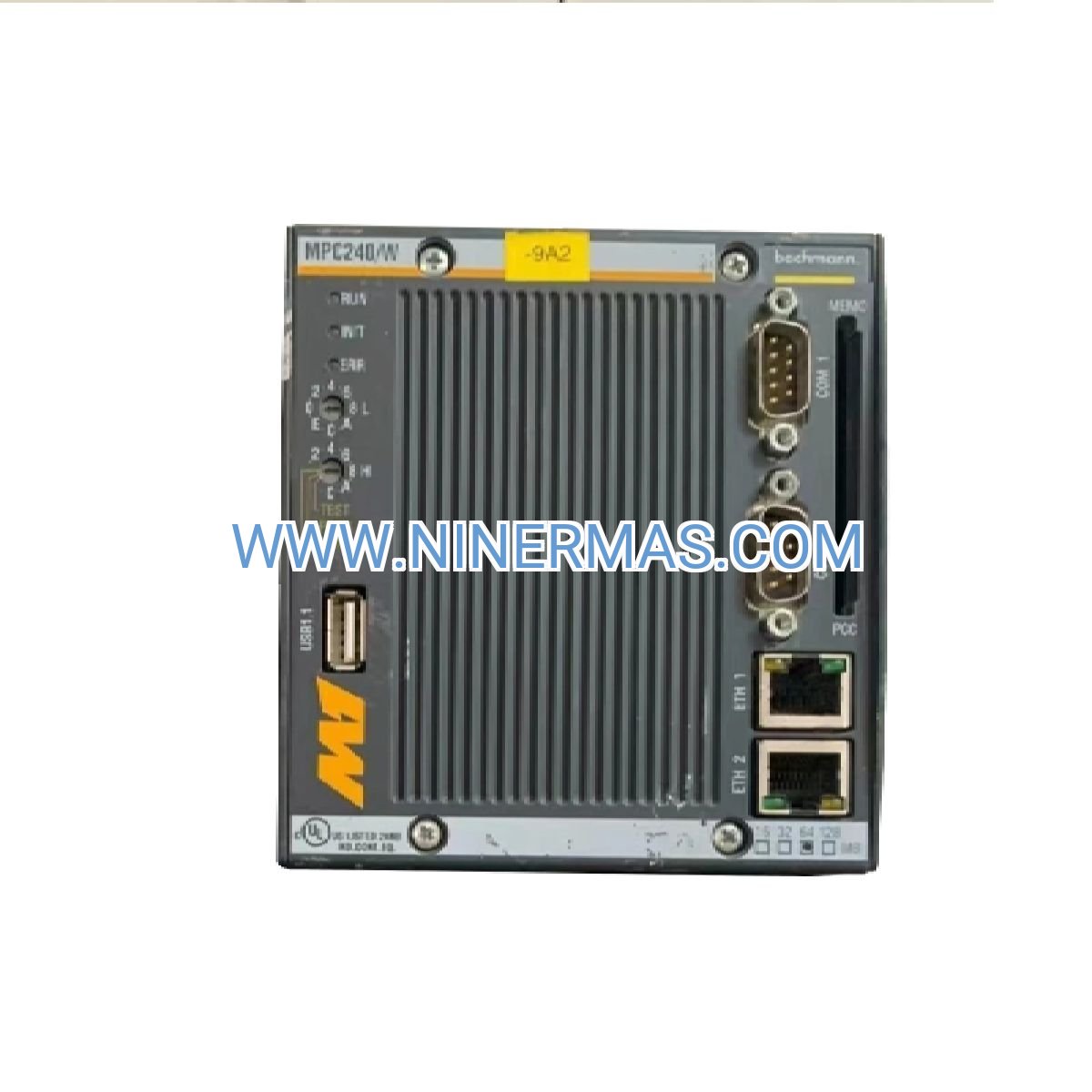

MPC240W 64 Industrial Controller Module (Wind Energy Optimized)

The Bachmann MPC240W 64 represents a specialized industrial-grade programmable logic controller engineered specifically for renewable energy applications. Featuring 64MB integrated memory and wind-optimized firmware, this PLC/CPU module delivers deterministic real-time control for turbine pitch systems, yaw management, and condition-based monitoring across onshore and offshore installations.

Designed for mission-critical environments, the MPC240W 64 combines robust hardware architecture with multi-protocol communication capabilities, enabling seamless integration into distributed SCADA networks. Its extended temperature tolerance and hot-swappable design minimize operational downtime while maximizing system availability in harsh industrial settings.

Whether you're deploying new wind farm infrastructure or retrofitting legacy control systems, this controller provides the processing power, reliability, and flexibility demanded by modern renewable energy operations. Compatible with Bachmann M1 backplane ecosystems and IEC 61131-3 programming standards, it accelerates commissioning while reducing long-term maintenance costs.

Core Features & Technical Advantages

✓ Wind-Specific Firmware Architecture
Pre-loaded control algorithms for pitch regulation, generator synchronization, and emergency shutdown sequences reduce programming time by 40-60% compared to generic PLC platforms.

✓ 64MB High-Speed Memory
Sufficient capacity for complex control logic, historical data buffering, and predictive maintenance analytics without external storage dependencies.

✓ Sub-Millisecond Cycle Performance
Typical scan times under 1ms ensure precise turbine blade positioning and rapid fault response, critical for maximizing energy capture and protecting mechanical components.

✓ Industrial-Grade Environmental Resilience
Operates reliably across -40°C to +70°C temperature range with conformal coating protection against humidity, salt spray, and vibration in offshore tower environments.

✓ Multi-Protocol Communication Suite
Native support for Modbus TCP, OPC UA, IEC 61850, and CANopen enables direct integration with turbine sensors, SCADA historians, and enterprise asset management systems.

✓ Field-Serviceable Hot-Swap Design
Replace modules during operation without system shutdown, reducing mean time to repair (MTTR) and eliminating costly turbine downtime during maintenance windows.

Typical Application Scenarios

→ Wind Turbine Primary Control Systems
Serves as the central controller for 2-5MW class turbines, managing pitch actuators, yaw drives, brake systems, and grid synchronization. Handles real-time sensor fusion from anemometers, vibration monitors, and temperature probes to optimize power output while preventing mechanical stress.

→ Offshore Wind Farm SCADA Networks
Deploy across distributed turbine arrays with Ethernet-based communication backbones. Aggregates operational data for centralized monitoring while executing autonomous control sequences during communication interruptions, ensuring continuous operation during network faults.

→ Renewable Energy Hybrid Systems
Integrate with solar inverters, battery storage controllers, and diesel gensets in microgrid applications. Coordinates load balancing, frequency regulation, and seamless transitions between energy sources based on availability and demand forecasting.

→ Industrial Process Automation Retrofit
Replace obsolete PLC-5 or S7-300 controllers in chemical processing, water treatment, or manufacturing environments requiring deterministic control with modern cybersecurity features and remote diagnostics capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the MPC240W 64 for wind turbines up to 3MW capacity with moderate I/O requirements (under 500 points). For larger installations or advanced predictive analytics, consider upgrading to the 128MB variant. Ensure compatibility with existing M1 backplane infrastructure (BS206/BS208/BS210 series) and verify power supply capacity (NT255 recommended).

Extended Functions & Integration Capabilities

IoT & Cloud Connectivity: Supports MQTT and OPC UA Pub/Sub for direct cloud historian integration with AWS IoT, Azure IoT Hub, or private SCADA platforms. Enable remote diagnostics and firmware updates via secure VPN tunnels.

Redundancy Configurations: Deploy in hot-standby pairs with automatic failover (< 50ms switchover time) for critical turbine control applications. Synchronize program execution and I/O states via dedicated redundancy links.

Customization Options: Factory-configurable firmware variants available for specific turbine OEM protocols (Vestas, Siemens Gamesa, GE Renewable Energy). Contact technical sales for custom I/O mapping and pre-commissioned solutions.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days. Custom-configured modules require 10-15 business days for factory programming and testing.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended 36-month warranty available for offshore installations.

Technical Support: Lifetime email/phone support for configuration assistance, troubleshooting, and firmware updates. On-site commissioning services available in major markets.

Documentation Package: Includes user manual, IEC 61131-3 programming guide, CAD drawings (STEP/DXF), and sample ladder logic for common wind turbine control sequences.

Frequently Asked Questions

Q: What programming software is compatible with the MPC240W 64 controller?
A: Use Bachmann SolutionCenter (M-Base) or CODESYS V3.5 SP16 or later. Both environments support IEC 61131-3 languages and provide integrated simulation tools for offline testing.

Q: Can this controller handle redundant safety-rated control loops?
A: The MPC240W 64 is designed for standard control applications. For SIL 2/3 safety functions, pair with Bachmann safety I/O modules (e.g., SS-DIO280) and certified safety logic solvers.

Q: How does memory capacity affect turbine control performance?
A: 64MB supports typical turbine control programs (20,000-40,000 lines of ladder logic) plus 7-14 days of high-resolution data logging. Larger programs or extended logging require the 128MB variant.

Q: Is the module compatible with legacy Bachmann M1 backplanes from 2010-2015?
A: Yes, the MPC240W 64 is backward-compatible with all M1 backplane generations. Firmware updates may be required for optimal performance with older power supply modules.

Q: What cybersecurity features are included for SCADA network protection?
A: Built-in firewall, encrypted communication (TLS 1.2), role-based access control, and audit logging. Supports VPN tunneling and certificate-based authentication for remote access.

Q: Can I upgrade from a standard MPC240 to the MPC240W without rewiring?
A: Yes, the modules are pin-compatible. Simply replace the hardware and load the wind-optimized firmware library. Existing I/O configurations and wiring remain unchanged.

Ready to Optimize Your Wind Energy Control System?

The Bachmann MPC240W 64 delivers the reliability, performance, and flexibility required for next-generation renewable energy infrastructure. Whether you're commissioning new turbines or modernizing existing installations, this controller provides a proven platform for maximizing uptime and energy production.

Request a technical consultation today to discuss your specific application requirements, system architecture, and integration roadmap. Our automation specialists can provide customized solutions, pre-configured modules, and on-site commissioning support to accelerate your project timeline.
