Industrial-Grade Computing Power for Mission-Critical Automation

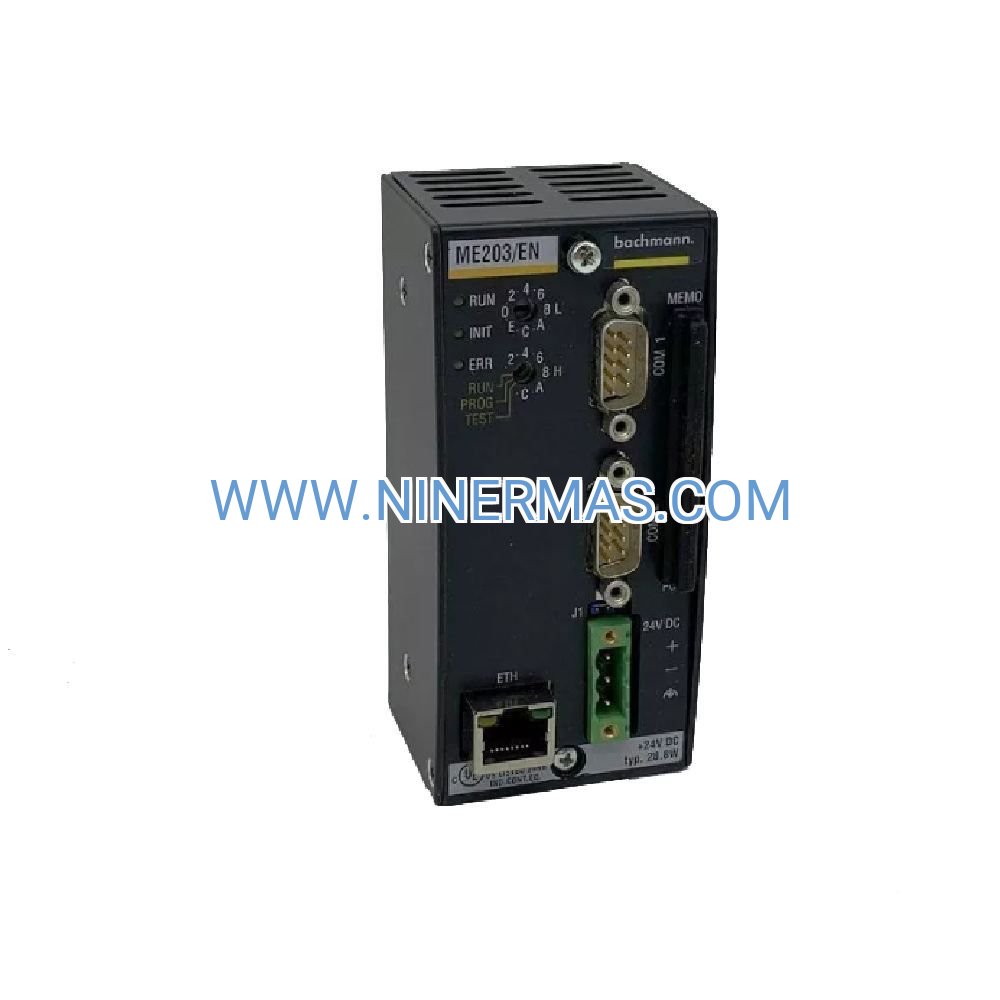

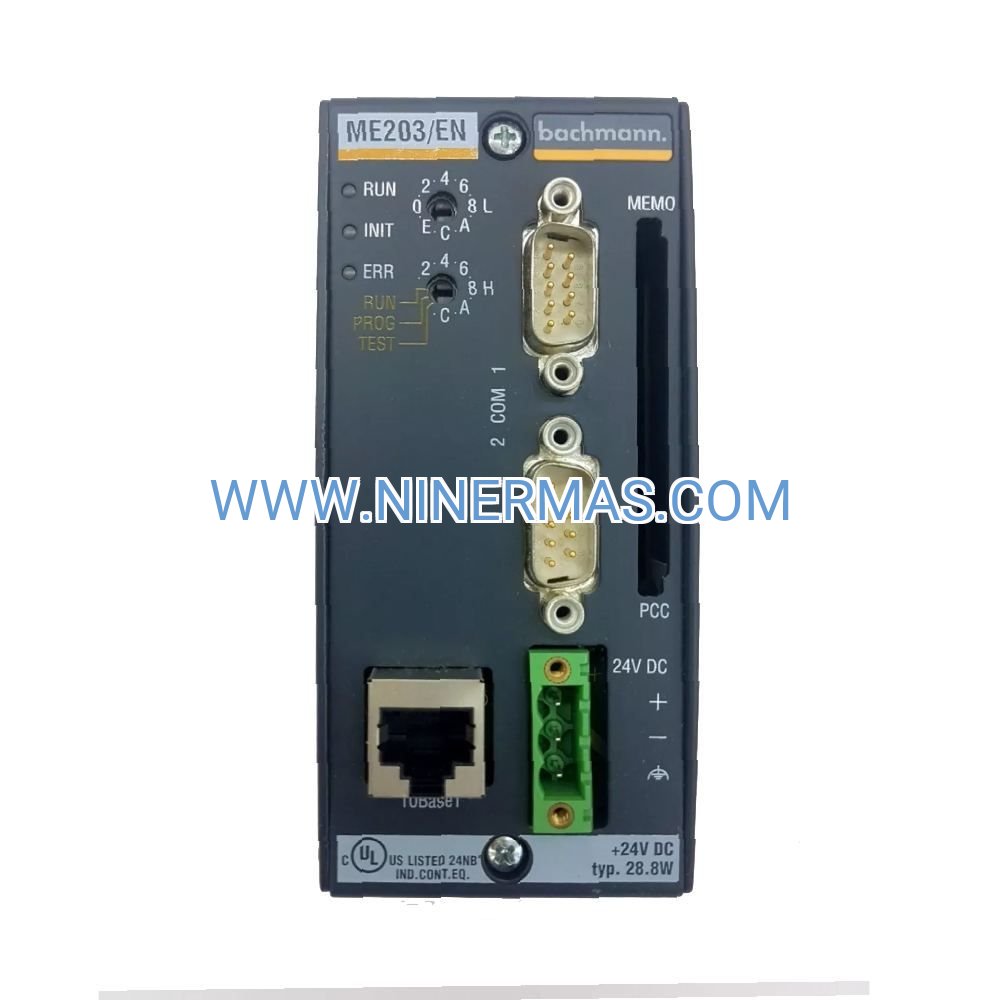

The BACHMANN ME203/EN represents a proven solution for industrial control applications demanding reliable processing in challenging environments. Built around the Intel 80386 EX architecture operating at 33 MHz with 8 MB DRAM, this processor module delivers deterministic performance for process automation, safety-critical systems, and distributed control networks across manufacturing, energy, and infrastructure sectors.

Designed for system integrators and plant engineers managing complex automation projects, the ME203/EN addresses the critical challenge of integrating legacy equipment with modern supervisory systems. Its tri-protocol communication architecture—combining Ethernet, RS232, and CAN interfaces—eliminates the need for external protocol converters while maintaining real-time control performance. With an extended operating temperature range of -40°C to +70°C and IP20 protection, this module thrives in harsh industrial conditions where commercial computing solutions fail.

Whether you're modernizing aging control infrastructure, building new distributed automation systems, or creating multi-protocol gateway applications, the ME203/EN provides the processing foundation for long-term operational reliability. BACHMANN's commitment to extended product lifecycle support ensures availability for critical infrastructure applications requiring 15+ year service life.

Core Capabilities & Technical Advantages

→ Proven Intel 80386 EX Architecture
33 MHz processing delivers consistent, deterministic control cycles essential for time-critical automation tasks. The mature architecture ensures predictable behavior and extensive software compatibility with legacy industrial applications.

→ Tri-Protocol Communication Hub
Integrated Ethernet, RS232, and CAN interfaces operate concurrently, enabling the module to function as a multi-protocol gateway. Connect to modern SCADA systems via Ethernet while maintaining RS232 links to legacy PLCs and CAN connectivity to distributed I/O networks—all without external converters.

✓ Extended Environmental Resilience
-40°C to +70°C operating range with 24V DC industrial power supply ensures reliable operation in extreme conditions. CE, UL, and cUL certifications validate compliance with international industrial safety standards.

✓ M1 System Integration
Standard M1 module format provides seamless compatibility with BACHMANN backplane infrastructure. Hot-swap capability minimizes downtime during maintenance, while modular architecture supports incremental system expansion as automation requirements evolve.

✓ 8 MB DRAM Capacity
Sufficient memory for complex control algorithms, data buffering, and multi-tasking operations. Supports IEC 61131-3 programming environments including Ladder Logic, Function Block Diagram, and Structured Text through BACHMANN SolutionCenter.

✓ Long-Term Availability Commitment
BACHMANN's extended product lifecycle policy ensures spare parts and technical support availability for critical infrastructure applications, protecting your automation investment against premature obsolescence.

Industrial Application Scenarios

Manufacturing Process Control
Deploy in production lines requiring coordination between multiple control zones. The ME203/EN manages real-time data acquisition from distributed sensors, executes control logic, and communicates process status to supervisory HMI systems. Multi-protocol capability enables integration of equipment from different vendors and technology generations within a unified control architecture.

Energy Management & Building Automation
Ideal for HVAC control systems, lighting management, and energy monitoring applications in commercial and industrial facilities. Ethernet connectivity enables integration with building management systems, while RS232 interfaces support legacy HVAC controllers and metering equipment. CAN bus connectivity provides efficient communication with distributed room controllers and sensor networks.

Legacy System Modernization
Bridge the gap between aging control equipment and modern supervisory systems without complete infrastructure replacement. The ME203/EN acts as a protocol translator and data concentrator, extending the operational life of existing automation investments while enabling gradual migration to contemporary control platforms.

Distributed Control Networks
Function as a remote terminal unit (RTU) in geographically distributed automation systems. Collect data from local I/O modules, execute autonomous control algorithms, and communicate with central SCADA systems via Ethernet. Deterministic processing ensures consistent control performance even during communication interruptions.

Safety System Integration
Support safety-critical applications when configured with appropriate redundancy modules. Hot-standby redundancy configurations provide continuous operation during processor failures, meeting high-availability requirements for critical infrastructure applications in utilities, transportation, and process industries.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ME203/EN when your application requires multi-protocol communication in a single module, compatibility with existing M1 infrastructure, or proven long-term reliability in harsh environments. For applications demanding higher processing power or expanded memory, consider the MX213 (256MB DRAM) or WT205LX800 (800MHz LX800 processor) alternatives. If PLC functionality with memory card expansion is required, the MP213/E controller module provides enhanced flexibility.

System Expansion & Integration Options

Backplane Infrastructure: The ME203/EN mounts on BACHMANN M1 system backplanes, available in 6-slot (BS206) and 10-slot (BS210) configurations. Select backplane capacity based on total I/O requirements and future expansion needs. Each backplane supports hot-swap module replacement for minimal downtime during maintenance.

Power Supply Coordination: Pair with BACHMANN NT255 power supply modules rated for 24V DC industrial environments. Calculate total system power consumption including processor, I/O modules, and communication interfaces to ensure adequate power supply capacity with 20% margin for reliability.

I/O Module Integration: Expand system capabilities with BACHMANN I/O modules including DIO216/4 for discrete signal processing (16 configurable channels) and AIO288/3 for analog measurement and control (8 inputs, 8 outputs, 14-bit resolution). Mix digital and analog I/O modules on the same backplane to match specific application requirements.

Redundancy Configuration: Implement hot-standby redundancy using dual ME203/EN processors with BACHMANN redundancy modules. Configure automatic failover through SolutionCenter development environment to achieve high-availability operation for critical infrastructure applications.

Delivery, Warranty & Technical Support

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Custom configurations or bulk orders: 2-3 weeks lead time depending on specification requirements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes replacement or repair at our discretion, with expedited shipping for critical applications.

Technical Support: Access to BACHMANN-certified application engineers for configuration assistance, troubleshooting, and system design consultation. Support includes programming guidance for IEC 61131-3 environments, communication protocol configuration, and integration with third-party equipment.

Documentation Package: Each module ships with installation manual, technical datasheet, communication protocol specifications, and quick-start guide. Complete programming documentation and SolutionCenter development software available via download portal.

Frequently Asked Questions

Can the ME203/EN processor integrate with non-BACHMANN I/O systems?
Yes, through its Ethernet and RS232 interfaces, the ME203/EN communicates with third-party I/O systems using standard industrial protocols including Modbus RTU, Modbus TCP, and Profibus. CAN interface supports CANopen and DeviceNet for distributed I/O integration.

What programming software is required for application development?
BACHMANN SolutionCenter provides the complete development environment supporting IEC 61131-3 languages (Ladder Logic, Function Block Diagram, Structured Text, Instruction List). The software includes simulation tools, debugging capabilities, and configuration utilities for communication interfaces.

How does processing performance compare to modern PLC controllers?
While newer processors offer higher clock speeds, the ME203/EN's deterministic architecture and optimized real-time operating system deliver consistent scan times suitable for most industrial control applications. The 33 MHz Intel 80386 EX handles typical control loops, data acquisition, and communication tasks with microsecond-level precision.

Is remote programming and diagnostics supported over Ethernet?
Absolutely. The integrated Ethernet interface enables remote connection via BACHMANN SolutionCenter for program uploads, online debugging, parameter modification, and system diagnostics. Secure VPN connectivity is recommended for remote access over public networks.

What is the expected operational lifespan in continuous-duty applications?
BACHMANN industrial processors are engineered for 15+ years continuous operation with proper environmental conditions and maintenance. MTBF exceeds 200,000 hours at 40°C ambient temperature. Extended product lifecycle support ensures spare parts availability throughout the operational life.

Can I upgrade from ME203/EN to higher-performance processors without system redesign?
Yes, BACHMANN M1 system architecture supports processor upgrades within the same backplane infrastructure. Migration to MX213, MPC240, or WT205LX800 processors requires application program adaptation but maintains compatibility with existing I/O modules and wiring.

Ready to Modernize Your Industrial Control System?

Contact our automation specialists to discuss your specific application requirements. We provide technical consultation, system design assistance, and configuration support to ensure optimal processor selection and integration. Request a detailed quotation including recommended backplane, power supply, and I/O modules for your complete automation solution.
