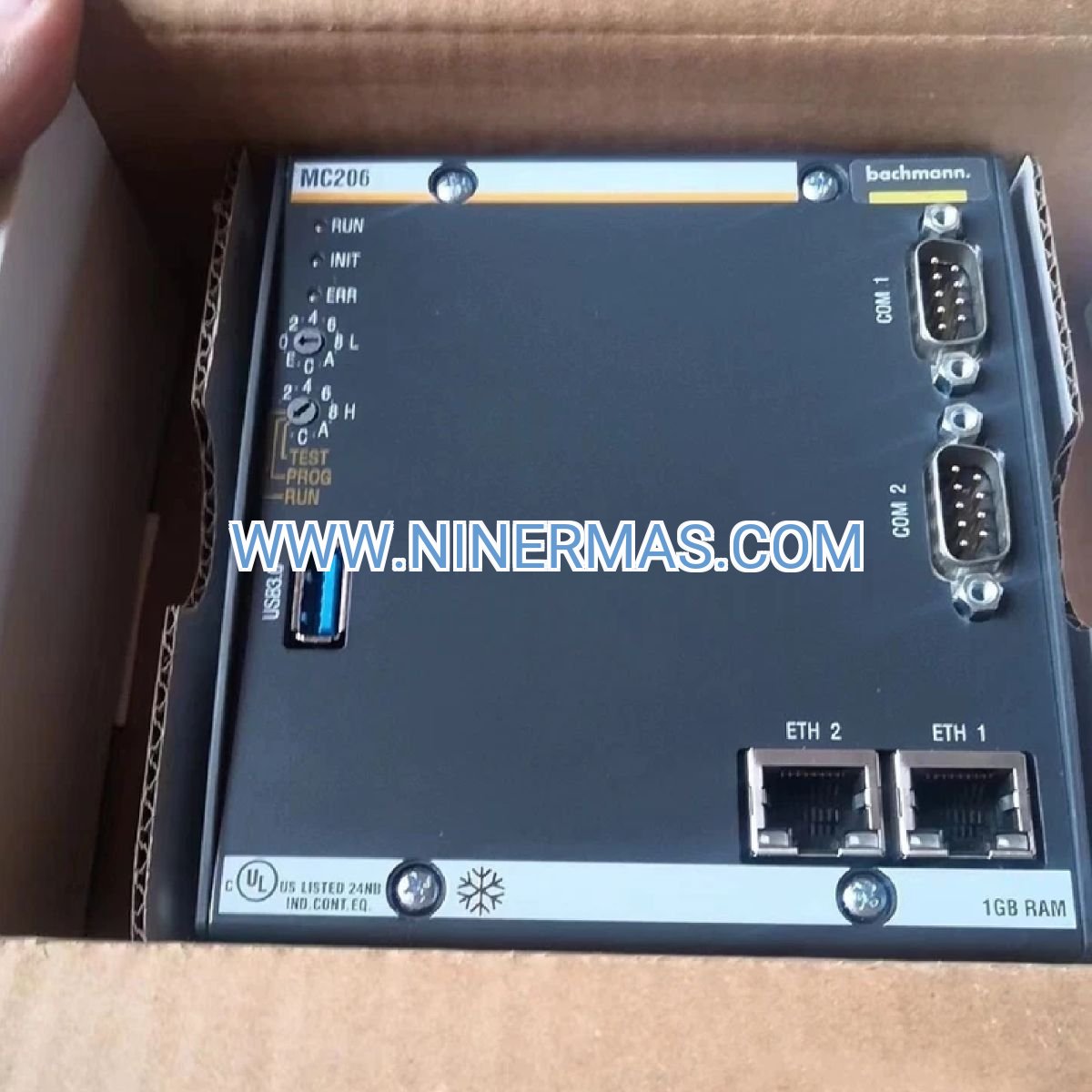

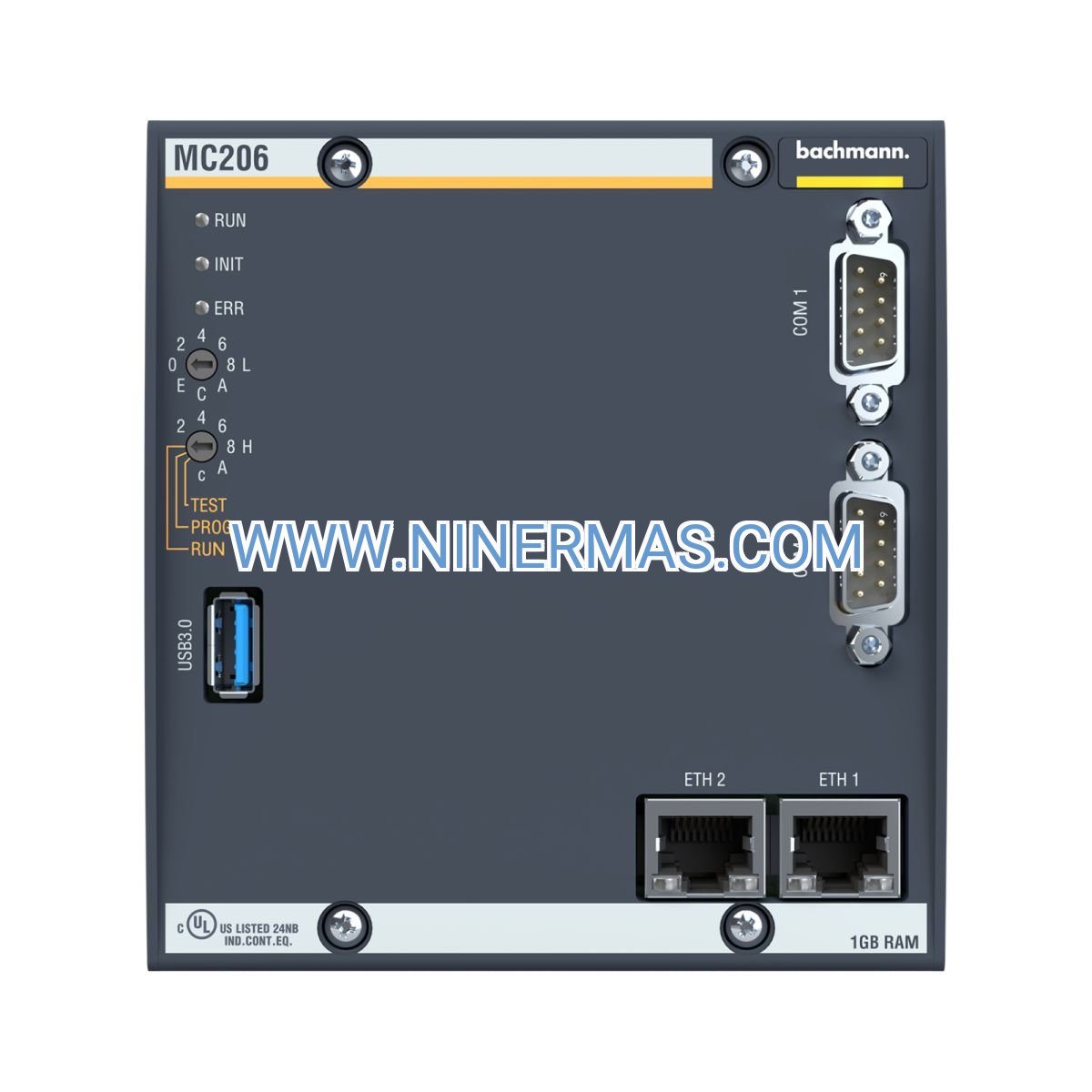

MC206 Industrial Controller Module – Enterprise-Grade PLC CPU for Critical Automation

The MC206 represents a breakthrough in industrial control technology, delivering enterprise-class processing power within the proven M1 automation framework. Built around a high-performance RISC architecture clocked at 1000MHz, this controller module transforms complex automation challenges into streamlined, deterministic solutions for manufacturers, process engineers, and system integrators worldwide.

Designed for mission-critical environments where downtime is not an option, the MC206 combines computational muscle with industrial resilience. From chemical batch processing to high-speed packaging lines, this controller handles multi-axis coordination, advanced PID algorithms, and real-time data logging without breaking stride. Whether you're modernizing legacy systems or architecting greenfield installations, the MC206 provides the performance headroom and protocol flexibility your operation demands.

What sets the MC206 apart is its seamless integration within the Bachmann M1 ecosystem—pair it with specialized I/O modules, communication gateways, and backplane configurations to build scalable solutions that grow with your business. With IEC 61131-3 programming compliance and multi-protocol networking, you gain vendor independence and future-proof flexibility.

Application Scenarios: Where the MC206 Excels

→ Chemical & Pharmaceutical Processing
Manage complex batch recipes, cascade PID loops, and regulatory compliance logging in GMP-certified facilities. The MC206's deterministic scan times ensure precise temperature ramping, pH control, and ingredient dosing—critical for product consistency and FDA validation.

→ Packaging & Material Handling
Orchestrate high-speed conveyor systems, robotic pick-and-place operations, and vision inspection integration. The 1GHz processor handles motion profiling for servo drives while simultaneously managing barcode tracking and reject mechanisms—boosting OEE by minimizing changeover times.

→ Water & Wastewater Treatment
Centralize SCADA control for multi-site operations with remote pump stations, filtration systems, and chemical dosing. The MC206's Ethernet/IP and Modbus TCP support enables seamless HMI integration and cloud-based analytics for predictive maintenance.

→ Energy Management & Building Automation
Deploy intelligent HVAC control, demand-response optimization, and lighting schedules across commercial campuses. The controller's analog I/O integration and BACnet compatibility reduce energy consumption by 15-30% through adaptive algorithms.

→ Food & Beverage Production
Ensure food safety compliance with automated CIP (Clean-in-Place) sequencing, temperature monitoring, and traceability logging. The MC206's wide operating temperature range (-40°C to +70°C) suits cold storage and thermal processing zones alike.

Core Capabilities & Business Value

✓ 1000MHz RISC Processing Power
Execute complex control algorithms, data transformations, and communication protocols simultaneously without performance degradation. Typical scan times under 5ms enable sub-millisecond response for safety-critical interlocks.

✓ IEC 61131-3 Programming Flexibility
Choose from Ladder Logic (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), or Instruction List (IL). Reuse existing code libraries and leverage industry-standard development practices to reduce engineering costs by 40%.

✓ Multi-Protocol Networking
Native support for Ethernet/IP, PROFINET, Modbus TCP/RTU, CANopen, and OPC UA eliminates gateway hardware. Connect to ABB drives, Siemens HMIs, and third-party sensors using a single controller—cutting BOM costs and cabinet space.

✓ Industrial-Hardened Design
IP20-rated enclosure with conformal coating withstands vibration, humidity, and electromagnetic interference. Extended temperature operation (-40°C to +70°C) suits outdoor installations and harsh production floors without climate control.

✓ Scalable I/O Architecture
Support up to 4096 digital points and 1024 analog channels through M1 backplane expansion. Hot-swap I/O modules during operation for zero-downtime maintenance—critical for 24/7 continuous processes.

✓ Redundancy-Ready Configuration
Deploy hot-standby controller pairs for high-availability applications. Automatic failover in under 100ms protects against single-point failures in utilities, pharmaceuticals, and transportation systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the MC206 when your application requires scan times under 10ms, supports more than 512 I/O points, or demands multi-protocol integration. For smaller systems (under 256 I/O), consider the MC205 variant. For motion-intensive applications with >8 servo axes, evaluate the MPC240 with dedicated motion coprocessor.

Extended Functions & IoT Integration

Cloud Connectivity: Built-in OPC UA server enables secure data publishing to AWS IoT, Azure IoT Hub, or private MQTT brokers. Stream production metrics, alarm histories, and energy consumption for predictive analytics and remote diagnostics.

Cybersecurity Features: Role-based access control (RBAC), encrypted communication channels, and audit logging meet IEC 62443 industrial cybersecurity standards. Protect intellectual property and prevent unauthorized program modifications.

Custom Function Blocks: Develop proprietary control algorithms in C/C++ and integrate as reusable function blocks. Protect competitive advantages while maintaining IEC 61131-3 compatibility for system integrators.

Edge Computing: Execute machine learning inference models directly on the controller for quality prediction, anomaly detection, and adaptive process optimization—reducing cloud latency and bandwidth costs.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for stock items shipped from our regional distribution centers in North America, Europe, and Asia-Pacific. Expedited 24-hour shipping available for critical downtime situations.

Custom Configuration: Pre-programmed controllers with your application code, I/O mapping, and network settings ship within 7-10 business days. Reduce commissioning time by 60% with plug-and-play deployment.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended 36-month warranty plans available with annual calibration and firmware update services.

Technical Support: Lifetime access to our automation engineers for configuration assistance, troubleshooting, and optimization guidance. Average response time: under 2 hours during business hours, 24/7 emergency support for critical systems.

Documentation Package: Every MC206 ships with quick-start guide, wiring diagrams, CAD models (STEP/DXF), and sample code libraries. Access our online knowledge base with 200+ application notes and video tutorials.

Frequently Asked Questions

How does the MC206 compare to Allen-Bradley CompactLogix or Siemens S7-1200 controllers?
The MC206 offers comparable processing power at 30-40% lower total cost of ownership. Unlike proprietary ecosystems, the M1 platform supports multi-vendor I/O and open communication protocols, reducing vendor lock-in. Typical project savings: $8,000-$15,000 on a 500-point system.

Can I migrate programs from older Bachmann MC205 or MC204 controllers?
Yes—the MC206 maintains backward compatibility with legacy M1 code. Import existing projects into SolutionCenter software, recompile for the new processor, and download. Hardware migration typically completes in under 4 hours with our conversion service.

What programming software is required for the MC206 controller?
Bachmann SolutionCenter (free download) provides the complete development environment. Includes IEC 61131-3 editors, simulation tools, and online debugging. Runs on Windows 10/11; no annual licensing fees or dongles required.

Does the MC206 support third-party HMI panels and SCADA systems?
Absolutely—tested with Wonderware, Ignition, FactoryTalk, WinCC, and Indusoft via OPC UA, Modbus TCP, or Ethernet/IP. We provide pre-built tag databases and symbol files to accelerate HMI development.

What is the maximum distance for remote I/O modules on the M1 backplane?
Local backplane I/O connects directly via the bus (no distance limit within backplane). For distributed I/O, use Ethernet/IP or PROFINET to extend up to 100 meters with standard Cat5e cable, or several kilometers with fiber optic converters.

How do I implement controller redundancy for high-availability applications?
Deploy two MC206 controllers in hot-standby configuration using the Bachmann redundancy module. Primary and backup controllers synchronize program execution and I/O states. Automatic switchover occurs in <100ms upon primary failure—transparent to the process.

Get Started with the MC206 Today

Transform your automation challenges into competitive advantages. Our application engineers are ready to discuss your specific requirements, recommend optimal system configurations, and provide budget quotations within 24 hours. Contact us for technical datasheets, reference designs, or to schedule a live demonstration of the MC206 in action.
