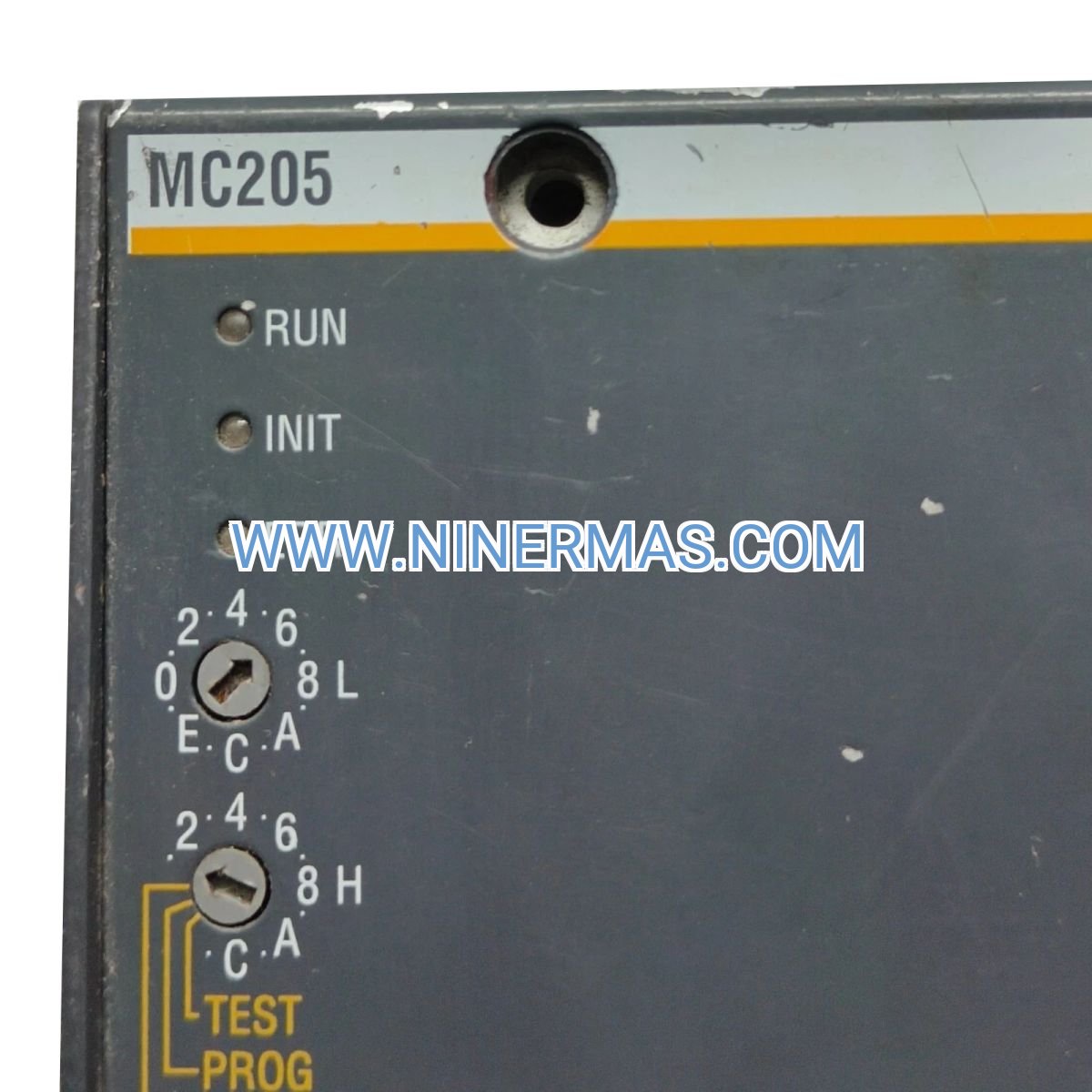

MC205 Controller Module – Industrial-Grade PLC CPU for M1 Automation

The Bachmann MC205 (00018805-12) is a high-performance programmable logic controller designed for mission-critical industrial automation. Built on a dual-architecture 32/64-bit RISC platform, this controller delivers deterministic real-time processing for complex control algorithms, data acquisition, and multi-protocol communication in manufacturing, process control, and infrastructure applications.

Engineered for the M1 modular automation ecosystem, the MC205 addresses the challenges of legacy system integration, distributed I/O management, and harsh environmental operation. Whether you're modernizing aging PLCs or deploying greenfield installations, this controller provides the computational headroom and industrial reliability demanded by today's smart manufacturing initiatives.

With extended temperature tolerance, comprehensive protocol support, and seamless integration with Bachmann's I/O portfolio, the MC205 serves as the central intelligence for automated production lines, utility infrastructure, and safety-instrumented systems requiring 24/7 uptime.

Key Features & Technical Advantages

→ Dual-Architecture Processing Power
The MC205 leverages a 32/64-bit RISC processor architecture delivering superior instruction throughput compared to traditional PLC CPUs. This computational advantage enables complex mathematical operations, predictive algorithms, and high-speed data logging without compromising scan time performance.

→ Scalable Memory Configuration
128-512MB DDR RAM provides ample capacity for large control programs, historical data buffering, and recipe management. The expandable memory architecture future-proofs your investment as application complexity grows over the system lifecycle.

→ Real-Time Linux Operating System
Built on a hardened real-time Linux kernel, the MC205 guarantees deterministic task execution with microsecond-level precision. This RTOS foundation supports advanced features including multitasking, priority scheduling, and secure remote access while maintaining IEC 61131-3 programming compatibility.

✓ Multi-Protocol Communication Hub
Native support for Ethernet, serial, and fieldbus interfaces eliminates the need for external gateways. Connect directly to SCADA systems, HMIs, drives, and third-party devices using Modbus TCP/RTU, PROFINET, EtherNet/IP, OPC UA, and CANopen protocols.

✓ Extended Environmental Specifications
Operating temperature range of -40°C to +70°C enables deployment in outdoor enclosures, unheated facilities, and extreme climate zones without supplemental HVAC. Conformal coating options provide additional protection against moisture, dust, and chemical exposure.

✓ Hot-Swappable Redundancy Support
Implement fault-tolerant architectures using dual MC205 controllers in hot-standby configuration. Automatic failover ensures continuous operation during controller maintenance or unexpected failures in safety-critical applications.

Industrial Application Scenarios

Water & Wastewater Treatment
Municipal water treatment facilities deploy the MC205 for supervisory control of filtration, chemical dosing, and distribution pumping systems. The controller's multi-protocol capability integrates legacy SCADA infrastructure with modern IoT sensors, while extended temperature ratings support outdoor lift station installations. Typical deployments achieve 99.9% uptime with redundant controller configurations.

Food & Beverage Processing
Batch processing operations leverage the MC205's recipe management and precise timing control for mixing, pasteurization, and packaging sequences. Integration with temperature modules enables closed-loop thermal control meeting HACCP validation requirements. The controller's washdown-compatible mounting options suit sanitary production environments.

Oil & Gas Pipeline Monitoring
Remote pipeline monitoring stations utilize the MC205's low-power operation and extended temperature tolerance for unmanned installations. The controller aggregates flow, pressure, and leak detection data while communicating with central SCADA via cellular or satellite links. Built-in data logging captures critical events during communication outages.

Building Automation & HVAC
Commercial building management systems employ the MC205 for coordinated control of chillers, boilers, air handlers, and lighting circuits. The controller's BACnet and Modbus support simplifies integration with third-party building systems, while scheduling functions optimize energy consumption based on occupancy patterns.

Renewable Energy Systems
Solar tracking and wind turbine control applications benefit from the MC205's high-speed positioning capabilities and weather-resistant specifications. The controller executes maximum power point tracking algorithms while logging performance data for predictive maintenance analytics.

Technical Specifications & Selection Guide

Selection Criteria: Choose the MC205 when your application requires moderate computational performance (1-5ms scan times), multi-protocol connectivity, and extended environmental tolerance. For applications demanding sub-millisecond determinism or motion control with >8 axes, consider the higher-performance MPC240 or MPC270 controllers. For cost-sensitive applications with simpler logic requirements, the MP213 series offers an economical alternative.

Advanced Integration Capabilities

IIoT & Cloud Connectivity
The MC205's OPC UA server functionality enables secure data exchange with cloud analytics platforms, MES systems, and enterprise databases. Built-in MQTT client support facilitates edge-to-cloud data pipelines for predictive maintenance and production optimization initiatives.

Cybersecurity Features
Implement defense-in-depth strategies using the MC205's integrated firewall, VPN support, and role-based access control. Regular security patches and firmware updates protect against emerging threats in connected industrial environments.

Custom Function Blocks
Extend controller functionality using C/C++ custom function blocks for specialized algorithms, third-party device drivers, or proprietary control strategies. The open development environment supports rapid prototyping and deployment of application-specific logic.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days. Custom memory configurations or special firmware versions may require 2-3 weeks. Express shipping available for critical replacements.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for mission-critical installations requiring guaranteed spare parts availability.

Technical Support: Complimentary application engineering assistance includes system architecture review, I/O configuration guidance, and programming support. Access to online knowledge base, firmware downloads, and technical bulletins included with purchase.

Documentation Package: Each controller ships with installation manual, programming reference, communication protocol guides, and CAD drawings for panel layout. SolutionCenter IDE software available for free download.

Frequently Asked Questions

What programming software is required for the MC205 controller?
Bachmann's SolutionCenter development environment supports all IEC 61131-3 languages (LD, FBD, ST, IL, SFC) and runs on Windows 10/11 platforms. The software is available as a free download with hardware purchase, though advanced features may require licensing.

Can the MC205 replace older Bachmann controllers in existing systems?
Yes, the MC205 maintains backward compatibility with M1 backplane infrastructure and most legacy I/O modules. Program migration tools assist in converting applications from MP200, MP213, and earlier controller generations. Consult compatibility matrices for specific module combinations.

How many I/O points can a single MC205 controller manage?
The MC205 supports up to 4,096 digital I/O points and 1,024 analog channels when using distributed I/O expansion. Actual capacity depends on scan time requirements, communication overhead, and program complexity. Typical installations range from 256-1,024 total I/O points.

What is the typical scan time performance for industrial control programs?
Scan times vary from 1-5ms for typical ladder logic programs with moderate I/O counts. Complex applications using floating-point math, PID loops, and communication tasks may extend to 10-20ms. Real-time task scheduling allows critical loops to execute at higher priority for guaranteed response times.

Does the MC205 support motion control applications?
The MC205 provides basic positioning control for up to 4 axes using pulse/direction or analog velocity commands. For coordinated multi-axis motion, electronic camming, or high-speed registration, pair with dedicated ISI222 positioning modules or upgrade to motion-optimized MPC controllers.

What cybersecurity measures are built into the MC205 platform?
Standard security features include encrypted communication channels, user authentication, role-based permissions, and audit logging. The controller supports VPN tunneling for secure remote access and integrates with industrial firewalls for network segmentation. Regular firmware updates address emerging vulnerabilities.

Ready to Modernize Your Control System?

The Bachmann MC205 Controller Module delivers the performance, reliability, and flexibility required for next-generation industrial automation. Our application engineers are ready to assist with system design, I/O selection, and migration planning.

Contact our technical sales team today: Provide your application requirements, existing system details, and performance objectives for a customized solution proposal including controller configuration, I/O modules, and programming services.
