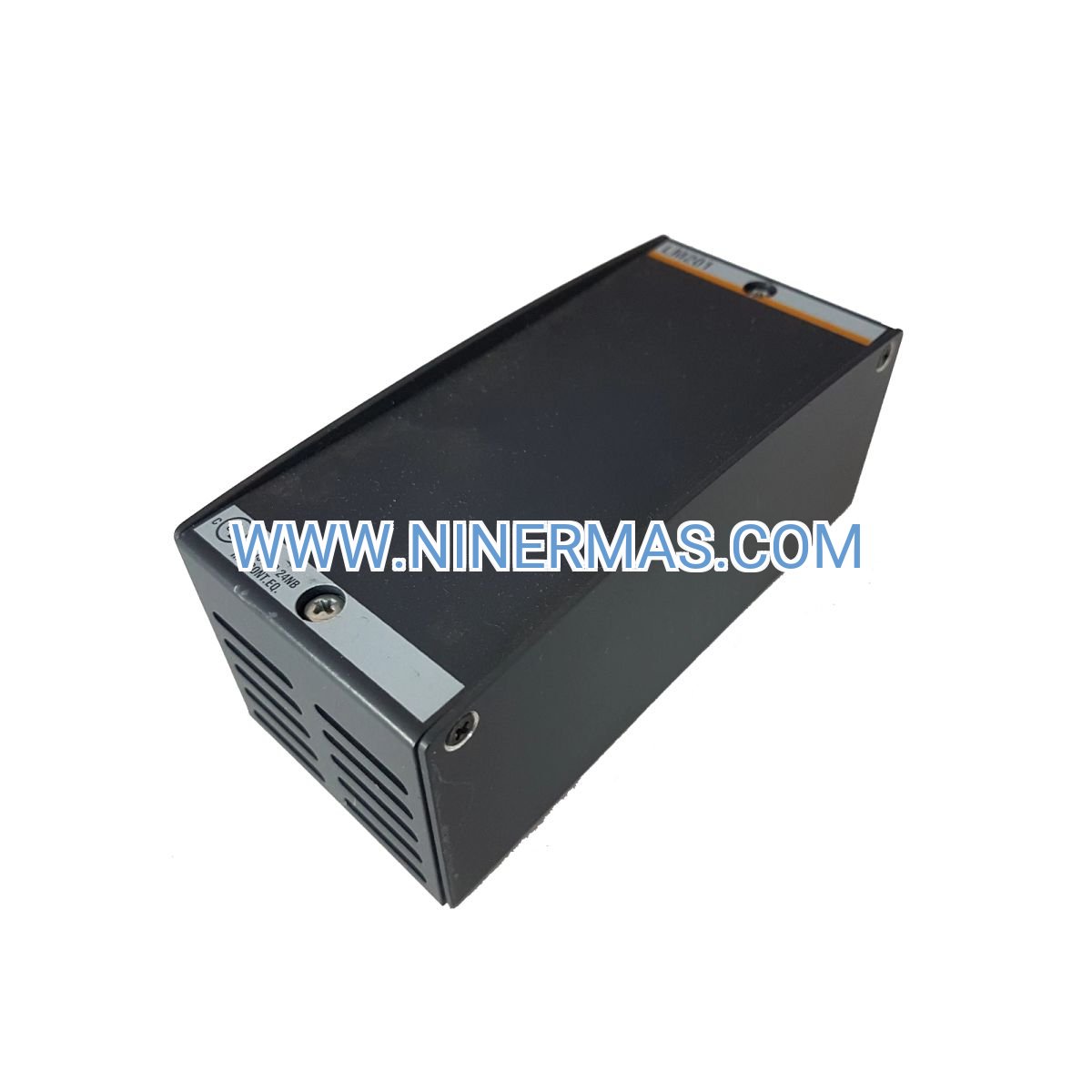

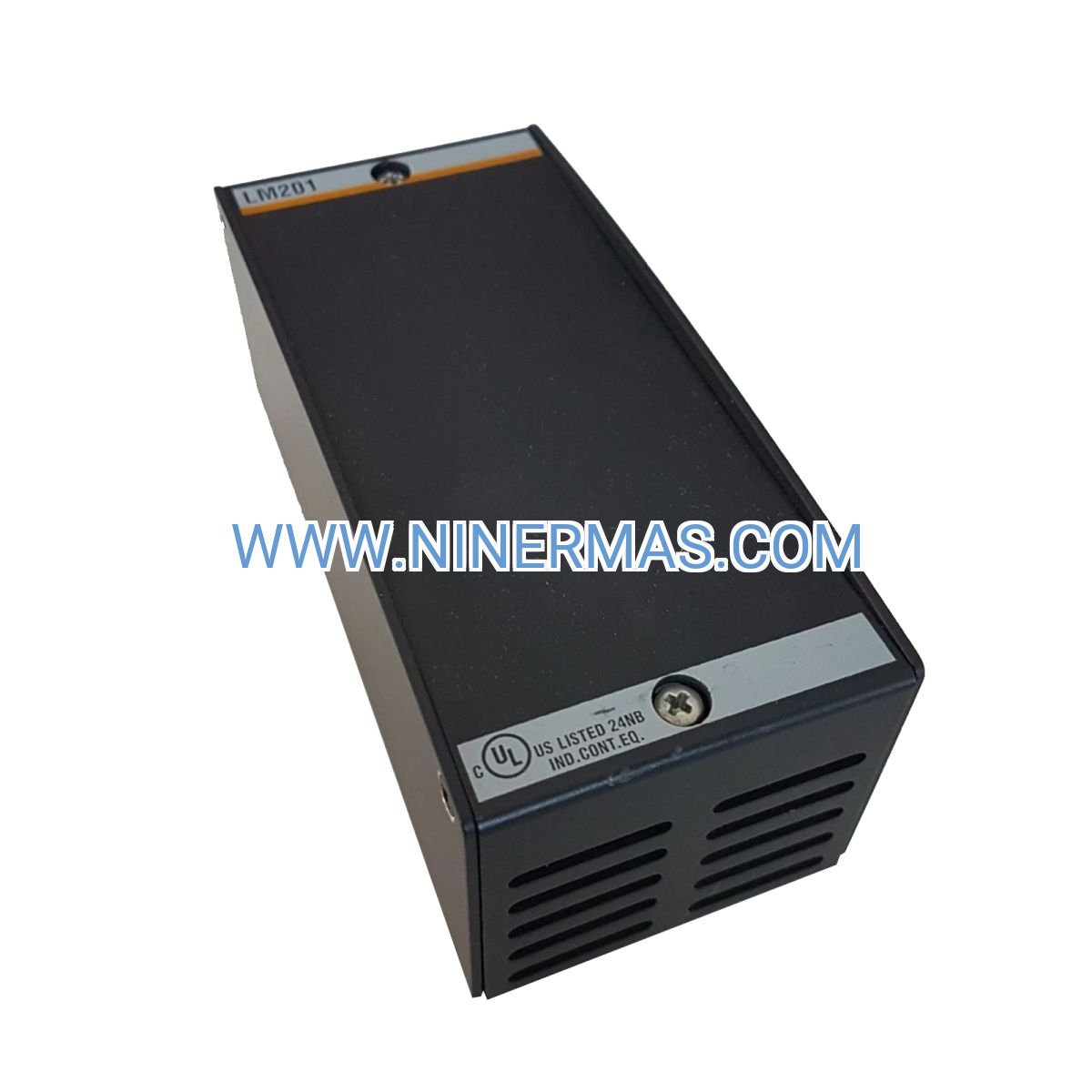

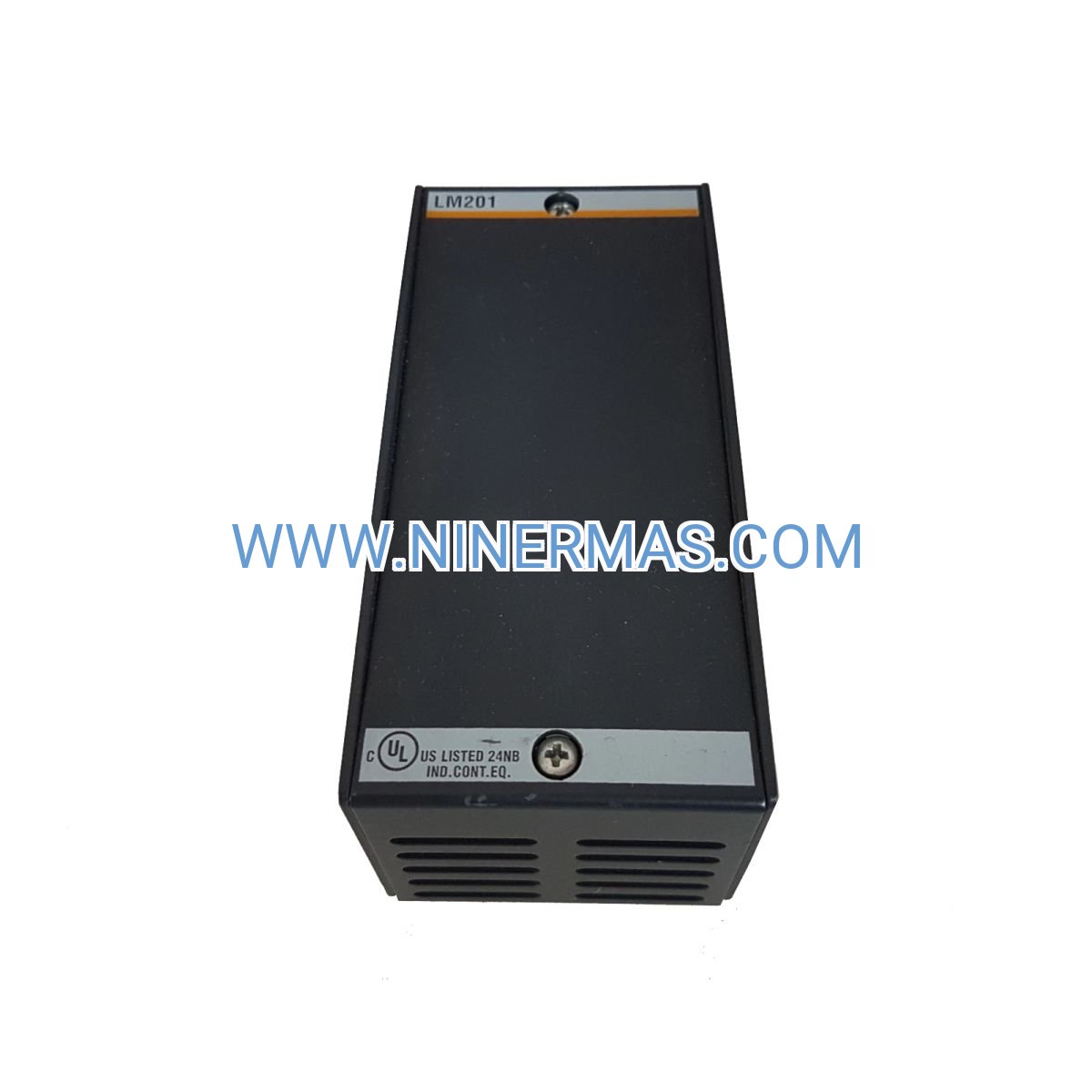

LM201 Backplane Slot Cover (Industrial-Grade Dummy Module)

The Bachmann LM201 is a precision-engineered slot placeholder designed to maintain backplane integrity in M1 automation systems. This non-electronic module occupies vacant positions on your control rack, preventing environmental contamination and electromagnetic interference while reserving capacity for future I/O expansion. Ideal for phased deployments where system architecture must accommodate growth without compromising current operational reliability.

Engineered for industrial environments where dust ingress, moisture exposure, and EMI can degrade system performance, the LM201 provides a cost-effective safeguard for unused backplane slots. Whether you're building a scalable manufacturing line or deploying modular process control infrastructure, this dummy module ensures your automation backbone remains protected and expansion-ready.

Certified to international safety and marine standards (CE, cULus, ABS, DNV, LR), the LM201 delivers peace of mind for mission-critical applications across factory automation, marine propulsion systems, and industrial process control installations.

Core Functions & Business Value

→ Backplane Environmental Protection
Seals unused module positions against dust, moisture, and airborne contaminants that can corrode connectors or create short-circuit risks. Reduces maintenance costs by preventing backplane degradation in harsh industrial settings.

✓ EMC Compliance Assurance
Maintains electromagnetic compatibility by eliminating open slots that act as EMI entry points. Critical for installations near high-frequency drives, welding equipment, or radio transmitters where signal integrity is paramount.

✓ Future-Proof System Architecture
Reserves physical space for additional I/O modules, communication cards, or specialty interfaces without requiring rack reconfiguration. Supports agile manufacturing strategies where production lines evolve with market demands.

• Mechanical Backplane Reinforcement
Distributes mechanical stress across the entire rack structure, preventing flexing or connector misalignment in mobile or vibration-prone installations such as offshore platforms or vehicle-mounted systems.

• Simplified Inventory Management
Standardized placeholder module eliminates the need for custom covers or makeshift solutions. Single SKU simplifies procurement and reduces spare parts complexity across multi-site operations.

• Rapid Deployment Enablement
Pre-installed dummy modules allow immediate system commissioning while final I/O requirements are finalized. Accelerates project timelines by decoupling mechanical installation from functional configuration.

Typical Application Scenarios

Phased Factory Automation Rollouts
Manufacturers implementing Industry 4.0 upgrades often deploy control systems in stages. The LM201 occupies slots designated for future sensor networks, vision systems, or robotics interfaces while Phase 1 production lines become operational. This approach reduces upfront capital expenditure while maintaining architectural flexibility.

Marine Propulsion & Power Management
Shipbuilders install M1 systems with LM201 placeholders in engine rooms and bridge control panels. As vessels undergo sea trials, additional monitoring modules are added without drydock downtime. Marine certifications (ABS, DNV, LR) ensure compliance with classification society requirements.

Process Industry Brownfield Upgrades
Chemical plants and refineries replacing legacy DCS systems use dummy modules to protect backplanes during multi-year migration projects. Slots remain sealed against corrosive atmospheres while engineering teams validate new control strategies in parallel with existing operations.

OEM Machine Builder Standardization
Equipment manufacturers design modular machines with standardized M1 racks. Base models ship with LM201 covers in premium feature slots, allowing end-users to activate advanced capabilities through simple module swaps rather than costly retrofits.

Critical Infrastructure Redundancy Planning
Utility operators and data centers maintain hot-swappable spare capacity by pre-installing dummy modules. During unplanned outages, technicians replace failed I/O cards without exposing the backplane to contamination, minimizing mean-time-to-repair.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the LM201 when your M1 system design includes unused backplane positions that require environmental protection. This module is essential for installations in dusty manufacturing environments, marine applications subject to salt spray, or outdoor enclosures exposed to temperature cycling. Not required for fully populated racks or climate-controlled server rooms with positive air pressure.

For systems requiring hot-swap capability during operation, verify that your backplane supports live insertion before removing dummy modules. Consult Bachmann M1 system documentation for slot-specific power distribution and grounding requirements.

Extended Capabilities

Modular System Integration
The LM201 integrates seamlessly with the complete Bachmann M1 ecosystem, including CPU modules, I/O cards, communication gateways, and power supplies. Standardized mechanical dimensions ensure compatibility across all M1 rack configurations, from compact 4-slot systems to extended 16-slot industrial chassis.

Customization Options
While the standard LM201 suits most applications, Bachmann offers custom labeling and color-coding services for large OEM orders. Contact our technical sales team to discuss project-specific requirements such as laser-etched asset tags or color-matched faceplates for corporate branding.

Lifecycle Management
As a passive mechanical component with no firmware or electronic wear mechanisms, the LM201 has an indefinite service life when used within specified environmental limits. This eliminates obsolescence concerns common with active electronic modules, making it ideal for long-term infrastructure projects with 20+ year operational horizons.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Bulk orders (50+ units) may require 2-3 weeks for factory fulfillment. Expedited shipping available for urgent project deadlines.

Warranty Coverage: 12-month manufacturer warranty against material defects and workmanship issues. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Our automation specialists provide pre-sales consultation on system architecture, compatibility verification, and integration planning. Post-purchase support includes installation guidance, troubleshooting assistance, and replacement part coordination.

Documentation Package: Each LM201 ships with installation instructions, compliance certificates (CE/cULus/Marine), and compatibility matrix for M1 system variants. CAD drawings and 3D STEP files available for mechanical design integration.

Frequently Asked Questions

Q: Can the LM201 dummy module be installed while the M1 system is powered on?
A: Installation procedures depend on your specific M1 backplane model. Most configurations support hot-insertion of dummy modules, but we recommend consulting the M1 system manual or contacting technical support to verify safe installation practices for your rack variant. Always follow lockout-tagout procedures in industrial environments.

Q: How many LM201 modules do I need for a 12-slot M1 rack with 8 active modules?
A: You would need 4 LM201 dummy modules to occupy the remaining vacant slots. This ensures complete backplane protection and maintains EMC compliance across the entire rack assembly. Consider ordering 1-2 spare units for future rack reconfigurations.

Q: Does the LM201 improve system energy efficiency or reduce power consumption?
A: As a passive placeholder with no electronic components, the LM201 does not consume power or affect system energy usage. Its primary value lies in protecting backplane integrity and enabling flexible system expansion rather than operational efficiency gains.

Q: What installation tools are required to mount the LM201 in an M1 backplane?
A: The LM201 uses Bachmann's standard module retention mechanism, typically requiring no tools for installation. Simply align the module with the vacant slot and press firmly until the locking tabs engage. Removal may require a small flathead screwdriver to release retention clips, depending on your rack model.

Q: Can LM201 dummy modules be used in outdoor enclosures or extreme temperature environments?
A: Yes, the LM201 is rated for the same environmental conditions as active M1 modules. It provides effective protection in outdoor NEMA/IP-rated enclosures, offshore platforms, and industrial settings with temperature ranges from -40°C to +70°C (verify against your specific M1 system specifications).

Q: Are there any maintenance or inspection requirements for installed LM201 modules?
A: No routine maintenance is required. During scheduled system inspections, visually verify that dummy modules remain securely seated and that no physical damage has occurred. Replace any modules showing cracks, deformation, or compromised retention clips to maintain backplane protection.

Get Your System Protected Today

Secure your M1 automation infrastructure with genuine Bachmann LM201 dummy modules. Our technical team is ready to assist with system planning, bulk pricing for multi-rack installations, and expedited delivery for time-critical projects.

Request a quote or technical consultation: Contact our automation specialists to discuss your specific application requirements and receive personalized recommendations for optimal system configuration.
