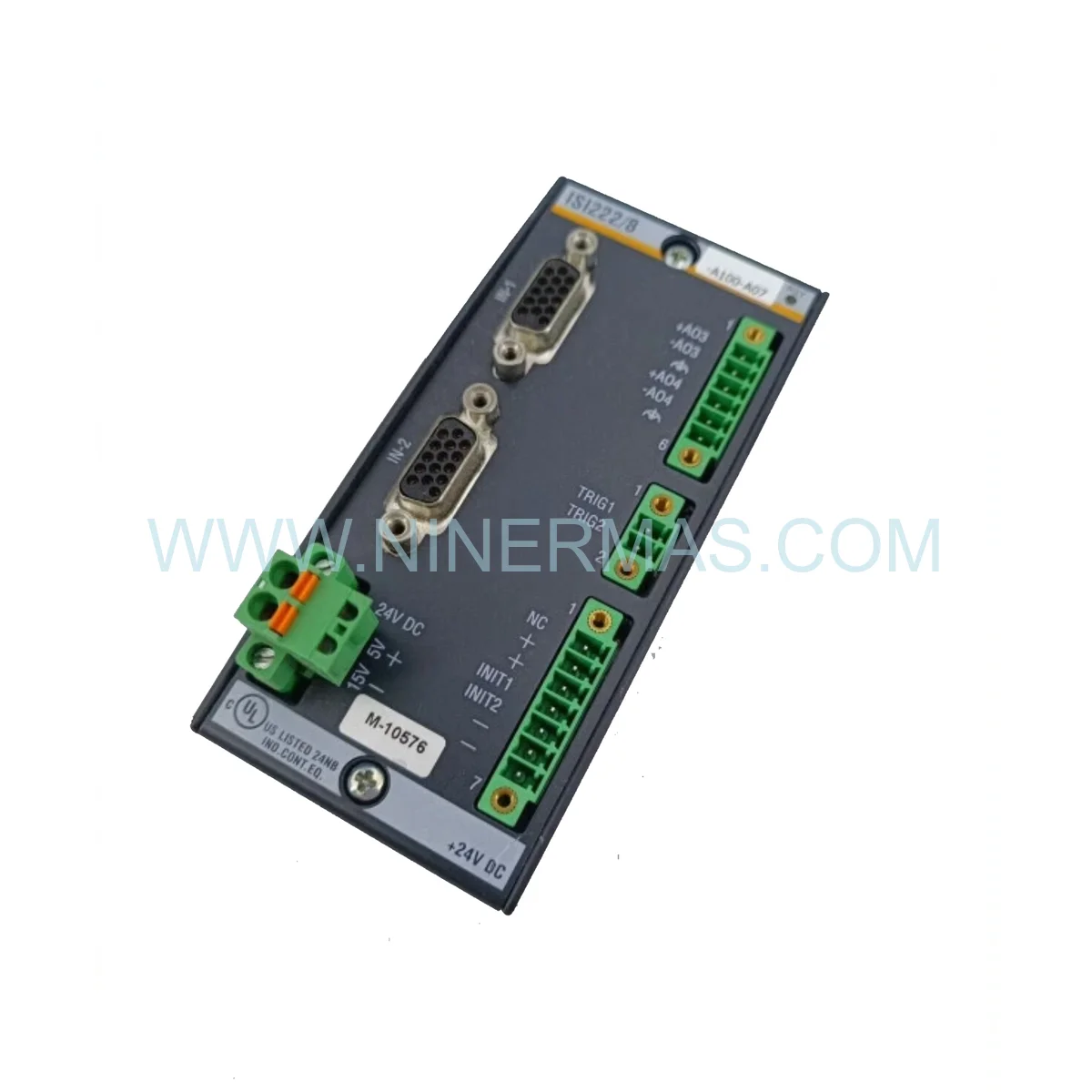

ISI222/8 Dual-Channel Encoder Interface (Industrial-Grade Motion Control)

The ISI222/8 High-Speed Positioning Module represents Bachmann's advanced solution for precision motion control applications demanding exceptional encoder processing capabilities. Featuring dual 8 MHz incremental encoder channels, 32-bit counter resolution, and integrated 14-bit analog outputs, this module delivers the performance required for high-speed CNC machining, robotic positioning, and automated production systems where accuracy and reliability are non-negotiable.

Designed for industrial environments where conventional encoder interfaces fall short, the ISI222/8 processes encoder signals at speeds up to 8 MHz per channel while maintaining signal integrity through differential input architecture. Engineers and system integrators choose this module when standard solutions cannot meet the demanding requirements of modern automation systems.

Whether you're upgrading legacy motion control systems or designing next-generation automation platforms, the ISI222/8 provides the technical foundation for precise position tracking, velocity measurement, and synchronized multi-axis control. Compatible with Bachmann M1 controller architecture, this module integrates seamlessly into comprehensive automation solutions.

Core Features & Technical Advantages

→ Dual 8 MHz Encoder Processing
Simultaneous processing of two independent incremental encoders at frequencies up to 8 MHz, enabling high-resolution position tracking for rapid motion applications including high-speed spindles, linear motors, and servo-driven axes.

→ 32-Bit Counter Architecture
Extended counter range eliminates overflow concerns in long-travel applications, supporting position tracking across unlimited distances without reset requirements—critical for continuous production lines and large-format machining centers.

✓ Flexible Evaluation Modes
Configurable 1x, 2x, 4x edge counting plus pulse-direction mode adapts to various encoder types and resolution requirements, maximizing compatibility with existing encoder infrastructure while optimizing system performance.

✓ Precision 14-Bit Analog Outputs
Dual ±10V analog outputs with 0.025% accuracy deliver smooth velocity commands to servo drives and proportional valves, with conversion times under 40 µs ensuring responsive closed-loop control.

✓ Advanced Diagnostic Capabilities
Integrated monitoring functions detect cable breaks, encoder failures, and signal quality issues before they impact production, reducing unplanned downtime through predictive maintenance capabilities.

✓ SYNC Signal Synchronization
Hardware-based synchronization coordinates multiple modules within distributed control architectures, enabling precise timing for multi-axis applications requiring coordinated motion profiles.

Typical Application Scenarios

CNC Machining Centers
High-speed spindle position monitoring and axis feedback for 5-axis machining centers require encoder processing beyond conventional module capabilities. The ISI222/8's 8 MHz input frequency handles modern servo encoders operating at extreme speeds, while 32-bit counters track position across extended travel ranges without overflow. Result: Improved surface finish quality and reduced cycle times through precise tool path execution.

Robotic Assembly Systems
Multi-axis robotic arms demand synchronized position feedback across multiple joints with microsecond-level timing accuracy. The ISI222/8 processes encoder signals from shoulder, elbow, and wrist joints simultaneously while SYNC functionality coordinates motion across the entire kinematic chain. Result: Enhanced repeatability (±0.02mm) and faster pick-and-place cycle times.

Automated Conveyor Positioning
High-speed packaging lines require precise product positioning at speeds exceeding 600 parts per minute. The module's dual-channel capability monitors both conveyor position and product registration simultaneously, while analog outputs control variable-frequency drives for smooth acceleration profiles. Result: Reduced product damage and increased throughput by 15-20%.

Web Processing Equipment
Paper, film, and textile processing machinery demands accurate tension control and registration across multiple zones. ISI222/8 tracks web position through encoder feedback while analog outputs regulate tension control systems, maintaining ±0.5mm registration accuracy at line speeds exceeding 500 m/min. Result: Minimized material waste and improved print registration quality.

Test & Measurement Systems
Dynamic testing equipment for automotive and aerospace components requires high-resolution position and velocity measurement during rapid load cycles. The module's 32-bit counters capture position data across full test sequences while 14-bit analog outputs generate precise reference signals for closed-loop control. Result: Enhanced test accuracy and compliance with ISO 17025 requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose ISI222/8 when your application requires encoder input frequencies above 1 MHz or when processing high-resolution encoders (>10,000 PPR) at speeds exceeding 6,000 RPM. For applications requiring SSI absolute encoder support, consider the standard ISI222 variant. When analog output precision is critical (servo control, proportional valves), the 14-bit resolution provides superior performance compared to 12-bit alternatives.

Extended Functions & Integration Capabilities

IoT & Industry 4.0 Integration: When paired with Bachmann MX213 or MPC240 controller modules, the ISI222/8 enables real-time position data streaming to SCADA systems, cloud analytics platforms, and MES databases via OPC UA, MQTT, or Modbus TCP protocols. Diagnostic data including encoder health metrics, signal quality indicators, and performance statistics support predictive maintenance strategies.

Advanced Motion Profiles: The module supports complex motion trajectories including S-curve acceleration, electronic camming, and synchronized multi-axis interpolation when integrated with Bachmann's motion control libraries. Position compare outputs trigger external events (laser firing, glue dispensing, marking) with <1 µs timing accuracy.

Customization Options: Factory configuration services available for application-specific encoder supply voltages, custom analog output ranges (0-10V, 4-20mA with external conversion), and specialized firmware for unique counting modes or filtering requirements. Contact our engineering team for custom solutions.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 1-2 business days via DHL/FedEx Express. Typical delivery times: Asia-Pacific 3-5 days, Europe 4-6 days, Americas 5-7 days. Expedited same-day shipping available for critical applications.

Custom Configuration: Factory-configured modules with specialized settings ship within 10-15 business days after order confirmation and specification approval.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and material issues. Extended warranty programs available for mission-critical applications.

Technical Support: Lifetime technical support includes configuration assistance, troubleshooting guidance, firmware updates, and application engineering consultation. Remote diagnostic services available via secure VPN connection.

Documentation Package: Complete technical documentation includes installation manual, programming guide, CAD drawings (STEP/DWG), wiring diagrams, and sample code libraries for IEC 61131-3 programming environments.

Frequently Asked Questions

What maximum encoder resolution can the ISI222/8 process at high speeds?
At 8 MHz input frequency with 4x edge counting, the module supports encoders up to 2 million counts per revolution. For practical applications, a 20,000 PPR encoder can be processed at speeds up to 24,000 RPM, making it suitable for high-speed spindle applications and direct-drive motors.

How does the ISI222/8 compare to standard ISI222 for incremental encoder applications?
The ISI222/8 offers 8x higher input frequency (8 MHz vs 1 MHz) but does not support SSI absolute encoders. Choose ISI222/8 for high-speed incremental applications; select standard ISI222 when absolute encoder compatibility is required or when input frequencies remain below 1 MHz.

Can the analog outputs drive servo amplifiers directly?
Yes, the ±10V analog outputs with ±2 mA drive capability are compatible with most industrial servo amplifiers and variable-frequency drives. For applications requiring 4-20mA current loop signals, external signal conditioning modules are recommended.

What cable lengths are supported for encoder connections?
Differential encoder signals support cable lengths up to 100 meters when using shielded twisted-pair cable (impedance 120Ω). For longer distances or electrically noisy environments, consider fiber-optic encoder interfaces or signal repeaters.

Is the module suitable for safety-rated motion control applications?
The ISI222/8 is designed for standard industrial automation and does not carry SIL or PLe safety ratings. For safety-critical applications requiring certified safe position monitoring, consult Bachmann's safety-rated encoder interface modules or implement redundant monitoring architectures.

How many ISI222/8 modules can be installed in a single M1 system?
Backplane capacity determines the maximum module count. A BS210 (10-slot) backplane can accommodate up to 8 ISI222/8 modules (reserving slots for controller and power supply), supporting 16 independent encoder channels in a single rack.
