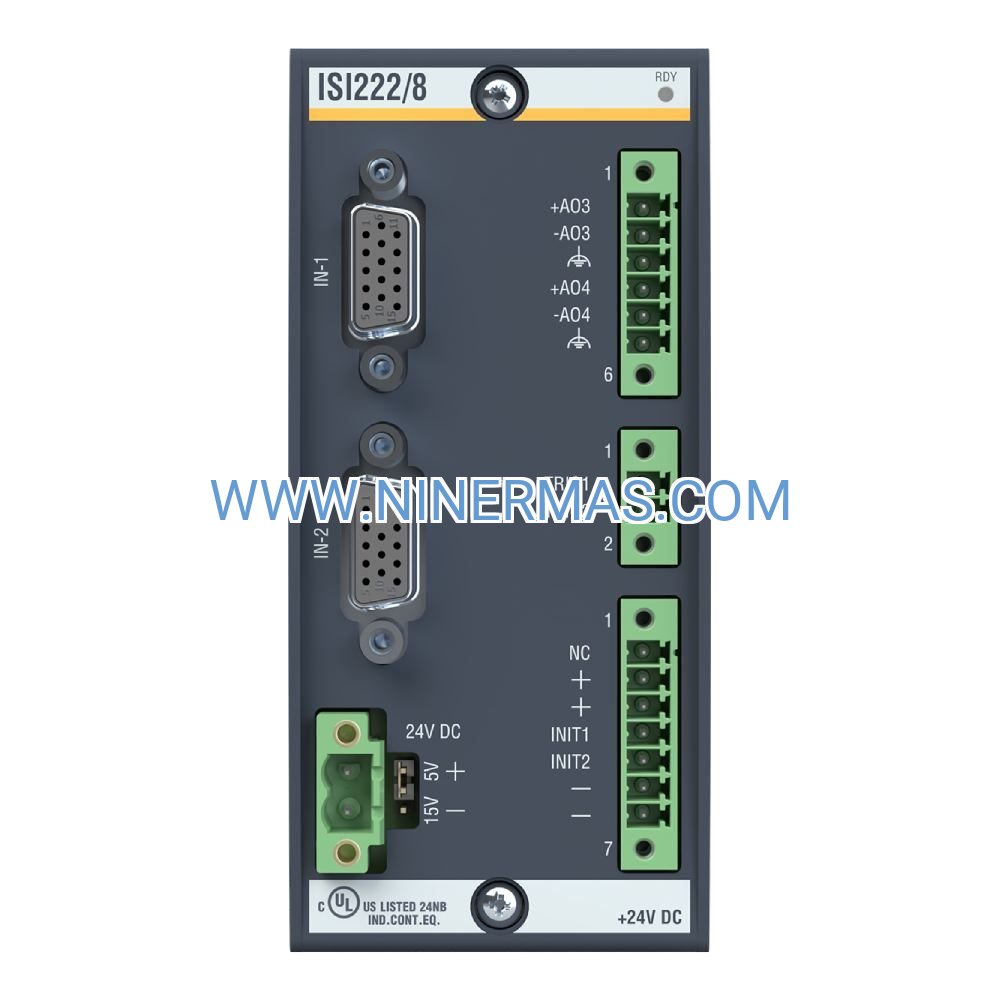

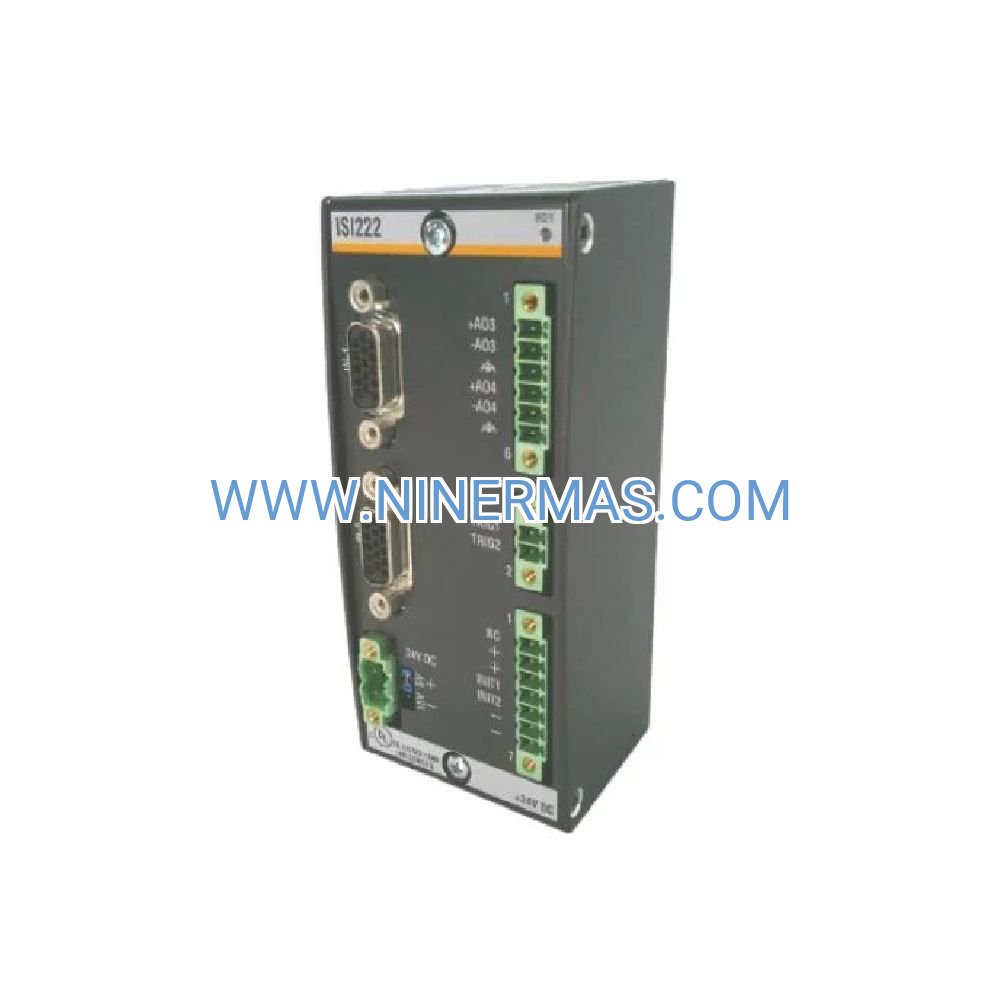

ISI222/8 Incremental Encoder Interface (Industrial-Grade Positioning Solution)

The ISI222/8 encoder interface module represents a breakthrough in precision motion feedback technology for industrial automation environments. Built on BACHMANN's proven M1 architecture, this positioning module transforms incremental encoder signals into actionable position data with 32-bit resolution and up to 1 MHz input frequency capability—delivering the accuracy and speed required for demanding servo control, material handling, and CNC applications.

Designed for automation engineers and system integrators who demand reliability in harsh manufacturing conditions, the ISI222/8 eliminates position drift and signal noise through advanced quadrature decoding and robust signal conditioning. Whether you're retrofitting legacy machinery or designing next-generation production lines, this encoder interface provides the foundation for precise, repeatable motion control across temperatures ranging from -25°C to +60°C.

With seamless M1 bus integration and DIN rail mounting, the ISI222/8 reduces installation time while ensuring long-term operational stability. From packaging equipment requiring microsecond synchronization to elevator systems where safety is paramount, this positioning module delivers industrial-grade performance backed by comprehensive technical support and a 12-month warranty.

Core Features & Benefits

✓ Ultra-High Resolution Tracking
32-bit counter architecture eliminates overflow concerns in long-travel applications, supporting position ranges up to ±2.1 billion counts. Ideal for multi-meter conveyor systems and large-format CNC machines where traditional 16-bit counters fall short.

✓ 1 MHz Input Frequency Capability
Captures encoder pulses at speeds up to 1 million counts per second, enabling precise control of high-velocity servo motors and rapid indexing systems. Maintains accuracy even during acceleration phases that challenge conventional interfaces.

✓ Intelligent Quadrature Decoding
Automatically multiplies encoder resolution by 4x through A/B phase analysis, extracting maximum precision from standard incremental encoders. Reduces hardware costs by achieving 4096 PPR performance from 1024 PPR encoders.

→ Bidirectional Counting with Index Pulse
Tracks forward and reverse motion while utilizing the N-channel index pulse for absolute reference positioning. Enables automatic homing routines and position verification without external limit switches.

→ Industrial Environmental Hardening
Operates reliably across -25°C to +60°C temperature ranges with immunity to electrical noise, vibration, and humidity. Conformal coating and robust terminal blocks ensure years of maintenance-free operation in foundries, chemical plants, and outdoor installations.

→ Plug-and-Play M1 System Integration
Hot-swappable module design with automatic bus configuration reduces commissioning time from hours to minutes. Compatible with BACHMANN MX213, MP213, and MC205 controller families for scalable automation architectures.

Typical Application Scenarios

Automated Packaging & Labeling Lines
Synchronize cutting blades, heat sealers, and label applicators with encoder-driven position control. The ISI222/8's 1 MHz capability tracks high-speed web materials at 600 meters/minute, ensuring registration accuracy within ±0.5mm. Reduces material waste by 15-20% compared to time-based control systems while enabling quick changeovers for different product sizes.

CNC Machining Centers & Robotic Cells
Provide real-time axis feedback for 3-axis mills, lathes, and 6-DOF robotic arms. The 32-bit resolution supports micron-level positioning over 2-meter travel ranges, critical for aerospace component manufacturing and precision mold making. Integrates with existing servo amplifiers through standard A/B/N signal protocols.

Material Handling Conveyors & Sortation Systems
Track product position across multi-zone conveyor networks with distributed ISI222/8 modules communicating via M1 bus. Enables dynamic gap control, merge coordination, and diverter timing for throughput rates exceeding 200 packages/minute. Eliminates photoeye proliferation and reduces wiring complexity by 40%.

Elevator & Vertical Transportation Systems
Monitor lift car position with safety-rated accuracy for passenger and freight elevators. Dual-channel redundancy options support SIL2 applications, while the index pulse provides floor-level verification. Operates reliably in elevator shafts subject to temperature fluctuations and electromagnetic interference from motor drives.

Printing & Converting Machinery
Maintain web tension and registration control in flexographic presses, slitter-rewinders, and laminating equipment. The ISI222/8's fast response time compensates for material elasticity and dancer roll dynamics, achieving color-to-color registration within 0.2mm at production speeds.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ISI222/8 when your application requires counter resolution exceeding 16-bit (65,536 counts) or input frequencies above 500 kHz. For lower-speed applications under 100 kHz, consider cost-optimized alternatives. Verify encoder output type (TTL vs. HTL) matches module input specifications. For absolute position retention during power loss, pair with battery-backed controller memory or upgrade to absolute encoder systems.

Extended Functions

Preset & Latch Capabilities
Programmable preset values enable automatic counter initialization at index pulse detection or external trigger events. Hardware latch inputs capture position snapshots with <1μs latency for high-speed measurement applications like flying shear cutting or on-the-fly product inspection.

IoT & Industry 4.0 Integration
When paired with BACHMANN MX213 web-enabled controllers, position data streams to SCADA systems, cloud analytics platforms, and mobile dashboards via OPC UA, MQTT, or RESTful APIs. Enables predictive maintenance through vibration analysis derived from encoder signal quality metrics.

Customization Options
Factory configuration services available for specialized signal conditioning, custom firmware for proprietary encoder protocols, and extended temperature variants (-40°C to +70°C) for extreme environments. Consult with our application engineers for project-specific requirements.

Delivery & Service Assurance

Lead Time: Standard ISI222/8 modules ship within 3-5 business days from our regional distribution centers. Custom-configured units require 2-3 weeks for factory programming and testing. Express shipping options available for critical downtime situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials, workmanship, and performance specifications. Extended warranty programs available for mission-critical applications requiring 3-year or 5-year coverage.

Technical Support: Unlimited access to our automation specialists for application design, troubleshooting, and optimization guidance. Support channels include email, phone, and remote desktop assistance. Average response time: <4 hours during business hours.

Documentation Package: Each module includes installation manual, wiring diagrams, M1 bus configuration guide, and sample PLC code for common positioning routines. CAD models (STEP, DXF) and EPLAN macros available for download.

Frequently Asked Questions

How do I select the correct encoder resolution for my ISI222/8 application?
Calculate required positioning accuracy by dividing total travel distance by 32-bit counter range (4.29 billion counts in quadrature mode). For example, a 10-meter conveyor requiring 0.1mm accuracy needs minimum 100,000 counts, easily achieved with a 1024 PPR encoder in 4x mode (4096 counts/rev) and appropriate gearing.

What cable specifications ensure reliable signal transmission to the encoder interface?
Use shielded twisted-pair cable with 120Ω characteristic impedance for differential signals. Maximum cable length: 100 meters at frequencies up to 100 kHz, reduced to 30 meters for 1 MHz operation. Ground shield at module end only to prevent ground loops. Avoid routing encoder cables parallel to motor power cables.

Can the ISI222/8 interface with third-party controllers outside the BACHMANN ecosystem?
While optimized for M1 bus systems, position data can be mapped to Modbus TCP, PROFINET, or EtherNet/IP networks using BACHMANN gateway modules. For standalone operation, consider encoder interfaces with native fieldbus support or universal counter modules with multiple protocol options.

Does this positioning module support safety-rated applications per ISO 13849?
The standard ISI222/8 is designed for non-safety control functions. For SIL2/PLd applications requiring redundant position monitoring, specify the ISI222/8-S variant with dual-channel architecture and diagnostic coverage >90%. Consult safety application notes for proper implementation.

What diagnostic features help troubleshoot encoder signal issues?
Built-in LED indicators display power status, communication health, and signal validity. Software diagnostics accessible via M1 bus report A/B phase relationship errors, missing index pulses, and frequency overruns. Oscilloscope test points on terminal blocks enable real-time signal quality verification.

How does the module handle encoder signals during power-up or controller resets?
Position counters retain values during brief power interruptions (<50ms) via onboard capacitors. For longer outages, implement homing routines using the index pulse or external reference switches. Battery-backed controller memory preserves last known position for seamless recovery after planned shutdowns.

Get Precision Motion Control Today

Transform your automation system with the ISI222/8 encoder interface—engineered for accuracy, built for reliability, and backed by expert support. Whether you're upgrading legacy equipment or designing cutting-edge production lines, our team provides the technical guidance and rapid delivery you need to keep projects on schedule.

Request a quote now or contact our automation specialists to discuss your positioning requirements. Volume discounts available for OEMs and system integrators.
